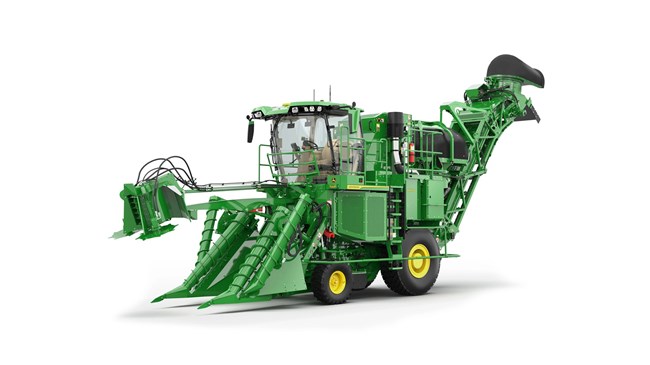

John Deere CH750 Wheel

New Products / John Deere / John Deere Products / Harvesting / Sugar Cane Harvesters / CH750 Wheel

Double tap to zoom



Features

Harvest More Sugar with Every Pass

Green agricultural harvester cutting tall sugarcane beside a green tractor in a field, with chopped cane on the ground and a clear blue sky in the background

Sugar harvest is about maximizing recovery while protecting crop quality. John Deere sugar harvesters are designed to efficiently lift, clean, and process crop in a single pass - helping reduce losses, protect sugar content, and deliver consistent results across varying field conditions so you can capture more value from every acre.

Keep Harvest Moving in Demanding Conditions

Operator seated inside a farm machine cab, using controls and screens while harvesting sugarcane; green equipment and tall cane visible through the windows under a clear sky

Tight harvest windows and changing field conditions can quickly slow progress. John Deere sugar harvesting solutions are built for reliable performance, helping maintain throughput and reduce downtime so you can stay on schedule, cover more acres each day, and complete harvest when timing is critical to overall crop quality.

Turn Harvest Performance into Better Decisions

Person working at a desk using a keyboard and mouse while viewing a large monitor displaying a detailed map interface; a laptop and desk lamp sit nearby in a bright workspace

Harvest doesn’t end when the crop leaves the field. With integrated technology and connected data, John Deere sugar harvesters help you track performance, monitor output, and identify opportunities to improve efficiency. Turn field performance into actionable insight to optimize operations and strengthen results season after season.

Specifications

Cab And Controls

Air ConditioningPressurized cab with air conditioning and heating
Front Tipping CabManual hydraulic pump operation
SeatAir suspension with swivel
RadioStandard premium with Bluetooth®
GPS GuidanceAutoTrac™ ready standard
ConnectivityJDLink™ Ready

Chopper

DriveStandard - Pump common with chopper, hydrostatic, reversible. Available with engine option 251.3 cm / 337 hp; Optional - Includes high efficiency hydraulics and independent circuits for basecutter and chopper, hydrostatic, reversible. Available with engine option 279.6 cm / 375 hp
Drum Center Distance15 in.
Drum Center Distance38.1 cm
Bearing LocationExternal
Blade Width3.74 in.
Blade Width9.5 cm
Blade Configuration - Option 1Eight blade (four per drum), differential
Blade Configuration - Option 2Ten blade (five per drum), DuraSync
Blade Configuration - Option 3Eight blade (four per drum), DuraSync

Elevator

Chain AdjustmentGrease cylinder
Sprocket DriveHydraulic motor driven, reversible
Width34.2 in.
Width86.9 cm
Elevator SwingHydraulic controlled, trunnion cylinders
Total Swing Angle170 degree (angle)
Shock AbsorptionNitrogen accumulator
Optional Elevator Extension12 / 24 in.
Optional Elevator Extension30.5 / 61 cm

Transmission

TypeTwo hydrostatic pumps providing variable speed
Wheel Machine Top Speed (Dependent on Tire/Hydraulic System Option)0-5.6 mph
Wheel Machine Top Speed (Dependent on Tire/Hydraulic System Option)0-9 km/h

Wheels

Standard Tires - Front360/70R17.5 AT (Radial)
Standard Tires - Rear23.5 by 25 (20-ply) industrial tire with agricultural lug tread pattern
Optional Tires - Front360/70R17.5 AT (Radial)
Optional Tires - Rear23.5R25 XTLA (Radial) industrial tire with loader tread pattern
Tread Width - Front6.83 ft
Tread Width - Front2.08 m
Tread Width - Rear6.17 ft
Tread Width - Rear1.88 m

Engine

Engine MakeJohn Deere PowerTech Plus 9.0 L
Emission CertificationAvailable Tier 3 and Tier 4 to meet destination country regulations
Standard Power At 2100 RPM337 hp
Standard Power At 2100 RPM251 kW
Standard Power At 2100 RPM342 cv
Standard Power At 2000 RPM350 hp
Standard Power At 2000 RPM261 kW
Standard Power At 2000 RPM355 cv
Optional Power at 1900 RPM375 hp
Optional Power at 1900 RPM280 kW
Optional Power at 1900 RPM380 cv
Optional Power at 1700 RPM400 hp
Optional Power at 1700 RPM298 kW
Optional Power at 1700 RPM405 cv
CylindersInline six, wet sleeves
Displacement548 cu in.
Injection PumpElectronically controlled
AspirationTurbocharger with air-to-air aftercooling
Engine Speeds - Low Idle850 rpm
Engine Speeds - Field CruiseManually adjustable from 1,900 to 2,200 rpm
Engine Speeds - Full Throttle2210 rpm
Engine Speeds - Auto Field CruiseEngine speed adjusts to load automatically between 2,000 and 2,210 rpm
Alternator200 amp
Alternator12 V
Displacement9 L

Primary Extractor

Fan DriveHydrostatic, variable speed
Fan Diameter5 ft
Fan Diameter1.5 m
Number Of Fan Blades4
Hood RotationHydraulic controlled
Wear RingStandard - Abrasive resistant steel; Optional - Duraliner (Vidaplate) steel

Cooling System

Cooling System TypeAutomatically controlled, hydraulically driven reversing cooling fan

Knockdown Rollers

DriveHydraulic, reversible drive
Manual Height AdjustmentStandard
Hydraulic Height AdjustmentOptional on front

Weight

Machine Weight (May Vary With Options)46200 lb.
Machine Weight (May Vary With Options)21000 kg

Capacities

Fuel Capacity160 gal.
Fuel Capacity605 L
Hydraulic Oil Capacity106 gal.
Hydraulic Oil Capacity405 L

Buttlifter

DriveHydraulic, reversible drive
TypeStandard - three paddle closed; Optional - four bar open

Additional Information

Date Collected2026-05-01

Crop Dividers

ScrollsOutside and inside scrolls standard
DriveHydraulic, reversible
Inside Scrolls Approach Angle46 degree (angle)
Factory Hard SurfacingSkirts, slip-on shoes, toes
Crop Divider Float ControlOptional automatic float control
Tilt ControlMechanical tilt control standard, optional hydraulic control
Side KnivesOptional side knives include hydraulic height control

Basecutter

DriveTwo disc, high drive
LegsBolt-on wear plates, optional breakaway legs
Standard DrivePump common with chopper, hydrostatic, reversible; available with engine option 337 hp (251.3 kW)
Optional DriveIncludes high efficiency hydraulics and independent circuits for basecutter and chopper, hydrostatic, reversible; available with engine option 375 hp (279.6 kW)
Standard Disc Diameter (With Hard Surfacing)24 in.
Standard Disc Diameter (With Hard Surfacing)61 cm
Optional Disc Diameter (With Hard Surfacing)22 in.
Optional Disc Diameter (With Hard Surfacing)56 cm
Center Distance24.8 in.
Center Distance63 cm
Number Of Blades Per Disc5

Topper

DriveHydraulic, reversible drive
Shock AbsorptionNitrogen accumulator
Maximum Whole Topper Reach17 ft
Maximum Whole Topper Reach5.2 m
Whole TopperStandard eight blade single cut
Shredder TopperOptional 38 blade residue management shredder
Extended Width Whole Topper - Overall7.75 ft
Extended Width Whole Topper - Overall2.4 m
Extended Width Whole Topper - Compared To On Standard Topper5.95 ft
Extended Width Whole Topper - Compared To On Standard Topper1.8 m

Feedrollers

DriveHydraulic, reversible drive
Number Of Rollers10
Bearing LocationExternal

Optional Secondary Extractor

Hood RotationHydraulic controlled, 360 degree (angle)
Bin Flap PositionHydraulic controlled

Brakes

ParkingMultiple wet disc, spring applied hydraulic released

Lights

StandardEight lights on cab including four LED. Four auxiliary halogen lights
OptionalEight lights on cab including four LED. Four auxiliary LED lights and one topper boom LED light
CabAutomatic ingress/egress, interior lighting
ServiceTopper boom, service compartments
