Features

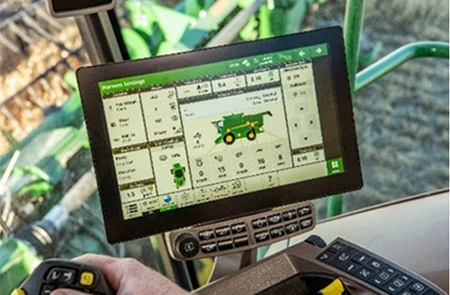

Easy-to-Use G5ᴾˡᵘˢ CommandCenter™ Display Shows All Important Harvest Data
The G5ᴾˡᵘˢ CommandCenter™ is the main display system, offering a 12.8-in. (32.5-cm) touchscreen that provides customizable harvest and diagnostic information. It improves operator efficiency with intuitive navigation, 10% fewer button presses than the previous design, and shortcut keys for quick access to key functions.
Ground Speed Automation Dynamically Adjusts Combine
Ground speed automation actively adjusts a combine’s speed during harvest by analyzing terrain, previous coverage, grain loss, engine power, header height, and operator-defined speed limits. This system shifts the focus from fixed-speed harvesting to maintaining consistent crop throughput, allowing operators to concentrate on other harvesting tasks.

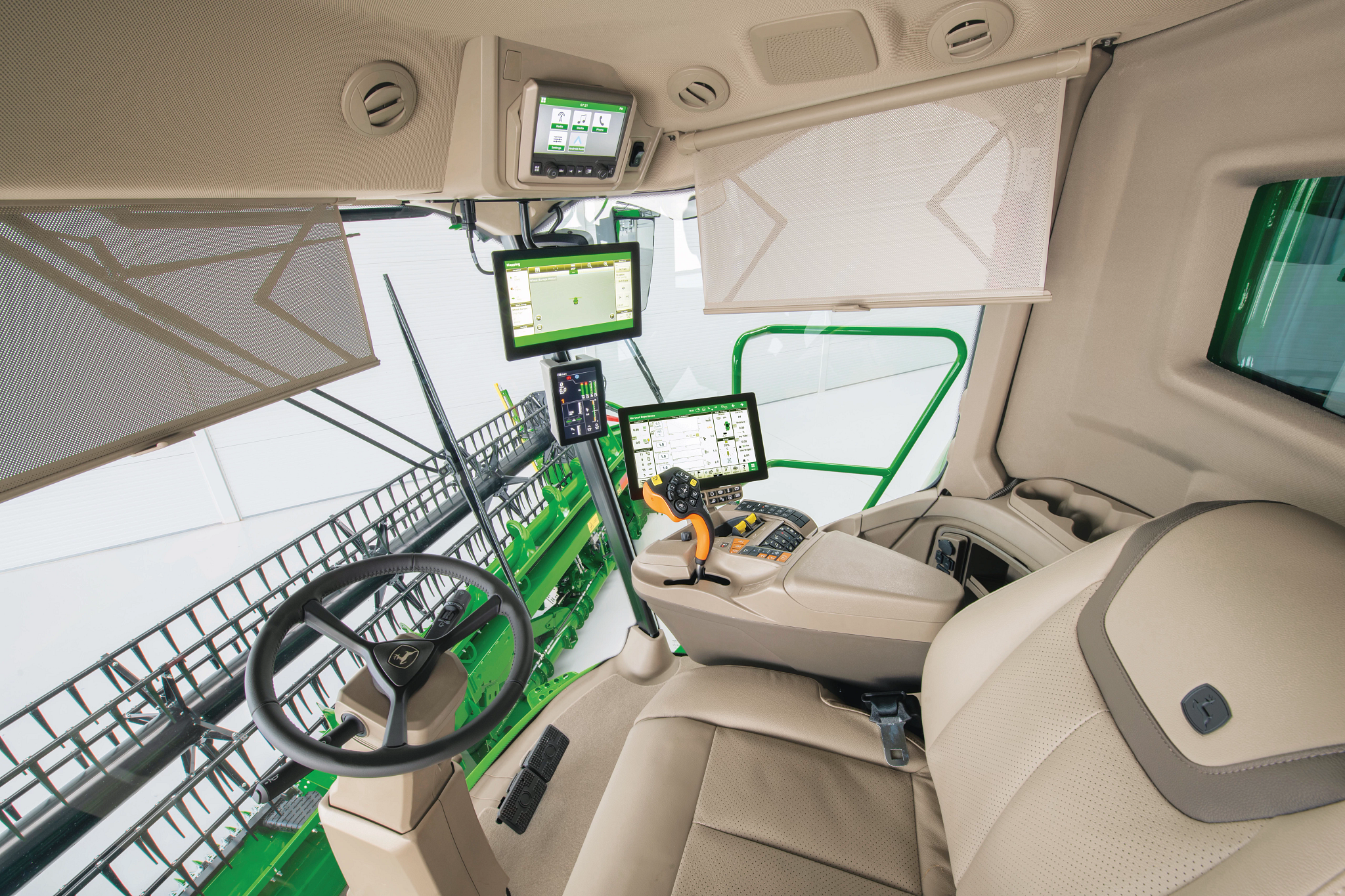

A New Level of Luxury in the Ultimate Comfort and Convenience Package
The seat features 16-degree swivel, electronic adjustments, heating, cooling, massage, and pneumatic lumbar support for comfort during long harvests. The cab includes a 6.5-in. (16.5-cm) touchscreen radio with Apple CarPlay® and Android Auto™, a door cinch for easy sealing, floor vents for climate control, and ample storage with five cup holders.
Specifications
Cleaning
| Chaffer Area | 28.3 sq ft |
| Chaffer Area | 2.63 m² |
| Sieve Area | 24.4 sq ft |
| Sieve Area | 2.27 m² |
| Total Cleaning Area (Louvered) | 52.74 sq ft |
| Total Cleaning Area (Louvered) | 4.9 m² |
| Total Cleaning Area (Including Finger Rakes) | 59.2 sq ft |
| Total Cleaning Area (Including Finger Rakes) | 5.5 m² |
| Cleaning Fan Speed - Minimum | 550 rpm |
| Cleaning Fan Speed - Maximum | 1350 rpm |
Engine
| Engine Make | John Deere JD9X |
| Engine Model | JD9X |
| Emissions Certifications | Stage V |
| Rated Engine Speed | 2200 rpm |
| Rated Engine Power | 402 hp |
| Rated Engine Power | 300 kW |
| Rated Engine Power | 408 PS |
| Maximum Engine Power | 460 hp |
| Maximum Engine Power | 343 kW |
| Maximum Engine Power | 466 PS |
| Power Boost @ Rated Speed | 34 hp |
| Power Boost @ Rated Speed | 25 kW |
| Power Boost @ Rated Speed | 34 PS |
Threshing / Separating
| Separator Type | Multi-Drum Walker |
| Concave Area | 14.5 sq ft |
| Concave Area | 1.35 m² |
| Separating Area | 43.05 sq ft |
| Separating Area | 4 m² |
| Separator Drum Diameter | 31.5 in. |
| Separator Drum Diameter | 80 cm |
| Separator Drum Speed - Minimum | 380 rpm |
| Separator Drum Speed - Maximum | 760 rpm |
| Threshing Cylinder Speed - Minimum | 450 rpm |
| Threshing Cylinder Speed - Maximum | 990 rpm |
| Channel Width | 65.7 in. |
| Channel Width | 167 cm |
| Threshing Cylinder Diameter | 26 in. |
| Threshing Cylinder Diameter | 66 cm |
Grain Handling
| Grain Tank Size | 312 bu |
| Grain Tank Size | 11000 L |
| Unloading Auger Length | 18.5 ft |
| Unloading Auger Length | 5.6 m |
| Peak Unloading Rate | 4.3 bu/sec |
| Peak Unloading Rate | 150 L/s |
Capacities
| Fuel Tank Capacity | 211 gal. |
| Fuel Tank Capacity | 800 L |
Feeding
| Feeding Drive Type | Fixed |
| Conveyor Chain Slat Type | Heavy-duty chain |
| Feeding Length | 72.8 in. |
| Feeding Length | 185 cm |
| Feed Accelerator, Stone Trap (FAST) | Standard |
| Feed Accelerator, Stone Trap (FAST) - Reverser | 79 hp / 59 kW |
Additional Information
| Country of Manufacture | Zweibrücken, Germany |
| Date Collected | 2024-06-28 |
