John Deere S7 600
S7 600
Combines
Overview:
Even across changing conditions and crop variables, the S7 delivers reliable harvesting performance with consistent grain handling and efficient crop flow - helping you cover more acres while maintaining productivity.
- More Space, More Comfort, and More Visibility, With the Same Cab as the X9
- Integrated G5ᴾˡᵘˢ CommandCenter™ Display, StarFire™ Receiver and JDLink™ Modem
- Available Predictive Ground Speed and Harvest Settings Automation
- Next Generation John Deere JD9 9L Engine With New L40 Control System to Deliver Advanced Diagnostics
Get A Quote
Fields with asterisks* are required. Please email our helpful staff with any questions or comments using the contact form.
Loan Calculator
Use the Loan Calculator to help you determine the financing and payment options that are best for you.
**The accuracy of this calculator and its applicability to your circumstances is not guaranteed. You should obtain personal advice from qualified professionals. This information is provided for illustrative purposes only and does not constitute an application. This notice does not guarantee loan approval, nor is it an offer or commitment to make a loan to you on the above terms.
Send To A Friend
Fields with asterisks* are required. Your friend will receive an email that contains a reference to this page. Please send this email only to people you know who would be interested in this information.
Share This Product:
Features
High-Capacity Harvesting in Corn and Beans

The TriStream™ rotor reduces material movement force by up to 20% for better fuel efficiency, while the Dyna-Flo™ Plus cleaning shoe boosts corn capacity by 10% through a two-stage pre-cleaning system and larger sieve.
Raise Your Capacity in Tough Small Grains or Rice

John Deere S7 Combines boost productivity in tough crops with four key technologies, including a variable-stream rotor that improves straw quality and fuel efficiency. The Dyna-Flo™ Plus cleaning shoe increases capacity by 14% in wheat and canola, while Active Concave Isolation adds 10% more harvesting power in harsh conditions.
Spend More Time Harvesting in Tough Conditions

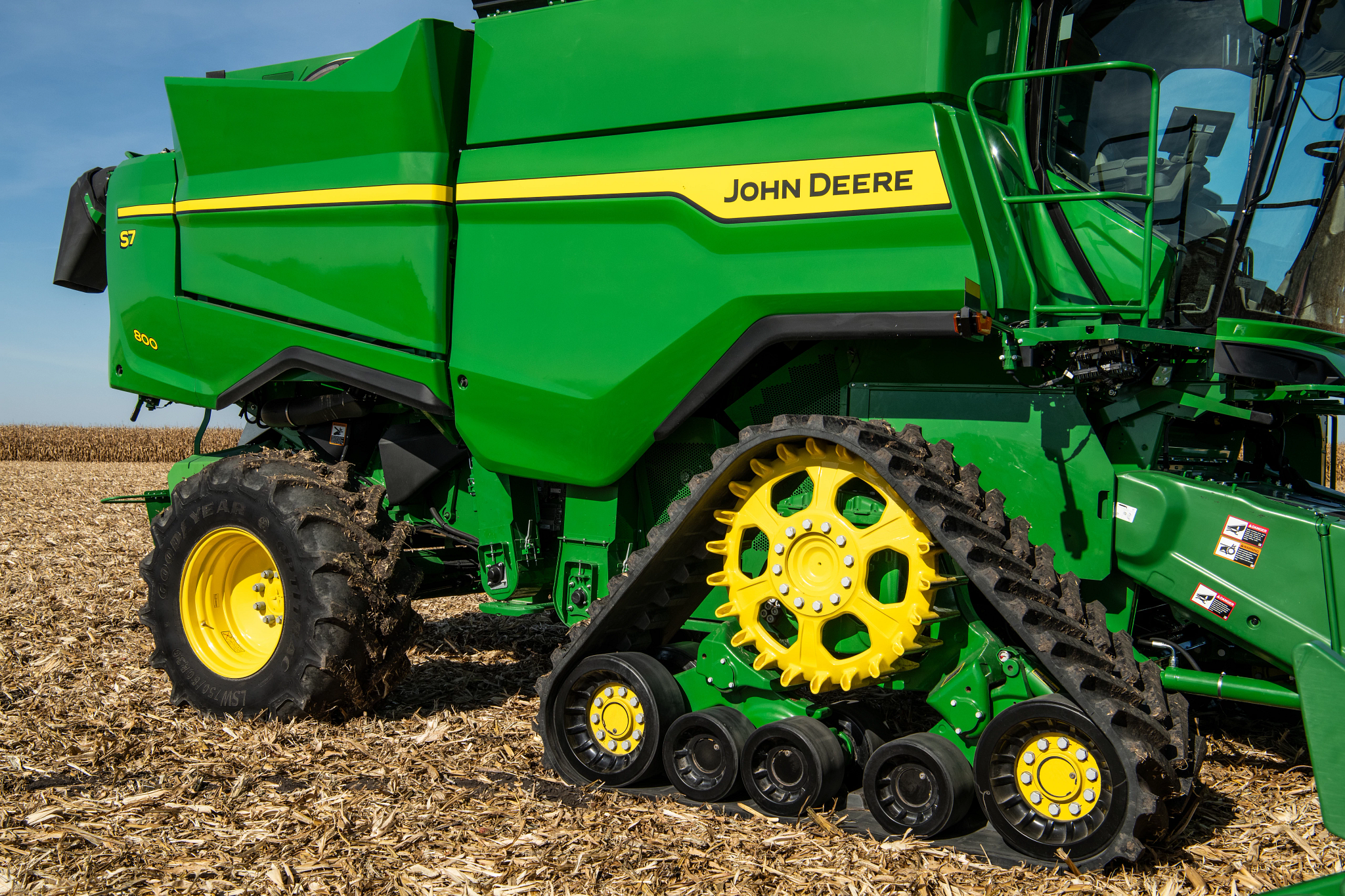

John Deere S7 Series Combines boost productivity with tracks that enable speeds up to 25 mph (40 km/h) and a ProDrive™ system that shifts between field and transport modes at the push of a button. The two-speed 4WD enhances traction in tough conditions, while the suspended track system improves ride comfort and reduces compaction.
Specifications
Cleaning
| Front Chaffer | 5.4 sq ft |
| Front Chaffer | 0.5 m² |
| Chaffer Area | 26.9 sq ft |
| Chaffer Area | 2.5 m² |
| Sieve Area | 22.6 sq ft |
| Sieve Area | 2.1 m² |
| Total Cleaning Area (Louvered) | 54.9 sq ft |
| Total Cleaning Area (Louvered) | 5.1 m² |
| Cleaning Fan Speed - Minimum | 620 rpm |
| Cleaning Fan Speed - Maximum | 1350 rpm |
Threshing / Separating
| Separator Type | Rotary |
| Rotor Length | 123 in. |
| Rotor Length | 312 cm |
| Rotor Diameter | 30 in. |
| Rotor Diameter | 76.2 cm |
| Rotor Speed Range - Low | 210-550 rpm |
| Rotor Speed Range - High | 400-1000 rpm |
| Concave Area | 11.8 sq ft |
| Concave Area | 1.1 m² |
| Separating Area | 16.6 sq ft |
| Separating Area | 1.54 m² |
| Discharge Grate Area | 3.9 sq ft |
| Discharge Grate Area | 0.36 m² |
Dimensions & Weights
| Front Axle Weight | 21737 lb. |
| Front Axle Weight | 9858 kg |
| Base Machine Weight | 43006 lb. |
| Base Machine Weight | 19504 kg |
Engine
| Engine Make | John Deere JD9 9.0 L |
| Emissions Certifications | Final Tier 4 / Tier 3 (Australia/New Zealand) |
| Rated Engine Speed | 2200 rpm |
| Rated Engine Power | 333 hp |
| Rated Engine Power | 249 kW |
| Rated Engine Power | 338 PS |
| Maximum Engine Power | 382 hp |
| Maximum Engine Power | 285 kW |
| Maximum Engine Power | 387 PS |
| Power Boost @ Rated Speed | 34 hp |
| Power Boost @ Rated Speed | 25 kW |
| Power Boost @ Rated Speed | 34 PS |
Grain Handling
| Grain Tank Size | 300 bu |
| Grain Tank Size | 10600 L |
| Unloading Auger Length | 22.5, 26 or 28.5 ft |
| Unloading Auger Length | 6.9, 7.9 or 8.7 m |
| Peak Unloading Rate | 3.6 bu/sec |
| Peak Unloading Rate | 127 L/s |
Capacities
| Fuel Tank Capacity | 250 gal. |
| Fuel Tank Capacity | 950 L |
Feeding
| Feeding Drive Type | Fixed or variable |
| Conveyor Chain Slat Type | Four-strand chain with formed steel slats |
| Feeding Width | 55 in. |
| Feeding Width | 139.7 cm |
| Feeding Length | 67.9 in. |
| Feeding Length | 172.5 cm |
| Feed Accelerator, Stone Trap (FAST) | Standard |
| Feed Accelerator, Stone Trap (FAST) - Reverser | Standard |
Additional Information
| Country of Manufacture | USA, East Moline, Illinois |
| Date Collected | 2023-11-14 |
