Features

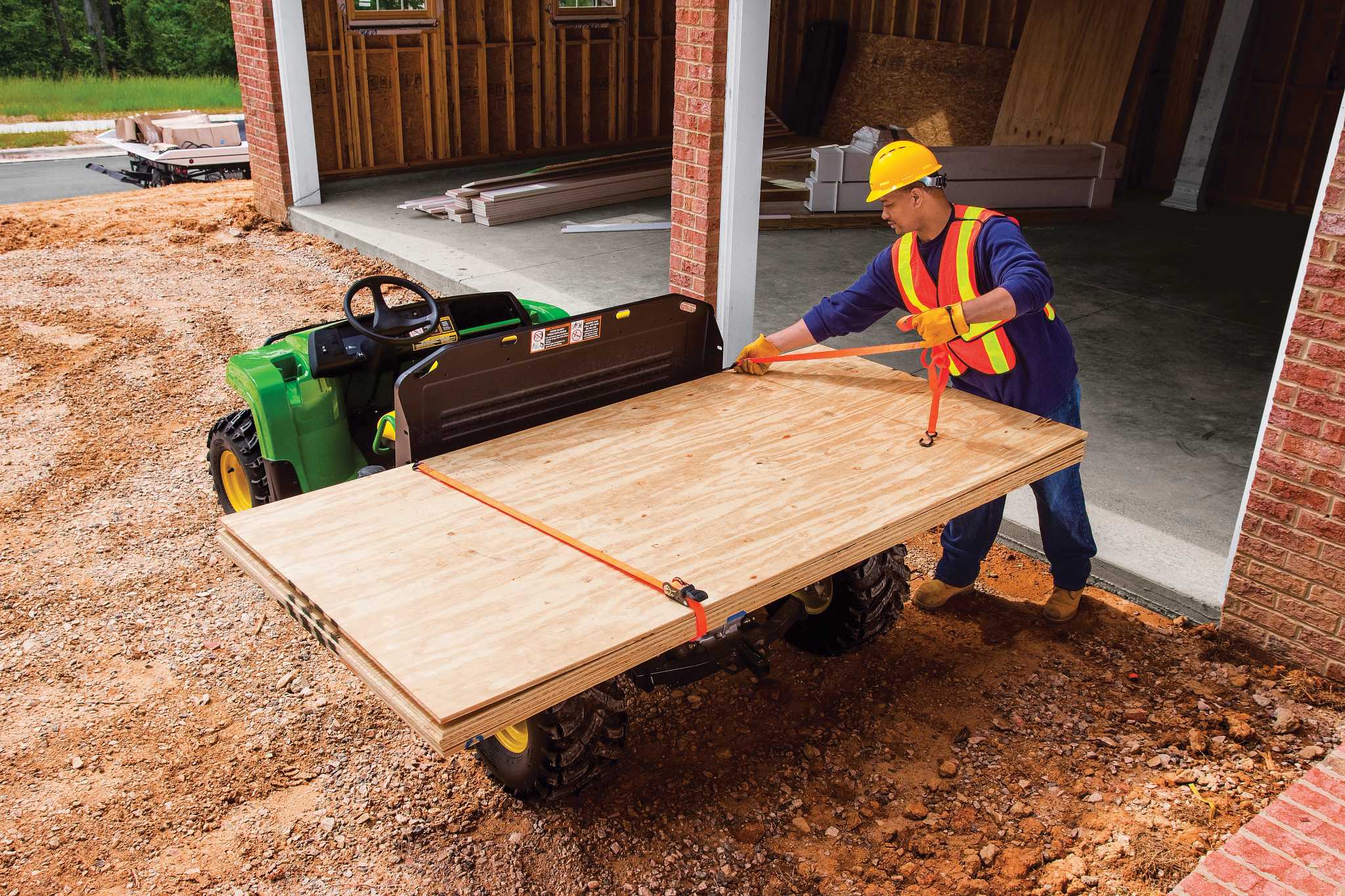

Haul More in Fewer Trips
Haul up to 600 lb. (272 kg) in the 16.4-cu ft (460-L) cargo box, which can be converted to a flatbed to haul irregular cargo. An optional power lift raises the cargo box with the press of a button. Tow up to 1000 lb. (454 kg) with the included receiver hitch.
Walk-Through Platform Provides Easy Entry and Exit
A walk‑through platform provides easy access to side‑by‑side bucket seating, with shift and differential lock levers conveniently located between the seats. Standard features include an hour meter, cup holders, a tank‑mounted fuel gauge, and a large glove box for convenient tool storage. A dash‑mounted 12‑V outlet is available on select models.
Optional JDLink™ Modem Connects to John Deere Operations Center™
Install JDLink™ modems and use John Deere Operations Center™ to stay connected to your fleet. The modems report each vehicle's location, speed, and engine hours, enabling Operations Center to send an alert when a vehicle leaves a selected area, is operated outside prescribed times, or when maintenance is needed. Use the Machine Analyzer tool to review usage data and identify causes of low productivity.
Specifications
Dimensions/Capacities
| Wheelbase | 1955.8 mm |
| Wheelbase | 77 in. |
| Weight | 501 kg |
| Weight | 1105 lb. |
| Length | 2745.7 mm |
| Length | 108.1 in. |
| Width | 1525 mm |
| Width | 60 in. |
| Height | 1108 mm |
| Height | 43.6 in. |
| Tread Centers - Front | 1270 mm |
| Tread Centers - Front | 50 in. |
| Tread Centers - Rear | 1220 mm |
| Tread Centers - Rear | 48 in. |
| Ground Clearance | 145 mm |
| Ground Clearance | 5.7 in. |
| Fuel Capacity | 18.9 L |
| Fuel Capacity | 5 U.S. gal. |
| Cargo Box Dimensions | 1143 x 305 x 1320 mm |
| Cargo Box Dimensions | 45 x 12 x 52 in. |
| Cargo Box Capacity (Weight) | 272 kg |
| Cargo Box Capacity (Weight) | 600 lb. |
| Payload Capacity | 454 kg |
| Payload Capacity | 1000 lb. |
| Towing Capacity | 454 kg |
| Towing Capacity | 1000 lb. |
| Hitch | Standard: receiver hitch, 5.1 cm 2 in. |
Features
| Color | Green/yellow |
| Power Steering | No |
| Battery | 340 CCA |
| Battery | 12 V |
| Alternator | 16.6 amp |
| Power Port - DC Outlet | 12 V |
| Instrumentation | Fuel gauge, hour meter |
| Storage | Cup holders, glove box |
| Seating | Bucket seats |
Brakes
| Type | All-wheel hydraulic disc |
| Park Brake | Rear mechanical disk, hand operated |
Engine
| Engine Type | Four-cycle gas |
| Displacement | 41.2 cu in. |
| Displacement | 675 cc |
| Engine Power | 11.6 kW |
| Engine Power | 15.5 hp |
| Cooling System | Air |
Tires/Wheels
| Front | Two 22x9.5-10 4PR all-terrain on steel wheels Two 22x9.5-10 4PR turf on steel wheels |
| Rear | Two 24x10.5-10 4PR all-terrain on steel wheels Two 24x12-10 4PR turf on steel wheels |
Additional Information
| Country Of Manufacture | U.S. |
| Date Collected | 06/08/2025 11:12:00 |
Suspension
| Front Suspension | Independent spring-over-shock, single A-arm |
| Rear Suspension | Semi-independent coil over shock (COS) system |
Drivetrain
| Transmission | Continuously Variable Transmission (CVT) |
| Final Drive | Fully enclosed; oil bath |
| Four Wheel Drive | No |
| Traction Assist | Mechanically activated differential lock |
| Descent Control | No |
