Features
Haul More in Fewer Trips

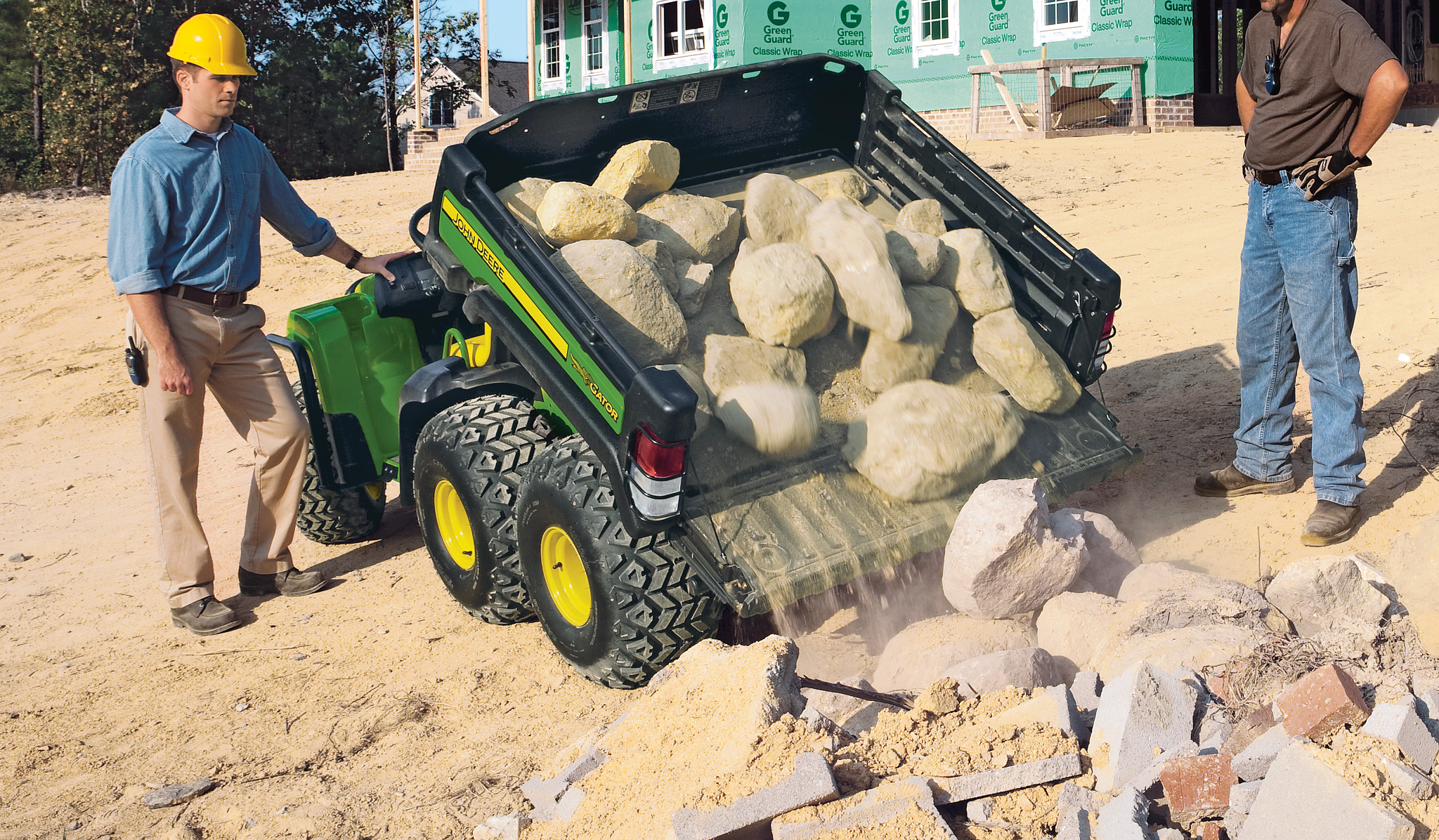

Haul up to 1200 lb. (550 kg) in the 16.4-cu ft (460-L) cargo box, which can be converted to a flatbed to haul irregular cargo. An optional power lift raises the cargo box with the press of a button. Tow up to 1400 lb. (635 kg) with an optional receiver hitch.
Walk-Through Platform Provides Easy Entry and Exit
A walk‑through platform provides easy access to side‑by‑side bucket seating, with shift and differential lock levers conveniently located between the seats. Standard features include an hour meter, cup holders, a tank‑mounted fuel gauge, and a large glove box for convenient tool storage. A dash‑mounted 12‑V outlet is available on select models.
Optional JDLink™ Modem Connects to John Deere Operations Center™
Install JDLink™ modems and use John Deere Operations Center™ to stay connected to your fleet. The modems report each vehicle's location, speed, and engine hours, enabling Operations Center to send an alert when a vehicle leaves a selected area, is operated outside prescribed times, or when maintenance is needed. Use the Machine Analyzer tool to review usage data and identify causes of low productivity.
Specifications
Dimensions/Capacities
| Wheelbase | 2006 mm |
| Wheelbase | 79 in. |
| Weight | 630 kg |
| Weight | 1389 lb. |
| Length | 2769 mm |
| Length | 109 in. |
| Width | 1525 mm |
| Width | 60 in. |
| Height | 1108 mm |
| Height | 43.6 in. |
| Tread Centers - Front | 1270 mm |
| Tread Centers - Front | 50 in. |
| Tread Centers - Rear | 1220 mm |
| Tread Centers - Rear | 48 in. |
| Ground Clearance | 163 mm |
| Ground Clearance | 6.4 in. |
| Fuel Capacity | 18.9 L |
| Fuel Capacity | 5 U.S. gal. |
| Cargo Box Dimensions | 1143 x 305 x 1320 mm |
| Cargo Box Dimensions | 45 x 12 x 52 in. |
| Cargo Box Capacity (Weight) | 544 kg |
| Cargo Box Capacity (Weight) | 1200 lb. |
| Payload Capacity | 726 kg |
| Payload Capacity | 1600 lb. |
| Towing Capacity | 635 kg |
| Towing Capacity | 1400 lb. |
| Hitch | Optional: 3.175 cm 1.25 in. |
Features
| Color | Green/yellow |
| Power Steering | No |
| Battery | 340 CCA |
| Battery | 12 V |
| Alternator | 40 amp |
| Power Port - DC Outlet | 12 V |
| Instrumentation | Fuel gauge, hour meter |
| Storage | Cup holders, glove box |
| Seating | Bucket seats |
Brakes
| Type | Wet disk in transaxle |
| Park Brake | Wet disk, hand operated |
Engine
| Engine Type | 3-cylinder, four-cycle diesel |
| Displacement | 52.1 cu in. |
| Displacement | 854 cc |
| Engine Power | 13.6 kW |
| Engine Power | 18.2 hp |
| Cooling System | Liquid |
Tires/Wheels
| Front | Two 22.5x10-8 4PR all-terrain on steel wheels Two 22.5x10-8 4PR turf on steel wheels |
| Rear | Four 25x13-9 4PR all-terrain on steel wheels Four 25x12-9 4PR turf on steel wheels |
Additional Information
| Country Of Manufacture | U.S. |
| Date Collected | 06/08/2025 11:13:00 |
Suspension
| Front Suspension | Independent spring-over-shock, single A-arm |
| Rear Suspension | Two high-floatation, low pressure tires (solid axles) |
Drivetrain
| Transmission | Continuously Variable Transmission (CVT) |
| Final Drive | Fully enclosed; oil bath |
| Four Wheel Drive | All four rear wheels are driven, two front wheels are not driven |
| Traction Assist | Mechanically activated differential lock |
| Descent Control | No |
