Features

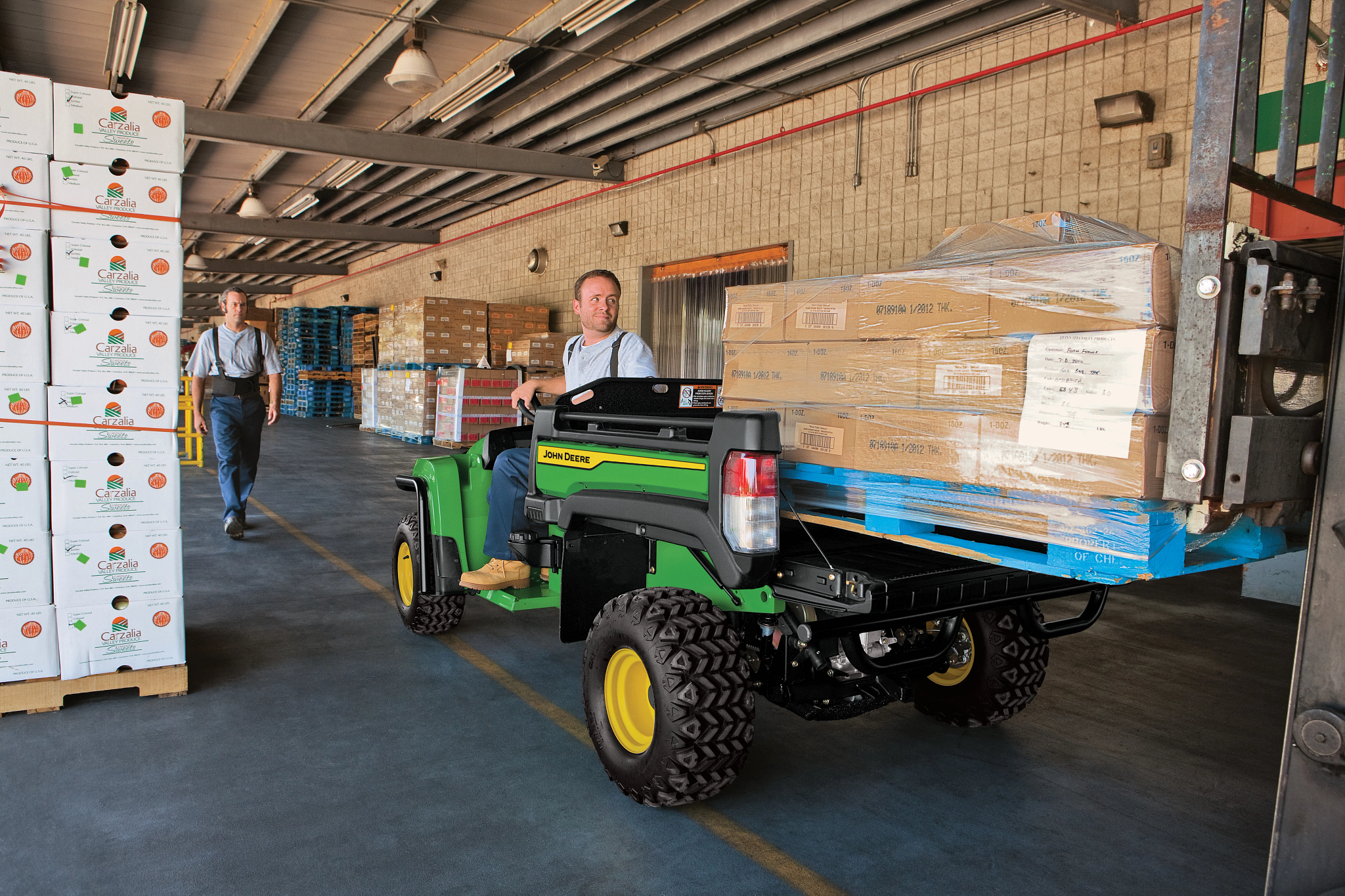

Haul More in Fewer Trips
Haul up to 500 lb. (227 kg) in the 16.4-cu ft (460-L) cargo box, which can be converted to a flatbed to haul irregular cargo. Tow up to 600 lb. (272 kg) with an optional receiver hitch.
Walk-Through Platform Provides Easy Entry and Exit
A walk‑through platform provides easy access to side‑by‑side bucket seating, with shift and differential lock levers conveniently located between the seats. Standard features include an hour meter, cup holders, a tank‑mounted fuel gauge, and a large glove box for convenient tool storage. A dash‑mounted 12‑V outlet is available on select models.
Charge Anywhere There is a Power Outlet
An onboard charger enables the vehicle to be charged anywhere with a standard 120-V outlet grounded outlet. The charger port is conveniently located below the driver's seat and is equipped with charge level indicator.
Specifications
Drive System
| Motor | Wound direct drive, 48 VDC separately excited |
| Controller | Separately excited, maximum 400 amp Anti-roll away braking and alarm, anti-stall motor protection, regenerative braking, diagnostic indicator, full torque, reduced speed reverse |
| Transaxle | 16.99:1 ratio with helical gearing |
| Electrical System | Eight Trojan T-105 batteries |
| Electrical System Power | 12 kWh |
| Electrical System Voltage | 48 V |
| Speed | 20.92 km/h |
| Speed | 13 mph |
| Gear Selection | Forward, neutral, reverse |
| Battery | Trojan T-105 |
| Extended Run Time Battery | Not available |
Seats
| Type | Professional high back bucket, tilt forward |
| Seating Capacity | Two |
| Seat Adjustment | Optional |
Dimensions
| Height | 1130 mm |
| Height | 44.5 in. |
| Width | 1524 mm |
| Width | 60 in. |
| Length - Without Bumper | 2664 mm |
| Length - Without Bumper | 104.9 in. |
| Length - With Bumper | 2728 mm |
| Length - With Bumper | 107.4 in. |
| Ground Clearance - Under Transaxle | 196 mm |
| Ground Clearance - Under Transaxle | 7.7 in. |
| Ground Clearance - Under Foot Platform | 185 mm |
| Ground Clearance - Under Foot Platform | 7.3 in. |
| Front Tread Centers | 1270 mm |
| Front Tread Centers | 50 in. |
| Rear Tread Centers | 1219 mm |
| Rear Tread Centers | 48 in. |
| Wheelbase | 194 cm |
| Wheelbase | 76.4 in. |
| Vehicle Weight | 630 kg |
| Vehicle Weight | 1389 lb. |
| Turning Clearance Circle | 6.7 m |
| Turning Clearance Circle | 22 ft |
| Payload Capacity | 408 kg |
| Payload Capacity | 900 lb. |
| Towing Capacity | 272 kg |
| Towing Capacity | 600 lb. |
Cargo Box
| Length | 1143 mm |
| Length | 45 in. |
| Width | 1321 mm |
| Width | 52 in. |
| Depth | 304.8 mm |
| Depth | 12 in. |
| Cargo Box Capacity | 272 kg |
| Cargo Box Capacity | 600 lb. |
| Cargo Box Volume | 464 L |
| Cargo Box Volume | 16.4 cu ft |
| Height Above Ground | 762 mm |
| Height Above Ground | 30 in. |
| Material | Polypropylene side panels and tailgate; steel floor and load guard |
| Tailgate | Hinged at bottom, removable; side panels are removable |
| Dump | Manual, power lift (optional) |
Brakes
| Brake Type | Dual rear wheel mechanical drum |
| Park Brake | Hand operated, multi-latch |
Ground Pressure
| With 200 lb Operator Only | 0.6 bar |
| With 200 lb Operator Only | 8.6 psi |
Charger
| Charger Type | High frequency switched-mode kW |
| Input Voltage | 60 Hz |
| Input Voltage | 120 V |
| Input Amperage (Nominal) | 12 amp |
| Output Voltage | 48 VDC nominal |
| Output Amperage | 21 ADC |
| AC Input Connector | IEC320/C14 |
| AC Power Cord | 2.4 m |
| AC Power Cord | 7.8 ft |
| Breaker Maximum | 15 amp |
Suspension and Steering
| Front Suspension | Independent, spring over shock, single A-arm |
| Front Suspension - Total Travel | 127 mm |
| Front Suspension - Total Travel | 5 in. |
| Rear Suspension | Tow high-flotation, low pressure tires |
| Steering | Rack and pinion |
Additional Information
| Date Collected | 08/31/2022 00:00:00 |
Frame
| Type | Mig welded uni-body, high strength steel |
Tires
| Front | Two 22x9.5-10, 4-ply high-flotation turf |
| Rear | Two 24x12-10, 4-ply high-flotation turf |
Fenders and Hood
| Type | TPO - Rubber and Polypropylene |
Machine
| Other Standard Features | Battery discharge indicator, reverse warning indicator, operator presence switch, hour meter, headlight switch, two cup holders, glove box |
