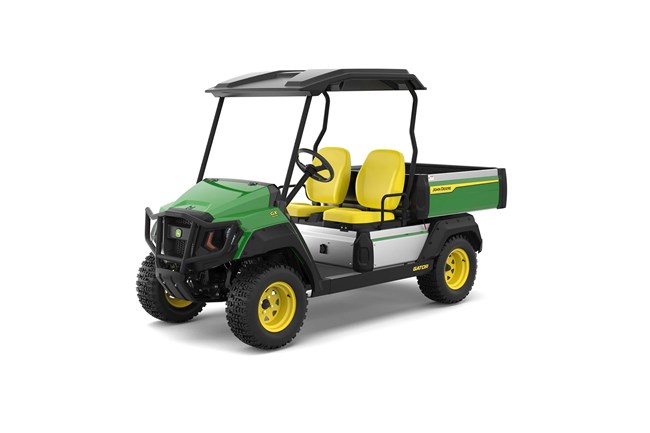

John Deere GX Electric

New Products / John Deere / John Deere Products / Gator Utility Vehicles / The Work Series / GX Electric

Double tap to zoom



Features

Haul More in Fewer Trips

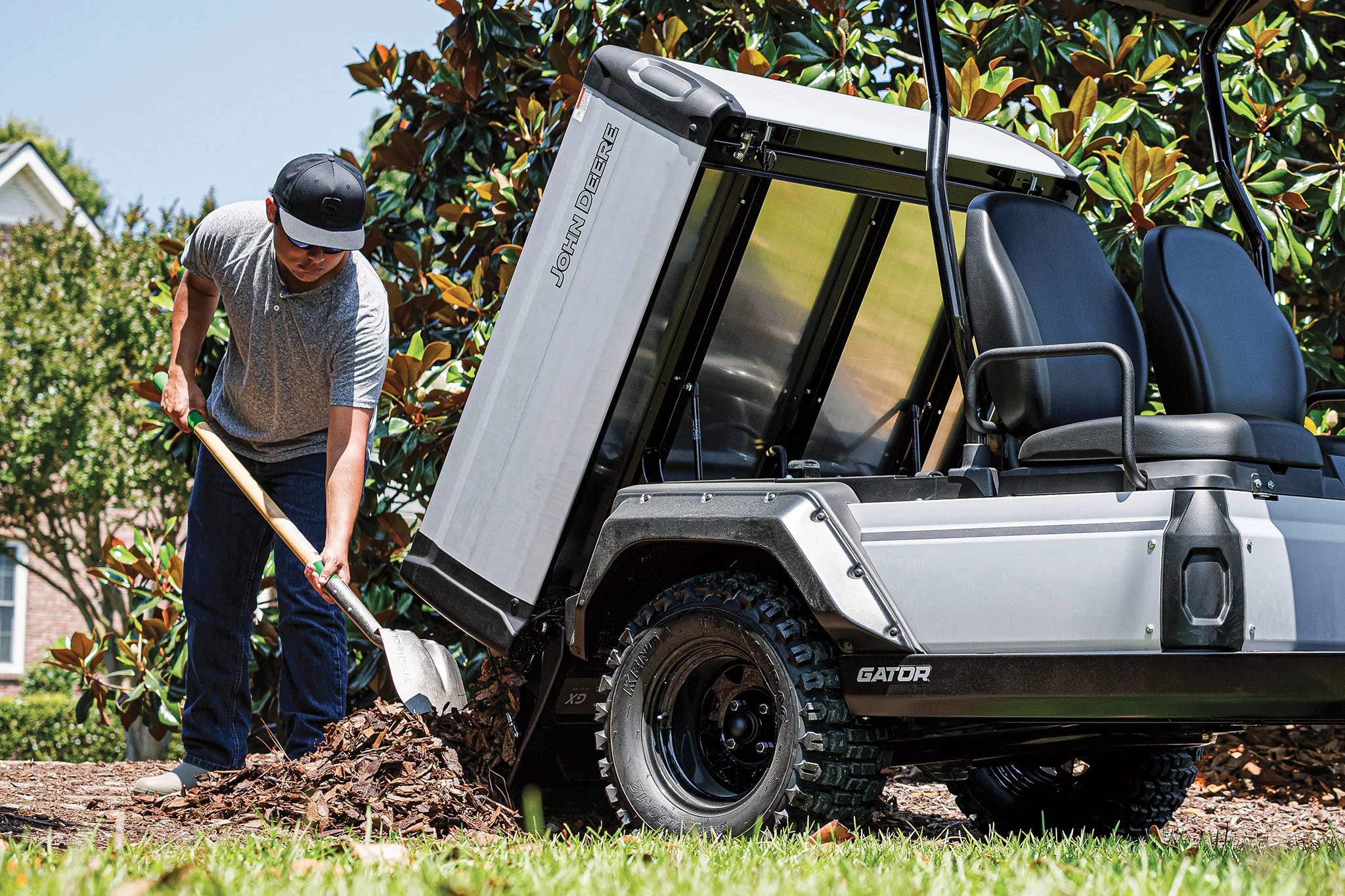

Close-up, side right view of the extended cargo box of a metallic grey Gator GX with landscaper shoveling woodchips behind it

Haul up to 800 lb. (363 kg) of mulch, nursery plantings, building supplies, firewood, animal feed, or recreational gear in the 13-cu ft (367-L) aluminum cargo box, which will not rust. Tow up to 1500 lb. (680 kg) with the included receiver hitch.

Comfort Features Make Tasks Enjoyable

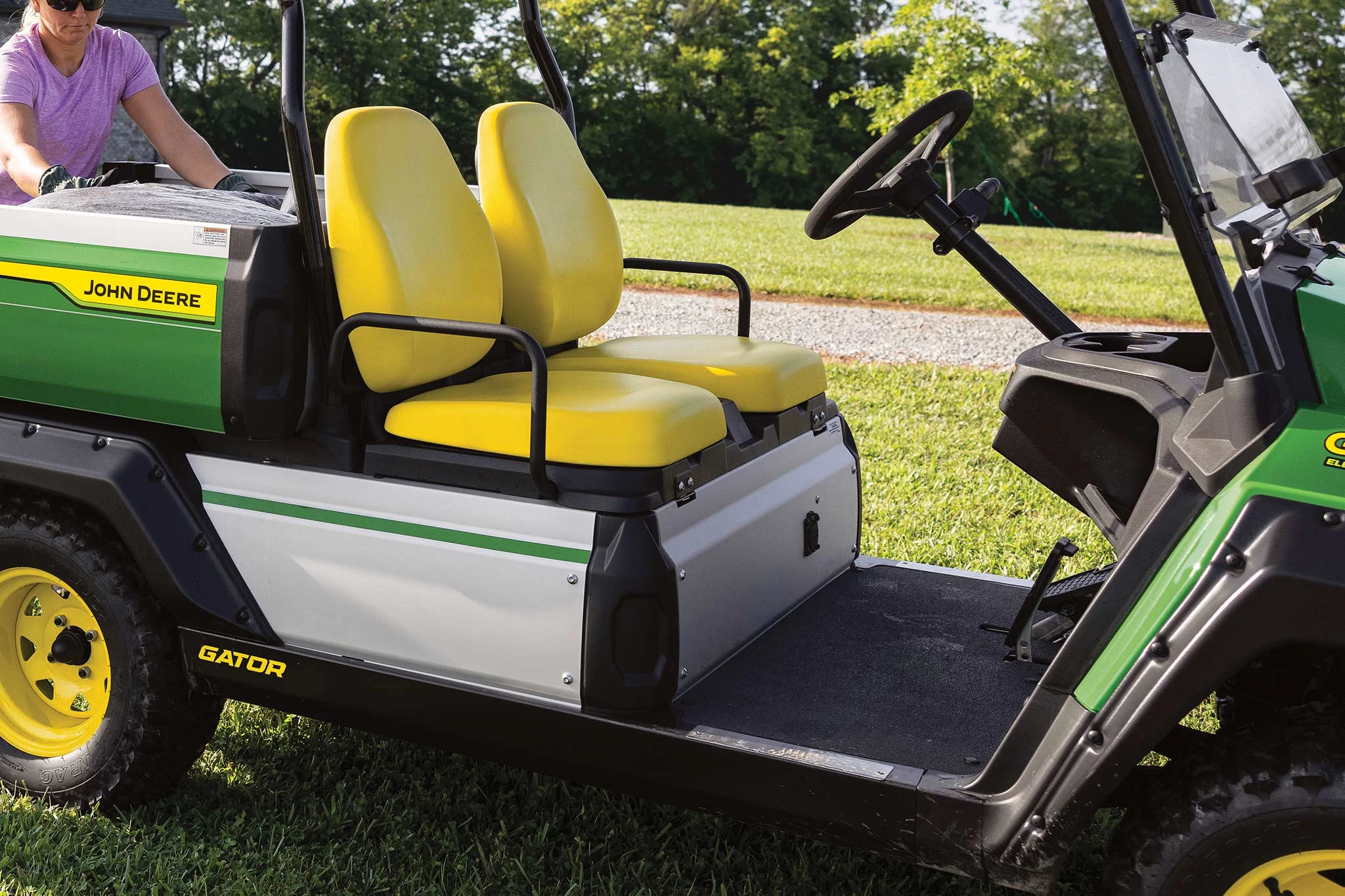

Close-up, side right view of a GX Electric Gator's operator platform and yellow seats. It is parked in the grass, and a landscaper is reaching for material in the cargo box.

Enjoy a quiet, engine‑free ride in a comfortable, passenger‑focused environment. Tall‑back bucket seats throughout are contoured to support passengers, while simple operation lets you pick a direction and press the go pedal to automatically release the park brake. A standard canopy provides protection from sun and rain, and standard LED headlights, brake lights, and taillights ensure visibility.

Charge Anywhere There is a Power Outlet

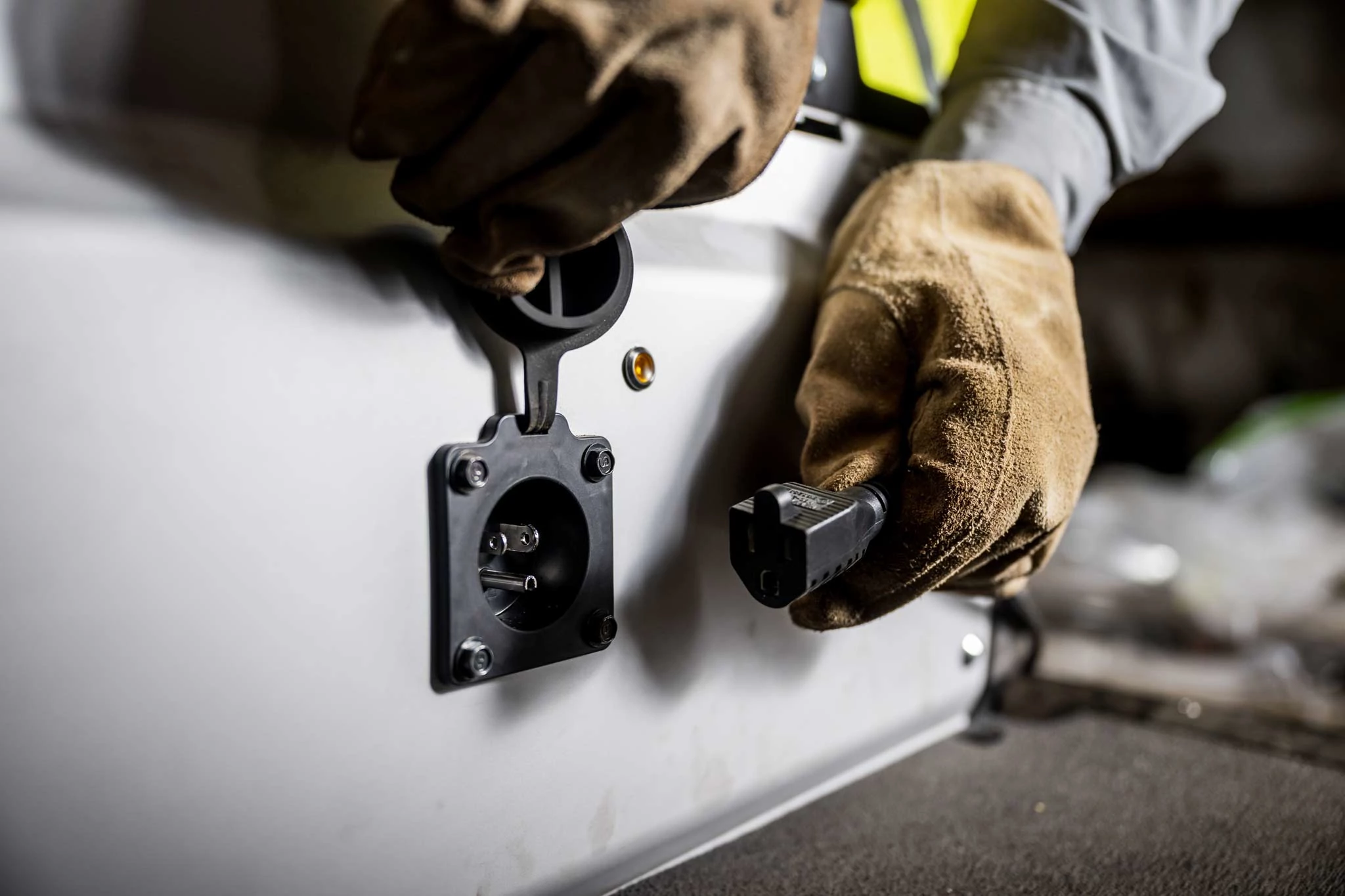

Close-up of two gloved hands opening the GX Electric charging plug, making to plug a cord into the uncovered port

An onboard charger enables the vehicle to be charged anywhere with a standard 120-V outlet grounded outlet using the included 19.7-ft (6-m) ground-fault circuit-interrupter (GFCI) cord. The charger port is conveniently located below the driver's seat and is equipped with a charging indicator.

Specifications

Dimensions/Capacities

Wheelbase1965 mm
Wheelbase77.4 in.
Weight572 kg
Weight1162 lb.
Length3120 mm
Length122.8 in.
Width1360 mm
Width53.5 in.
Height1880 mm
Height74 in.
Tread Centers1050 mm
Tread Centers41.3 in.
Ground Clearance150 mm
Ground Clearance5.9 in.
Cargo Box Dimensions1045 x 300 x 1170 mm
Cargo Box Dimensions41.1 x 11.8 x 46.1 in.
Cargo Box Volume367 L
Cargo Box Volume13 cu ft
Cargo Box Capacity (Weight)363 kg
Cargo Box Capacity (Weight)800 lb.
Payload Capacity544 kg
Payload Capacity1200 lb.
Towing Capacity680 kg
Towing Capacity1500 lb.
HitchStandard receiver: 5.1 cm (2 in.)

Additional Information

Country Of ManufactureUnited States
Date Collected08/01/2025 11:46:00

Features

ColorGreen and yellow, Grey metallic
Power SteeringNo
Battery OptionsLithium-Ion: 51.2 V (nominal), 5.376 KWh (nominal)
InstrumentationBattery-level indicator, hour-meter
StorageTwo cup holders, covered under-hood bin, three dash compartments, center-seat, under-seat trays
SeatingBucket seats

Brakes

Type4-wheel self-adjusting drum
Park BrakeFoot operated

Tires/Wheels

Front23x10.5-12 4PR knobby
Rear23x10.5-12 4PR knobby

Drivetrain

Final DriveFully enclosed; oil bath
Four Wheel DriveNo
Traction AssistNo
Descent ControlRegenerative braking

Suspension

Front SuspensionFully independent single A-arm, coil over strut
Rear SuspensionSemi-independent coil over shock and sway bar
