Features
One-Piece Cargo Box
Haul up to 500 lb. (227 kg) in the 8.9-cu ft (250-L) cargo box. The box's composite design reduces noise and is supported by a welded steel-ladder structure. Unlatch and lift the cargo box with one hand or install an optional power lift. Tow up to 1500 lb. (680 kg) with the included receiver hitch.

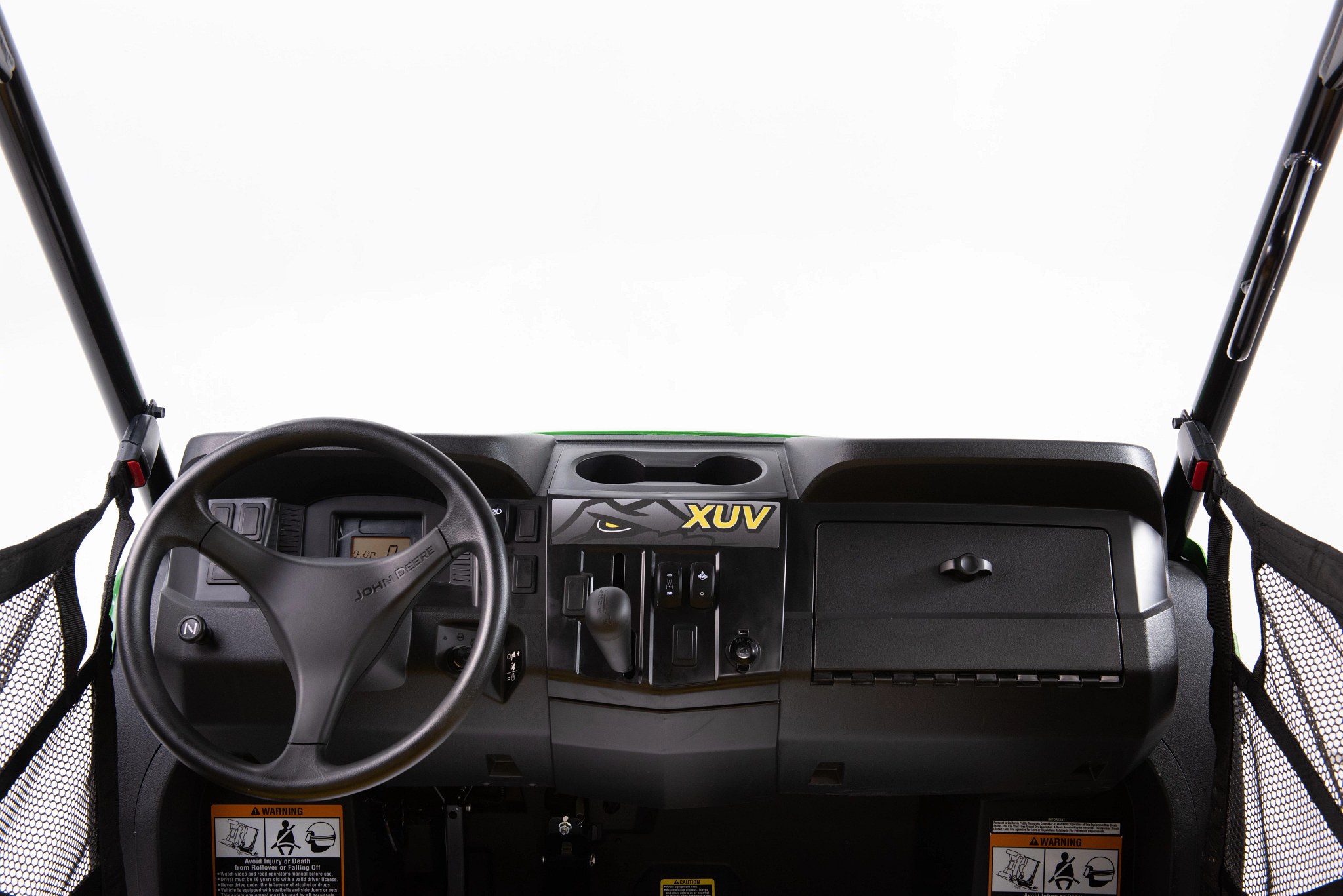

All-Day Comfort and Convenience
Operator‑centric design includes dash‑mounted gear‑shift levers, a digital display, power steering on select models, and dual cup holders. A spacious operator station offers side‑by‑side bench seating for two with ample legroom for easy entry and exit. Sealed under‑hood storage helps keep gear dry, with capacity varying by model.
Optional AMS Integration and JDLink™ Modem Attachments
The optional AMS integration kit provides everything needed to mount your StarFire™ receiver and GreenStar™ display for boundary mapping, flagging field obstacles, and soil sampling. Install an optional JDLink™ modem and track your vehicle in the John Deere Operations Center with your fleet. Use the Machine Analyzer tool to review usage data and identify causes of low productivity.
Specifications
Dimensions/Capacities
| Wheelbase | 1860 mm |
| Wheelbase | 72.8 in. |
| Weight | 676 kg |
| Weight | 1491 lb. |
| Length | 2870 mm |
| Length | 113 in. |
| Width | 1435 mm |
| Width | 56.5 in. |
| Height | 1867 mm |
| Height | 73.5 in. |
| Tread Centers - Front | 1220 mm |
| Tread Centers - Front | 48 in. |
| Tread Centers - Rear | 1168 mm |
| Tread Centers - Rear | 46 in. |
| Ground Clearance | 267 mm |
| Ground Clearance | 10.5 in. |
| Fuel Capacity | 28 L |
| Fuel Capacity | 7.4 U.S. gal. |
| Cargo Box Dimensions | 820 x 1209 x 297 mm |
| Cargo Box Dimensions | 32.3 x 47.6 x 11.7 in. |
| Cargo Box Capacity (Weight) | 227 kg |
| Cargo Box Capacity (Weight) | 500 lb. |
| Payload Capacity | 408 kg |
| Payload Capacity | 900 lb. |
| Towing Capacity | 680 kg |
| Towing Capacity | 1500 lb. |
| Hitch | Standard 50 mm (2 in.) rear receiver with optional 50 mm (2 in.) front receiver with recovery loops |
Features
| Color | Green/yellow, olive/black, or TRUETIMBER® Kanati camo |
| Power Steering | Standard |
| Battery | 340 CCA |
| Battery | 12 V |
| Alternator | 65 amp |
| Power Port - DC Outlet | 12 V |
| Instrumentation | Digital display (gear position, system diagnostic light, speed, rpm, 4WD indicator, rear differential indicator, fuel level, coolant temperature, hour meter, miles, and service interval warning light) |
| Storage | Two cupholders, sealed underhood storage, glove box |
| Seating | Black vinyl bench |
Brakes
| Type | 196 mm (7.7 in.) ventilated four-wheel stainless-steel disc brakes with 35 mm (1.375 in.) diameter hydraulic twin-piston calipers |
| Park Brake | Park in-transmission |
Engine
| Engine Type | 4-cycle gas, inline-twin, electronic fuel injection (EFI), overhead valves (OHV) |
| Displacement | 35.8 cu in. |
| Displacement | 586 cc |
| Engine Power | 23.8 kW |
| Engine Power | 32 hp |
| Cooling System | Liquid cooled |
Tires/Wheels
| Front | 25x8-12 Terra Hawk all-terrain on steel wheels 26x8-14 Maxxis® Bighorn® 2.0 extreme terrain on steel or alloy wheels |
| Rear | 25x10-12 Terra Hawk all-terrain on steel wheels 26x10-14 Maxxis Bighorn 2.0 extreme terrain on steel or alloy wheels |
Additional Information
| Country Of Manufacture | U.S. |
| Date Collected | 01/15/2024 11:08:00 |
Suspension
| Front Suspension | Fully independent dual A-arm with adjustable coil-over shocks, 203 mm (8 in.) travel, anti-roll bar |
| Rear Suspension | Fully independent with lower A-arm and upper camber link with adjustable coil-over shocks, 203 mm (8 in.) travel |
Drivetrain
| Transmission | Continuously Variable Transmission (CVT) with clutch enclosure |
| Final Drive | Park, high, low, neutral, reverse transaxle |
| Four Wheel Drive | Dash switch actuated four-wheel drive system |
| Traction Assist | Limited slip front differential, Positive locking, switch actuated rear differential lock |
| Descent Control | No |
