Features

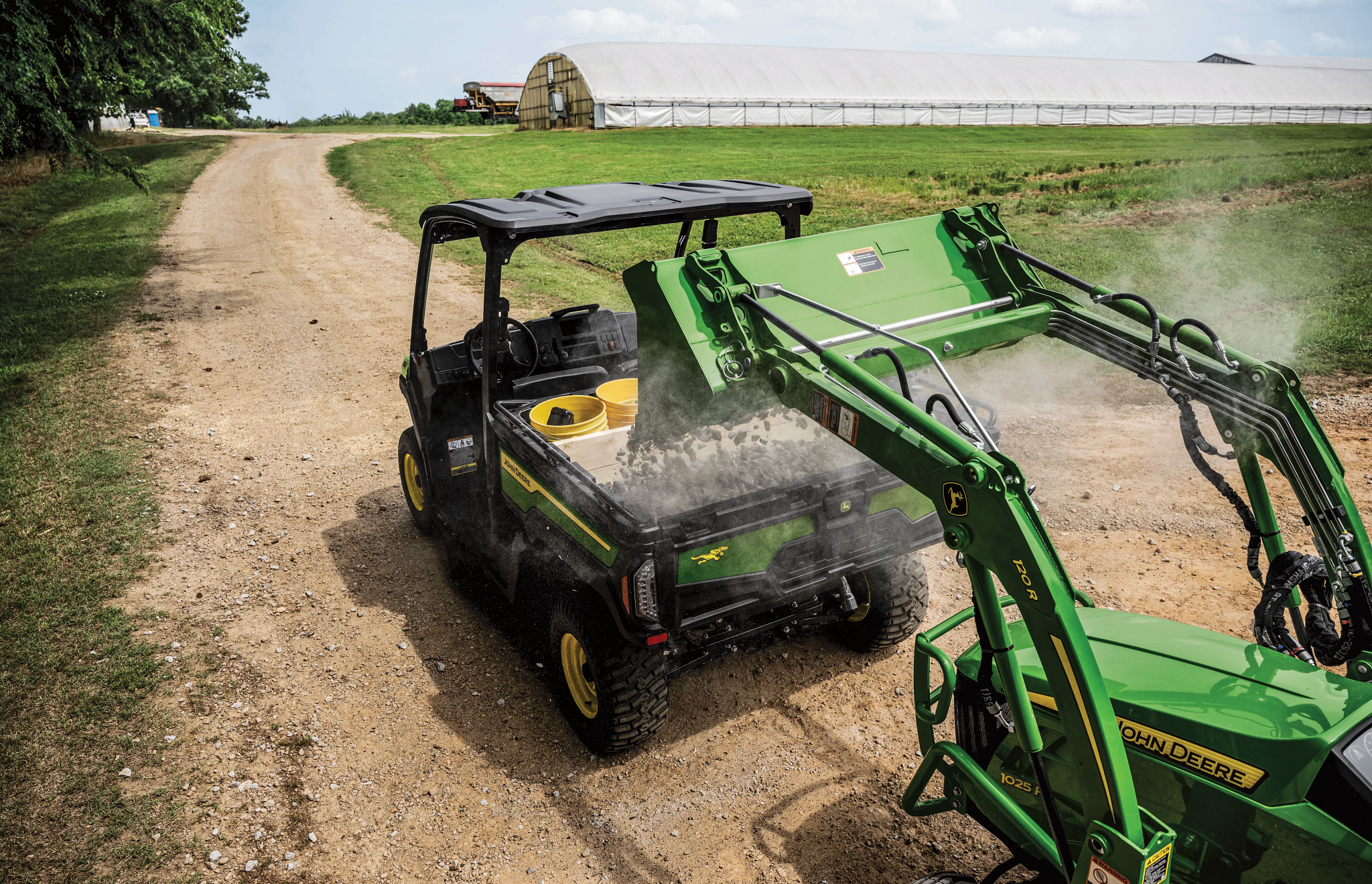

Class-Leading Cargo Box Volume Configures to the Needs of the Job
Haul up to 1000 lb. (454 kg) in the class-leading 18.5-cu ft (524-L) cargo box. Use built-in slots and stake pockets to quickly reconfigure the cargo box to the job. Tow up to 4000 lb. (1840 kg) with the included receiver hitch.
Class is defined as a full-size heavy-duty crossover UTV with less than 100-in. wheelbase which is powered by a 750 to 900cc gasoline engine. Comparisons were made by calculating volume using published cargo box dimensions.
Room for You, Plus Two
The split-bench seat accommodates three with an under seat storage bin. Optional roof, windshield, rear panel, door, and heater attachments keep passengers out of the elements.

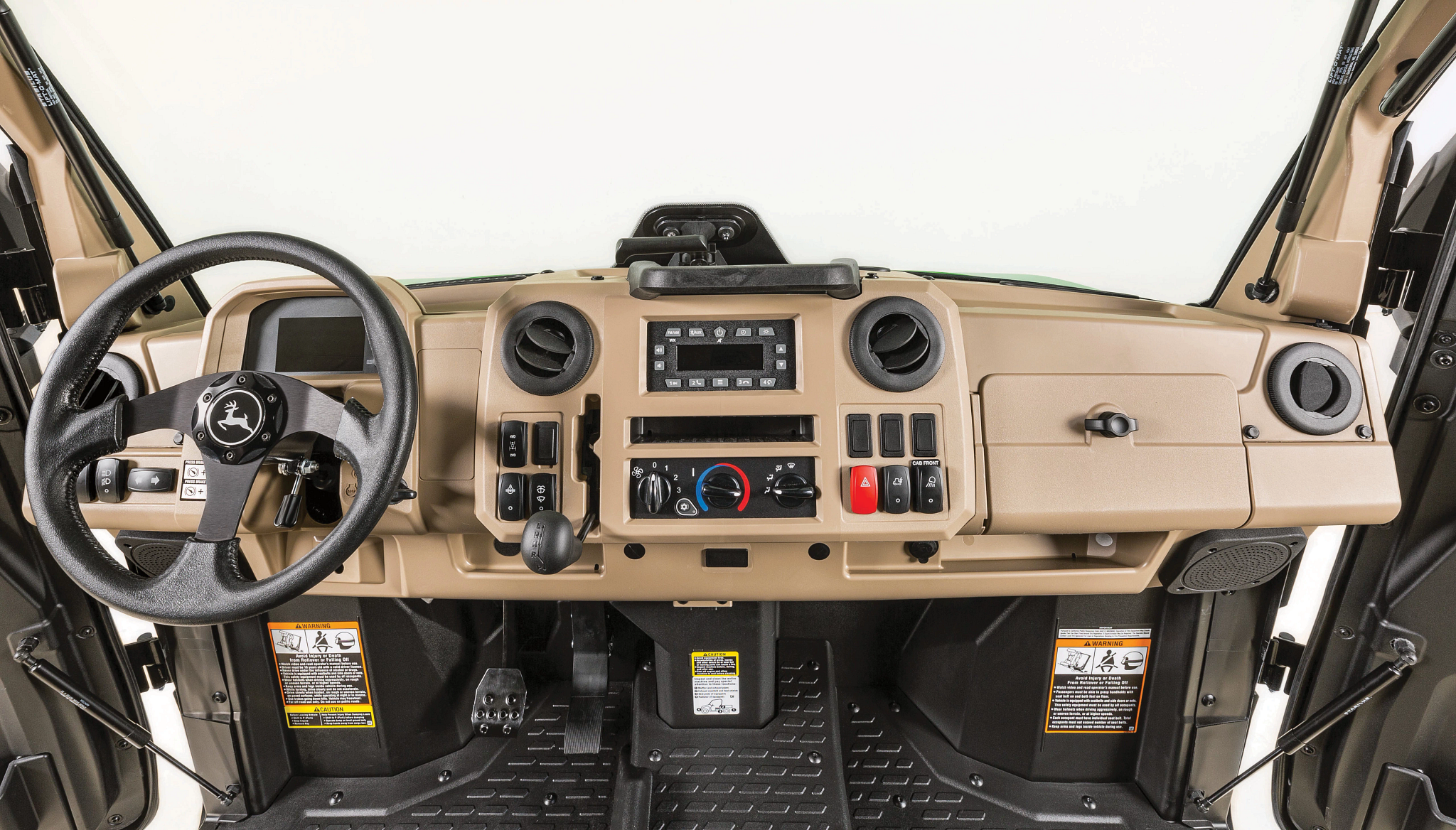

Automotive-Like Controls
An automotive-inspired design features a digital instrument panel, one to two 12-V outlets, and power steering on select models. Shift from park and into gear with a throw of the dash-mounted lever. For tough conditions, engage four-wheel drive and rear differential lock switches.
Specifications
Dimensions/Capacities
| Wheelbase | 2211 mm |
| Wheelbase | 87 in. |
| Weight | 883 kg |
| Weight | 1946 lb. |
| Length | 3250 mm |
| Length | 128 in. |
| Width | 1625 mm |
| Width | 64 in. |
| Height | 1980 mm |
| Height | 78 in. |
| Tread Centers - Front | 1376 mm |
| Tread Centers - Front | 54.2 in. |
| Tread Centers - Rear | 1300 mm |
| Tread Centers - Rear | 51.2 in. |
| Ground Clearance | 279 mm |
| Ground Clearance | 11 in. |
| Fuel Capacity | 42.4 L |
| Fuel Capacity | 11.2 U.S. gal. |
| Cargo Box Dimensions | 1099 x 343 x 1392 mm |
| Cargo Box Dimensions | 43.3 x 13.5 x 54.8 in. |
| Cargo Box Volume | 524 L |
| Cargo Box Volume | 18.5 cu ft |
| Cargo Box Capacity (Weight) | 454 kg |
| Cargo Box Capacity (Weight) | 1000 lb. |
| Payload Capacity | 660 kg |
| Payload Capacity | 1454 lb. |
| Towing Capacity | 1814 kg |
| Towing Capacity | 4000 lb. |
| Hitch | Standard receiver: 2 in. (5.1 cm) |
Features
| Color | Green and yellow |
| Power Steering | No |
| Battery | 480 CCA |
| Battery | 12 V |
| Alternator | 85 amp |
| Power Port - DC Outlet | 12 V |
| Instrumentation | Digital display (gear position, system diagnostic light, speed, rpm, 4WD indicator, rear differential indicator, fuel level, coolant temperature, hour meter, miles, and service interval warning light) |
| Storage | Total: 25.8 gal. (97.8 L); Four cup holders: 0.3 gal. (1.3 L); Center tray: 0.3 gal. (1.3 L); Three dash bins: 1.3 gal. (5 L); Storage pocket: 0.4 gal. (1.4 L); Glove box: 1 gal. (3.8 L); Under seat: 14.6 gal. (55.3 L); Optional under hood: 7.9 gal. (30 L) |
| Seating | Black vinyl 40/60 split three-passenger bench |
Brakes
| Type | Front/rear hydraulic disc with twin piston front calipers |
| Park Brake | Park in-transmission |
Engine
| Engine Type | 4-cycle gas, electronic fuel injection (EFI) |
| Displacement | 49.6 cu in. |
| Displacement | 812 cc |
| Engine Power | 39.5 kW |
| Engine Power | 53 hp |
| Cooling System | Liquid |
Tires/Wheels
| Front | 25x9-12 Terra Hawk all-terrain on steel wheels; 27x9-R14 Maxxis® Bighorn® 2.0 extreme terrain radials on steel wheels; 27x11-R14 Predator Heavy-Duty all-terrain radials on steel wheels |
| Rear | 25x11-12 Terra Hawk all-terrain on steel wheels; 27x11-R14 Maxxis Bighorn 2.0 extreme terrain radials on steel wheels; 27x11-R14 Predator Heavy-Duty all-terrain radials on steel wheels |
Additional Information
| Country Of Manufacture | U.S. |
| Date Collected | 06/11/2024 11:10:00 |
Suspension
| Front Suspension | Fully independent dual A-arm with adjustable coils; 203 mm (8 in.) of travel |
| Rear Suspension | Fully independent dual A-arm with adjustable coils and sway bar; 229 mm (9 in.) of travel |
Drivetrain
| Transmission | Continuously Variable Transmission (CVT) with clutch enclosure |
| Final Drive | Park, high, low, neutral, reverse transaxle |
| Four Wheel Drive | Dash switch actuated four-wheel drive system |
| Traction Assist | Limited slip front differential; Positive locking, switch actuated rear differential lock |
| Descent Control | Yes |
