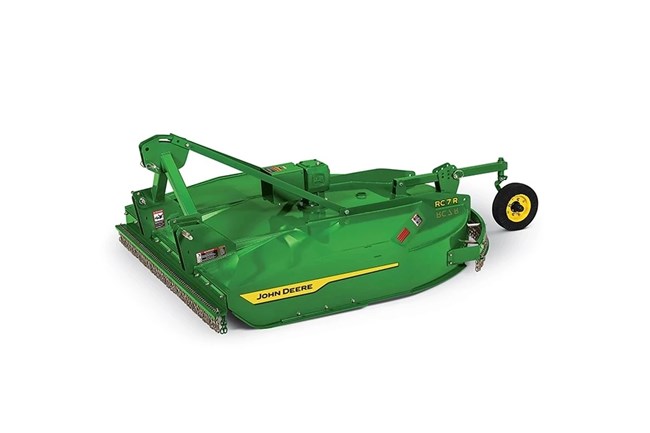

John Deere RC7R
Double tap to zoom
RC7R
Rotary Cutters
Overview:
The Heavy-Duty Rotary Cutters take the patented double-deck design and add thicker steel, stronger bearings and heavier drive components. The RC7R is ready to take on thicker brush, tougher stalks and longer hours to reclaim overgrown pastures, mow rights-of-way and chop heavy row-crop residue.
- Gearcases and Blade Holders Provide Better Performance
- Deep-Cutting Chamber Provides a Better Shredding Action
- Front and Rear Safety Chains Are Standard for Increased Protection
- Non-Seize, Slip-Clutch Driveline
Get A Quote
Fields with asterisks* are required. Please email our helpful staff with any questions or comments using the contact form.
Loan Calculator
Use the Loan Calculator to help you determine the financing and payment options that are best for you.
**The accuracy of this calculator and its applicability to your circumstances is not guaranteed. You should obtain personal advice from qualified professionals. This information is provided for illustrative purposes only and does not constitute an application. This notice does not guarantee loan approval, nor is it an offer or commitment to make a loan to you on the above terms.
Send To A Friend
Fields with asterisks* are required. Your friend will receive an email that contains a reference to this page. Please send this email only to people you know who would be interested in this information.
Share This Product:
Features
Deep-Cutting Chamber
A deep-cutting chamber ensures efficient shredding and a clean cut. With a fast blade-tip speed, the cutter achieves fine shredding of grass, weeds, and brush.
Double-Decker™ Design
The patented Double-Decker design fortifies the cutter's frame and reduces top deck rust. This innovative structure features internal stiffeners and replaceable bolt-on skid shoes.
Heavy-Duty Gearcases
The heavy-duty gearcase, featuring a non-seize self-adjusting slip-clutch driveline, boasts a continuous horsepower rating of 150 hp (112 kW) and a peak of 210 hp (157 kW). It includes cast-metal components with tapered roller bearings, forged gears for enhanced durability, and a factory preset, four-plate slip clutch that never needs adjusting, making it especially valuable for brush operations.
Specifications
Dimensions
| Transport Width | 89 in. |
| Transport Width | 226.1 cm |
| Deck Shape | Domed |
| Deck Type | Double decker |
| Upper Deck Thickness | 0.118 in. |
| Upper Deck Thickness | 3 mm |
| Upper Deck Thickness | 11 gauge |
| Lower Deck Thickness | 0.138 in. |
| Lower Deck Thickness | 3.5 mm |
| Lower Deck Thickness | 10 gauge |
| Side Skirt Thickness | 0.25 in. |
| Side Skirt Thickness | 6 mm |
| Side Skirt Thickness | 3 gauge |
| Approximate Weight | 1378 lb. |
| Approximate Weight | 625 kg |
Capacity
| Cutting Width | 84 in. |
| Cutting Width | 213.4 cm |
| Cutting Height | 2-9 in. |
| Cutting Height | 5-22.9 cm |
| Cutting Capacity | 4 in. |
| Cutting Capacity | 10.16 cm |
| Cutting Chamber Depth | 11.8 in. |
| Cutting Chamber Depth | 30 cm |
Tractor Compatibility
| Tractor PTO HP Minimum | 45 hp |
| Tractor PTO HP Minimum | 34 kW |
| Tractor PTO | 540 rpm |
Blades
| Thickness | 0.5 in. |
| Thickness | 13 mm |
| Width | 4 in. |
| Width | 102 mm |
| Blade Tip Speed - 540 RPM | 15586 fpm |
| Blade Tip Speed - 540 RPM | 4751 m/min |
| Material Flow System | Integrated |
| Holder Type | Round stump jumper (single suction) for protection of blades and carrier against obstruction damage |
Gearcases
| Number | 1 |
| Center Horsepower Rating - Continuous | 150 hp |
| Center Horsepower Rating - Continuous | 112 kW |
| Center Horsepower Rating - Peak | 205 hp |
| Center Horsepower Rating - Peak | 152 kW |
Hitch
| Hitch Type | Lift-type |
| Hitch Category | 2, 3N |
Drivelines
| Main Driveline Protection | Non-seize, slip-clutch driveline |
Shielding
| Front Shielding | Chain |
| Rear Shielding | Chain |
Wheels
| Type | Laminated |
