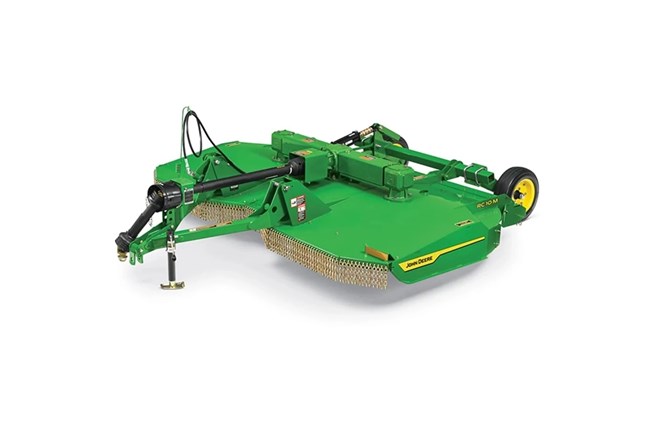

John Deere RC10M Semi-Mount, Center Drive
Double tap to zoom
RC10M Semi-Mount, Center Drive
Rotary Cutters
Overview:
The Medium-Duty Rotary Cutters are designed for tough mowing. The patented double-deck design provides more strength and better material flow. Able to zip through tall grasses, tough weeds and brush up to 2 in. (17.8 cm) in diameter, the RC10M is ready to mow.
- Industry-Exclusive Double-Decker™ Frame Design
- Standard Stump Jumper Blade Holder
- 5-Year Limited Gearbox Warranty
- Front & Rear Safety Chain Shields
Get A Quote
Fields with asterisks* are required. Please email our helpful staff with any questions or comments using the contact form.
Loan Calculator
Use the Loan Calculator to help you determine the financing and payment options that are best for you.
**The accuracy of this calculator and its applicability to your circumstances is not guaranteed. You should obtain personal advice from qualified professionals. This information is provided for illustrative purposes only and does not constitute an application. This notice does not guarantee loan approval, nor is it an offer or commitment to make a loan to you on the above terms.
Send To A Friend
Fields with asterisks* are required. Your friend will receive an email that contains a reference to this page. Please send this email only to people you know who would be interested in this information.
Share This Product:
Features
5-Year Limited Gearbox Warranty
Our rotary cutters are engineered for long-lasting performance and are backed by a 5-year limited gearbox warranty.
Double-Decker™ Frame Design
The cutter incorporates the patented John Deere Double-Decker™ frame design to enhance frame strength and cutting efficiency, reduce rust, and provide extra strength with its internal stiffeners.
Driveline With Slip Clutch
The pull-type rotary cutter features a driveline with a non-seize slip clutch that protects against overloads. This includes a lightweight design with a 50-hour lubrication cycle, reducing maintenance time and enhancing operational efficiency.
Specifications
Tractor Compatibility
| Tractor PTO HP Minimum | 40 hp |
| Tractor PTO HP Minimum | 30 kW |
| Tractor PTO | 540 rpm |
Capacity
| Cutting Width | 126 in. |
| Cutting Width | 320 cm |
| Cutting Height | 1-12 in. |
| Cutting Height | 2.5-30.5 cm |
| Cutting Capacity | 2 in. |
| Cutting Capacity | 5.1 cm |
| Cutting Chamber Depth | 8.5 in. |
| Cutting Chamber Depth | 21.6 cm |
Gearcases
| Number | 3 |
| Transfer Horsepower Rating - Continuous | 120 hp |
| Transfer Horsepower Rating - Continuous | 89 kW |
| Transfer Horsepower Rating - Peak | 130 hp |
| Transfer Horsepower Rating - Peak | 97 kW |
| Outer Horsepower Rating - Continuous | 75 hp |
| Outer Horsepower Rating - Continuous | 56 kW |
| Outer Horsepower Rating - Peak | 100 hp |
| Outer Horsepower Rating - Peak | 75 kW |
Blades
| Thickness | 0.5 in. |
| Thickness | 13 mm |
| Width | 4 in. |
| Width | 102 mm |
| Overlap | 2.95 in. |
| Overlap | 75 mm |
| Blade Tip Speed - 540 RPM | 16275 fpm |
| Blade Tip Speed - 540 RPM | 4961 m/min |
| Material Flow System | Max flow |
| Holder Type | Round stump jumper |
Hitch
| Hitch Type | Semi-mount |
| Hitch Category | 2, 3, 3N |
Dimensions
| Transport Width | 129 in. |
| Transport Width | 328 cm |
| Overall Width | 129 in. |
| Overall Width | 328 cm |
| Overall Length | 159 in. |
| Overall Length | 404 cm |
| Deck Shape | Domed |
| Deck Type | Double decker |
| Upper Deck Thickness | 0.125 in. |
| Upper Deck Thickness | 3 mm |
| Upper Deck Thickness | 11 gauge |
| Lower Deck Thickness | 0.125 in. |
| Lower Deck Thickness | 3 mm |
| Lower Deck Thickness | 11 gauge |
| Side Skirt Thickness | 0.177 in. |
| Side Skirt Thickness | 4.5 mm |
| Side Skirt Thickness | 7 gauge |
| Approximate Weight | 2113 lb. |
| Approximate Weight | 960 kg |
Drivelines
| Main Driveline Protection | Non-seize, slip-clutch driveline |
| Connecting Driveline Protection | Shock absorbing shafts |
Shielding
| Front Shielding | Chain |
| Rear Shielding | Chain |
Wheels
| Type | Laminated |
| Row Width Adjustment | No |
