John Deere FC5012
Double tap to zoom
FC5012
Rotary Cutters
Overview:

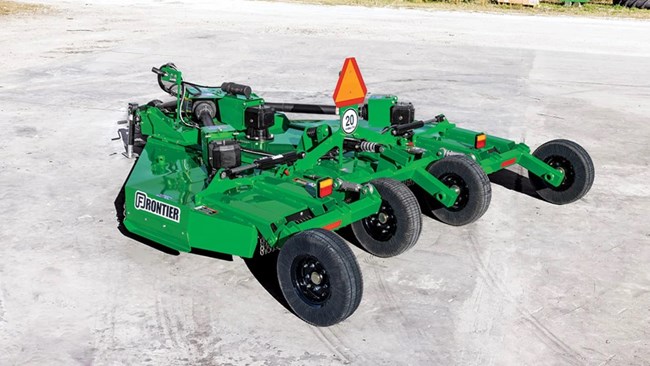

The Frontier™ FC5012 Flex-Wing Rotary Cutter delivers a wide cut, smooth operation, and dependable durability for pasture and property maintenance.
- 12-ft Width for Maintaining Large Grass and Forage Areas
- Spring Suspension Provides an Even Cut
- Optimized for Lower-Horsepower Tractors
- 10-Year Gearbox Warranty for Peace of Mind
Get A Quote
Fields with asterisks* are required. Please email our helpful staff with any questions or comments using the contact form.
Loan Calculator
Use the Loan Calculator to help you determine the financing and payment options that are best for you.
**The accuracy of this calculator and its applicability to your circumstances is not guaranteed. You should obtain personal advice from qualified professionals. This information is provided for illustrative purposes only and does not constitute an application. This notice does not guarantee loan approval, nor is it an offer or commitment to make a loan to you on the above terms.
Send To A Friend
Fields with asterisks* are required. Your friend will receive an email that contains a reference to this page. Please send this email only to people you know who would be interested in this information.
Share This Product:
Features
Tractor-Matched Cutting Solution
Available in 10‑ and 12‑foot cutting widths, the FC50 responds to growing demand for wider mowing options that better match smaller‑chassis tractors while making efficient use of available horsepower.
Welded Hitch for Reduced Tongue Weight
The FC50 features a welded hitch frame designed to reduce overall weight and lower vertical drawbar load, improving tractor compatibility.
Adjustable Center Deck and Outer Wings
The center deck uses an adjustable lift‑cylinder suspension to deliver a smoother ride and improved cut quality. Outer wings are easily leveled fore and aft using adjustable turnbuckles, and wing leveling is tied to the main deck for consistent alignment across all three decks. A spring‑suspended main frame helps maintain an even cutting profile.
Specifications
Deck
| Thickness | 0.1345 in. |
| Thickness | 3.416 mm |
| Thickness | 10 gauge |
Blade Holder
| Type | 3/16-in. (0.5-cm) formed plate with 0.75-in. (1.9-cm) bar |
Dimensions
| Overall Width | 168 in. |
| Overall Width | 427 cm |
| Overall Length | 160 in. |
| Overall Length | 406 cm |
Additional Information
| Country of Manufacture | United States |
Capacity
| Cutting Width | 144 in. |
| Cutting Width | 366 cm |
| Cutting Height | 1.5-12 in. |
| Cutting Height | 4-31 cm |
| Cutting Diameter | 2 in. |
| Cutting Diameter | 5 cm |
Blades
| Tip Speed | 14490 fpm |
| Tip Speed | 74 m/s |
| Type | 1/2 x 3 in. (1.3 x 7.6 cm) with suction lift |
| Thickness | 0.5 in. |
| Thickness | 12.7 mm |
| Width | 3 in. |
| Width | 76.2 mm |
Tractor Compatibility
| PTO Power | 50-90 hp |
| PTO Power | 37-67 kW |
| Tractor PTO | 540 rpm |
| PTO Category | G8 constant velocity |
Skirt
| Thickness | 0.1875 in. |
| Thickness | 4.7625 mm |
Wheels
| Quantity | 4 |
| Type | Laminated standard; Aircraft optional |
| Diameter Laminated | 21 in. |
| Diameter Laminated | 533 mm |
Gear Case
| Horsepower | 175 hp |
| Horsepower | 131 kW |
Warranty
| Time Period | 2 year |
| Gearbox | 10 year |
Hitch
| Type | Pull-type, self-leveling swivel clevis |
| Hitch Category | Category 1 |
| iMatch™ Compatible | No |
| AutoHitch™ Compatible | No |
Driveline
| Type | G8 constant velocity |
| Quick-Knect™ Compatible | No |
Weight
| Operating | 2820 lb. |
| Operating | 1279 kg |
Setup Time
| Labor Hours | 1 hr |
