Features
Easy-Clean Deck Top

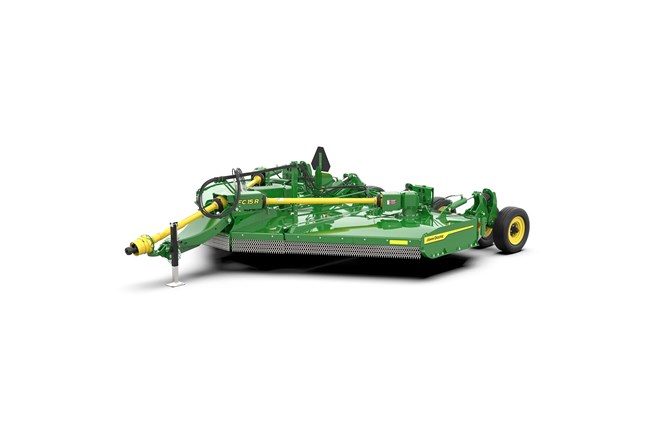

John Deere flex-wing rotary cutters are equipped with an easy to clean, smooth-top deck that allows material, debris, and water to be easily cleared from the top of the machine.
Advanced Safety Features
Equipped with front and rear safety-chain shields and lighting kits, the John Deere flex-wing rotary cutters are designed for safe operation and compliance with U.S. regulations.
5-Year Limited Gearbox Warranty
Our rotary cutters are engineered for long-lasting performance and are backed by a 5-year limited gearbox warranty.
Specifications
Drivelines
| Connecting Driveline Protection | No-seize, slip-clutch driveline |
| Main Driveline Size | CV ASAE Category 6, splined telescoping profiles |
| Connecting Driveline Size | ASAE Category 5, splined telescoping profiles |
Capacity
| Cutting Width | 4.6 m |
| Cutting Width | 15 ft |
| Cutting Capacity (Diameter) | 4 in. |
| Cutting Chamber Depth | 25.4 cm |
| Cutting Chamber Depth | 10 in. |
| Cutting Height | 2.54-45.5 cm |
| Cutting Height | 1-18 in. |
| Cutting Capacity (Diameter) | 10.2 cm |
Tractor Compatibility
| Tractor PTO | 540, 1000 rpm |
| Tractor PTO HP Range | 41 kW |
| Tractor PTO HP Range | 55 hp |
Gearcases
| Center Horsepower Rating - Continuous | 186 kW |
| Outer Horsepower Rating - Peak | 205 kW |
| Transfer Horsepower Rating - Peak | 224 kW |
| Outer Horsepower Rating - Continuous | 186 kW |
| Center Horsepower Rating - Peak | 275 hp |
| Transfer Horsepower Rating - Continuous | 250 hp |
| Number | 4 |
| Center Horsepower Rating - Continuous | 250 hp |
| Outer Horsepower Rating - Peak | 275 hp |
| Transfer Horsepower Rating - Peak | 300 hp |
| Outer Horsepower Rating - Continuous | 250 hp |
| Center Horsepower Rating - Peak | 205 kW |
| Transfer Horsepower Rating - Continuous | 186 kW |
Blades
| Blade Tip Speed - 1000 RPM | 268.700796 fps |
| Blade Holder Type | Round pan stump jumper for blade carrier protection against obstruction damage: 7 gauge 4.55 mm 0.18 in. Blade bar: 2.5 x 12 cm 1 x 4.7 in. |
| Blade Tip Speed - 1000 RPM | 81.9 m/s |
| Overlap | 152 mm |
| Overlap | 6 in. |
| Thickness | 0.5 in. |
| Thickness | 13 mm |
| Type | Suction |
| Width | 4 in. |
| Width | 102 mm |
| Blade Tip Speed - 540 RPM | 264.435704 fps |
| Blade Tip Speed - 540 RPM | 80.6 m/s |
Dimensions
| Transport Width (At Wing Wheels) | 2.5 m |
| Approximate Weight | 2980 kg |
| Side Skirt Thickness | 0.24 in. |
| Overall Length | 5.1 m |
| Deck Type | Full double deck |
| Lower Deck Thickness | 7 gauge |
| Upper Deck Thickness | 11 gauge |
| Overall Width | 15.6 ft |
| Deck Shape | Smooth top deck |
| Lower Deck Thickness | 0.17 in. |
| Upper Deck Thickness | 0.12 in. |
| Approximate Weight | 6571 lb. |
| Transport Width (At Wing Wheels) | 8 ft |
| Side Skirt Thickness | 6 mm |
| Overall Length | 16.7 ft |
| Overall Width | 4.7 m |
| Hinges | Intermittent cast segments with segmented 3.1-cm (1.25-in.) diameter hinge pins |
| Upper Deck Thickness | 3 mm |
| Side Skirt Thickness | 3 gauge |
| Lower Deck Thickness | 4.5 mm |
Hydraulics
| Wing Lift | Three SCV connected to the tractor (machine height and wing lift) Independent wing operation |
| Wing Flex | For transport: upward 90 degree (angle) Upward working angle: 45 degree (angle) Downward working angle: 22 degree (angle) |
Wheels
| Wing-Leveling Adjustment | Adjustable threaded clevis on wing lift cylinders |
| Type - Option 2 | 5-bolt, 24PR severe-duty ag: 26x9x14.5 5-bolt, 24PR severe-duty ag foam filled: 26x9x14.5 |
| Row Width Adjustment | Yes |
| Suspension | Rubber spring suspension |
| Type - Option 1 | 5-bolt, laminated: 21x5.25x9 |
Shielding
| Rear | Single-row chain guard; Optional: double row |
| Front | Single-row chain guard; Optional: double row |
Warranty
| Gearbox Warranty | 5 years |
Hitch
| Jack Stand | Mechanical jack stand in base for all machines with hydraulically operated height, stays vertical while raising/lowering |
| Type | Standard self-level tongue with 57.2-cm (22.5-in.) narrow-profile with clevis hitch, Ball-type self-level hitch, Swivel hitch, or Articulated Ring hitch |
