John Deere GM4072E
Double tap to zoom
GM4072E
Grooming Mowers
Overview:

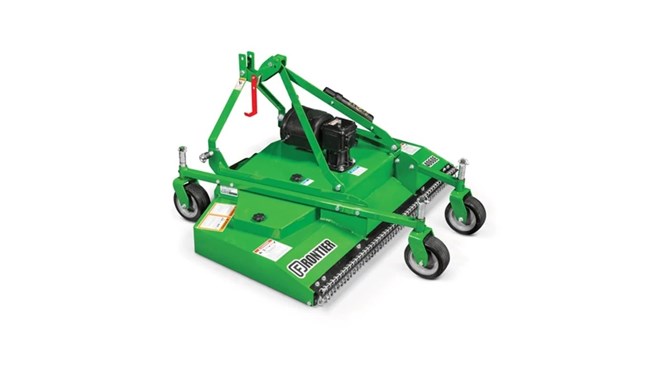

Maintain a clean and level look with the Frontier GM4072E. Designed to give a smooth cut on lawns, sporting fields, and golf courses.
- Working Width: 72 in. (182.9 cm)
- Caster Wheels Follow Ground Contours
- Floating Hitch for Level Cutting
- High Blade-Tip Speed
Get A Quote
Fields with asterisks* are required. Please email our helpful staff with any questions or comments using the contact form.
Loan Calculator
Use the Loan Calculator to help you determine the financing and payment options that are best for you.
**The accuracy of this calculator and its applicability to your circumstances is not guaranteed. You should obtain personal advice from qualified professionals. This information is provided for illustrative purposes only and does not constitute an application. This notice does not guarantee loan approval, nor is it an offer or commitment to make a loan to you on the above terms.
Send To A Friend
Fields with asterisks* are required. Your friend will receive an email that contains a reference to this page. Please send this email only to people you know who would be interested in this information.
Share This Product:
Features
High Blade-Tip Speed
High blade-tip speed and precise blade overlap work together to ensure exceptional strength, performance, and a quality cut.
Caster Wheels Follow Ground Contours and Prevent Scalping
By having four caster wheels, the GM40E Series Grooming Mower follows ground contours and prevents scalping. Heavy tubular caster wheel arms are bolted to rail supports for long life.
Floating Hitch for Level Cutting
The floating top link on the GM40E Series keeps the deck tracking over ground contours for a level and smooth cut.
Specifications
Blade
| Blade Quantity | 3 |
| Average Tip Speed | 18000 fpm |
| Average Tip Speed | 5486.4 m/min |
| Spindles - Quantity | 3 |
| Spindles - Composition | Cast iron |
| Spindles - Bearing | Ball bearing |
| Overlap | 1.25 in. |
| Overlap | 3.18 cm |
| Dimensions | 0.25x2.5 in. |
| Dimensions | 0.6x6.4 cm |
| Composition | Heat treated alloy steel |
Belts
| Quantity | 1 |
| Adjustment | Spring loaded idler |
Dimensions
| Overall Machine Width | 73.1 in. |
| Overall Machine Width | 185.7 cm |
| Cutting Width | 72 in. |
| Cutting Width | 182.9 cm |
Caster Wheels
| Quantity | 4 |
| Solid Caster Wheels | Yes |
| Solid Caster Wheels - Size | 8x3.5 in. |
| Solid Caster Wheels - Size | 20.3x8.9 cm |
Warranty
| Machine | 1 year |
| Gearbox | 3 year |
Hitch
| Hitch Category | Category 1 |
Weight
| Operational | 538 lb. |
| Operational | 244 kg |
| Shipping | 615 lb. |
| Shipping | 279 kg |
Gearbox
| Mower Deck Horsepower | 35 hp |
| Mower Deck Horsepower | 26.1 kW |
| Ratio | 1:1.9 |
Setup Time
| Labor Hours | 0.5 hr |
Tractor Requirements
| PTO Horsepower | 25-35 hp |
| PTO Horsepower | 18.8-26.1 kW |
| PTO rpm | 540 rpm |
Deck
| Deck Thickness | 0.1345 in. |
| Deck Thickness | 3.416 mm |
| Deck Thickness | 10 gauge |
| Deck Discharge | Rear |
