John Deere GM4060
Double tap to zoom
GM4060
Grooming Mowers
Overview:

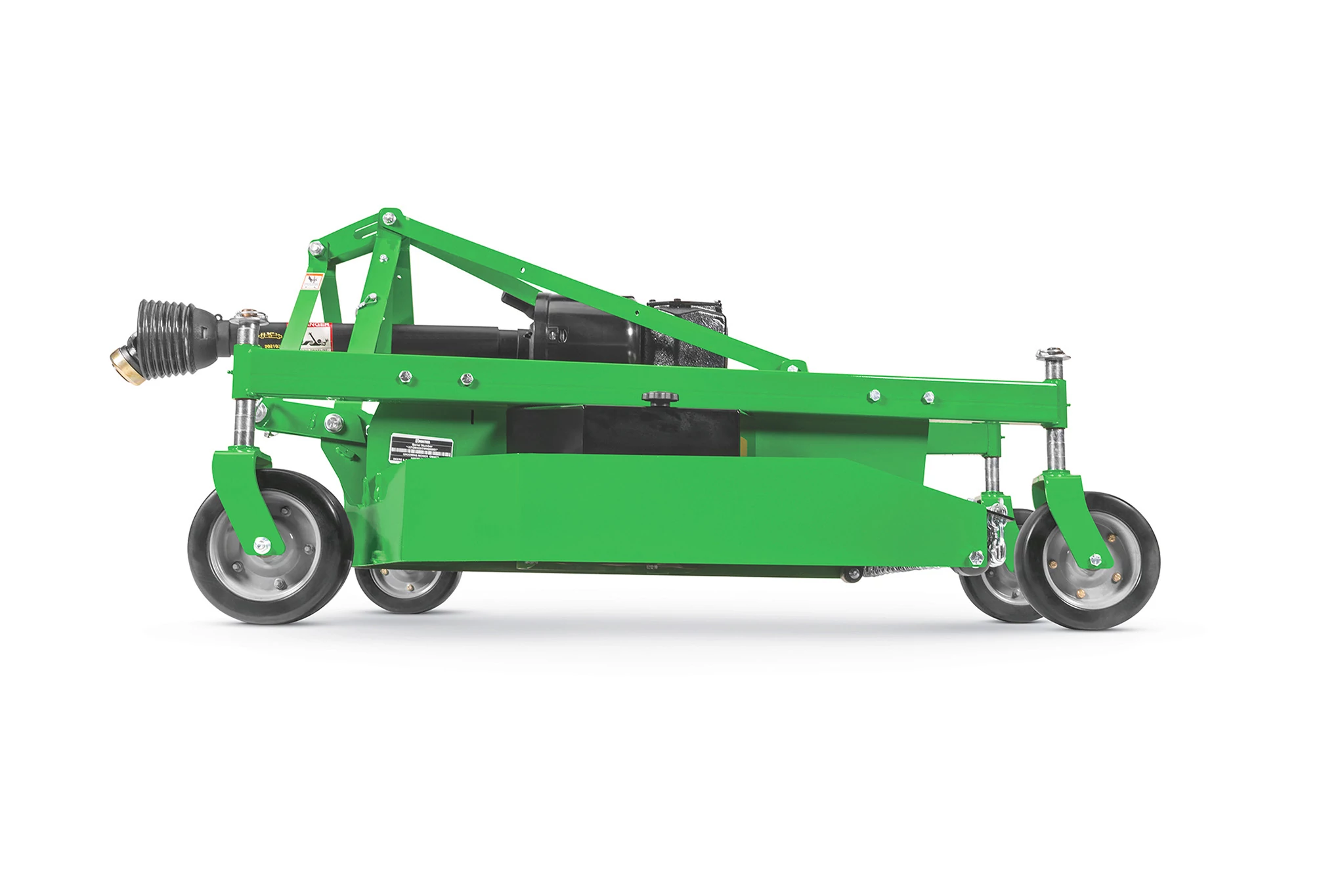

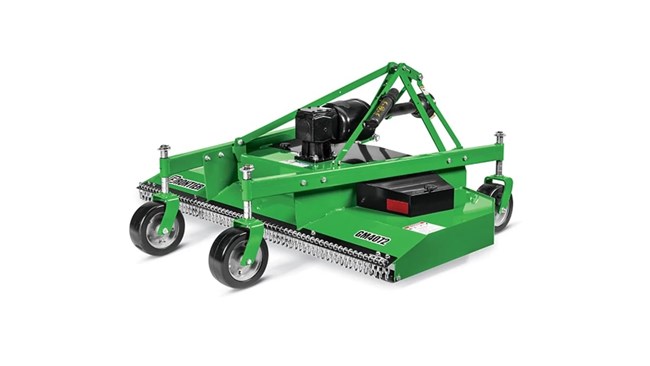

The Frontier™ GM4060 Rear Discharge Grooming Mower offers exceptional durability and performance with its high blade-tip speed, rugged gearbox, and innovative design that ensures a smooth, level cut quality across diverse terrains.
- Caster Wheels Follow Ground Contours and Prevent Scalping
- Floating Hitch for Level Cutting
- High Blade-Tip Speed
- Rugged Gearbox With Cooling Fins
Get A Quote
Fields with asterisks* are required. Please email our helpful staff with any questions or comments using the contact form.
Loan Calculator
Use the Loan Calculator to help you determine the financing and payment options that are best for you.
**The accuracy of this calculator and its applicability to your circumstances is not guaranteed. You should obtain personal advice from qualified professionals. This information is provided for illustrative purposes only and does not constitute an application. This notice does not guarantee loan approval, nor is it an offer or commitment to make a loan to you on the above terms.
Send To A Friend
Fields with asterisks* are required. Your friend will receive an email that contains a reference to this page. Please send this email only to people you know who would be interested in this information.
Share This Product:
Features
Adjustable Caster Wheels
By having four height adjustable caster wheels, the GM40 Series Grooming Mower follows ground contours and prevents scalping for even cut quality. Heavy tubular caster wheel arms are bolted to rail supports for long life.

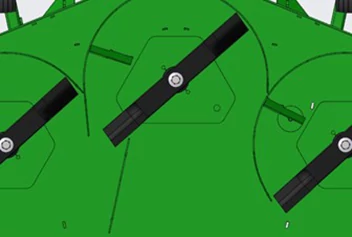

High Blade-Tip Speed for Better Mowing Quality
High blade tip speeds allow for better mowing quality at higher operating speeds and precise blade overlap work together to ensure performance and a quality cut.

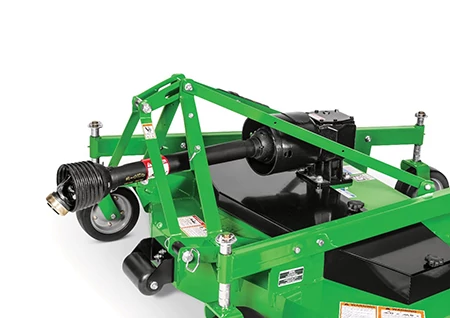

Floating Top and Lower Hitch for Level Cutting
The floating top link on the GM40 Series keeps the deck tracking over ground contours for a level and smooth cut. For increased cut quality, connect your tractor’s 3-point hitch to the mower without an iMatch™ hitch system, taking advantage of the side-to-side floating clevis brackets.
Specifications
Blade
| Blade Quantity | 3 |
| Average Tip Speed | 18000 fpm |
| Average Tip Speed | 5486.4 m/min |
| Spindles - Quantity | 3 |
| Spindles - Composition | Ductile iron |
| Spindles - Bearing | Triple ball bearings |
Belts
| Type | B-section Aramid |
| Quantity | 1 |
| Adjustment | Spring-loaded w/ bearing pivot |
Gearbox
| Recommended Maximum Tractor PTO Power | 50 hp |
| Recommended Maximum Tractor PTO Power | 37.3 kW |
Dimensions
| Overall Machine Width | 61 in. |
| Overall Machine Width | 155.2 cm |
| Cutting Width | 60 in. |
| Cutting Width | 152.4 cm |
Caster Wheels
| Quantity | 4 |
| Solid Caster Wheels | Yes |
| Solid Caster Wheels - Size | 4.0x10.0 in. |
| Solid Caster Wheels - Size | 10.1x25.4 cm |
Warranty
| Machine | 1 year |
| Gearbox | 6 year |
| Spindle | 3 year |
Hitch
| Hitch Category | Category 1 and Limited Category 1 |
Weight
| Operational | 617 lb. |
| Operational | 280 kg |
| Shipping | 710 lb. |
| Shipping | 322 kg |
Setup Time
| Labor Hours | 0.5 hr |
Tractor Requirements
| PTO Horsepower | 15-50 hp |
| PTO Horsepower | 11.2-37.2 kW |
| PTO rpm | 540 rpm |
Deck
| Deck Thickness | 7 gauge |
| Deck Discharge | Rear |
