John Deere GM2109R
Double tap to zoom
GM2109R
Grooming Mowers
Overview:

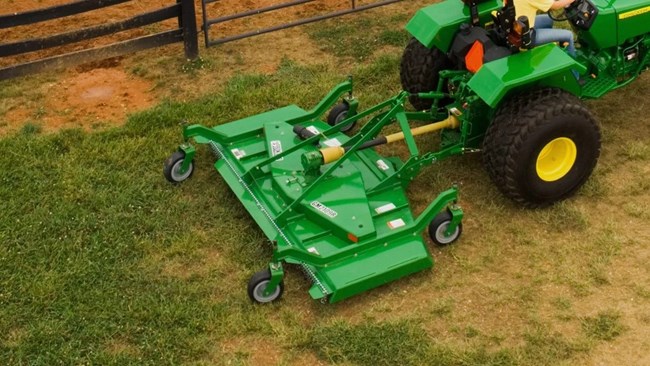

The Frontier™ GM2109R Rear Discharge Grooming Mower, equipped with Rear Chain Shields and a Front Antiscalping Roller, offers unparalleled precision in grooming with enhanced safety features and superior ground following capabilities, making it the perfect choice for maintaining pristine landscapes efficiently.
- 5 - 9 ft. (1.5 - 2.8 m) Cutting Widths
- Single- or Dual-Belt Drive With Automatic Belt Idler
- High Blade Speed for Thorough Cutting and Uniform Distribution
- Cat. 1 iMatch Compatible With Kit
Get A Quote
Fields with asterisks* are required. Please email our helpful staff with any questions or comments using the contact form.
Loan Calculator
Use the Loan Calculator to help you determine the financing and payment options that are best for you.
**The accuracy of this calculator and its applicability to your circumstances is not guaranteed. You should obtain personal advice from qualified professionals. This information is provided for illustrative purposes only and does not constitute an application. This notice does not guarantee loan approval, nor is it an offer or commitment to make a loan to you on the above terms.
Send To A Friend
Fields with asterisks* are required. Your friend will receive an email that contains a reference to this page. Please send this email only to people you know who would be interested in this information.
Share This Product:
Features
Rugged Gearbox
The GM11 and GM21 Series Medium-Duty Grooming Mowers come with a 50-hp (37.3-kW) rugged gearbox. Cooling fins help extend the life of the gearbox.
Quick and Easy Height Adjustments
The GM21 Series Medium-Duty Grooming Mowers' stamped wheel yokes with air tires have spacers for quick and easy height adjustment.
Quality Cut With High Blade-Tip Speed
The high blade-tip speed and precise blade overlap work together to ensure exceptional strength, performance, and a quality cut when using the Frontier™ grooming mowers.
Specifications
Blade
| Spindles - Quantity | 3 |
| Dimensions | 33.0x7.0 cm |
| Dimensions | 13x2.75 in. |
| Overlap | 3.5 cm |
| Overlap | 1.375 in. |
| Spindles - Bearing | Shielded tapered |
| Composition | Heat treated alloy steel |
| Spindles - Composition | Cast iron |
| Blade Quantity | 6 |
| Average Tip Speed | 4571.4 m/min |
| Average Tip Speed | 14998 fpm |
Caster Wheels
| Solid Caster Wheels - Size | 12x4 in. |
| Solid Caster Wheels - Size | 30.48x10.2 cm |
| Bearings | Shielded roller |
| Quantity | 4 |
| Pneumatic Caster Wheels - Size | 13x6.5 in. |
| Pneumatic Caster Wheels - Size | 33.02x16.51 cm |
| Solid Caster Wheels | Yes |
Belts
| Quantity | 2 |
| Adjustment | Slotted track |
| Type | CX, polyester/cogged |
Dimensions
| Cutting Width | 279.4 cm |
| Cutting Width | 110 in. |
| Overall Machine Width | 284.5 cm |
| Overall Machine Width | 112 in. |
Warranty
| Machine | 1 year |
| Gearbox | 1 year |
Hitch
| Hitch Category | Category 1 |
Weight
| Shipping | 1608 lb. |
| Shipping | 729.4 kg |
| Operational | 675.9 kg |
| Operational | 1490 lb. |
Gearbox
| Mower Deck Horsepower | 52.2 kW |
| Mower Deck Horsepower | 70 hp |
| Ratio | 1:2.1 |
Setup Time
| Labor Hours | 0.5 hr |
Tractor Requirements
| PTO Horsepower | 30-70 hp |
| PTO Horsepower | 22.4-52.2 kW |
| PTO rpm | 540 rpm |
Deck
| Deck Thickness | 8 gauge |
| Deck Thickness | 0.1644 in. |
| Deck Discharge | Rear |
| Deck Thickness | 4.176 mm |
