John Deere GM2060R
Double tap to zoom
GM2060R
Grooming Mowers
Overview:

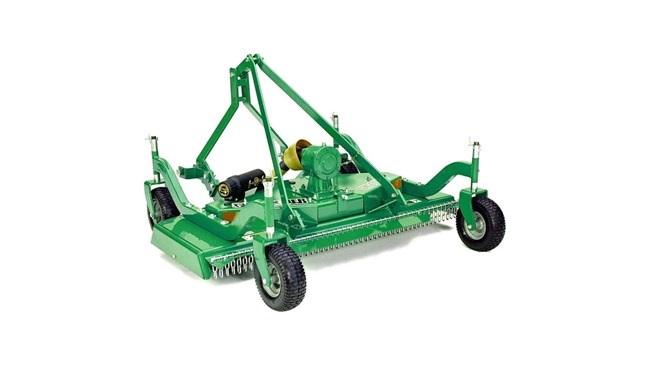

The Frontier™ GM2060R Rear Discharge Grooming Mower with Rear Chain Shields offers exceptional grass-cutting efficiency and safety, providing a meticulously groomed turf with reduced debris discharge and enhanced protection from projectile hazards, ideal for maintaining a pristine landscape.
- 4-9 ft (1.2-2.8 m) Cutting Widths
- Single- or Dual-Belt Drive
- High Blade Speed for Thorough Cutting and Uniform Distribution
- Cat. 1 iMatch Compatible With Kit
Get A Quote
Fields with asterisks* are required. Please email our helpful staff with any questions or comments using the contact form.
Loan Calculator
Use the Loan Calculator to help you determine the financing and payment options that are best for you.
**The accuracy of this calculator and its applicability to your circumstances is not guaranteed. You should obtain personal advice from qualified professionals. This information is provided for illustrative purposes only and does not constitute an application. This notice does not guarantee loan approval, nor is it an offer or commitment to make a loan to you on the above terms.
Send To A Friend
Fields with asterisks* are required. Your friend will receive an email that contains a reference to this page. Please send this email only to people you know who would be interested in this information.
Share This Product:
Features

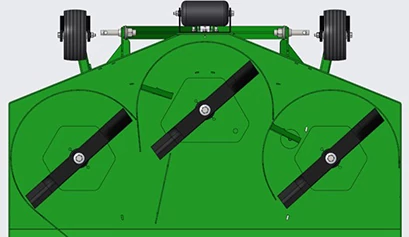

Choose From Various Cutting Blades
The mower is equipped with three blades per deck, with options for low and high lift blades. This versatility allows users to meet specific mowing needs and achieve optimal grass cutting performance in various conditions.
Safety Chain Shield
GM20 Series Grooming Mowers come standard with a safety chain shield.

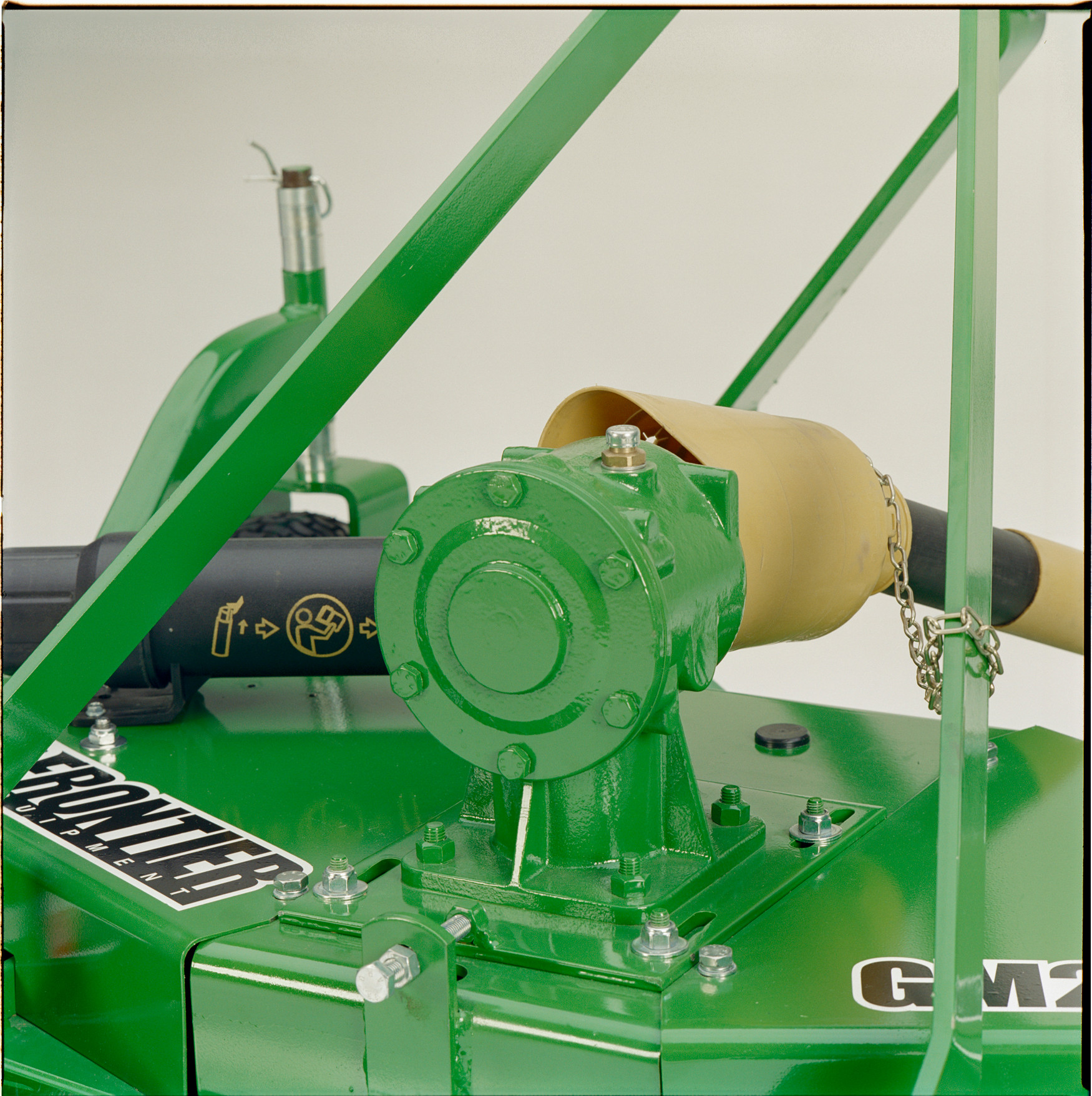

Gearbox With Spiral Gears
The rugged gearbox on the GM20 Series Standard-Duty Grooming Mowers feature highly engineered spiral gears to dramatically reduce noise, increase endurance, and transfer more power to the cutting blades.
Specifications
Blade
| Spindles - Quantity | 3 |
| Dimensions | 72.4x5.7 cm |
| Dimensions | 28.5x2.25 in. |
| Overlap | 2.9 cm |
| Overlap | 1.125 in. |
| Spindles - Bearing | Shielded ball |
| Composition | Heat treated alloy steel |
| Spindles - Composition | Cast iron |
| Blade Quantity | 3 |
| Average Tip Speed | 4980 m/min |
| Average Tip Speed | 16338 fpm |
Caster Wheels
| Solid Caster Wheels - Size | 10x3.2 in. |
| Solid Caster Wheels - Size | 25.4x8.1 cm |
| Bearings | Shielded roller |
| Quantity | 4 |
| Pneumatic Caster Wheels - Size | 11x4 in. |
| Pneumatic Caster Wheels - Size | 27.94x10.16 cm |
| Solid Caster Wheels | Yes |
Belts
| Quantity | 2 |
| Adjustment | Slotted track |
| Type | 5VX, polyester/cogged |
Dimensions
| Cutting Width | 152.4 cm |
| Cutting Width | 60 in. |
| Overall Machine Width | 157.5 cm |
| Overall Machine Width | 62 in. |
Warranty
| Machine | 1 year |
| Gearbox | 1 year |
Hitch
| Hitch Category | Category 1 |
Weight
| Shipping | 609 lb. |
| Shipping | 276.2 kg |
| Operational | 249.5 kg |
| Operational | 550 lb. |
Gearbox
| Mower Deck Horsepower | 37.3 kW |
| Mower Deck Horsepower | 50 hp |
| Ratio | 1:3.1 |
Tractor Requirements
| PTO Horsepower | 20-50 hp |
| PTO Horsepower | 14.9-37.3 kW |
| PTO rpm | 540 rpm |
Deck
| Deck Thickness | 8 gauge |
| Deck Thickness | 0.1644 in. |
| Deck Discharge | Rear |
| Deck Thickness | 4.176 mm |
