Features
Roller With Adjustable Cutting Heights
The roller can be adjusted into three different cutting height positions (low, medium, and high). These adjustments can help prevent blades from digging into the soil with changing conditions. Even in rough terrain, the roller can help achieve a smooth performance.
Durability and Versatility

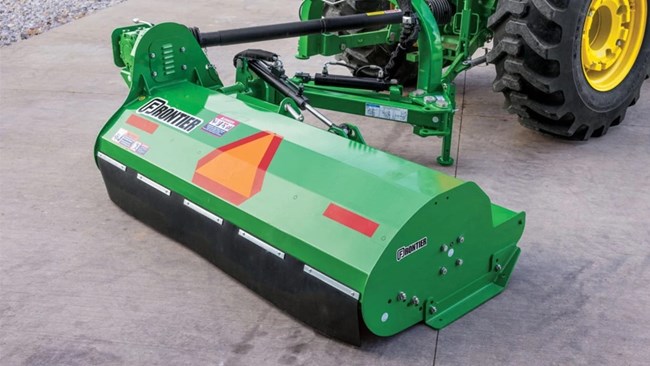

The Frontier™ FL10 Series Flail Mower combines rugged durability for brush cutting with the finesse to leave turf grass looking polished. Its dual-purpose design eliminates the need to switch implements, letting operators tackle everything from ditches to hedgerows efficiently while protecting the tractor by clearing rough material on the first pass.
Hammer Blades for a Range of Conditions
The FL10 Series models come standard with hammer blades. These are great all-purpose durable blades, providing aggressive cutting for tougher conditions while also delivering a high-quality cut on maintained fields.
Specifications
Rotor
| Rotor Diameter | 5.5 in. |
| Rotor Diameter | 14 cm |
| Rotor Speed | 2354 rpm |
| Rotor Thickness | 0.39 in. |
| Rotor Thickness | 10 mm |
| Rotor Work Diameter | 16.29 in. |
| Rotor Work Diameter | 41.4 cm |
| Rotor Bearing Type | Spherical Roller 21309 |
Miscellaneous
| Hydraulic Quick Coupler Size | 0.5 in. |
| Hydraulic Quick Coupler Size | 1.3 cm |
| Frame Thickness | 0.16 in. |
| Frame Thickness | 4 mm |
| Side Frame Thickness | 0.31 in. |
| Side Frame Thickness | 8 mm |
| Roller Bearing Diameter | 3.15 in. |
| Roller Bearing Diameter | 8 cm |
| Rear Roller Bearing Type | D40 D80 B23 62208 2RS2 |
| Belt Adjustment | Screw adjustment |
| Primary Pulley Diameter | 8.9 in. |
| Primary Pulley Diameter | 225 mm |
| Secondary Pulley Diameter | 6.3 in. |
| Secondary Pulley Diameter | 160 mm |
| Hood Height | 19.68 in. |
| Hood Height | 50 cm |
| Side Case Height | 24.4 in. |
| Side Case Height | 62 cm |
| PTO Yoke Height | 23.62 in. |
| PTO Yoke Height | 60 cm |
Compatibility
| Minimum Tractor Power Required | 40 hp |
| Minimum Tractor Power Required | 29.8 kW |
| Maximum Tractor Power Required | 105 hp |
| Maximum Tractor Power Required | 78.3 kW |
| Minimum Tractor Weight | 5300 lb. |
| Minimum Tractor Weight | 2404.1 kg |
| Center of Gravity (COG) | 54.7 in. |
| Center of Gravity (COG) | 138.9 cm |
Hitch
| Hitch Type | 3-point |
| iMatch Compatible | No |
| Hitch Category | 2 |
| Hitch Position | Offset |
| Offset Range | Left of center: 13.5 in. (34.3 cm); Fully extended: 115 in. (292.1 cm) |
| Hydraulic Offset | Standard |
Drives
| Gearbox Speed | 540 rpm |
| Drive Belts | 3 - SPB Lp=1320 |
| Gauge Roller Diameter | 6.62 in. |
| Gauge Roller Diameter | 16.8 cm |
Dimensions
| Cutting Capacity | 1.57 in. |
| Cutting Capacity | 4 cm |
| Cutting Height | 1.18/1.96/3.14 in. |
| Cutting Height | 3/5/8 cm |
| Overall Height | 45 in. |
| Overall Height | 114.3 cm |
| Overall Length | 91.4 in. |
| Overall Length | 232.2 cm |
| Cutting Width | 72 in. |
| Cutting Width | 182.9 cm |
| Overall Width | 94.92 in. |
| Overall Width | 241.1 cm |
| Weight | 1484 lb. |
| Weight | 672.9 kg |
Blades
| Blade Type | Hammers (standard); Y-Blade (service) |
| Number of Hammers | 22 |
| Type of Blades/Hammers | 8/10 |
| Blade Tip Speed | 10039 fpm |
| Blade Tip Speed | 3059.1 m/min |
