Features
Versatility and Durability

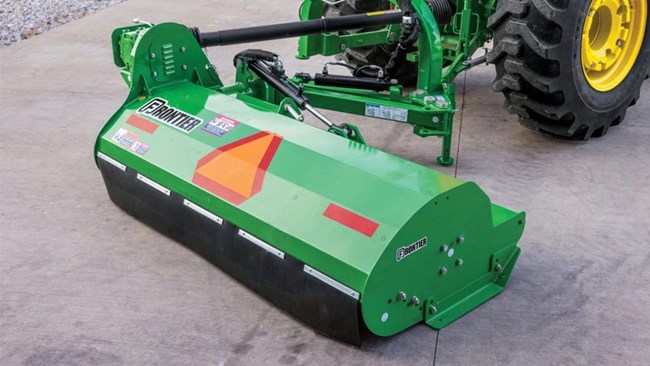

The Frontier™ FL11S Series Flail Mower combines the toughness to cut brush with the finesse to leave turf grass looking polished. Its dual-purpose design handles everything from ditches and hedgerows to pond edges and turf, letting operators tackle diverse tasks efficiently without switching implements.
Hammer Blades for a Range of Conditions
The FL10 Series models come standard with hammer blades. These are great all-purpose durable blades, providing aggressive cutting for tougher conditions while also delivering a high-quality cut on maintained fields.
Side Shift Hydraulically for Hard-to-Reach Areas
The FL11S Series comes standard with hydraulic side shift, giving operators the ability to slide left of center 12 in. (30.5 cm) and fully extended up to 100 in. (254 cm), all from the seat of their tractor. Side shift is ideal for trimming along walls, buildings, trees with low-lying branches, fences, or orchards, making those hard-to-reach areas an easy cut.
Specifications
Rotor
| Rotor Diameter | 5 in. |
| Rotor Diameter | 12.7 cm |
| Rotor Speed | 2278 rpm |
| Rotor Thickness | 0.31 in. |
| Rotor Thickness | 8 mm |
| Rotor Work Diameter | 15 in. |
| Rotor Work Diameter | 38.1 cm |
| Rotor Bearing Type | Spherical Roller 22207 |
Miscellaneous
| Hydraulic Quick Coupler Size | 0.5 in. |
| Hydraulic Quick Coupler Size | 1.3 cm |
| Frame Thickness | 0.12 in. |
| Frame Thickness | 3 mm |
| Side Frame Thickness | 0.2 in. |
| Side Frame Thickness | 5 mm |
| Roller Bearing Diameter | 2.835 in. |
| Roller Bearing Diameter | 7.2 cm |
| Rear Roller Bearing Type | YAR 207-2FW/VA201 |
| Belt Adjustment | Screw adjustment |
| Primary Pulley Diameter | 8.9 in. |
| Primary Pulley Diameter | 225 mm |
| Secondary Pulley Diameter | 6.3 in. |
| Secondary Pulley Diameter | 160 mm |
| Hood Height | 18.89 in. |
| Hood Height | 48 cm |
| Side Case Height | 24.01 in. |
| Side Case Height | 61 cm |
| PTO Yoke Height | 23.62 in. |
| PTO Yoke Height | 60 cm |
Compatibility
| Minimum Tractor Power Required | 45 hp |
| Minimum Tractor Power Required | 33.6 kW |
| Maximum Tractor Power Required | 75 hp |
| Maximum Tractor Power Required | 55.9 kW |
| Minimum Tractor Weight | 3700 lb. |
| Minimum Tractor Weight | 1678.3 kg |
| Center of Gravity (COG) | 45.6 in. |
| Center of Gravity (COG) | 115.8 cm |
Hitch
| Hitch Type | 3-point |
| iMatch Compatible | No |
| Hitch Category | 1 |
| Hitch Position | Offset |
| Offset Range | Left of center: 12 in. (30.5 cm); Fully extended: 94.5 in. (240 cm) |
| Hydraulic Offset | Standard |
Drives
| Gearbox Speed | 540 rpm |
| Drive Belts | 3 - SPB Lp=1320 |
| Gauge Roller Diameter | 5.5 in. |
| Gauge Roller Diameter | 14 cm |
Dimensions
| Cutting Capacity | 1.18 in. |
| Cutting Capacity | 3 cm |
| Cutting Height | 0.98/1.96/2.99 in. |
| Cutting Height | 2.5/5/7.6 cm |
| Overall Height | 39 in. |
| Overall Height | 99.1 cm |
| Overall Length | 79.5 in. |
| Overall Length | 201.9 cm |
| Cutting Width | 63 in. |
| Cutting Width | 160 cm |
| Overall Width | 77.16 in. |
| Overall Width | 196 cm |
| Weight | 936 lb. |
| Weight | 424.6 kg |
Blades
| Blade Type | Hammers (standard); Y-Blade (service) |
| Number of Hammers | 22 |
| Type of Blades/Hammers | 18/20 |
| Blade Tip Speed | 8937 fpm |
| Blade Tip Speed | 2723.4 m/min |
