Features
Hammer Blades for a Range of Conditions
The FL10 Series models come standard with hammer blades. These are great all-purpose durable blades, providing aggressive cutting for tougher conditions while also delivering a high-quality cut on maintained fields.
Durability and Versatility

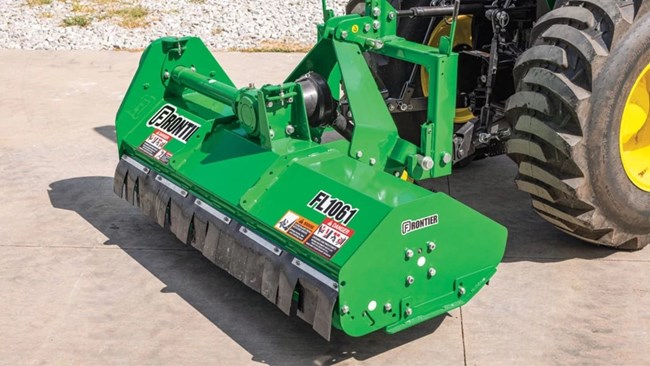

The Frontier™ FL10 Series Flail Mower combines rugged durability for brush cutting with the finesse to leave turf grass looking polished. Its dual-purpose design eliminates the need to switch implements, letting operators tackle everything from ditches to hedgerows efficiently while protecting the tractor by clearing rough material on the first pass.
Roller With Adjustable Cutting Heights
The roller can be adjusted into three different cutting height positions (low, medium, and high). These adjustments can help prevent blades from digging into the soil with changing conditions. Even in rough terrain, the roller can help achieve a smooth performance.
Specifications
Rotor
| Rotor Diameter | 5 in. |
| Rotor Diameter | 12.7 cm |
| Rotor Speed | 2600 rpm |
| Rotor Thickness | 0.31 in. |
| Rotor Thickness | 8 mm |
| Rotor Work Diameter | 12.63 in. |
| Rotor Work Diameter | 32.1 cm |
| Rotor Bearing Type | Spherical Roller 22207 |
Miscellaneous
| Hydraulic Quick Coupler Size | 0.5 in. |
| Hydraulic Quick Coupler Size | 1.3 cm |
| Frame Thickness | 0.12 in. |
| Frame Thickness | 3 mm |
| Side Frame Thickness | 0.16 in. |
| Side Frame Thickness | 4 mm |
| Roller Bearing Diameter | 2.4 in. |
| Roller Bearing Diameter | 6.1 cm |
| Rear Roller Bearing Type | D30 D62 B20 2206E 2RS1 |
| Belt Adjustment | Screw adjustment |
| Primary Pulley Diameter | 8.9 in. |
| Primary Pulley Diameter | 225 mm |
| Secondary Pulley Diameter | 5.5 in. |
| Secondary Pulley Diameter | 140 mm |
| Hood Height | 15.35 in. |
| Hood Height | 39 cm |
| Side Case Height | 25.2 in. |
| Side Case Height | 64 cm |
| PTO Yoke Height | 18.66 in. |
| PTO Yoke Height | 47.4 cm |
Compatibility
| Minimum Tractor Power Required | 20 hp |
| Minimum Tractor Power Required | 14.9 kW |
| Maximum Tractor Power Required | 45 hp |
| Maximum Tractor Power Required | 33.6 kW |
| Minimum Tractor Weight | 1400 lb. |
| Minimum Tractor Weight | 635 kg |
| Center of Gravity (COG) | 15 in. |
| Center of Gravity (COG) | 38.1 cm |
Hitch
| Hitch Type | 3-point |
| iMatch Compatible | No |
| Hitch Category | 1 |
| Hitch Position | Fixed Centered |
| Offset Range | No |
| Hydraulic Offset | No |
Drives
| Gearbox Speed | 540 rpm |
| Drive Belts | 2 - SPB Lp=1160 |
| Gauge Roller Diameter | 5.5 in. |
| Gauge Roller Diameter | 14 cm |
Dimensions
| Cutting Capacity | 0.75 in. |
| Cutting Capacity | 1.9 cm |
| Cutting Height | 0.78/1.57/2.36 in. |
| Cutting Height | 2/4/6 cm |
| Overall Height | 31.2 in. |
| Overall Height | 79.25 cm |
| Overall Length | 32 in. |
| Overall Length | 81.3 cm |
| Cutting Width | 53 in. |
| Cutting Width | 134.6 cm |
| Overall Width | 60 in. |
| Overall Width | 152.4 cm |
| Weight | 467 lb. |
| Weight | 211.8 kg |
Blades
| Blade Type | Hammers (standard); Y-Blade (service) |
| Number of Hammers | 28 |
| Type of Blades/Hammers | 19/21 |
| Blade Tip Speed | 8622 fpm |
| Blade Tip Speed | 2628 m/min |
