Hydraulic Side Shift for Hard-to-Reach Areas
The FL10S Series model comes standard with hydraulic side shift, giving operators the ability to slide left of center 21.5 in. (54.6 cm) and fully extended up to 83 in. (210.8 cm), all from the seat of their tractor. Side shift is ideal for trimming along walls, buildings, trees with low-lying branches, fences, or orchards, making those hard-to-reach areas an easy cut.
Hammer Blades for a Range of Conditions
The FL10 Series models come standard with hammer blades. These are great all-purpose durable blades, providing aggressive cutting for tougher conditions while also delivering a high-quality cut on maintained fields.
Durability and Versatility

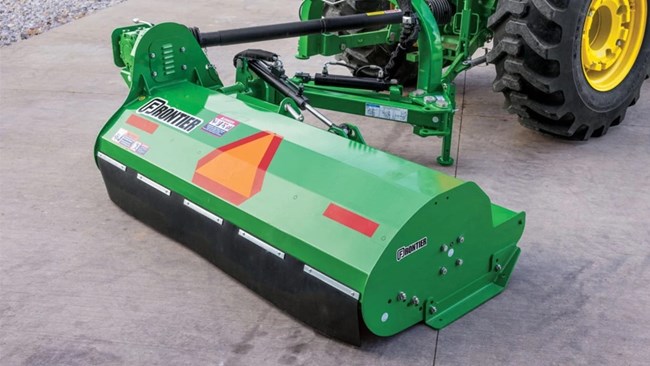

The Frontier™ FL10S Series Flail Mower combines rugged durability for cutting brush with the finesse to leave turf grass looking polished. Its versatility allows operators to tackle diverse tasks from ditches to hedgerows without switching implements, saving time while protecting the tractor by clearing rough material on the first pass.
Specifications
Rotor
| Rotor Diameter | 5 in. |
| Rotor Diameter | 12.7 cm |
| Rotor Speed | 2600 rpm |
| Rotor Thickness | 0.31 in. |
| Rotor Thickness | 8 mm |
| Rotor Work Diameter | 12.63 in. |
| Rotor Work Diameter | 32.1 cm |
| Rotor Bearing Type | Spherical Roller 22207 |
Miscellaneous
| Hydraulic Quick Coupler Size | 0.5 in. |
| Hydraulic Quick Coupler Size | 1.3 cm |
| Frame Thickness | 0.12 in. |
| Frame Thickness | 3 mm |
| Side Frame Thickness | 0.16 in. |
| Side Frame Thickness | 4 mm |
| Roller Bearing Diameter | 2.4 in. |
| Roller Bearing Diameter | 6.1 cm |
| Rear Roller Bearing Type | D30 D62 B20 2206E 2RS1 |
| Belt Adjustment | Screw adjustment |
| Primary Pulley Diameter | 8.9 in. |
| Primary Pulley Diameter | 225 mm |
| Secondary Pulley Diameter | 5.5 in. |
| Secondary Pulley Diameter | 140 mm |
| Hood Height | 15.35 in. |
| Hood Height | 39 cm |
| Side Case Height | 25.2 in. |
| Side Case Height | 64 cm |
| PTO Yoke Height | 19.29 in. |
| PTO Yoke Height | 49 cm |
Compatibility
| Minimum Tractor Power Required | 15 hp |
| Minimum Tractor Power Required | 11.2 kW |
| Maximum Tractor Power Required | 45 hp |
| Maximum Tractor Power Required | 33.6 kW |
| Minimum Tractor Weight | 2600 lb. |
| Minimum Tractor Weight | 1179.3 kg |
| Center of Gravity (COG) | 45.6 in. |
| Center of Gravity (COG) | 115.8 cm |
Hitch
| Hitch Type | 3-point |
| iMatch Compatible | No |
| Hitch Category | 1 |
| Hitch Position | Offset |
| Offset Range | Left of center: 21.5 in. (54.6 cm); Fully extended: 68 in. (172.7 cm) |
| Hydraulic Offset | Standard |
Drives
| Gearbox Speed | 540 rpm |
| Drive Belts | 2 - SPB Lp=1160 |
| Gauge Roller Diameter | 5.5 in. |
| Gauge Roller Diameter | 14 cm |
Dimensions
| Cutting Capacity | 0.79 in. |
| Cutting Capacity | 2 cm |
| Cutting Height | 0.78/1.57/2.36 in. |
| Cutting Height | 2/4/6 cm |
| Overall Height | 38.7 in. |
| Overall Height | 98.3 cm |
| Overall Length | 71.2 in. |
| Overall Length | 180.9 cm |
| Cutting Width | 45 in. |
| Cutting Width | 114.3 cm |
| Overall Width | 52.32 in. |
| Overall Width | 132.9 cm |
| Weight | 592 lb. |
| Weight | 268.5 kg |
Blades
| Blade Type | Hammers (standard); Y-Blade (service) |
| Number of Hammers | 24 |
| Type of Blades/Hammers | 19/21 |
| Blade Tip Speed | 8622 fpm |
| Blade Tip Speed | 2628 m/min |
