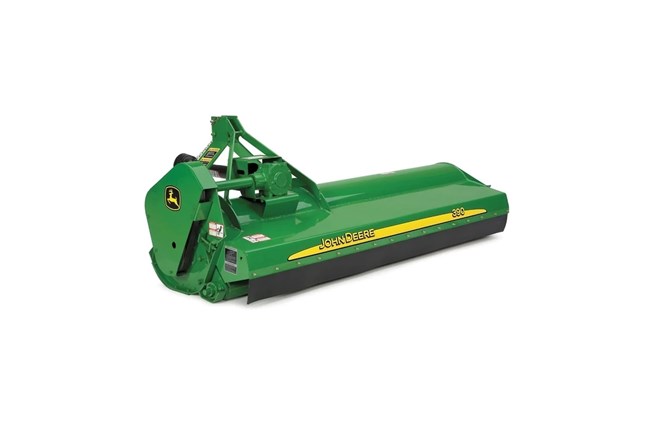

John Deere 390
Double tap to zoom
390
Flail Mowers and Shredders
Overview:
The 390 Flail Mower offers exceptional durability for heavy-duty applications, featuring a robust gearbox with a continuous 65 hp rating, interchangeable side-slicer or smooth-cut knives, and a reinforced hood and end plates to resist wear and dents caused by fast fowing debris.
- Adjustable Cutting Height
- Available With a 12- or 26-in. Offset
- Heavy-Duty Gearbox and Drive Shaft
- Reliable, Heavy-Duty HC Section Belts
Get A Quote
Fields with asterisks* are required. Please email our helpful staff with any questions or comments using the contact form.
Loan Calculator
Use the Loan Calculator to help you determine the financing and payment options that are best for you.
**The accuracy of this calculator and its applicability to your circumstances is not guaranteed. You should obtain personal advice from qualified professionals. This information is provided for illustrative purposes only and does not constitute an application. This notice does not guarantee loan approval, nor is it an offer or commitment to make a loan to you on the above terms.
Send To A Friend
Fields with asterisks* are required. Your friend will receive an email that contains a reference to this page. Please send this email only to people you know who would be interested in this information.
Share This Product:
Features
Side-Slicer and Smooth-Cut Knives
The mower comes with heat-treated side-slicer knives for tough conditions. Optional smooth-cut knives, ideal for grassy conditions, add versatility. Each knife type is designed for durability and efficiency, with resharpening options for prolonged life.
Heavy-Duty Hood and End Plates
Constructed for durability, the hood is 0.2 in. (0.48 cm) thick to resist damage. The end plates provide structural integrity. A full-length torque tube helps prevent twisting on uneven ground for stable performance.
Heavy-Duty Gearbox and Drive Shaft
All John Deere flail mowers feature a rugged, heavy-duty gearbox with a continuous 65 hp (48.5 kW) rating and an intermittent 90 hp (67 kW) rating. Another feature included is a five-year, unlimited-hour warranty.
Specifications
Machine
| Cutting Width | 7.54 ft |
| Cutting Width | 2.3 m |
| Offset | 12-26 in. |
| Offset | 30-70 cm |
| Cutting Height | 0.5-5 in. |
| Cutting Height | 13-127 mm |
| Hood Thickness | 0.19 in. |
| Hood Thickness | 4.8 mm |
Dimensions
| Overall Width | 8.25 ft |
| Overall Width | 2.5 m |
| Overall Height | 3.25 ft |
| Overall Height | 0.99 m |
| Overall Length | 3.33 ft |
| Overall Length | 1 m |
Rotor
| Rotor Speed | 1850 rpm |
| Rotor Diameter | 4.5 in. |
| Rotor Diameter | 114 mm |
Drives
| Power Take-Off (PTO) | 540 rpm |
| Gearcase (Continuous Rating) | 65 hp |
| Gearcase (Continuous Rating) | 34 kW |
| Belts | 2-section 5VX-2 notched |
| Gauge Roller | 5.5 in. |
| Gauge Roller | 140 mm |
Tractor HP Required
| Minimum Tractor Horsepower Required | 30 hp |
| Minimum Tractor Horsepower Required | 22 kW |
| Maximum Tractor Horsepower Required | 75 hp |
| Maximum Tractor Horsepower Required | 56 kW |
Blades
| Number Of Blades | 168 (84 pairs) |
| Blade Type | Heat-treated reversible side-slice (optional smooth-cut cupped knives) |
Weight
| Approximate Weight | 1093 lb. |
| Approximate Weight | 495 kg |
3-Point Hitch
| Quick-Coupler Compatible | Yes (Category 1 and 2) |
