Features
Handle Extreme Volumes With Power and Capacity

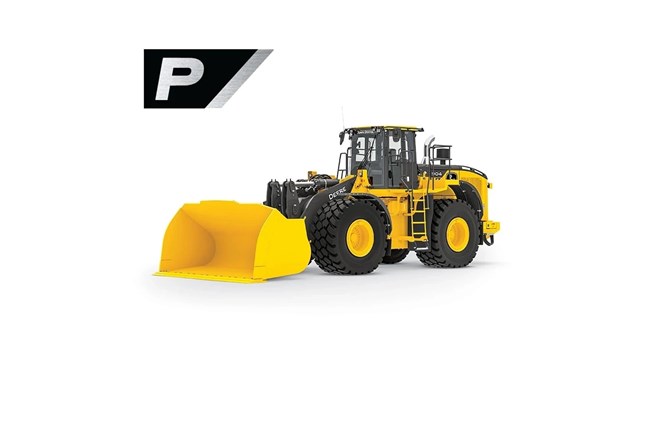

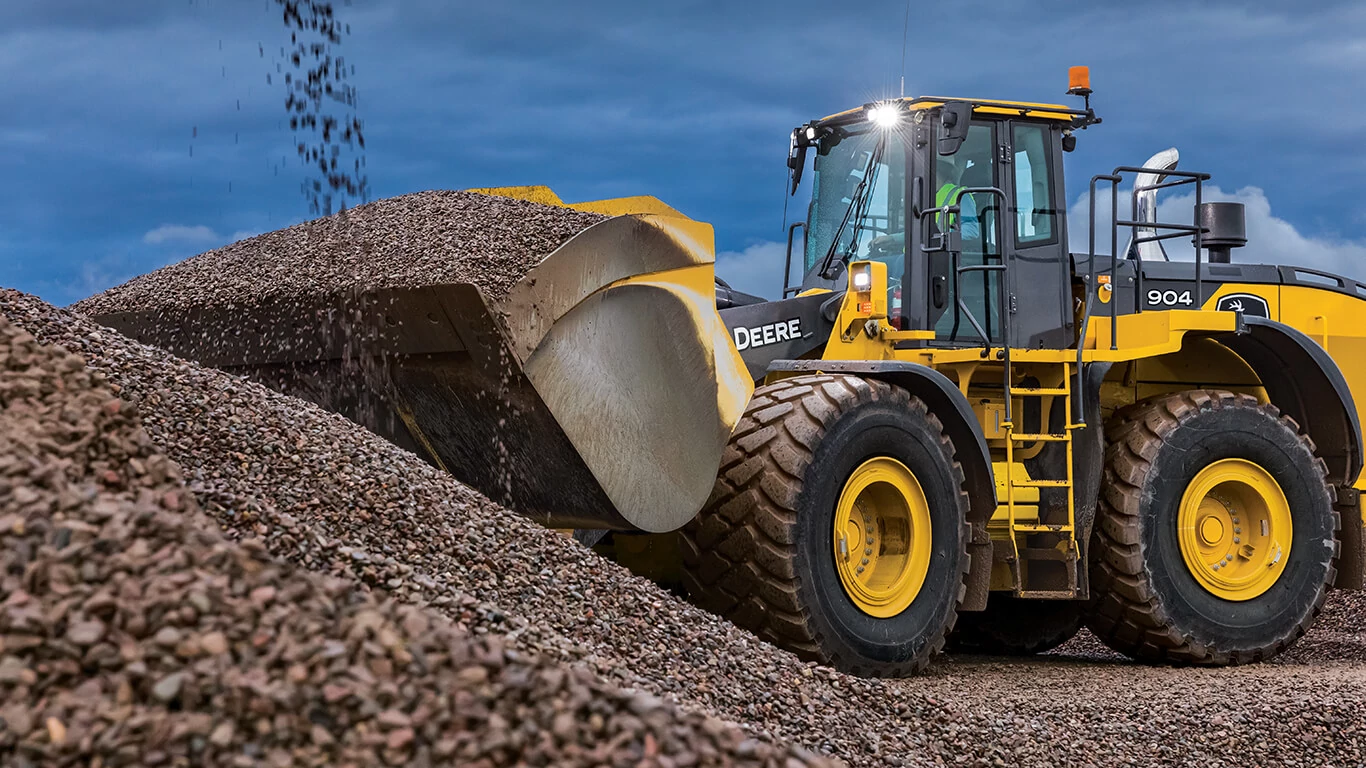

As the largest P‑Tier loader, the 904 is built for massive material movement and high-capacity loading, making it ideal for quarry, mining, and large-scale production environments.
Maximize Loading Efficiency at Scale
Advanced payload technologies like SmartWeigh™ (when equipped) help operators consistently hit target loads, improving cycle efficiency and increasing total tons moved per shift.
Built for Continuous Performance in Harsh Conditions
Heavy-duty structures, reinforced drivetrain components, and jobsite-proven systems are designed to withstand extreme workloads and keep machines productive with minimal downtime.
Specifications
Engine
| Manufacturer | John Deere |
| Model | John Deere JD14 |
| Non-Road Emission Standards | EPA Final Tier 4/EU Stage V |
| Cylinders | 6 |
| Valves Per Cylinder | 4 |
| Displacement | 13.6 L |
| Displacement | 827 cu in. |
| Net Peak Power | 1400 rpm |
| Net Peak Power At Rated RPM (ISO 9249) | 320 kW |
| Net Peak Power At Rated RPM (ISO 9249) | 429 hp |
| Net Peak Torque | 1400 rpm |
| Net Peak Torque At Rated RPM (ISO 9249) | 2184 Nm |
| Net Peak Torque At Rated RPM (ISO 9249) | 1611 lb-ft |
| Net Torque Rise | 44 % |
| Fuel System (Electronically Controlled) | Electronic High Pressure Common Rail (HPCR) |
| Lubrication | Full-flow spin-on filter and integral cooler |
| Aspiration | Series turbocharged, charge air cooled |
| Air Cleaner | Dual-element dry type, restriction indicator in cab monitor for service, additional centrifugal engine pre-cleaner |
Transmission System
| Type | Countershaft-type PowerShift™ with Lock-Up Torque Converter |
| Torque Converter | Single stage, dual phase with freewheeling stator with Lock-Up Clutch |
| Shift Control | Electronically modulated, adaptive, load and speed dependent |
| Operator Interface | Steering-column or joystick-mounted F-N-R and gear-select lever; quick-shift button on hydraulic lever |
| Shift Modes | Manual/auto (1st–5th or 2nd–5th); quick-shift button with 2 selectable modes: kick-down or kick-up/down; and 4 settings for clutch cutoff |
Serviceability
| Fuel Tank (With Lockable Cap) Refill Capacity | 533 L |
| Fuel Tank (With Lockable Cap) Refill Capacity | 141 gal. |
| Cooling System Refill Capacity | 78.8 L |
| Cooling System Refill Capacity | 83.2 qt |
| Diesel-Exhaust Fluid (DEF) Refill Capacity | 26.3 L |
| Diesel-Exhaust Fluid (DEF) Refill Capacity | 27.8 qt |
| Engine Oil With Vertical Spin-On Filter Refill Capacity | 40 L |
| Engine Oil With Vertical Spin-On Filter Refill Capacity | 42.3 qt |
| Transmission Reservoir With Vertical Filter Refill Capacity | 27.9 L |
| Transmission Reservoir With Vertical Filter Refill Capacity | 7.38 gal. |
| Axle Oil Without Coolers (Front And Rear, Each) Refill Capacity | 68.1 L |
| Axle Oil Without Coolers (Front And Rear, Each) Refill Capacity | 18 gal. |
| Hydraulic Reservoir With Filter Refill Capacity | 181.7 L |
| Hydraulic Reservoir With Filter Refill Capacity | 48 gal. |
| Parking Brake Oil (Wet Disc) Refill Capacity | 0.7 L |
| Parking Brake Oil (Wet Disc) Refill Capacity | 24 oz. |
Wheels And Tires
| Tire Size Used To Measure | Michelin 875/65R29, 1 Star L-3 |
| Tread Width On Standard Tires | 2441 mm |
| Tread Width On Standard Tires | 96.1 in. |
| Width Over Tires On Standard Tires | 3409 mm |
| Width Over Tires On Standard Tires | 134.2 in. |
Maximum Forward Travel Speeds (Standard 5-Speed With Lockup Torque Converter)
| Tire Size Used To Measure Travel Speeds | 875/65R29 L3 |
| Range 1 | 6.4 km/h |
| Range 1 | 4 mph |
| Range 2 | 11.4 km/h |
| Range 2 | 7.1 mph |
| Range 3 | 17.4 km/h |
| Range 3 | 10.8 mph |
| Range 4 | 24.6 km/h |
| Range 4 | 15.3 mph |
| Range 5 | 40.1 km/h |
| Range 5 | 24.9 mph |
Axles And Brakes
| Final Drives | Heavy-duty mid-board planetary |
| Standard Differentials Front | Conventional |
| Standard Differentials Rear | Conventional |
| Tire Size Used To Measure Oscillation | 875/65R29 L3 |
| Rear Axle Oscillation, Stop To Stop | 16 degrees |
| Rear Axle Oscillation, Distance Each Direction | 8 degrees |
| Service Brakes (ISO 3450) | Outboard, forced oil cooled, multi disc |
| Parking Brake (ISO 3450) | Automatic spring applied, hydraulically released, sealed wet multi disc |
Electrical And Lighting
| System Type | 24 volt with 150-amp alternator |
| Battery Voltage | 12 V |
| Number Of Batteries | 2 |
| Battery Capacity Per Each | 1400 CCA |
| Standard Alternator Rating | 150 amp |
Hydraulic System And Steering
| Pump Type And System (Loader And Steering) | 2 variable-displacement, load-sensing axial-piston pumps; closed-center system |
| Rated RPM | 2000 rpm |
| System Pressure At Max Rated Flow | 6895 kPa |
| System Pressure At Max Rated Flow | 1000 psi |
| Pump (Steering) | 1 variable-displacement, load-sensing axial-piston pumps; closed-center system |
| Max Rated Flow At Rated RPM | 199.4 L/min |
| Max Rated Flow At Rated RPM | 52.7 gpm |
| System Relief Pressure (Loader And Steering) | 24889 kPa |
| System Relief Pressure (Loader And Steering) | 3611 psi |
| Loader Controls | 2-function valve; single- or dual-lever controls; control lever lockout feature |
| Steering Type (ISO 5010) | Power, fully hydraulic; single-lever control and adjustable wrist rest with conventional steering wheel override |
| Steering Articulation Full Arc Angle | 80 degrees |
| Steering Articulation Angle Each Direction | 40 degrees |
| Turning Radius (Measured To Centerline Of Outside Tire) | 6.3 m |
| Turning Radius (Measured To Centerline Of Outside Tire) | 20.75 ft, in. |
| Hydraulic Raise Cycle Time | 5.9 seconds |
| Hydraulic Dump Cycle Time | 2.3 seconds |
| Hydraulic Lower (Power Down) Cycle Time | 3.6 seconds |
| Hydraulic Total Cycle Time | 11.8 seconds |
Cooling
| Fan Drive Type | Hydraulically driven, proportionally controlled, fan aft of coolers, automatic reversing fan drive |
