Features
Unlock Instant Power With E‑Drive Performance
Deere’s Electric Variable Transmission (EVT) delivers instant torque and smooth, responsive power, improving cycle times while simplifying operation with single‑pedal control.

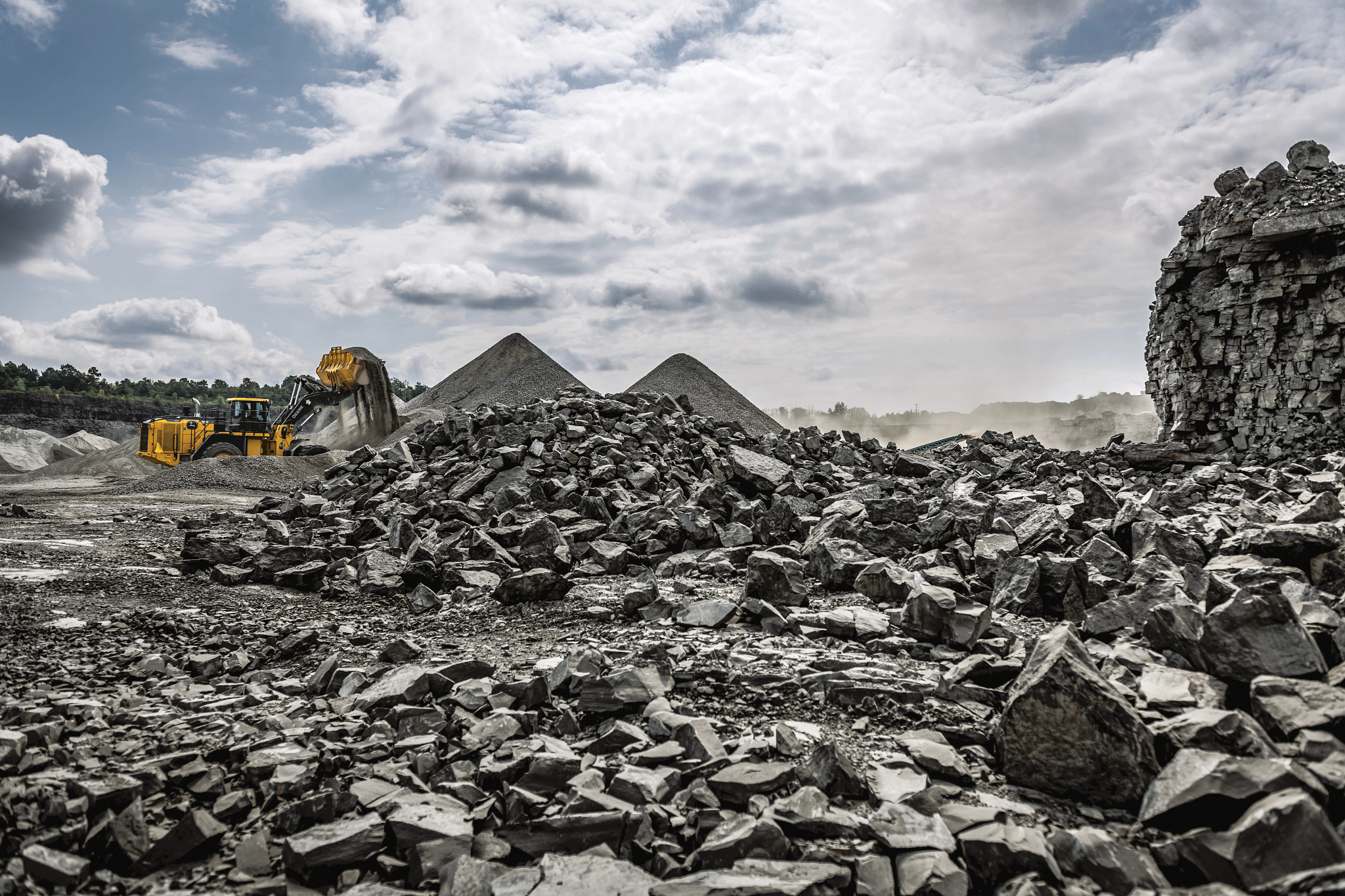

Move More Material With Greater Efficiency

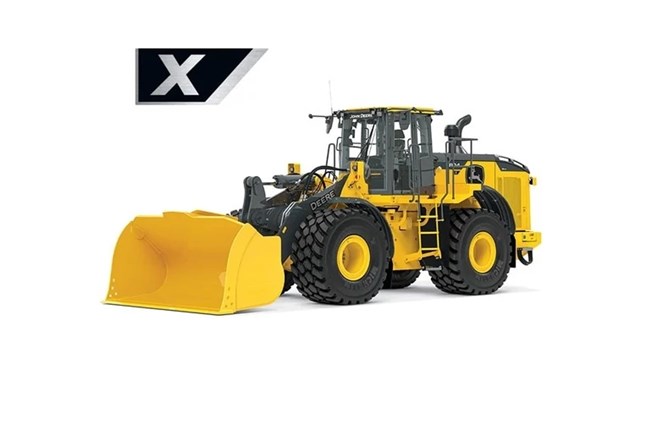

Designed for production work, the 824 X‑Tier combines high horsepower and optimized machine balance to improve bucket fill and increase tons moved per hour—while using energy more efficiently than traditional drivetrains.
Work Smarter With Advanced Jobsite Technology

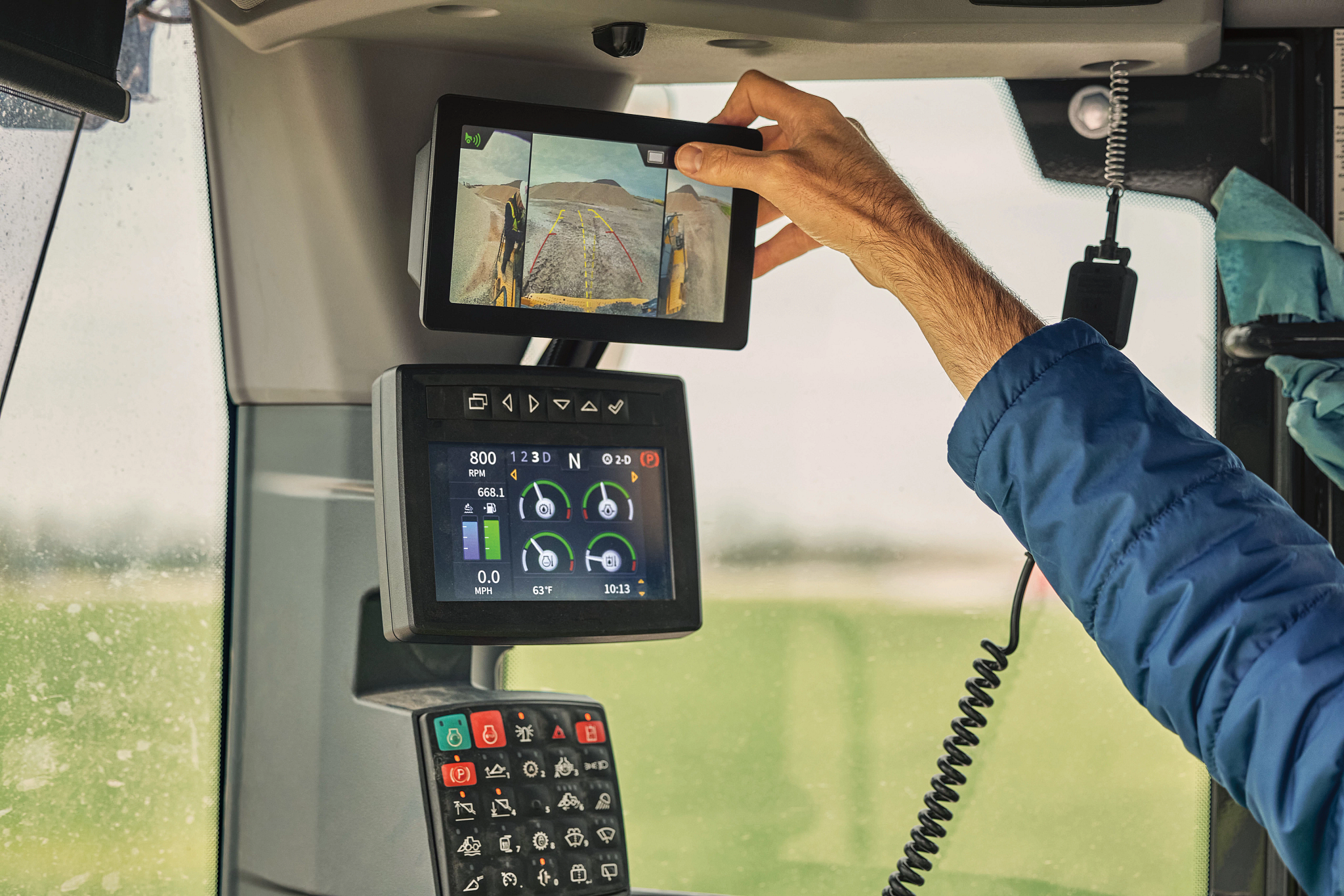

Integrated technologies like SmartWeigh™, Pile Slip Assist, and enhanced vision systems help operators maintain control, hit target loads, and operate confidently in complex, high-traffic jobsites.
Specifications
Engine
| Manufacturer | John Deere |
| Non-Road Emission Standards | EPA Tier 4/EU Stage V |
| Cylinders | 6 |
| Valves Per Cylinder | 4 |
| Displacement | 9 L |
| Displacement | 549 cu in. |
| Net Peak Power At Rated RPM (ISO 9249) | 256 kW |
| Net Peak Power At Rated RPM (ISO 9249) | 343 hp |
| Net Peak Torque At Rated RPM (ISO 9249) | 1627 Nm |
| Net Peak Torque At Rated RPM (ISO 9249) | 1200 lb-ft |
| Net Torque Rise | 57 % |
| Fuel System (Electronically Controlled) | High-pressure common rail |
| Lubrication | Full-flow spin-on filter and integral cooler |
| Aspiration | Series turbocharged, charge air cooled |
| Air Cleaner | Under-hood dual-element dry type, restriction indicator in cab monitor for service |
Transmission System
| Type | Electric Variable Transmission (EVT) |
| Operator Interface | Steering-column or joystick-mounted F-N-R and gear-select lever; quick-shift button on hydraulic lever |
| Shift Modes | Auto (1st–4th or 2nd–4th); quick-shift button with 2 selectable modes: kick-down or kick-up/down |
Serviceability
| Fuel Tank (With Lockable Cap) Refill Capacity | 476.2 L |
| Fuel Tank (With Lockable Cap) Refill Capacity | 126 gal. |
| Cooling System Refill Capacity | 48 L |
| Cooling System Refill Capacity | 50.7 qt |
| Diesel-Exhaust Fluid (DEF) Refill Capacity | 26.1 L |
| Diesel-Exhaust Fluid (DEF) Refill Capacity | 27.6 qt |
| Engine Oil With Vertical Spin-On Filter Refill Capacity | 34.1 L |
| Engine Oil With Vertical Spin-On Filter Refill Capacity | 36 qt |
| Transmission Reservoir With Vertical Filter Refill Capacity | 53 L |
| Transmission Reservoir With Vertical Filter Refill Capacity | 14 gal. |
| Axle Oil Without Coolers (Front And Rear, Each) Refill Capacity | 55.3 L |
| Axle Oil Without Coolers (Front And Rear, Each) Refill Capacity | 14.6 gal. |
| Hydraulic Reservoir With Filter Refill Capacity | 151 L |
| Hydraulic Reservoir With Filter Refill Capacity | 39.9 gal. |
| Parking Brake Oil (Wet Disc) Refill Capacity | 0.7 L |
| Parking Brake Oil (Wet Disc) Refill Capacity | 24 oz. |
Wheels And Tires
| Tread Width On Standard Tires | 2299 mm |
| Tread Width On Standard Tires | 90.5 in. |
| Width Over Tires On Standard Tires | 3084 mm |
| Width Over Tires On Standard Tires | 121.4 in. |
Axles And Brakes
| Final Drives | Dual locking front and rear – optional |
| Standard Differentials Front | Hydraulic locking front with conventional rear – standard; dual locking front and rear – optional |
| Standard Differentials Rear | Hydraulic locking front with conventional rear – standard; dual locking front and rear – optional |
| Rear Axle Oscillation, Stop To Stop | 26 degrees |
| Service Brakes (ISO 3450) | Automatic spring applied, hydraulically released, oil cooled, multi disc |
| Parking Brake (ISO 3450) | Automatic spring applied, hydraulically released, oil cooled, multi disc |
Hydraulic System And Steering
| Pump Type And System (Loader And Steering) | 2 variable-displacement, load-sensing axial-piston pumps; closed-center system |
| Pump (Steering) | 1 variable-displacement, load-sensing axial-piston pumps; closed-center system |
| System Relief Pressure (Loader And Steering) | 24890 kPa |
| System Relief Pressure (Loader And Steering) | 3610 psi |
| Loader Controls | 2-function valve; single- or dual-lever controls; control lever lockout feature; optional 3rd- and 4th-function valve with auxiliary controls |
| Steering Type (ISO 5010) | Power, fully hydraulic |
| Steering Articulation Full Arc Angle | 80 degrees |
| Steering Articulation Angle Each Direction | 40 degrees |
| Turning Radius (Measured To Centerline Of Outside Tire) | 5.9 m |
| Turning Radius (Measured To Centerline Of Outside Tire) | 19.4 ft, in. |
| Hydraulic Raise Cycle Time | 6.1 seconds |
| Hydraulic Dump Cycle Time | 1.4 seconds |
| Hydraulic Lower (Power Down) Cycle Time | 2.8 seconds |
| Hydraulic Total Cycle Time | 10.3 seconds |
Cooling
| Fan Drive Type | Hydraulically driven, proportionally controlled, fan aft of coolers |
Electrical And Lighting
| System Type | 24 volt with 145-amp alternator |
| Battery Voltage | 1400 V |
