Features

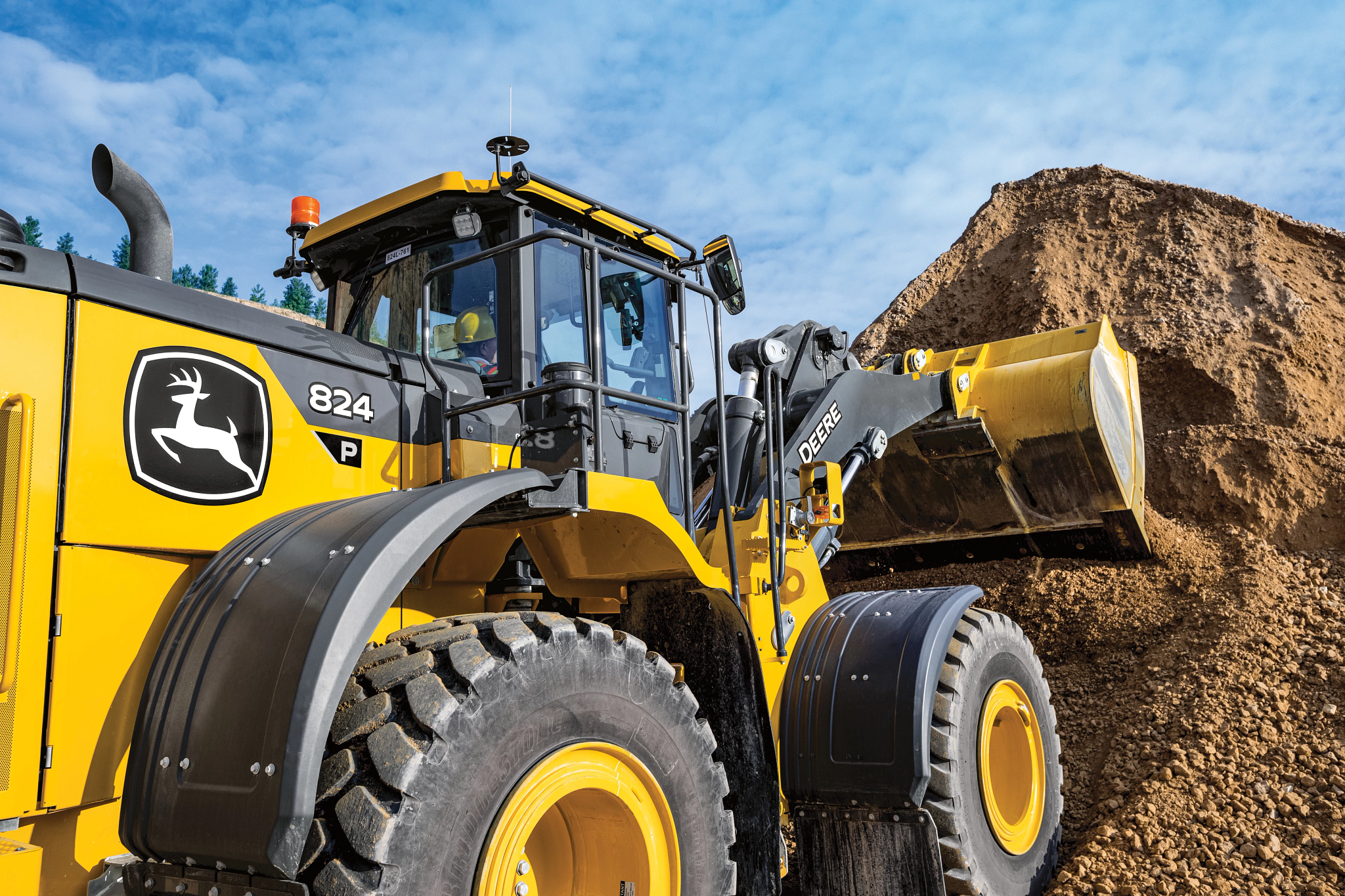

Move High Volumes with Production-Class Power
With ~343 horsepower and a heavy-production platform, the 824 P‑Tier is designed to move large amounts of material efficiently in aggregate, quarry, and high-volume loading applications.

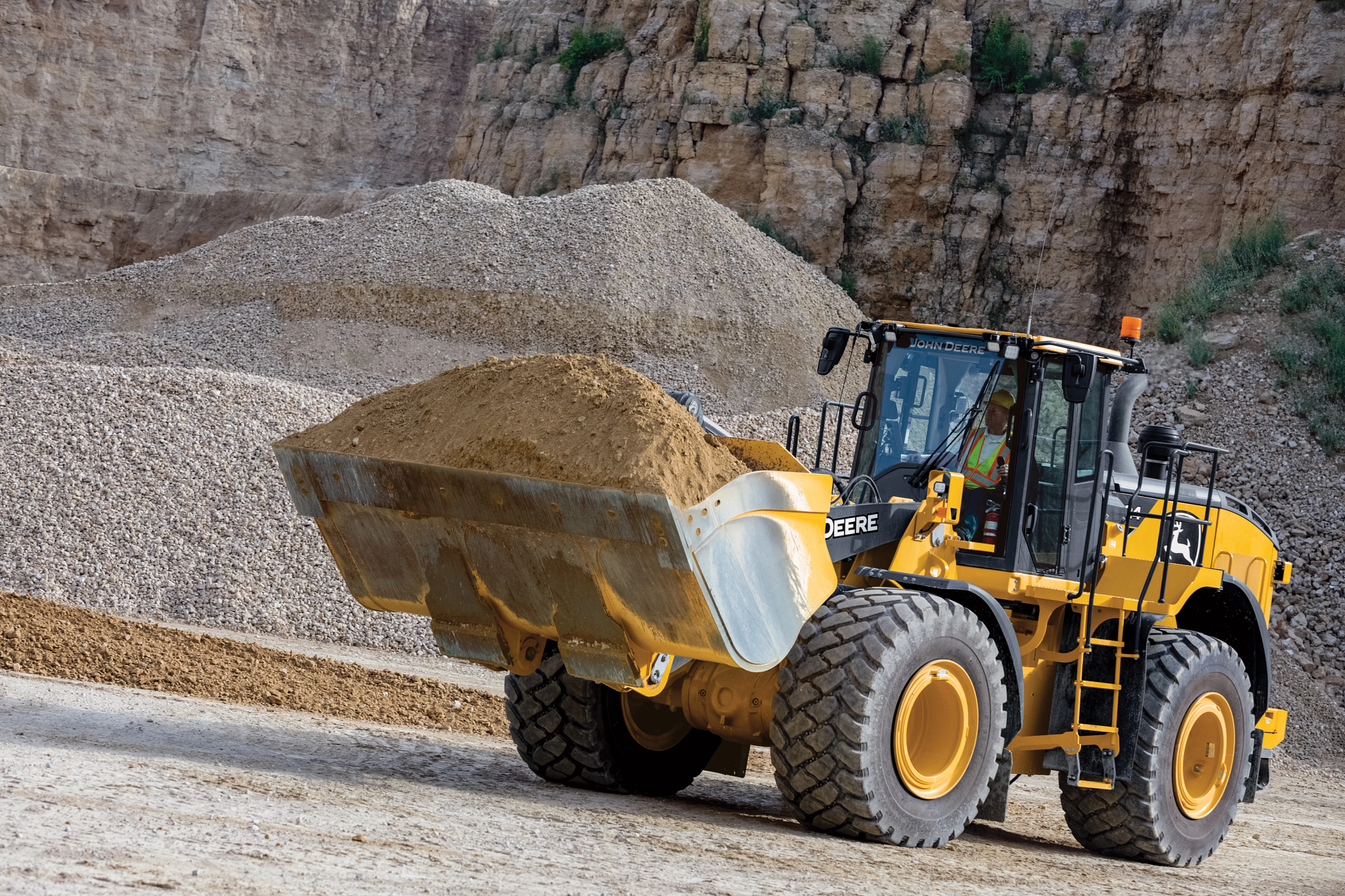

Hit Target Loads and Maximize Cycle Efficiency
Optional SmartWeigh™ payload technology helps operators consistently hit target loads in real time—reducing rework and improving loading speed across every cycle.

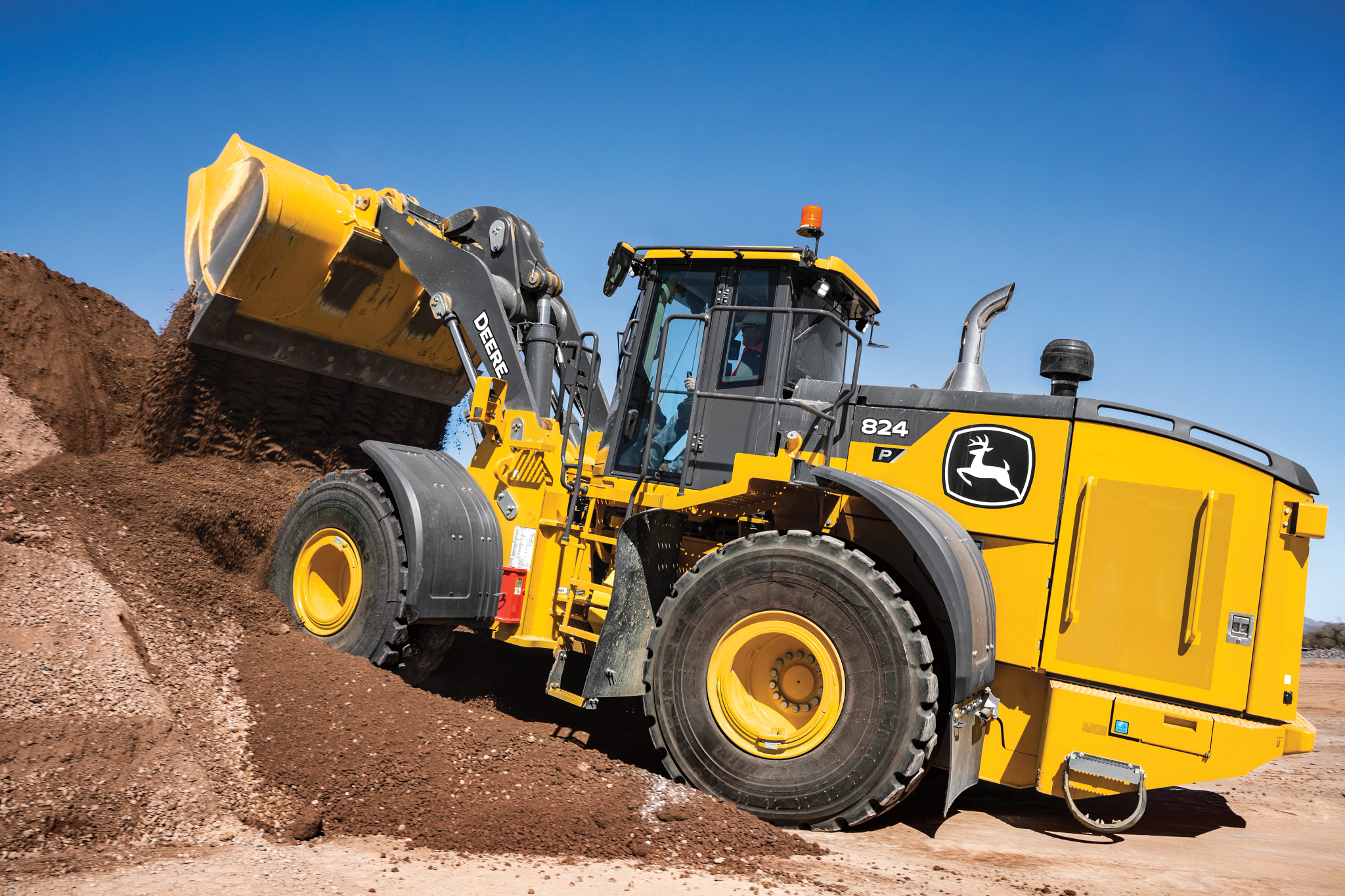

Stay Productive in Demanding Conditions
Heavy-duty components and advanced visibility and control systems are built to handle tough environments, reduce downtime, and keep crews working efficiently all day.
Specifications
Engine
| Manufacturer | John Deere |
| Model | PowerTech™ PSS 6090 |
| Non-Road Emission Standards | EPA Final Tier 4/EU Stage IV |
| Cylinders | 6 |
| Valves Per Cylinder | 4 |
| Displacement | 9 L |
| Displacement | 548 cu in. |
| Net Peak Power | 1600 rpm |
| Net Peak Power At Rated RPM (ISO 9249) | 256 kW |
| Net Peak Power At Rated RPM (ISO 9249) | 343 hp |
| Net Peak Torque | 1300 rpm |
| Net Peak Torque At Rated RPM (ISO 9249) | 1627 Nm |
| Net Peak Torque At Rated RPM (ISO 9249) | 1200 lb-ft |
| Net Torque Rise | 57 % |
| Rated Speed | 1600 rpm |
| Fuel System (Electronically Controlled) | High-pressure common rail |
| Lubrication | Full-flow spin-on filter and integral cooler |
| Aspiration | Series turbocharged, charge air cooled |
| Air Cleaner | Under-hood, dual-element dry type, restriction indicator in cab monitor for service |
Transmission System
| Type | Countershaft-type PowerShift™ with lockup torque converter |
| Torque Converter | Single stage, dual phase with freewheeling stator with lockup clutch |
| Shift Control | Electronically modulated, adaptive, load and speed dependent |
| Operator Interface | Steering-column or joystick-mounted F-N-R and gear-select lever; Quick-Shift button on hydraulic lever |
| Shift Modes | Manual/auto (1st–5th or 2nd–5th); Quick-Shift button with 2 selectable modes: kick-down or kick-up/down; and 4 settings for clutch cutoff |
Serviceability
| Fuel Tank (With Lockable Cap) Refill Capacity | 476.2 L |
| Fuel Tank (With Lockable Cap) Refill Capacity | 126 gal. |
| Cooling System Refill Capacity | 48 L |
| Cooling System Refill Capacity | 50.7 qt |
| Diesel-Exhaust Fluid (DEF) Refill Capacity | 26.1 L |
| Diesel-Exhaust Fluid (DEF) Refill Capacity | 27.6 qt |
| Engine Oil With Vertical Spin-On Filter Refill Capacity | 34.1 L |
| Engine Oil With Vertical Spin-On Filter Refill Capacity | 36 qt |
| Transmission Reservoir With Vertical Filter Refill Capacity | 27.9 L |
| Transmission Reservoir With Vertical Filter Refill Capacity | 7.37 gal. |
| Axle Oil Without Coolers (Front And Rear, Each) Refill Capacity | 55.3 L |
| Axle Oil Without Coolers (Front And Rear, Each) Refill Capacity | 14.6 gal. |
| Hydraulic Reservoir With Filter Refill Capacity | 141.9 L |
| Hydraulic Reservoir With Filter Refill Capacity | 37.5 gal. |
| Parking Brake Oil (Wet Disc) Refill Capacity | 0.7 L |
| Parking Brake Oil (Wet Disc) Refill Capacity | 24 oz. |
Wheels And Tires
| Tire Size Used To Measure | 26.5 R 25, 1 Star L3 |
| Tread Width On Standard Tires | 2299 mm |
| Tread Width On Standard Tires | 90.5 in. |
| Width Over Tires On Standard Tires | 3084 mm |
| Width Over Tires On Standard Tires | 121.4 in. |
Maximum Forward Travel Speeds (Standard 5-Speed With Lockup Torque Converter)
| Tire Size Used To Measure Travel Speeds | 26.5 R 25, 1 Star L3 |
| Range 1 | 7 km/h |
| Range 1 | 4.4 mph |
| Range 2 | 13.4 km/h |
| Range 2 | 8.3 mph |
| Range 3 | 20.3 km/h |
| Range 3 | 12.6 mph |
| Range 4 | 29 km/h |
| Range 4 | 18 mph |
| Range 5 | 40.1 km/h |
| Range 5 | 24.9 mph |
Axles And Brakes
| Final Drives | Heavy-duty inboard-mounted planetary |
| Standard Differentials Front | Hydraulic locking |
| Standard Differentials Rear | Conventional |
| Optional Differentials Front | Dual locking |
| Optional Differentials Rear | Dual locking |
| Tire Size Used To Measure Oscillation | 26.5 R 25, 1 Star L3 |
| Rear Axle Oscillation, Stop To Stop | 26 degrees |
| Rear Axle Oscillation, Distance Each Direction | 13 degrees |
| Rear Axle Oscillation, Distance Each Direction, With 17.5 R 25 Tires | 13 degrees |
| Service Brakes (ISO 3450) | Hydraulically actuated, spring released, inboard, sun-gear mounted, pressure oil cooled, self-adjusting, single disc |
| Parking Brake (ISO 3450) | Automatic spring applied, hydraulically released, oil cooled, multi disc |
Electrical And Lighting
| System Type | 24 volt with 150-amp alternator |
| Battery Voltage | 12 V |
| Number Of Batteries | 2 |
| Battery Capacity Per Each | 1400 CCA |
| Standard Alternator Rating | 150 amp |
Maximum Reverse Travel Speeds (Standard 5-Speed With Lockup Torque Converter)
| Tire Size Used To Measure Travel Speeds | 26.5 R 25, 1 Star L3 |
| Range 1 | 7.1 km/h |
| Range 1 | 4.4 mph |
| Range 2 | 13.3 km/h |
| Range 2 | 8.3 mph |
| Range 3 | 29 km/h |
| Range 3 | 18 mph |
Hydraulic System And Steering
| Pump Type And System (Loader And Steering) | 2 variable-displacement, load-sensing axial-piston pumps; closed-center system |
| Rated RPM | 2250 rpm |
| System Pressure At Max Rated Flow | 6895 kPa |
| System Pressure At Max Rated Flow | 1000 psi |
| Pump (Steering) | 1 variable-displacement, load-sensing axial-piston pumps; closed-center system |
| Max Rated Flow At Rated RPM | 484.5 L/min |
| Max Rated Flow At Rated RPM | 128 gpm |
| System Relief Pressure (Loader And Steering) | 24879 kPa |
| System Relief Pressure (Loader And Steering) | 3610 psi |
| Loader Controls | 2-function valve; single- or dual-lever controls; control lever lockout feature; optional 3rd- and 4th-function valve with auxiliary levers |
| Steering Type (ISO 5010) | Power, fully hydraulic |
| Steering Articulation Full Arc Angle | 80 degrees |
| Steering Articulation Angle Each Direction | 40 degrees |
| Turning Radius (Measured To Centerline Of Outside Tire) | 5.9 m |
| Turning Radius (Measured To Centerline Of Outside Tire) | 19.4 ft, in. |
| Hydraulic Raise Cycle Time | 5.9 seconds |
| Hydraulic Dump Cycle Time | 1.3 seconds |
| Hydraulic Lower (Power Down) Cycle Time | 2.5 seconds |
| Hydraulic Total Cycle Time | 9.7 seconds |
Maximum Forward Travel Speeds
| Tire Size Used To Measure Travel Speeds | 26.5 R 25, 1 Star L3 |
| Range 1 | 7.1 km/h |
| Range 1 | 4.4 mph |
| Range 2 | 13.3 km/h |
| Range 2 | 8.3 mph |
| Range 3 | 20.3 km/h |
| Range 3 | 12.6 mph |
| Range 4 | 29 km/h |
| Range 4 | 18 mph |
| Range 5 | 40 km/h |
| Range 5 | 24.85 mph |
Cooling
| Fan Drive Type | Hydraulically driven, proportionally controlled, fan aft of coolers |
