Features

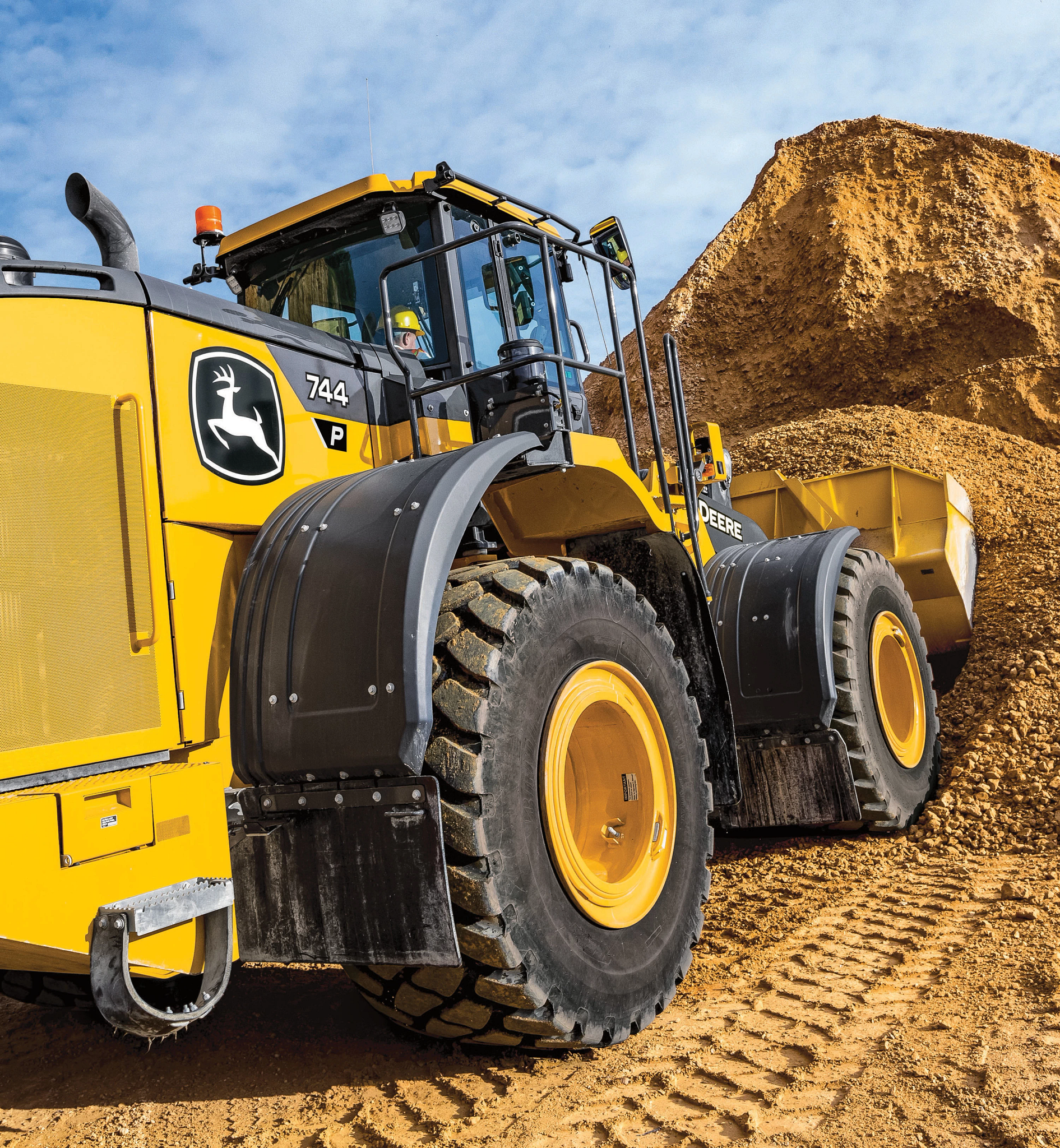

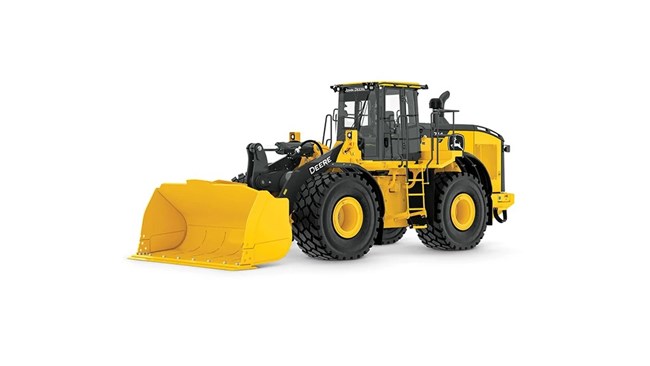

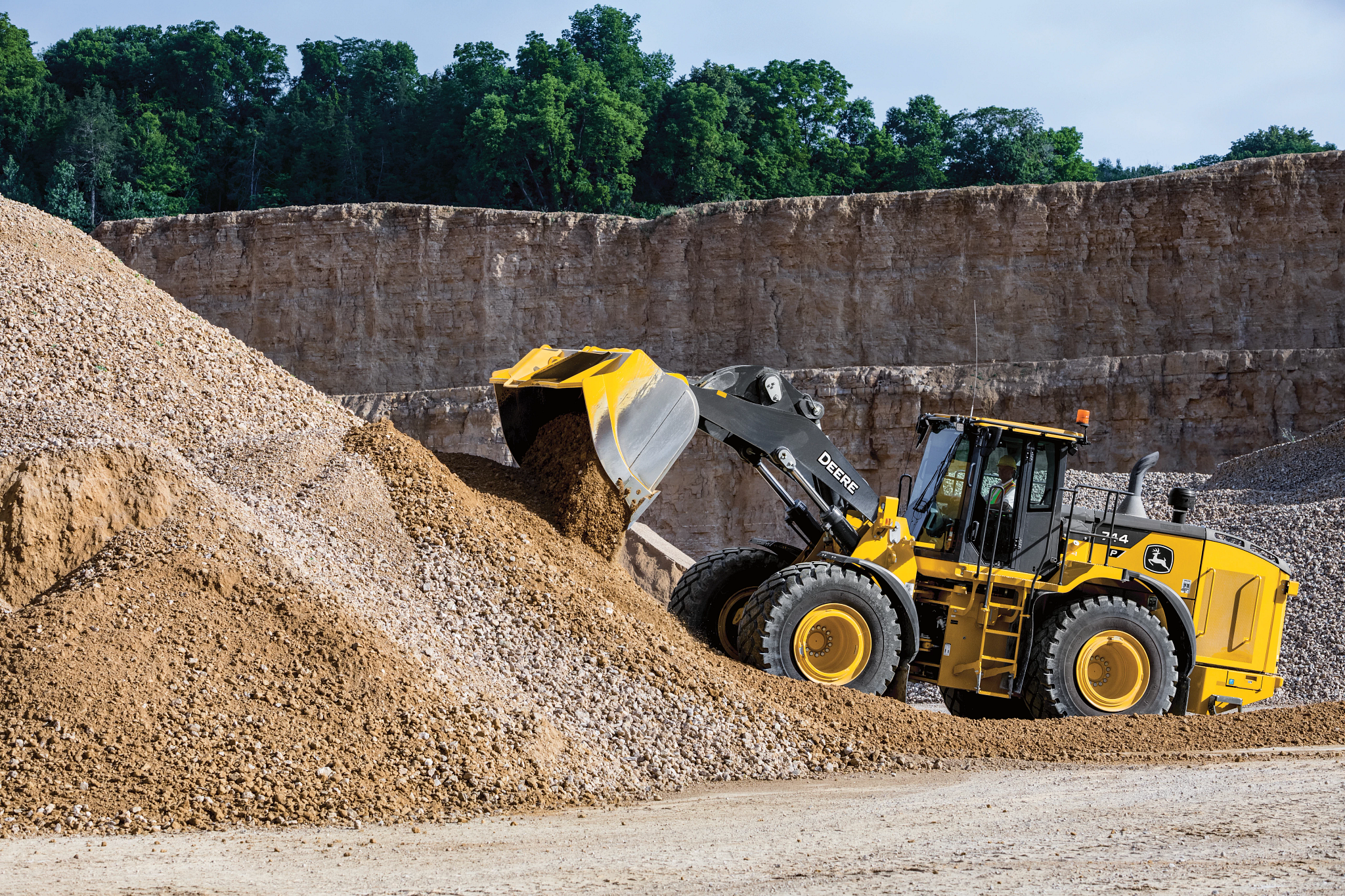

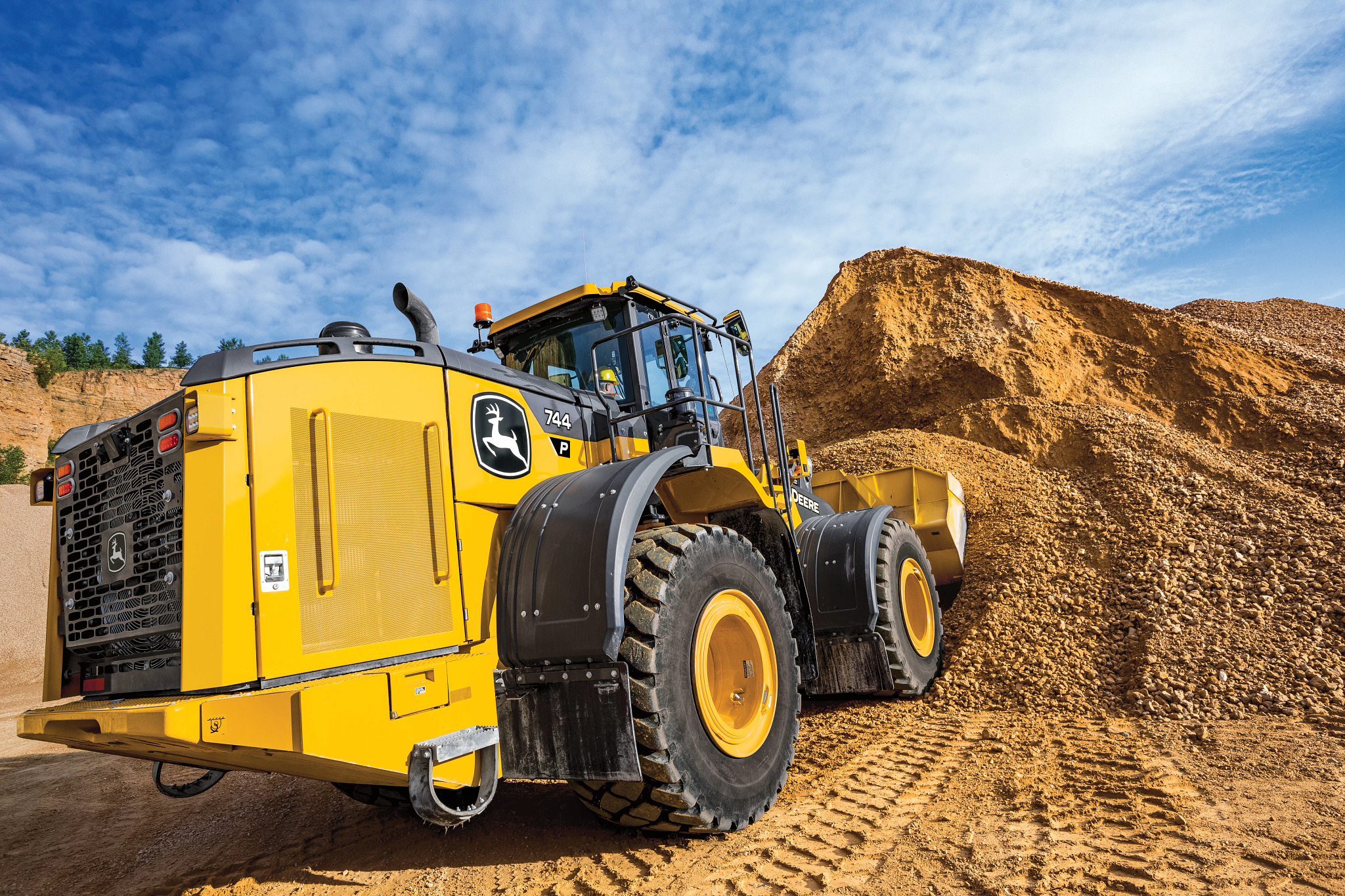

Move More Material With Increased Capacity
With ~300+ horsepower class performance and larger bucket capacity than core mid‑size loaders, the 744 P‑Tier is built to handle higher volumes in aggregate, truck loading, and site prep operations.
Hit Load Targets with SmartWeigh™
Integrated SmartWeigh™ payload weighing enables operators to accurately measure loads in real time, ensuring consistent truck loading, reducing over/under loading, and improving cycle efficiency.
Maximize Efficiency in High‑Production Work
Optimized hydraulics, machine balance, and bucket performance help improve material retention and faster cycle times, allowing operators to move more tons per hour.
Specifications
Engine
| Manufacturer | John Deere |
| Model | PowerTech™ PSS 6090 |
| Non-Road Emission Standards | EPA Final Tier 4/EU Stage V |
| Cylinders | 6 |
| Valves Per Cylinder | 4 |
| Displacement | 9 L |
| Displacement | 548 cu in. |
| Net Peak Power | 1500 rpm |
| Net Peak Power At Rated RPM (ISO 9249) | 236 kW |
| Net Peak Power At Rated RPM (ISO 9249) | 316 hp |
| Net Peak Torque | 1400 rpm |
| Net Peak Torque At Rated RPM (ISO 9249) | 1500 Nm |
| Net Peak Torque At Rated RPM (ISO 9249) | 1107 lb-ft |
| Net Torque Rise | 50 % |
| Fuel System (Electronically Controlled) | High-pressure common rail |
| Lubrication | Full-flow spin-on filter and integral cooler |
| Aspiration | Series turbocharged, charge air cooled |
| Air Cleaner | Under-hood, dual-element dry type, restriction indicator in cab monitor for service |
Transmission System
| Type | Countershaft-type PowerShift™ with lockup torque converter |
| Torque Converter | Single stage, dual phase with freewheeling stator with lockup clutch |
| Shift Control | Electronically modulated, adaptive, load and speed dependent |
| Operator Interface | Steering-column or joystick-mounted F-N-R and gear-select lever; Quick-Shift button on hydraulic lever |
| Shift Modes | Manual/auto (1st–5th or 2nd–5th); Quick-Shift button with 2 selectable modes: kick-down or kick-up/down; and 4 settings for clutch cutoff |
Serviceability
| Fuel Tank (With Lockable Cap) Refill Capacity | 477 L |
| Fuel Tank (With Lockable Cap) Refill Capacity | 126 gal. |
| Cooling System Refill Capacity | 48 L |
| Cooling System Refill Capacity | 50.7 qt |
| Diesel-Exhaust Fluid (DEF) Refill Capacity | 26.1 L |
| Diesel-Exhaust Fluid (DEF) Refill Capacity | 27.6 qt |
| Engine Oil With Vertical Spin-On Filter Refill Capacity | 34.1 L |
| Engine Oil With Vertical Spin-On Filter Refill Capacity | 36 qt |
| Transmission Reservoir With Vertical Filter Refill Capacity | 27.9 L |
| Transmission Reservoir With Vertical Filter Refill Capacity | 7.37 gal. |
| Axle Oil Without Coolers (Front And Rear, Each) Refill Capacity | 55.3 L |
| Axle Oil Without Coolers (Front And Rear, Each) Refill Capacity | 14.6 gal. |
| Hydraulic Reservoir With Filter Refill Capacity | 141.9 L |
| Hydraulic Reservoir With Filter Refill Capacity | 37.5 gal. |
| Parking Brake Oil (Wet Disc) Refill Capacity | 0.7 L |
| Parking Brake Oil (Wet Disc) Refill Capacity | 24 oz. |
Maximum Reverse Travel Speeds (Standard 5-Speed With Lockup Torque Converter)
| Tire Size Used To Measure Travel Speeds | 26.5 R 25 |
| Range 1 | 7.1 km/h |
| Range 1 | 4.4 mph |
| Range 2 | 12.9 km/h |
| Range 2 | 8 mph |
| Range 3 | 20.6 km/h |
| Range 3 | 12.8 mph |
| Range 4 | 28 km/h |
| Range 4 | 17.4 mph |
| Range 5 | 40.1 km/h |
| Range 5 | 24.9 mph |
Wheels And Tires
| Tire Size Used To Measure | Michelin 26.5 R 25, 2 Star L3 |
| Tread Width On Standard Tires | 2299 mm |
| Tread Width On Standard Tires | 90.5 in. |
| Width Over Tires On Standard Tires | 3084 mm |
| Width Over Tires On Standard Tires | 121.4 in. |
Maximum Forward Travel Speeds (Standard 5-Speed With Lockup Torque Converter)
| Tire Size Used To Measure Travel Speeds | 26.5 R 25 |
| Range 1 | 7.1 km/h |
| Range 1 | 4.4 mph |
| Range 2 | 12.9 km/h |
| Range 2 | 8 mph |
| Range 3 | 20.6 km/h |
| Range 3 | 12.8 mph |
| Range 4 | 28 km/h |
| Range 4 | 17.4 mph |
| Range 5 | 40.1 km/h |
| Range 5 | 24.9 mph |
Axles And Brakes
| Final Drives | Heavy-duty inboard-mounted planetary |
| Standard Differentials Front | Hydraulic locking |
| Standard Differentials Rear | Conventional |
| Optional Differentials Front | Dual locking |
| Optional Differentials Rear | Dual locking |
| Tire Size Used To Measure Oscillation | 26.5 R 25, 1 Star L3 tires |
| Rear Axle Oscillation, Stop To Stop | 26 degrees |
| Rear Axle Oscillation, Distance Each Direction | 13 degrees |
| Rear Axle Oscillation, Distance Each Direction, With 17.5 R 25 Tires | 13 degrees |
| Service Brakes (ISO 3450) | Hydraulically actuated, spring released, inboard, sun-gear mounted, oil cooled, self-adjusting, single disc |
| Parking Brake (ISO 3450) | Automatic spring applied, hydraulically released, oil cooled, multi disc |
Electrical And Lighting
| System Type | 24 volt with 150-amp alternator |
| Battery Voltage | 12 V |
| Number Of Batteries | 2 |
| Battery Capacity Per Each | 1400 CCA |
| Standard Alternator Rating | 150 amp |
Hydraulic System And Steering
| Pump Type And System (Loader And Steering) | 2 variable-displacement, load-sensing axial-piston pumps; closed-center system |
| Rated RPM | 2350 rpm |
| System Pressure At Max Rated Flow | 6895 kPa |
| System Pressure At Max Rated Flow | 1000 psi |
| Max Rated Flow At Rated RPM | 484.5 L/min |
| Max Rated Flow At Rated RPM | 128 gpm |
| System Relief Pressure (Loader And Steering) | 23000 kPa |
| System Relief Pressure (Loader And Steering) | 3336 psi |
| Loader Controls | 2-function valve; single- or dual-lever controls; control lever lockout feature; optional 3rd- and 4th-function valve with auxiliary controls |
| System Relief Pressure (Loader And Steering) Hydraulic Lever | 1 variable-displacement, load-sensing axial-piston pumps; closed-center system |
| Steering Type (ISO 5010) | Power, fully hydraulic |
| Steering Articulation Full Arc Angle | 80 degrees |
| Steering Articulation Angle Each Direction | 40 degrees |
| Turning Radius (Measured To Centerline Of Outside Tire) | 5.9 m |
| Turning Radius (Measured To Centerline Of Outside Tire) | 19.4 ft, in. |
| Hydraulic Raise Cycle Time | 5.9 seconds |
| Hydraulic Dump Cycle Time | 1.4 seconds |
| Hydraulic Lower (Power Down) Cycle Time | 2.8 seconds |
| Hydraulic Total Cycle Time | 10.1 seconds |
| Hydraulic Raise Cycle Time (High-Lift) | 5.9 seconds |
| Hydraulic Dump Cycle Time (High-Lift) | 1.4 seconds |
| Hydraulic Lower (Power Down) Cycle Time (High-Lift) | 2.8 seconds |
| Hydraulic Total Cycle Time (High-Lift) | 10.1 seconds |
Maximum Forward Travel Speeds
| Tire Size Used To Measure Travel Speeds | 26.5 R 25 |
| Range 1 | 7.1 km/h |
| Range 1 | 4.4 mph |
| Range 2 | 12.8 km/h |
| Range 2 | 7.95 mph |
| Range 3 | 19.6 km/h |
| Range 3 | 12.2 mph |
| Range 4 | 28 km/h |
| Range 4 | 17.4 mph |
| Range 5 | 40 km/h |
| Range 5 | 24.85 mph |
Cooling
| Fan Drive Type | Hydraulically driven, proportionally controlled, fan aft of coolers |
