Features
Service and Support Capabilities From John Deere and Dealer Network
All daily service points including fuel refill are conveniently grouped at ground level on the left side of the machine. Sight gauges for transmission and hydraulic fluid levels are easy to read. Hinged doors provide wide-open access to the engine, cooling system, and other components.
Economical without Sacrificing Performance

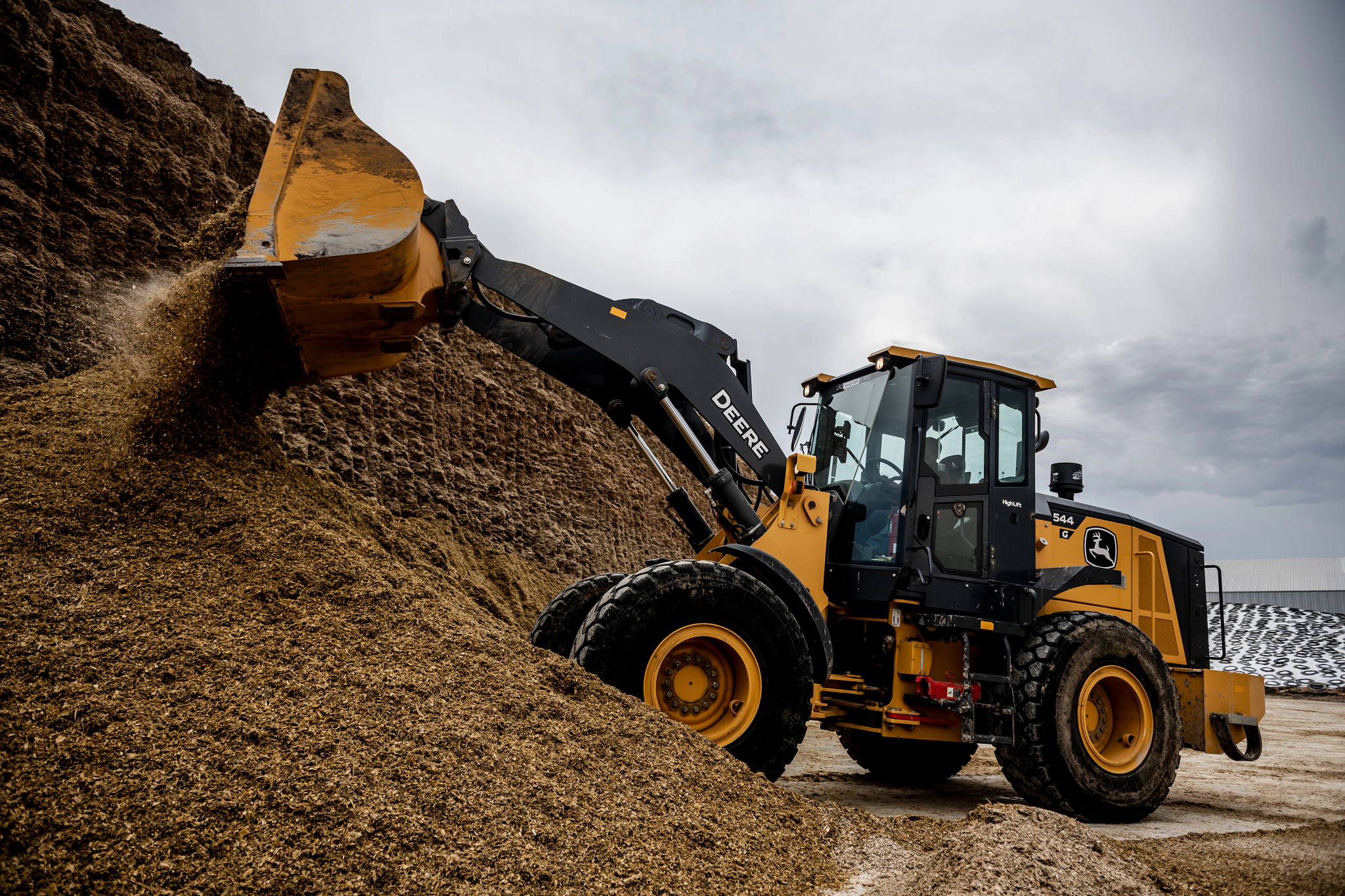

Ideal for everything from dirt work, to truck loading, to snow removal, this mid-size machine provides a rugged and reliable solution at an economical price point.
Comfortable and Straightforward Cab Design

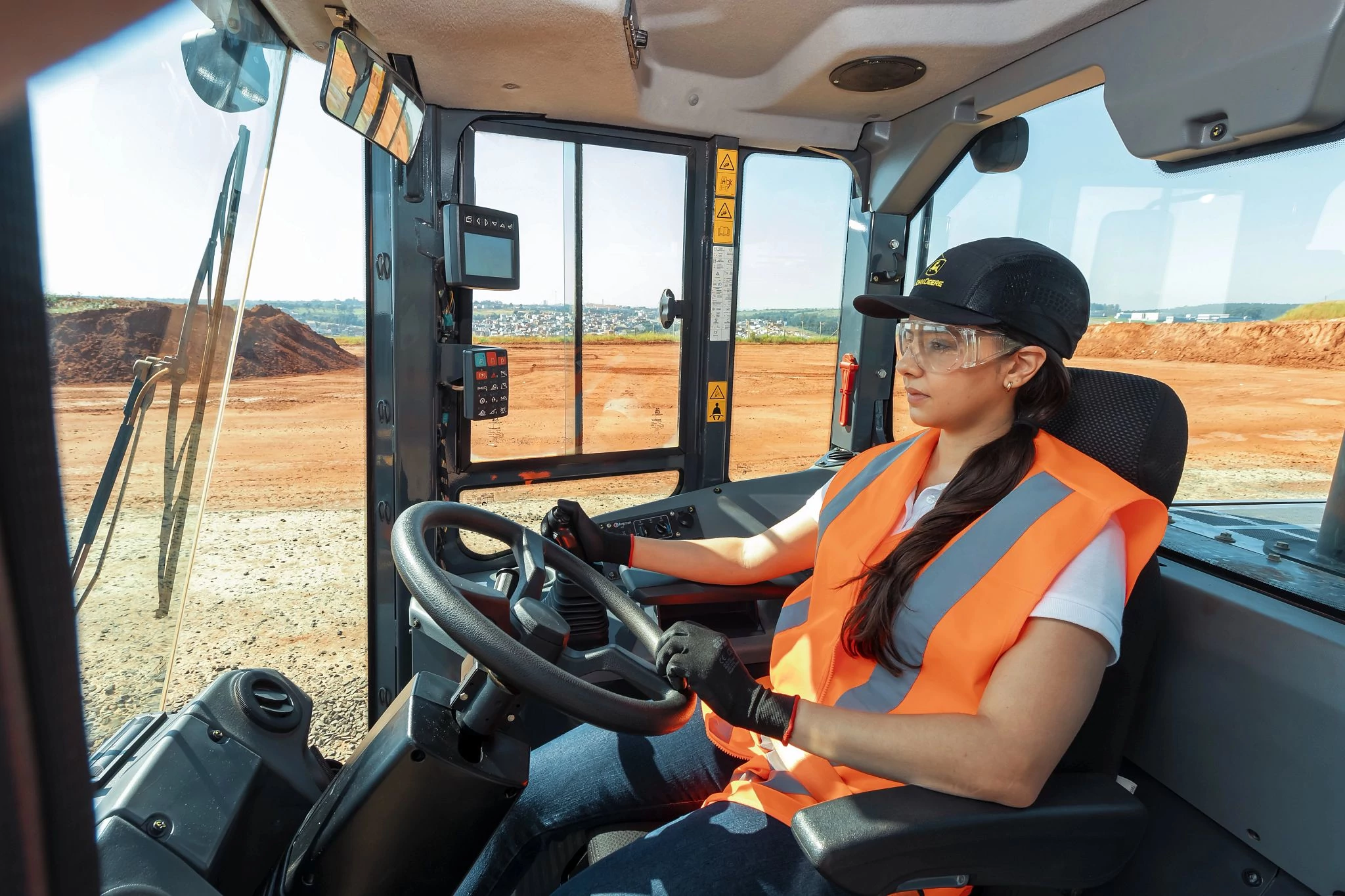

Comfortable and spacious cab features ergonomically placed joystick controls, foot pedals, sealed-switch module (SSM), and adjustable five-inch monitor that displays vital machine data as well as the view from the rearview camera.
Specifications
Engine
| Manufacturer | John Deere |
| Model | PowerTech™ PSS 4045 |
| Non-Road Emission Standards | EPA Final Tier 4/EU Stage V |
| Cylinders | 4 |
| Valves Per Cylinder | 4 |
| Displacement | 4.5 L |
| Displacement | 276 cu in. |
| Net Peak Power | 1800 rpm |
| Net Peak Power At Rated RPM (ISO 9249) | 125 kW |
| Net Peak Power At Rated RPM (ISO 9249) | 168 hp |
| Net Peak Torque | 1100 rpm |
| Net Peak Torque At Rated RPM (ISO 9249) | 696 Nm |
| Net Peak Torque At Rated RPM (ISO 9249) | 513 lb-ft |
| Net Torque Rise | 40 % |
| Fuel System (Electronically Controlled) | High-pressure common rail |
| Lubrication | Full-flow spin-on filter and integral cooler |
| Aspiration | Turbocharged, charge air cooled |
| Air Cleaner | Under-hood, dual-element dry type, restriction indicator in cab monitor for service |
Transmission System
| Type | Countershaft-type PowerShift™ |
| Torque Converter | Single stage, single phase |
| Shift Control | Electronically modulated, adaptive, load and speed dependent |
| Operator Interface | Joystick-mounted F-N-R; Quick-Shift button on hydraulic lever |
| Shift Modes | Manual/auto (1st–D or 2nd–D); Quick-Shift button with 2 selectable modes: kick-down or kick-up/down; and 3 adjustable clutch cutoff settings |
Serviceability
| Fuel Tank (With Lockable Cap) Refill Capacity | 287 L |
| Fuel Tank (With Lockable Cap) Refill Capacity | 75.8 gal. |
| Cooling System Refill Capacity | 28.6 L |
| Cooling System Refill Capacity | 30.2 qt |
| Diesel-Exhaust Fluid (DEF) Refill Capacity | 14.5 L |
| Diesel-Exhaust Fluid (DEF) Refill Capacity | 15.3 qt |
| Engine Oil With Vertical Spin-On Filter Refill Capacity | 18.9 L |
| Engine Oil With Vertical Spin-On Filter Refill Capacity | 20 qt |
| Transmission Reservoir With Vertical Filter Refill Capacity | 71.9 L |
| Transmission Reservoir With Vertical Filter Refill Capacity | 19 gal. |
| Axle Oil Without Coolers (Front And Rear, Each) Refill Capacity | 15 L |
| Axle Oil Without Coolers (Front And Rear, Each) Refill Capacity | 3.97 gal. |
| Hydraulic Reservoir With Filter Refill Capacity | 85.9 L |
| Hydraulic Reservoir With Filter Refill Capacity | 22.7 gal. |
| Parking Brake Oil (Wet Disc) Refill Capacity | 0.3 L |
| Parking Brake Oil (Wet Disc) Refill Capacity | 10 oz. |
Wheels And Tires
| Tire Size Used To Measure | Advance 20.5 R25, 2 Stars L-3 |
| Tread Width On Standard Tires | 1951 mm |
| Tread Width On Standard Tires | 76.8 in. |
| Width Over Tires On Standard Tires | 2460 mm |
| Width Over Tires On Standard Tires | 96.9 in. |
Axles And Brakes
| Final Drives | Heavy-duty inboard-mounted planetary |
| Tire Size Used To Measure Oscillation | 20.5 R 25 |
| Rear Axle Oscillation, Stop To Stop | 24 degrees |
| Rear Axle Oscillation, Distance Each Direction | 12 degrees |
| Service Brakes (ISO 3450) | Hydraulically actuated, spring retracted, self-adjusting, inboard sun-shaft mounted, oil cooled, single disc |
| Parking Brake (ISO 3450) | Automatic spring applied, hydraulically released, driveline mounted, sealed wet multi disc |
Electrical And Lighting
| System Type | 24 volt with 100-amp alternator |
| Battery Voltage | 12 V |
| Battery Capacity Per Each | 950 CCA |
Hydraulic System And Steering
| Pump Type And System (Loader And Steering) | Variable-displacement, axial-piston pump; closed-center, pressure-compensating system |
| Rated RPM | 2350 rpm |
| Max Rated Flow At Rated RPM | 189.3 L/min |
| Max Rated Flow At Rated RPM | 50 gpm |
| System Relief Pressure (Loader And Steering) | 25166.5 kPa |
| System Relief Pressure (Loader And Steering) | 3650 psi |
| Loader Controls | 2-function valve; joystick control or fingertip controls (field kit); hydraulic-function enable/disable; optional 3rd- and 4th-function valve with auxiliary lever |
| Steering Type (ISO 5010) | Steering-column mounted |
| Steering Articulation Full Arc Angle | 80 degrees |
| Steering Articulation Angle Each Direction | 40 degrees |
| Turning Radius (Measured To Centerline Of Outside Tire) | 5 m |
| Turning Radius (Measured To Centerline Of Outside Tire) | 16.4 ft, in. |
| Hydraulic Raise Cycle Time | 5.8 seconds |
| Hydraulic Dump Cycle Time | 1.3 seconds |
| Hydraulic Lower (Power Down) Cycle Time | 3.4 seconds |
| Hydraulic Total Cycle Time | 10.5 seconds |
Cooling
| Fan Drive Type | Hydraulically driven, proportionally controlled, fan forward of coolers |
