Features
Service and Support Capabilities From John Deere and Dealer Network
All daily service points including fuel refill are conveniently grouped at ground level on the left side of the machine. Sight gauges for transmission and hydraulic fluid levels are easy to read. Hinged doors provide wide-open access to the engine, cooling system, and other components.
Comfortable and Straightforward Cab Design
Comfortable and spacious cab features ergonomically placed joystick controls, foot pedals, sealed-switch module (SSM), and adjustable five-inch monitor that displays vital machine data as well as the view from the rearview camera.
Economical Solution with High Performance

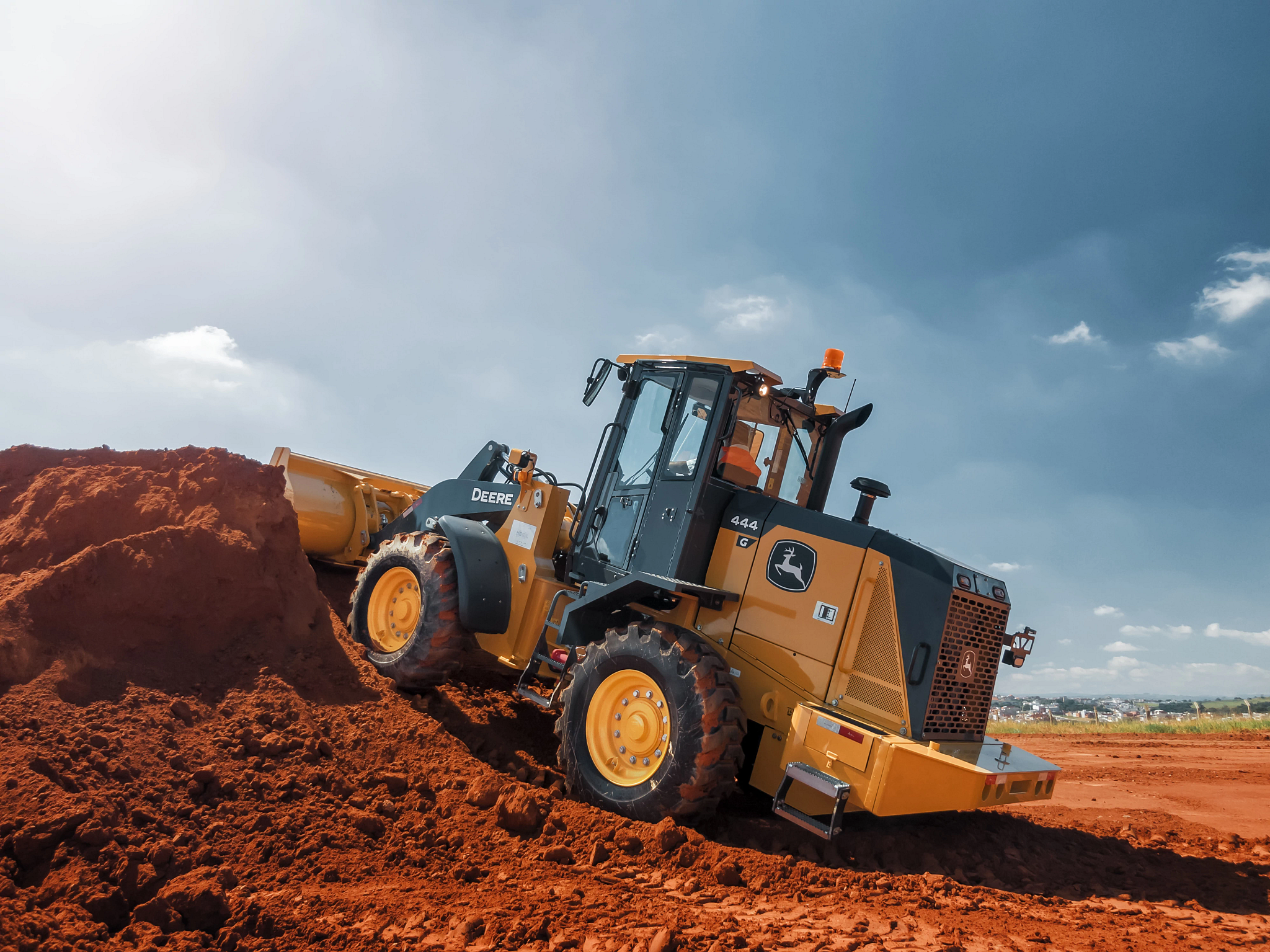

Ideal for everything from dirt work, to truck loading, to snow removal, this mid-size machine provides a rugged and reliable solution at an economical price point.
Specifications
Engine
| Manufacturer | John Deere |
| Model | PowerTech™ E 4045H |
| Non-Road Emission Standards | EPA Final Tier 4/EU Stage V |
| Cylinders | 4 |
| Valves Per Cylinder | 4 |
| Displacement | 4.5 L |
| Displacement | 276 cu in. |
| Net Peak Power | 2100 rpm |
| Net Peak Power At Rated RPM (ISO 9249) | 89 kW |
| Net Peak Power At Rated RPM (ISO 9249) | 118 hp |
| Gross Peak Power | 2100 rpm |
| Gross Peak Power At Rated RPM (ISO 9249) | 97 kW |
| Gross Peak Power At Rated RPM (ISO 9249) | 130 hp |
| Net Peak Torque | 1400 rpm |
| Net Peak Torque At Rated RPM (ISO 9249) | 721.3 Nm |
| Net Peak Torque At Rated RPM (ISO 9249) | 532 lb-ft |
| Gross Peak Torque | 550 rpm |
| Net Torque Rise | 34 % |
| Fuel System (Electronically Controlled) | High-Pressure common rail |
| Lubrication | Full-flow spin-on filter and integral cooler |
| Aspiration | Turbocharged, charge air cooled |
| Air Cleaner | Under-hood, dual-element dry type, restriction indicator in cab monitor for service |
Transmission System
| Type | Countershaft-type PowerShift™ |
| Torque Converter | Single-stage, single-phase |
| Shift Control | Electronically modulated, adaptive, load and speed dependent |
| Operator Interface | Steering-column or joystick-mounted F-N-R and gear-select lever; kick-down button on hydraulic lever |
| Shift Modes | Joystick-Mounted F-N-R and Gear-Select Lever; Kick-Down Button on Hydraulic Lever |
Wheels And Tires
| Tread Width On Standard Tires | 1900 mm |
| Tread Width On Standard Tires | 74.8 in. |
| Width Over Tires On Standard Tires | 2415.5 mm |
| Width Over Tires On Standard Tires | 95.1 in. |
Axles And Brakes
| Final Drives | Heavy-duty mid-board planetary |
| Rear Axle Oscillation, Stop To Stop | 24 degrees |
| Service Brakes (ISO 3450) | Outboard, forced oil cooled, multi disc |
| Parking Brake (ISO 3450) | Automatic spring applied, hydraulically released, driveline mounted, sealed wet multi disc |
Serviceability
| Fuel Tank (With Lockable Cap) Refill Capacity | 189.3 L |
| Fuel Tank (With Lockable Cap) Refill Capacity | 50 gal. |
| Cooling System Refill Capacity | 18.9 L |
| Cooling System Refill Capacity | 20 qt |
| Engine Oil With Vertical Spin-On Filter Refill Capacity | 17.5 L |
| Engine Oil With Vertical Spin-On Filter Refill Capacity | 18.5 qt |
| Transmission Reservoir With Vertical Filter Refill Capacity | 73.8 L |
| Transmission Reservoir With Vertical Filter Refill Capacity | 19.5 gal. |
| Axle Oil Without Coolers (Front And Rear, Each) Refill Capacity | 87.1 L |
| Axle Oil Without Coolers (Front And Rear, Each) Refill Capacity | 23 gal. |
| Hydraulic Reservoir With Filter Refill Capacity | 92 L |
| Hydraulic Reservoir With Filter Refill Capacity | 24.3 gal. |
| Parking Brake Oil (Wet Disc) Refill Capacity | 0.35 L |
| Parking Brake Oil (Wet Disc) Refill Capacity | 12 oz. |
Electrical And Lighting
| System Type | 24 volt with 80-amp alternator |
| Battery Voltage | 12 V |
| Battery Capacity Per Each | 950 CCA |
Hydraulic System And Steering
| Pump Type And System (Loader And Steering) | Variable-displacement, axial-piston pump; closed-center, pressure-compensating system |
| Max Rated Flow At Rated RPM | 140 L/min |
| Max Rated Flow At Rated RPM | 37 gpm |
| System Relief Pressure (Loader And Steering) | 24821.2 kPa |
| System Relief Pressure (Loader And Steering) | 3600 psi |
| Loader Controls | 2-function valve; joystick control; hydraulic-function enable/disable; optional 3rd- and 4th-function valve with auxiliary lever |
| Steering Articulation Full Arc Angle | 80 degrees |
| Steering Articulation Angle Each Direction | 40 degrees |
| Turning Radius (Measured To Centerline Of Outside Tire) | 4.75 m |
| Turning Radius (Measured To Centerline Of Outside Tire) | 15.58 ft, in. |
| Hydraulic Raise Cycle Time | 5.9 seconds |
| Hydraulic Dump Cycle Time | 1 seconds |
| Hydraulic Lower (Power Down) Cycle Time | 2.4 seconds |
| Hydraulic Total Cycle Time | 9.3 seconds |
Cooling
| Fan Drive Type | Hydraulically driven, Proportionally controlled |
