Features
Articulation Plus™ Steering
Articulation Plus™ Steering combines 30 degrees of standard articulation with 10 degrees of rear-wheel steering for improved maneuverability and tighter turns. This exclusive feature leads to a considerably higher full turn tipping load without excessive articulation, making it ideal for tighter job sites.
Productivity Enhancements That Can Benefit You

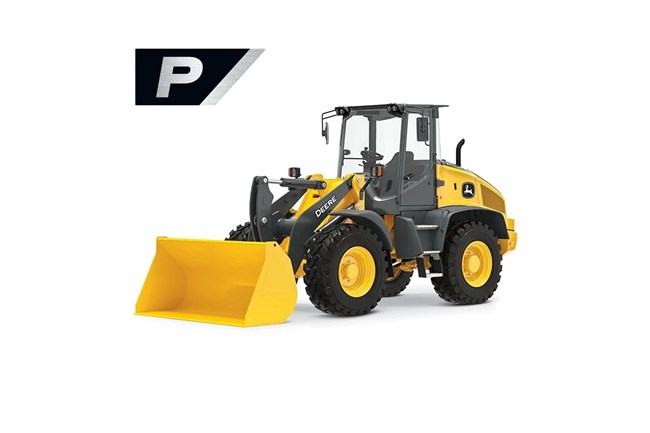

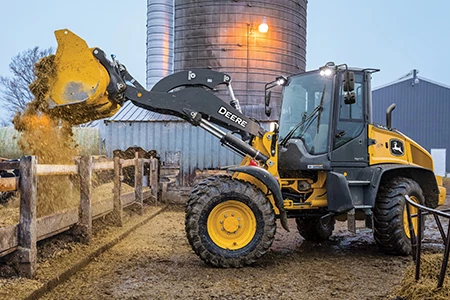

The 344 P-Tier is equipped with features that boost productivity in various applications. The John Deere 4045T engine with a high-pressure common rail system and SCR technology meets Final Tier 4 emissions. Automatic shift logic and ride control ensure seamless operation, while optional high lift linkage increases dump height and reach.
Ergonomic Operator Cab
The spacious cab offers comfort with its adjustable high-back air suspension seat, optimal air conditioning, and ergonomic controls. The adjustable steering column, coupled with low-effort controls, ensures operator comfort even during long shifts. Ample storage and improved visibility enhance the all-day operator experience.
Specifications
Powertrain
| Differentials Front | Locking |
| Differentials Rear | Open |
| Steering Type | Hydraulic power steering; 30-degree articulation left and right with mechanical-actuated rear-wheel steering |
| Degree Of Articulation Left And Right | 30 degree (angle) |
| Articulation Arc | 60 degree (angle) |
| Final Drive Type | Heavy-duty planetary, mounted outboard |
| Service Brakes (SAE J1473, ISO3450) | Hydraulically actuated, self-adjusting internal wet-disc brake and driveline drum brake |
| Parking Brake (SAE J1473, ISO3450) | Automatically spring-applied, hydraulically released, internal wet disc |
Hydraulics
| Main Pump (Loader and Steering) | Constant-displacement gear pump |
| Max Rated Flow at 1,000 psi | 30 gpm |
| Max Rated Flow At 6895 kPa | 115 L/min |
| System Relief Pressure (Loader) | 3480 psi |
| System Relief Pressure (Loader) | 24000 kPa |
| System Relief Pressure (Steering) | 3480 psi |
| System Relief Pressure (Steering) | 24000 kPa |
| Hydraulic Raise Cycle Time | 6.9 seconds |
| Hydraulic Dump Cycle Time | 3 seconds |
| Hydraulic Lower (Power Down) Cycle Time | 4 seconds |
| Total Cycle Time | 13.9 seconds |
| Controls Type | Pilot-operated, pressure-compensating, 2-function valve with unloader; single-lever control and control-lever lockout feature; optional third-function valve |
Engine
| Engine Manufacturer | John Deere |
| Engine Model | PowerTech PWS 4045H |
| Non-Road Emission Standards | EPA Final Tier 4/EU Stage V |
| Cylinders | 4 |
| Displacement | 275 cu in. |
| Displacement | 4.5 L |
| Lubrication | Pressure system with full-flow spin-on filter |
| Aspiration | Turbocharged, charge-air cooled |
Cooling
| Fan | Suction type, hydraulically driven, proportionally controlled |
| Engine Coolant Rating | -34 °F |
| Engine Coolant Rating | -37 ℃ |
Serviceability
| Cooling System (Engine and Radiator) Refill Capacity | 21 L |
| Cooling System (Engine and Radiator) Refill Capacity | 22.2 qt |
| Differential and Planetary Front Axle Refill Capacity | 7.5 L |
| Differential and Planetary Front Axle Refill Capacity | 7.9 qt |
| Differential and Planetary Rear Axle Refill Capacity | 7.5 L |
| Differential and Planetary Rear Axle Refill Capacity | 7.9 qt |
| Engine Oil with Filter Refill Capacity | 14 L |
| Engine Oil with Filter Refill Capacity | 14.8 qt |
| Fuel Tank Refill Capacity | 155 L |
| Fuel Tank Refill Capacity | 40.9 gal. |
| Hydraulic/hydrostatic Reservoir with Filter Refill Capacity | 115 L |
| Hydraulic/hydrostatic Reservoir with Filter Refill Capacity | 30.4 gal. |
| Hydrostatic Motor Gearbox Refill Capacity | 2 L |
| Hydrostatic Motor Gearbox Refill Capacity | 2.1 qt |
Electrical And Lighting
| System Type | Electrical load center with blade-type multi-fused circuits |
| Voltage | 12 V |
| Battery Capacity | 1700 CCA |
| Alternator Rating | 90 amp |
| Lights (SAE 99) | 2 front and 2 rear standard/optional LED field kit |
