Features

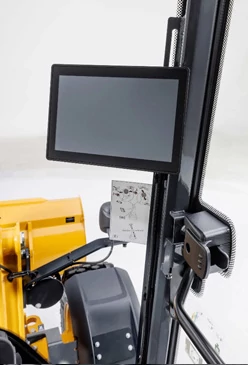

EH Controls and Touchscreen Display
The enhanced EH controls allow operators to perform various functions with ease, while the 9-in. (22.9-cm) touchscreen display offers key information and intuitive navigation. Automated features like Return to Dig and adjustable settings enhance operator comfort and performance.

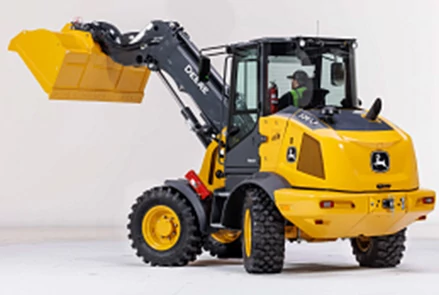

Articulation Plus™ Steering Paired with Tele Lift
This steering system combines standard articulation with rear-wheel steering, providing a tighter turning radius and increased stability. It improves maneuverability and full-turn tipping load, allowing more efficient operations in tighter spaces.

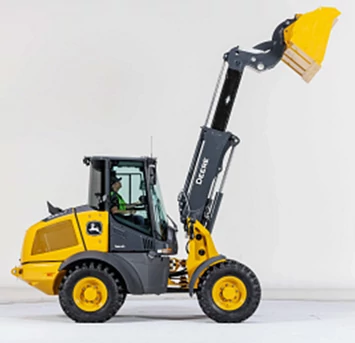

Telescopic Lift Arms
The 326 P-Tier features purpose-built telescopic lift arms, providing unparalleled lifting prowess. It can lift up to 16 ft (4.9 m), offering greater vertical and horizontal reach. This feature enhances control and allows operators to work efficiently without requiring a larger machine.
Specifications
Powertrain
| Differentials Front | Open |
| Differentials Rear | Open |
| Maximum Rise And Fall, Single Wheel | 370 mm |
| Maximum Rise And Fall, Single Wheel | 14.5 in. |
| Steering Type | Hydraulic power steering (SAE J1511); 30-degree articulation left and right with mechanical-actuated rear-wheel steering |
| Degree Of Articulation Left And Right | 30 degree (angle) |
| Articulation Arc | 60 degree (angle) |
| Steering Wheel Number Of Turns Left Stop To Stop | 2 |
| Steering Wheel Turns Right Stop to Stop | 2.25 |
| Final Drive Type | Heavy-duty outboard planetary |
| Service Brakes (SAE J1473, ISO3450) | Hydraulically actuated, self-adjusting internal wet-disc brake and driveline drum brake |
| Parking Brake (SAE J1473, ISO3450) | Automatically spring-applied, hydraulically released, internal wet disc |
Wheels And Tires
| Tread Width: 405/70R20 Mitas EM-01 Tires on Single-Piece Rims | 1683 mm |
| Tread Width: 405/70R20 Mitas EM-01 Tires on Single-Piece Rims | 66 in. |
| Width Over Tires: 405/70R20 Mitas EM-01 Tires on Single-Piece Rims | 2060 mm |
| Width Over Tires: 405/70R20 Mitas EM-01 Tires on Single-Piece Rims | 82 in. |
| Tread Width: 400/70R20 Michelin XMCL Tires on Single-Piece Rims | 1678 mm |
| Tread Width: 400/70R20 Michelin XMCL Tires on Single-Piece Rims | 66 in. |
| Width Over Tires: 400/70R20 Michelin XMCL Tires on Single-Piece Rims | 2090 mm |
| Width Over Tires: 400/70R20 Michelin XMCL Tires on Single-Piece Rims | 82 in. |
| Change in Vertical Height: 400/70R20 Michelin XMCL Tires on Single-Piece Rims | 6 mm |
| Change in Vertical Height: 400/70R20 Michelin XMCL Tires on Single-Piece Rims | 0.2 in. |
| Tread Width 400/70R20 Nokian Hakkapeliitta TRI Tires on Single-Piece Rims | 1680 mm |
| Tread Width 400/70R20 Nokian Hakkapeliitta TRI Tires on Single-Piece Rims | 66 in. |
| Width Over Tires 400/70R20 Nokian Hakkapeliitta TRI Tires on Single-Piece Rims | 2080 mm |
| Width Over Tires 400/70R20 Nokian Hakkapeliitta TRI Tires on Single-Piece Rims | 72 in. |
| Change in Vertical Height 400/70R20 Nokian Hakkapeliitta TRI Tires on Single-Piece Rims | 10 mm |
| Change in Vertical Height 400/70R20 Nokian Hakkapeliitta TRI Tires on Single-Piece Rims | 0.4 in. |
Hydraulics
| Main Pump (Loader and Steering) | Fixed-displacement gear pump; open-center system |
| Max Rated Flow at 1,000 psi | 25 gpm |
| Max Rated Flow At 6895 kPa | 93 L/min |
| Maximum Pressure at Couplings | 3336 psi |
| Maximum Pressure at Couplings | 23000 kPa |
| System Relief Pressure (Loader) | 2750 psi |
| System Relief Pressure (Loader) | 18960 kPa |
| System Relief Pressure (Steering) | 2611 psi |
| System Relief Pressure (Steering) | 18000 kPa |
| Hydraulic Raise Cycle Time | 5.2 seconds |
| Hydraulic Dump Cycle Time | 2 seconds |
| Hydraulic Lower (Power Down) Cycle Time | 4 seconds |
| Controls Type | Electrohydraulic (EH) 4-function valve with single-lever control for boom and bucket; proportional mini joystick control of first auxiliary and telescopic functions |
Engine
| Engine Manufacturer | Yanmar |
| Engine Model | 4TNV98CT |
| Non-Road Emission Standards | EPA Final Tier 4/EU Stage V |
| Cylinders | 4 |
| Valves Per Cylinder | 4 |
| Displacement | 203 cu in. |
| Displacement | 3.3 L |
| Engine Bore And Stroke | 3.89 x 4.33 in. |
| Engine Bore And Stroke | 98 x 110 mmByMm |
| Lubrication | Pressure system with full-flow spin-on filter |
| Aspiration | Turbocharged |
| Air Cleaner | Dual safety element dry type |
Cooling
| Fan | Hydraulically driven, proportionally controlled |
| Engine Coolant Rating | -34 °F |
| Engine Coolant Rating | -37 ℃ |
Serviceability
| Cooling System (Engine and Radiator) Refill Capacity | 9 L |
| Cooling System (Engine and Radiator) Refill Capacity | 9.5 qt |
| Differential and Planetary Front Axle Refill Capacity | 6.8 L |
| Differential and Planetary Front Axle Refill Capacity | 7.2 qt |
| Differential and Planetary Rear Axle Refill Capacity | 6 L |
| Differential and Planetary Rear Axle Refill Capacity | 6.3 qt |
| Engine Oil with Filter Refill Capacity | 10.2 L |
| Engine Oil with Filter Refill Capacity | 10.8 qt |
| Fuel Tank Refill Capacity | 90 L |
| Fuel Tank Refill Capacity | 23.8 gal. |
| Hydraulic/hydrostatic Reservoir with Filter Refill Capacity | 66 L |
| Hydraulic/hydrostatic Reservoir with Filter Refill Capacity | 17.4 gal. |
| Hydrostatic Motor Gearbox Refill Capacity | 1.3 L |
| Hydrostatic Motor Gearbox Refill Capacity | 1.4 qt |
Cylinders
| Cylinders Type | Heat-treated, chrome-plated, polished cylinder rods; hardened steel (replaceable bushings) pivot pins |
Electrical And Lighting
| System Type | Electrical load center with blade-type multi-fused circuits |
| Voltage | 12 V |
| Number Of Batteries | 1 |
| Battery Capacity | 295 CCA |
| Alternator Rating | 120 amp |
| Lights (SAE 99) | Driving/front working lights (2), turn signals, flashers, and stop- and taillights |
Operator Station and Controls
| Noise Level For Operator (ISO 6396) | 73 dBA |
| Noise Level for Bystander (ISO 6395) | 101 dBA |
