Features
Increase Your Machine's Versatility with a Wide Array of Attachments
With over 100 attachments offered in the John Deere attachment portfolio, you can make the most out of your compact loader by equipping it with many popular attachments.

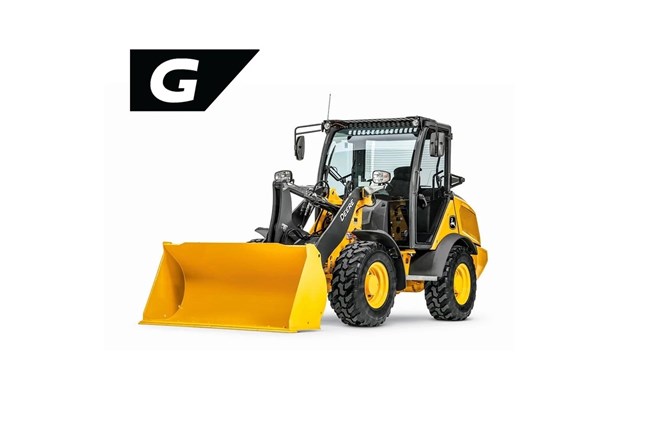

Compact Size to Excel on Any Site
Deere compact wheel loaders are known for their abilities to fit into tight working spaces. The G-Tier lineup provides owners and operators a rugged and reliable yet economical solution that doesn't sacrifice on quality or Deere and dealer support that they've come to expect.
Spacious and Ergonomically Friendly Cab to Enjoy All Day Comfort
Designed with operator comfort in mind, this loader features a spacious ergonomic cab with improved air conditioning and adjustable controls. The cab's design maximizes visibility and includes ample storage, making it easier for operators to work efficiently and comfortably.
Specifications
Powertrain
| Axles Front | Rigid mount front axles with 10-degree frame oscillation |
| Axles Rear | Rigid mount rear axles with 10-degree frame oscillation |
| Differentials Front | 45 degree locking front differentials |
| Differentials Rear | 45 degree locking rear differentials |
| Maximum Rise And Fall, Single Wheel | 256 mm |
| Maximum Rise And Fall, Single Wheel | 10 in. |
| Steering Type | Hydraulic power steering (SAE J1511) |
| Degree Of Articulation Left And Right | 40 degree (angle) |
| Articulation Arc | 80 degree (angle) |
| Steering Wheel Number Of Turns Left Stop To Stop | 3.5 |
| Steering Wheel Turns Right Stop to Stop | 4.5 |
| Final Drive Type | Heavy-duty outboard planetary |
| Service Brakes (SAE J1473, ISO3450) | Hydraulically actuated, self-adjusting internal wet-disk brake and driveline drum brake |
| Parking Brake (SAE J1473, ISO3450) | Automatically spring applied, hydraulically released, internal wet disk |
Wheels And Tires
| Tread Width: Standard Size, 365/70R18 Mitas EM01 Tires on Single-Piece Rims | 1370 mm |
| Tread Width: Standard Size, 365/70R18 Mitas EM01 Tires on Single-Piece Rims | 53.94 in. |
| Width Over Tires: Standard Size, 365/70R18 Mitas EM01 Tires on Single-Piece Rims | 1780 mm |
| Width Over Tires: Standard Size, 365/70R18 Mitas EM01 Tires on Single-Piece Rims | 70.08 in. |
| Tread Width: 400/70R20 Michelin XMCL Tires on Single-Piece Rims | 1370 mm |
| Tread Width: 400/70R20 Michelin XMCL Tires on Single-Piece Rims | 53.54 in. |
| Width Over Tires: 400/70R20 Michelin XMCL Tires on Single-Piece Rims | 1820 mm |
| Width Over Tires: 400/70R20 Michelin XMCL Tires on Single-Piece Rims | 71.65 in. |
| Change in Vertical Height: 400/70R20 Michelin XMCL Tires on Single-Piece Rims | 44 mm |
| Change in Vertical Height: 400/70R20 Michelin XMCL Tires on Single-Piece Rims | 1.73 in. |
| Tread Width: 405/70R18 Firestone Duraforce Tires on Single-Piece Rims | 1360 mm |
| Tread Width: 405/70R18 Firestone Duraforce Tires on Single-Piece Rims | 53.64 in. |
| Width Over Tires: 405/70R18 Firestone Duraforce Tires on Single-Piece Rims | 1820 mm |
| Width Over Tires: 405/70R18 Firestone Duraforce Tires on Single-Piece Rims | 71.65 in. |
| Change in Vertical Height: 405/70R18 Firestone Duraforce Tires on Single-Piece Rims | 23.11 mm |
| Change in Vertical Height: 405/70R18 Firestone Duraforce Tires on Single-Piece Rims | 0.91 in. |
| Tread Width 400/70R20 Nokian Hakkapeliitta TRI Tires on Single-Piece Rims | 1360 mm |
| Tread Width 400/70R20 Nokian Hakkapeliitta TRI Tires on Single-Piece Rims | 53.54 in. |
| Width Over Tires 400/70R20 Nokian Hakkapeliitta TRI Tires on Single-Piece Rims | 1810 mm |
| Width Over Tires 400/70R20 Nokian Hakkapeliitta TRI Tires on Single-Piece Rims | 71.26 in. |
| Change in Vertical Height 400/70R20 Nokian Hakkapeliitta TRI Tires on Single-Piece Rims | 48 mm |
| Change in Vertical Height 400/70R20 Nokian Hakkapeliitta TRI Tires on Single-Piece Rims | 1.89 in. |
Hydraulics
| Main Pump (Loader and Steering) | Fixed-displacement gear pump; open-center system |
| Max Rated Flow at 1,000 psi | 18.49 gpm |
| Max Rated Flow At 6895 kPa | 70 L/min |
| Maximum Pressure at Couplings | 3335.87 psi |
| Maximum Pressure at Couplings | 23000 kPa |
| System Relief Pressure (Loader) | 3335.87 psi |
| System Relief Pressure (Loader) | 23000 kPa |
| System Relief Pressure (Steering) | 2610.68 psi |
| System Relief Pressure (Steering) | 18000 kPa |
| Hydraulic Raise Cycle Time | 5.6 seconds |
| Hydraulic Dump Cycle Time | 1.5 seconds |
| Hydraulic Lower (Power Down) Cycle Time | 3.5 seconds |
| Total Cycle Time | 10.60 seconds |
| Controls Type | Three-function valve with single-lever control for boom and bucket, with hydraulic lockout feature; Joystick mounted push button electrohydraulic control for auxiliary hydraulics, with hydraulic lockout feature |
Engine
| Engine Manufacturer | Yanmar |
| Engine Model | 4TNV86CHT-M |
| Non-Road Emission Standards | EPA Final Tier 4/EU Stage V |
| Cylinders | 4 |
| Valves Per Cylinder | 4 |
| Displacement | 127.6 cu in. |
| Displacement | 2.1 L |
| Net Peak Power At 2,200 Rpm (SAE J1349 /ISO 9249) | 62.36 hp |
| Net Peak Power At 2,200 Rpm (SAE J1349 /ISO 9249) | 46.5 kW |
| Gross Rated Power At 2,200 Rpm (ISO 14396) | 65.04 hp |
| Gross Rated Power At 2,200 Rpm (ISO 14396) | 48.5 kW |
| Peak Torque At 1,690 Rpm (SAE J1349 /ISO 9249) | 292.9 hp |
| Peak Torque At 1,690 Rpm (SAE J1349 /ISO 9249) | 218.4 kW |
| Engine Bore And Stroke | 3.39 x 3.54 in in. |
| Engine Bore And Stroke | 86 x 89.9 mmByMm |
| Lubrication | Pressure system with full-flow spin-on filter |
| Aspiration | Turbocharged |
| Air Cleaner | Dual safety element dry type |
Monitor
| Alternator, Low Voltage | Indicator light |
| Direction Indicator, Forward And Reverse | Indicator light, audible warning |
| Engine Air Filter Restriction | Indicator light, audible warning |
| Engine Coolant Temperature | Indicator light, audible warning |
| Engine Oil Pressure | Indicator light, audible warning |
| Engine Preheat | Indicator light |
| Engine rpm | Indicator light, digital |
| Fuel Level | Indicator light, gauge |
| Exhaust Filter | Indicator light |
| High Speed Indicator | Indicator light |
| Hourmeter | Digital |
| Hydraulic Oil Temperature | Indicator light |
| Lights, High Beam | Indicator light |
| Low Speed Indicator | Indicator light |
| Park Brake Engaged | Indicator light |
| Pilot Disable | Indicator light |
| Speedometer | Digital |
| Stop Indicator | Indicator light, audible warning |
| Turn Signals And Flashers | Indicator light |
Serviceability
| Lube Bank | Remote lube bank for easy reach and maintenance |
| Fueling Level | Ground |
| Loader Boom Service Lock Available | Yes |
| Diagnostic Monitoring Location | In-cab |
| Quick-Coupler Diagnostic Ports | Priority pressure, hydraulic pump pressure, control valve pressure and hydrostatic pressure |
| Engine Oil Change Interval (Hours) | 500 hr |
| Hydraulic Oil Change Interval (Hours) | 3000 hr |
| Engine Oil Filter Service Hours | 500 hr |
| Fuel Filter Service Hours | 500 hr |
| Secondary Fuel Filter Service Hours | 500 hr |
| Hydraulic Filter Service Hours | 1000 hr |
| Available Sight Gauges | Hydraulic reservoir, see-through coolant reservoir |
| Cooling System (Engine and Radiator) Refill Capacity | 10.01 L |
| Cooling System (Engine and Radiator) Refill Capacity | 10.57 qt |
| Differential and Planetary Front Axle Refill Capacity | 5.5 L |
| Differential and Planetary Front Axle Refill Capacity | 5.81 qt |
| Differential and Planetary Rear Axle Refill Capacity | 6 L |
| Differential and Planetary Rear Axle Refill Capacity | 6.34 qt |
| Engine Oil with Filter Refill Capacity | 7.4 L |
| Engine Oil with Filter Refill Capacity | 7.82 qt |
| Fuel Tank Refill Capacity | 62.04 L |
| Fuel Tank Refill Capacity | 16.38 gal. |
| Hydraulic/hydrostatic Reservoir with Filter Refill Capacity | 45.03 L |
| Hydraulic/hydrostatic Reservoir with Filter Refill Capacity | 11.89 gal. |
| Hydrostatic Motor Gearbox Refill Capacity | 0.5 L |
| Hydrostatic Motor Gearbox Refill Capacity | 0.53 qt |
Operating Weights Measured with Standard Equipment, 365/70R18 Tires, Standard Counterweight, Cab, 79-kg (175-lb) Operator, and Full Fuel Tank
| Enclosed Cab Loader with Quik-Tatch™ Quick-Coupler and 0.9-cu yd Stockpiling/GP Bucket with Bolt-On Edge | 11508.12 lb. |
| Enclosed Cab Loader with Quik-Tatch™ Quick-Coupler and 1-cu yd Stockpiling/GP Bucket with Bolt-On Edge | 11541.19 lb. |
| Enclosed Cab Loader with Quik-Tatch™ Quick-Coupler and 1.4-cu yd Stockpiling/GP Bucket with Bolt-On Edge | 11783.69 lb. |
| Enclosed Cab Loader with Quik-Tatch™ Quick-Coupler and Fork | 5115 kg |
| Enclosed Cab Loader with Quik-Tatch™ Quick-Coupler and Fork | 11276.63 lb. |
| Enclosed Cab Loader with Hook/Euro Quick-Coupler and 0.9-cu yd Stockpiling/GP Bucket with Bolt-On Edge | 11034.12 lb. |
| Enclosed Cab Loader with Hook/Euro Quick-Coupler and 1.0-cu yd Stockpiling/GP Bucket with Bolt-On Edge | 11111.28 lb. |
| Enclosed Cab Loader with Hook/Euro Quick-Coupler and 1.4-cu yd Stockpiling/GP Bucket with Bolt-On Edge | 11375.84 lb. |
| Enclosed Cab Loader with Hook/Euro Quick-Coupler and Fork | 4930 kg |
| Enclosed Cab Loader with Hook/Euro Quick-Coupler and Fork | 10868.78 lb. |
| Open ROPS with Quik-Tatch™ Quick-Coupler and 0.9-cu yd Stockpiling/GP Bucket with Bolt-On Edge | 11397.89 lb. |
| Open ROPS with Quik-Tatch™ Quick-Coupler and 1.0-cu yd Stockpiling/GP Bucket with Bolt-On Edge | 11430.95 lb. |
| Open ROPS with Quik-Tatch™ Quick-Coupler and 1.4-cu yd Stockpiling/GP Bucket with Bolt-On Edge | 11673.46 lb. |
| Optional Quik-Tatch Coupler Fork and Tines 48 in. | 722.89 lb. |
| Open ROPS with Hook/Euro Quick-Coupler and 0.9-cu yd Stockpiling/GP Bucket with Bolt-On Edge | 10923.89 lb. |
| Open ROPS with Hook/Euro Quick-Coupler and 1.0-cu yd Stockpiling/GP Bucket with Bolt-On Edge | 11001.05 lb. |
| Open ROPS with Hook/Euro Quick-Coupler and 1.4-cu yd Stockpiling/GP Bucket with Bolt-On Edge | 11265.61 lb. |
| Open ROPS with Hook/Euro Quick-Coupler and Fork | 4880 kg |
| Open ROPS with Hook/Euro Quick-Coupler and Fork | 10758.55 lb. |
| Optional Quik-Tatch Coupler Bucket, 0.9-cu yd | 858.48 lb. |
Cylinders
| Cylinders Type | Heat treated, chrome-plated, polished cylinder rods, hardened steel (replaceable bushings) pivot pins |
Electrical And Lighting
| System Type | Electrical load center with blade-type multi-fused circuits |
| Voltage | 12 V |
| Number Of Batteries | 1 |
| Battery Capacity | 830 CCA |
| Alternator Rating | 80 amp |
| Lights (SAE 99) | Driving and front working lights (two), turn signals, flashers, stop and tail lights |
Cooling
| Fan | Direct driven |
| Engine Coolant Rating | -34 °F |
| Engine Coolant Rating | -36.6 ℃ |
Operator Station and Controls
| Noise Level For Operator (ISO 6396) | 78 dba |
| Noise Level for Bystander (ISO 6395) | 101 dba |
