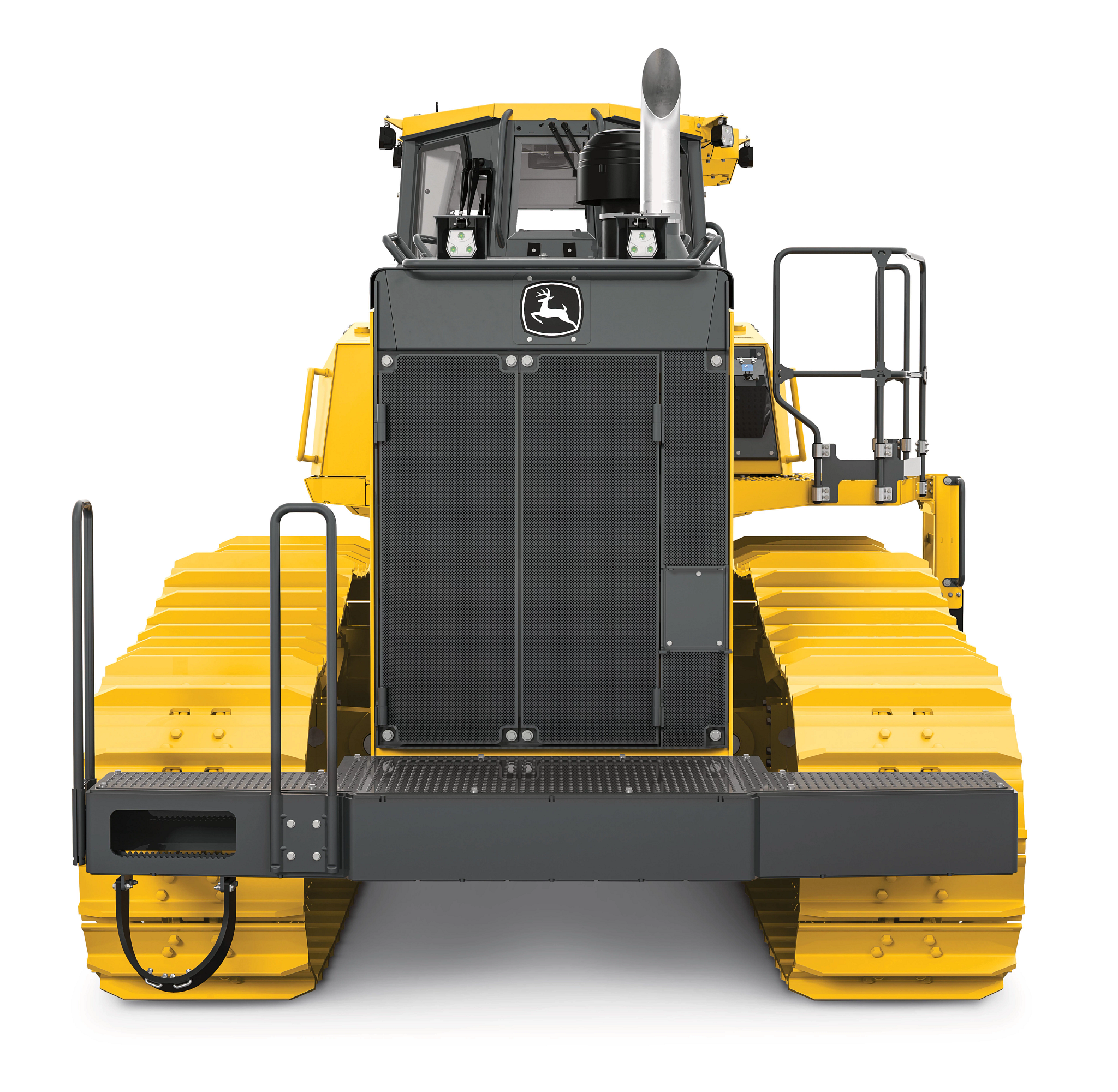

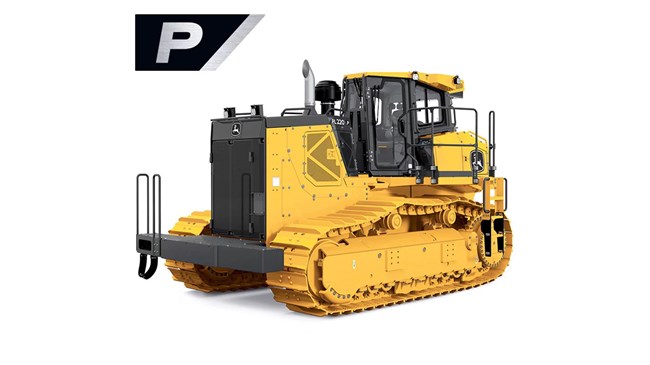

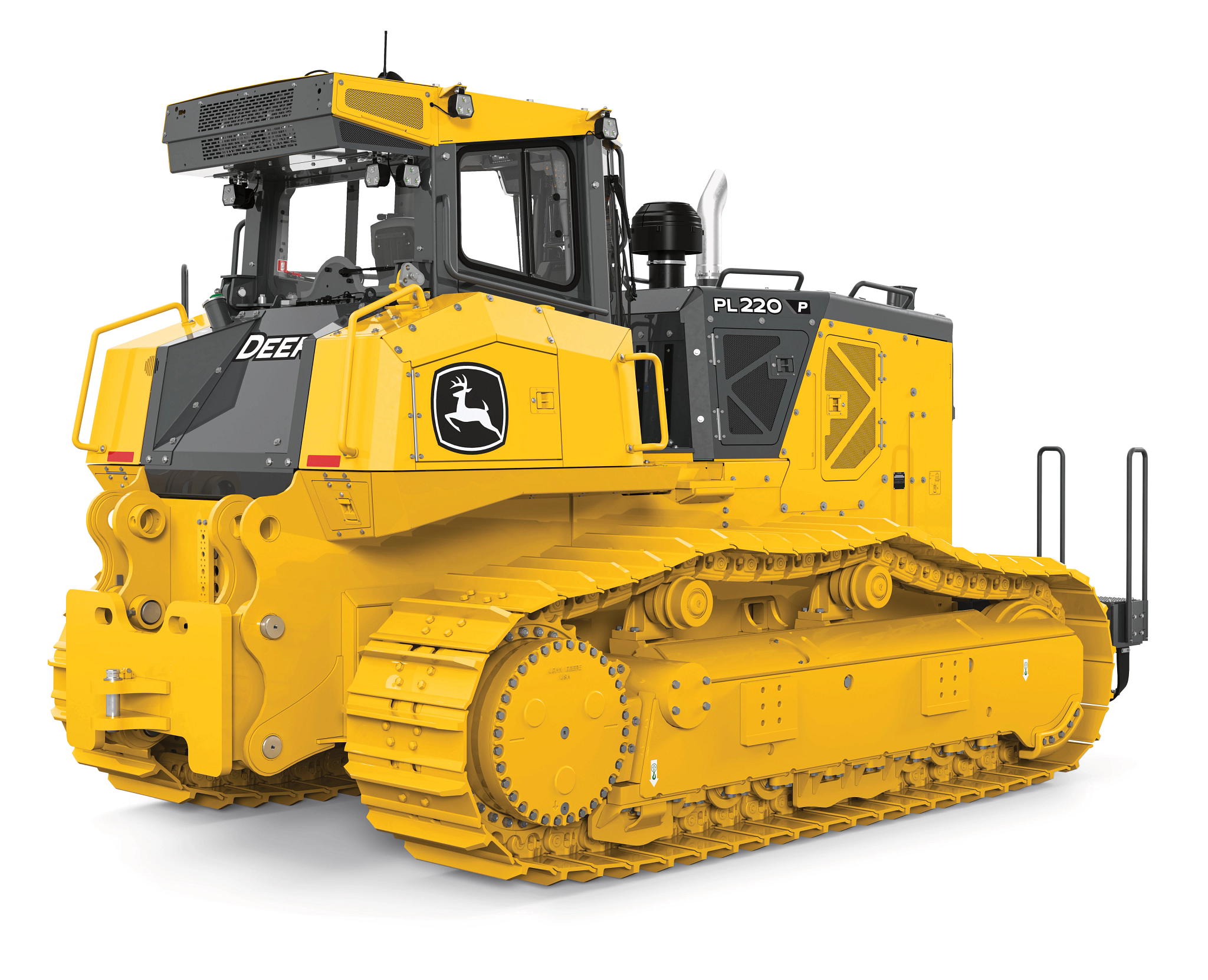

John Deere PL220
Double tap to zoom
PL220
Pipelayers
Overview:
The John Deere PL220 delivers powerful lifting performance, precise electrohydraulic controls, and the stability needed for demanding jobsite conditions. With a 187,000-lb. maximum lift capacity and purpose-built undercarriage, it helps crews handle heavy loads efficiently, confidently, and with greater control.
- Net Power: 354 hp (264 kW)
- Operating Weight: 128,652 lb. (58,356 kg)
- Maximum Lift Capacity: 220,000 lb. (99,790 kg) at 4-ft (1219-mm) Overhang
- 65-Degree Cab Tilt
Get A Quote
Fields with asterisks* are required. Please email our helpful staff with any questions or comments using the contact form.
Loan Calculator
Use the Loan Calculator to help you determine the financing and payment options that are best for you.
**The accuracy of this calculator and its applicability to your circumstances is not guaranteed. You should obtain personal advice from qualified professionals. This information is provided for illustrative purposes only and does not constitute an application. This notice does not guarantee loan approval, nor is it an offer or commitment to make a loan to you on the above terms.
Send To A Friend
Fields with asterisks* are required. Your friend will receive an email that contains a reference to this page. Please send this email only to people you know who would be interested in this information.
Share This Product:
Features
Uptime Advantage
Sideboom-ready pipelayer platform and mounting plates with pin-up/bolt-on design simplify installation and speed setup. PL models share common machine components with our proven dozer lineup, simplifying parts inventory, easing service, and boosting uptime when you have other Deere machines in your fleet.
Reliable Stability
Purpose-built track configurations provide a stable pipelaying platform. Fixed undercarriages enable wide machine stances for steady track-on-the-ground balance as you work the trenches.

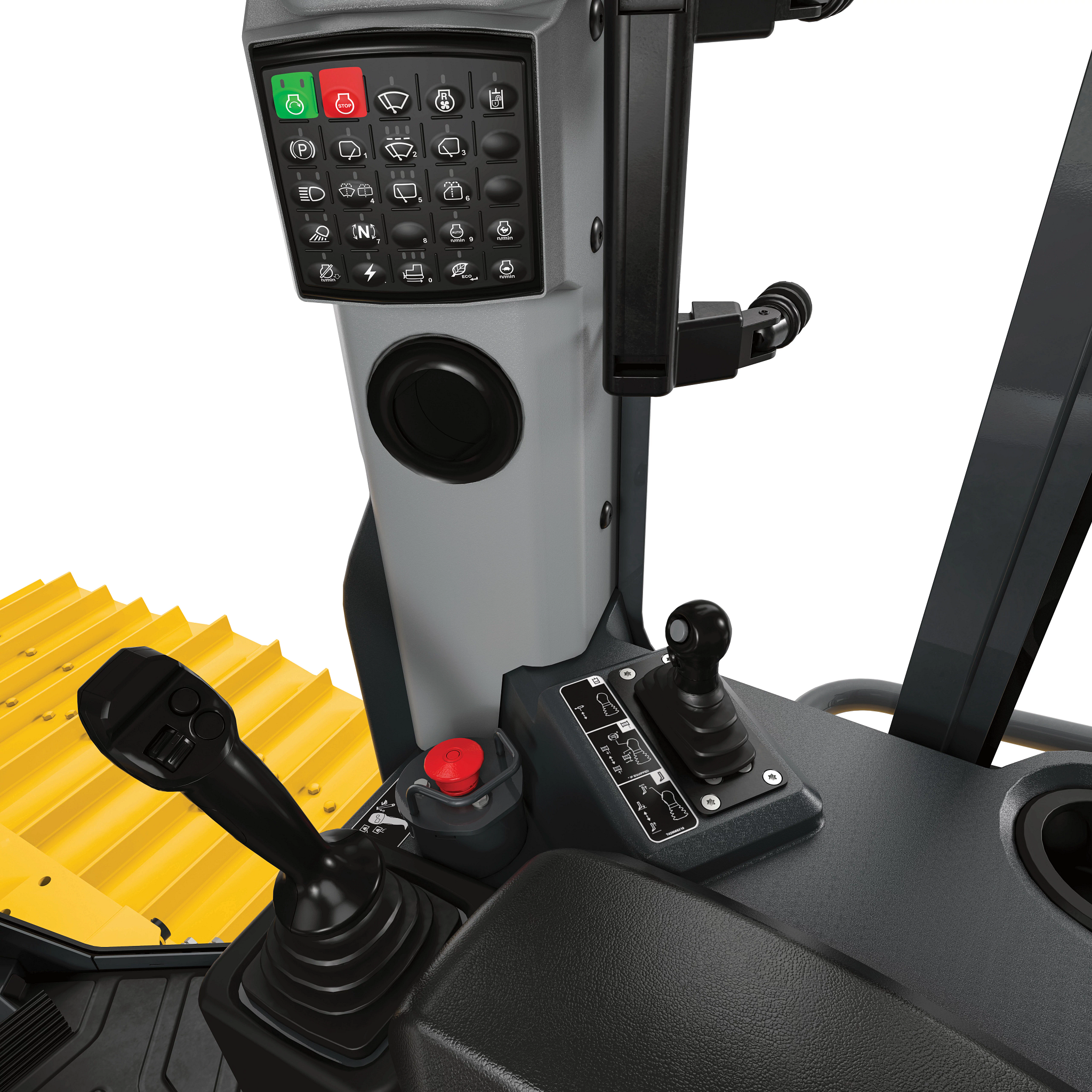

Purpose-Built Pipelayer Controls
Pipelayer controls are seamlessly integrated into the low-effort electrohydraulic (EH) joysticks, with a thumb roller providing smooth, precise control and a quick-drop button for emergencies. A boom/load motor-speed switch allows the operator to select between low and high speeds while also controlling the boom and load winches at the same time.
Specifications
Engine
| Engine Make | John Deere |
| Engine Model | PowerTech PSS 6136 |
| Aspiration | Turbocharged |
| Displacement | 13.6 L |
| Displacement | 827 cu in. |
| Rated Speed | 1700 rpm |
| Engine Output - Net 1 | 354 hp |
| Engine Output - Net 1 | 264 kW |
Dimensions & Weights
| Track Shoe Width | 36 in. |
| Track Shoe Width | 915 mm |
| Track Length on Ground | 12, 3 ft, in. |
| Track Length on Ground | 3734 mm |
| Overall Height | 11, 5 ft, in. |
| Overall Height | 3476 mm |
| Overall Length | 20, 11 ft, in. |
| Overall Length | 6385 mm |
| Operating Weight | 72040 lb. |
| Operating Weight | 32677 kg |
| Ground Clearance | 20.6 in. |
| Ground Clearance | 523 mm |
Capacities
| Lift Capacity - Tipping | 128652 lb. |
| Lift Capacity - Tipping | 58356 kg |
