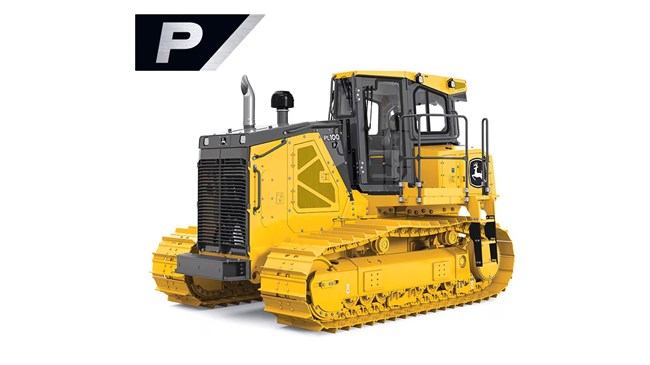

John Deere PL100
Double tap to zoom
PL100
Pipelayers
Overview:
The John Deere PL100 gives pipeline crews the power, control, and stability needed for demanding lift-and-place work. With 225 hp, up to 85,000 lb. maximum lift capacity, integrated electrohydraulic controls, and a purpose-built undercarriage, it helps operators work efficiently, confidently, and with precise load handling.
- Net Power: 225 hp (168 kW)
- Operating Weight: 72,040–73,395 lb. (32,677–33,291 kg)
- Maximum Lift Capacity: 100,000 lb. (45,359-kg) at 1219-mm (4 ft) Overhang
- 65-Degree Cab Tilt
Get A Quote
Fields with asterisks* are required. Please email our helpful staff with any questions or comments using the contact form.
Loan Calculator
Use the Loan Calculator to help you determine the financing and payment options that are best for you.
**The accuracy of this calculator and its applicability to your circumstances is not guaranteed. You should obtain personal advice from qualified professionals. This information is provided for illustrative purposes only and does not constitute an application. This notice does not guarantee loan approval, nor is it an offer or commitment to make a loan to you on the above terms.
Send To A Friend
Fields with asterisks* are required. Your friend will receive an email that contains a reference to this page. Please send this email only to people you know who would be interested in this information.
Share This Product:
Features
Uptime Advantage
Sideboom-ready pipelayer platform and mounting plates with pin-up/bolt-on design simplify installation and speed setup. PL models share common machine components with our proven dozer lineup, simplifying parts inventory, easing service, and boosting uptime when you have other Deere machines in your fleet.
Reliable Stability
Purpose-built track configurations provide a stable pipelaying platform. Fixed undercarriages enable wide machine stances for steady track-on-the-ground balance as you work the trenches.
Purpose-Built Pipelayer Controls
Pipelayer controls are seamlessly integrated into the low-effort electrohydraulic (EH) joysticks, with a thumb roller providing smooth, precise control and a quick-drop button for emergencies. A boom/load motor-speed switch allows the operator to select between low and high speeds while also controlling the boom and load winches at the same time.
Specifications
Engine
| Engine Make | John Deere |
| Engine Model | PVR-S 6090 |
| Aspiration | Turbocharged |
| Displacement | 9 L |
| Displacement | 549 cu in. |
| Rated Speed | 1700 rpm |
| Engine Output - Net 1 | 225 hp |
| Engine Output - Net 1 | 168 kW |
Dimensions & Weights
| Track Shoe Width | 30 in. |
| Track Shoe Width | 760 mm |
| Track Length on Ground | 10, 9 ft, in. |
| Track Length on Ground | 3284 mm |
| Overall Height | 11, 0 ft, in. |
| Overall Height | 3344 mm |
| Overall Length | 19, 8 ft, in. |
| Overall Length | 5896 mm |
| Operating Weight | 72040 lb. |
| Operating Weight | 32677 kg |
| Ground Clearance | 15.5 in. |
| Ground Clearance | 394 mm |
Capacities
| Lift Capacity - Tipping | 85000 lb. |
| Lift Capacity - Tipping | 38555 kg |
