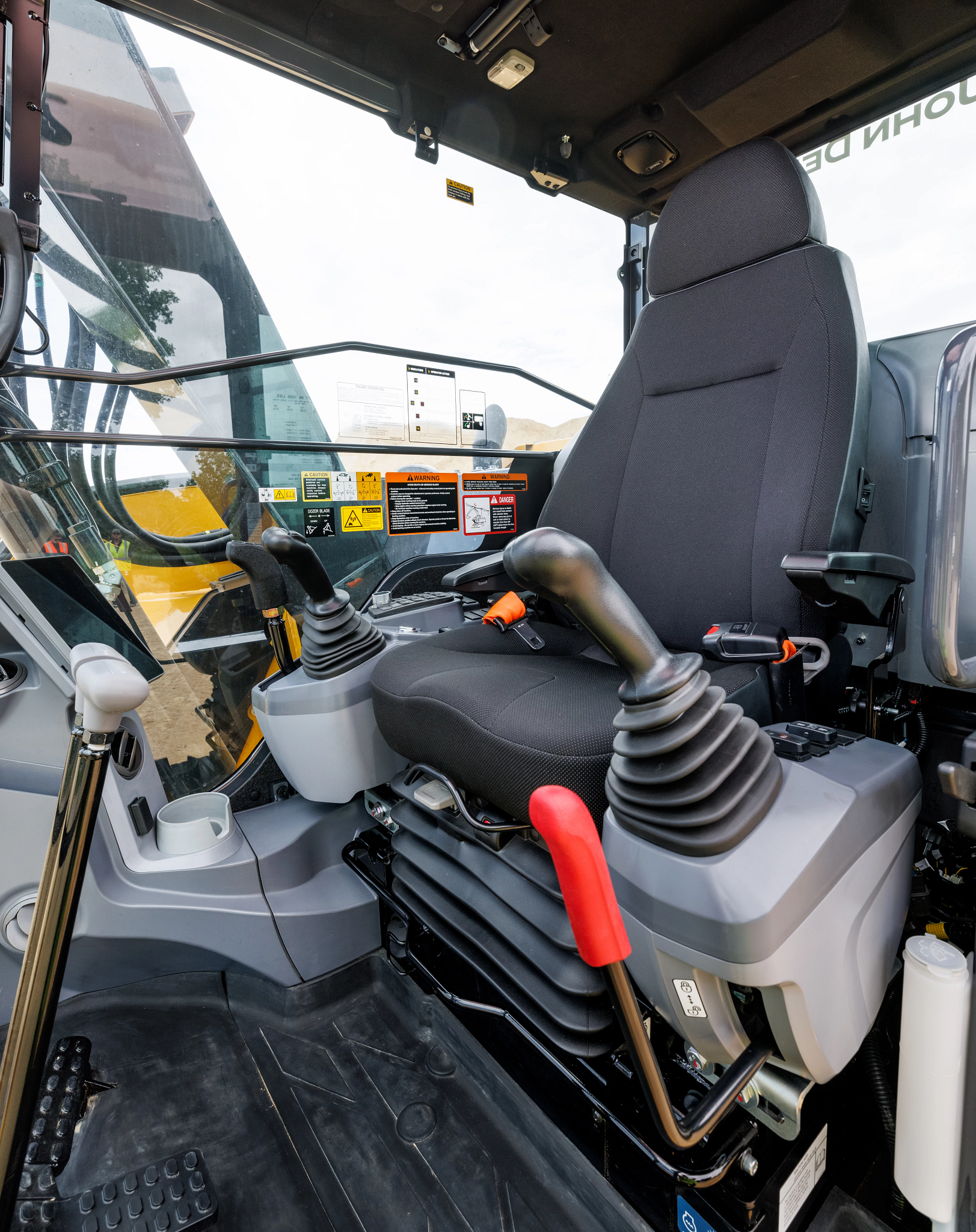

Work Comfortably with a Brand New Larger Cab

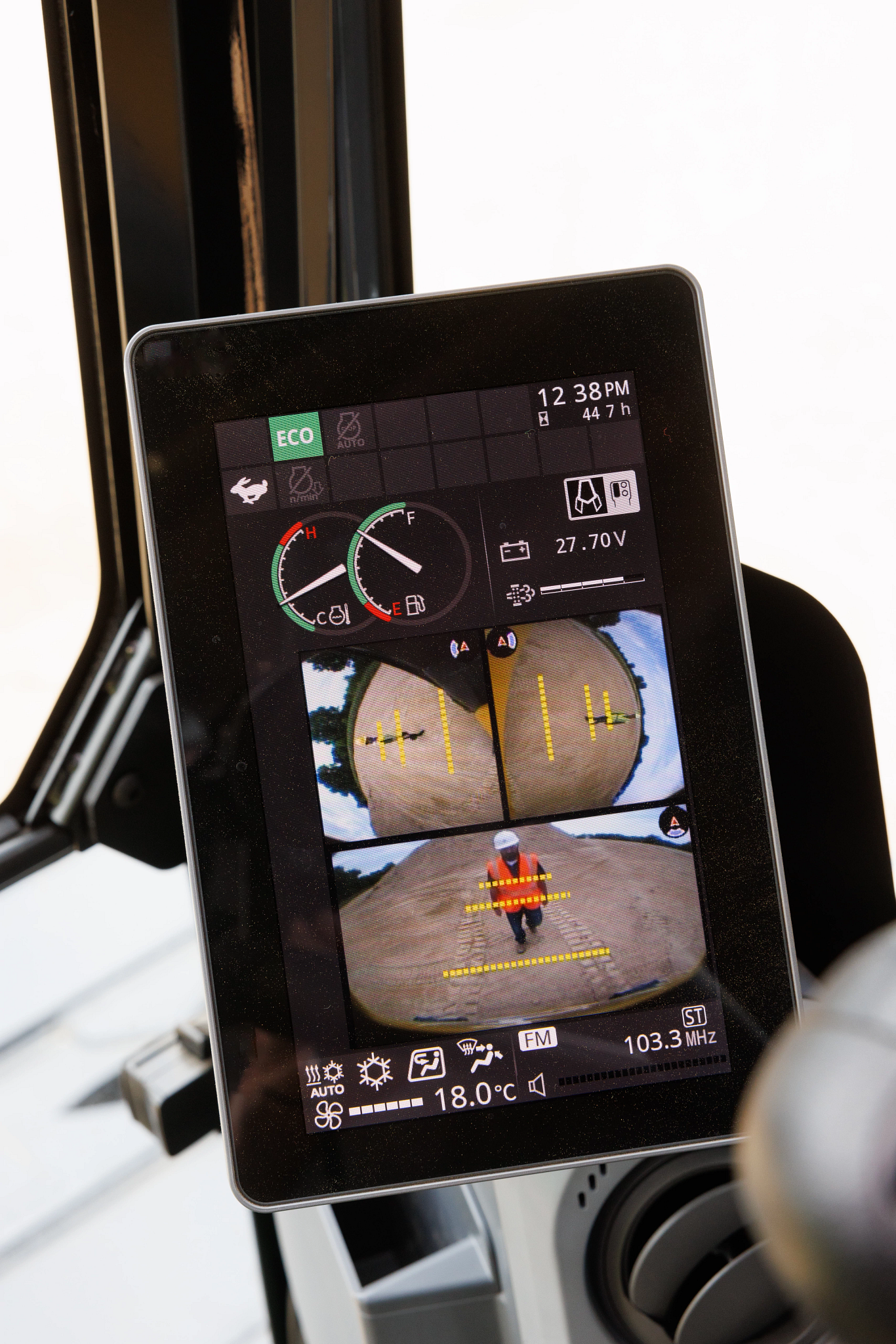

P-Tier cabs boost comfort and productivity with an optional angle blade, continuous-flow hydraulics, and standard 270° cameras, LED lighting, and JDLink for full visibility and machine insights.
New Features You've Been Waiting For
The P-Tier cabs offer new features designed to enhance comfort and productivity, including an optional angle blade with float for easy backfill and grading, and continuous flow auxiliary hydraulics with a timer to maintain temperatures, especially with attachments like hammers and rotary cutters.

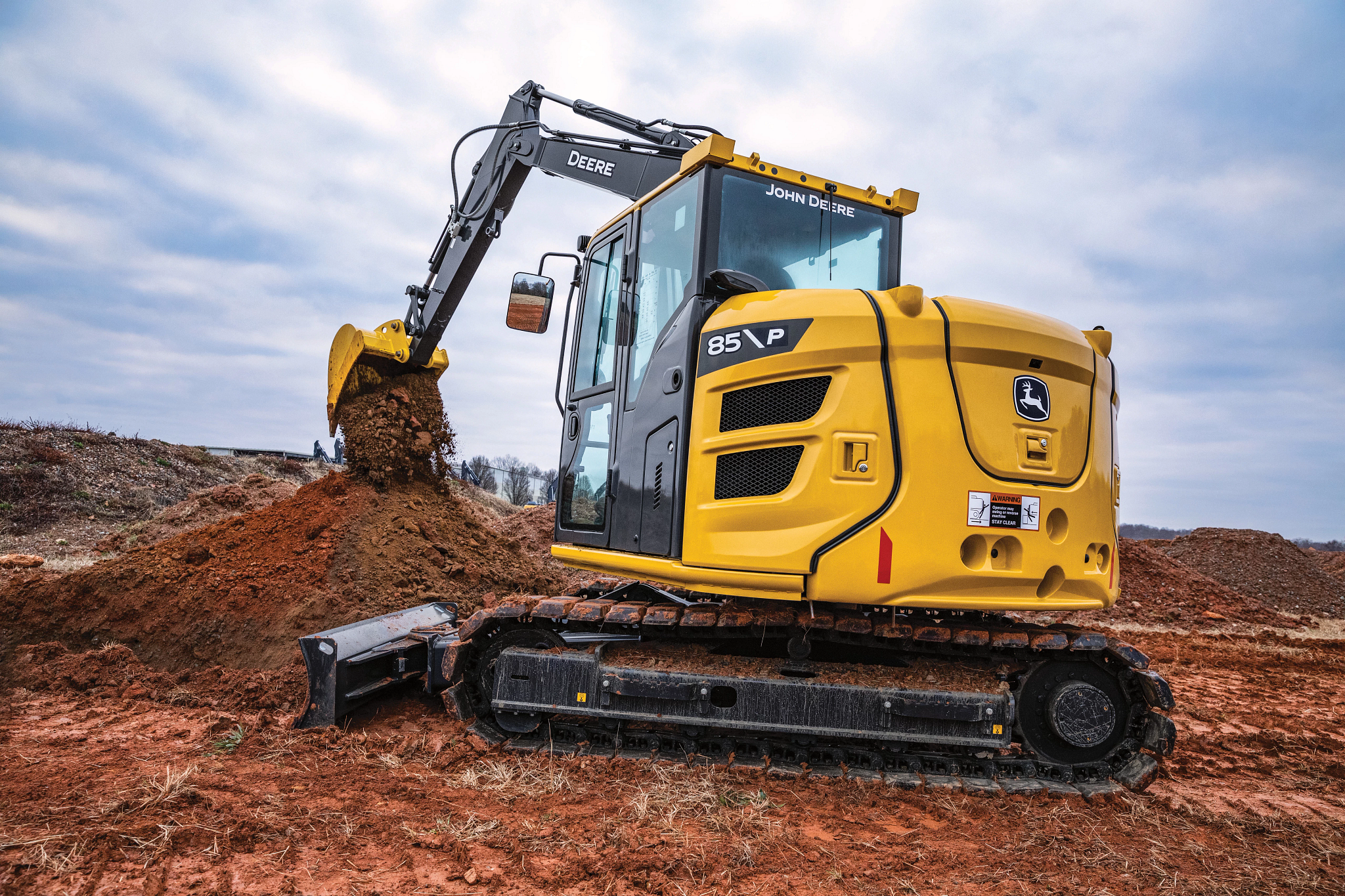

Increased Performance Across the Board
More engine power and a 10% increase in stability will increase productivity. With increased horse power and pump torque you can increase digging strength and move material faster than previous models. The addition of the turbo result is better all-around power, and performance.
Specifications
Powertrain
| Powertrain type | 2-speed propel with automatic shift |
| Maximum travel speed low/slow (mph) | 1.9 mph |
| Maximum travel speed low/slow (km/h) | 3.1 km/h |
| Maximum travel speed high/fast (mph) | 3.1 mph |
| Maximum travel speed high/fast (km/h) | 5 km/h |
| Drawbar pull (kg) | 6520 kg |
| Drawbar pull (lb) | 14374 lb. |
Refill Capacities
| Fuel tank (gal.) | 33 gal. |
| Fuel tank (L) | 125 L |
| Cooling system (qt) | 14 qt |
| Cooling system (L) | 13.1 L |
| Engine oil with filter (qt) | 12.8 qt |
| Engine oil with filter (L) | 12.3 L |
| Hydraulic tank (gal.) | 14 gal. |
| Hydraulic tank (L) | 52 L |
| Hydraulic system (gal.) | 26 gal. |
| Hydraulic system (L) | 100 L |
| Propel gearbox (qt) | 1.3 qt |
| Propel gearbox (L) | 1.2 L |
Undercarriage
| Number of carrier rollers per side | 1 |
| Number of track rollers per side | 5 |
| Number of shoes per side | 40 |
| Track adjustment type | Hydraulic |
| Track chain type | Sealed and lubricated |
Engine
| Manufacturer | Yanmar |
| Model | 4TNV98CT-WHBW |
| Non-road emission standards | EPA Final Tier 4/EU Stage IV |
| Net power (rpm) | 2000 rpm |
| Net power at net power rpm (ISO 9249) (hp) | 67.6 hp |
| Net power at net power rpm (ISO 9249) (kW) | 50.4 kW |
| Cylinders | 4 |
| Displacement (cu in.) | 202 cu in. |
| Displacement (L) | 3.3 L |
| Off-level capacity (%) | 70 % |
| Off-level capacity (degrees) | 35 degrees |
| Aspiration type | Turbocharger |
Hydraulics
| Hydraulics type | Open center, load sensing |
| Main pump type | 3 variable-displacement axial-piston pumps |
| Number of pumps | 2 |
| Main pump maximum rated flow per pump (gpm) | 15 gpm |
| Main pump maximum rated flow per pump (L/min) | 56 L/min |
| Pilot pump number of gears | 1 |
| Pilot pump maximum rated flow (gpm) | 5.3 gpm |
| Pilot pump maximum rated flow (L/min) | 20 L/min |
| Pilot pump pressure setting (psi) | 624 psi |
| Pilot pump pressure setting (kPa) | 4300 kPa |
| Implement circuits system operating pressure (psi) | 4061 psi |
| Implement circuits system operating pressure (kPa) | 28000 kPa |
| Travel circuits system operating pressure (psi) | 4583 psi |
| Travel circuits system operating pressure (kPa) | 31600 kPa |
| Swing circuits system operating pressure (psi) | 3785 psi |
| Swing circuits system operating pressure (kPa) | 26100 kPa |
| Controls type | Pilot levers, short stroke, low effort; hydraulic pilot controls with shutoff lever |
Cylinders
| Cylinders type | Heat-treated, chrome-plated, polished cylinder rods; hardened steel (replaceable bushings) pivot pins |
| Number of boom cylinders | 1 |
| Boom cylinder bore (in.) | 4.5 in. |
| Boom cylinder bore (mm) | 115 mm |
| Boom cylinder rod diameter (in.) | 2.8 in. |
| Boom cylinder rod diameter (mm) | 70 mm |
| Boom cylinder stroke (in.) | 36 in. |
| Boom cylinder stroke (mm) | 915 mm |
| Number of arm cylinders | 1 |
| Arm cylinder bore (in.) | 3.7 in. |
| Arm cylinder bore (mm) | 95 mm |
| Arm cylinder rod diameter (in.) | 2.4 in. |
| Arm cylinder rod diameter (mm) | 60 mm |
| Arm cylinder stroke (in.) | 35.4 in. |
| Arm cylinder stroke (mm) | 900 mm |
| Number of bucket cylinders | 1 |
| Bucket cylinder bore (in.) | 3.3 in. |
| Bucket cylinder bore (mm) | 85 mm |
| Bucket cylinder rod diameter (in.) | 2.2 in. |
| Bucket cylinder rod diameter (mm) | 55 mm |
| Bucket cylinder stroke (in.) | 28.7 in. |
| Bucket cylinder stroke (mm) | 730 mm |
Swing Mechanism
| Speed (rpm) | 10.1 rpm |
| Torque (lb-ft) | 16600 lb-ft |
| Torque (Nm) | 12244 Nm |
Electrical
| Battery voltage (V) | 12 V |
| Number of batteries | 2 |
| Battery capacity (CCA) | 450 CCA |
| Alternator rating (amp) | 50 amp |
| Work lights | 2 LED (1 mounted on boom, 1 on frame) |
Cooling
| Cooling system type | Variable-speed fan; viscous clutch |
