Features

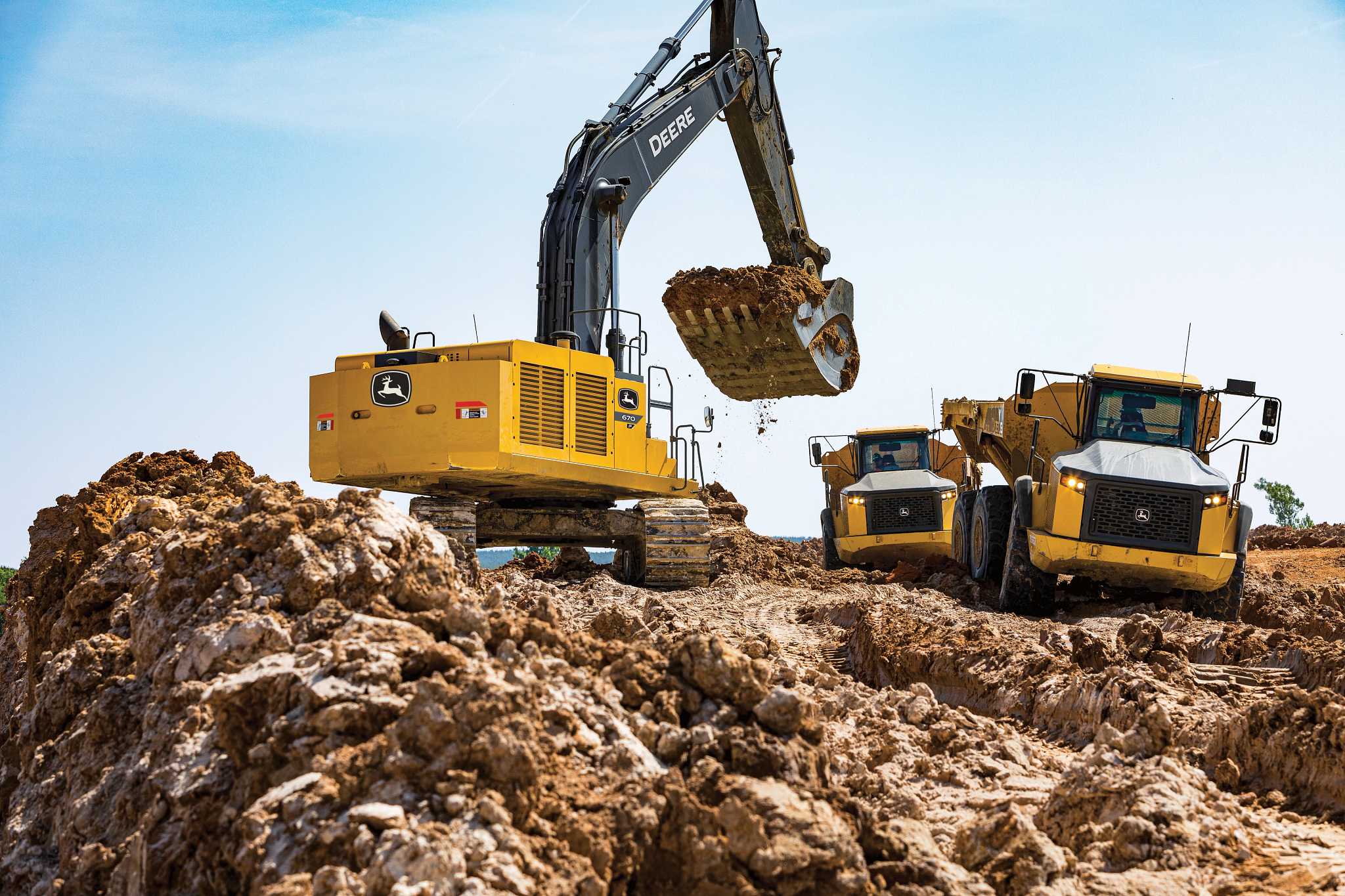

Move More Material with High‑Production Power

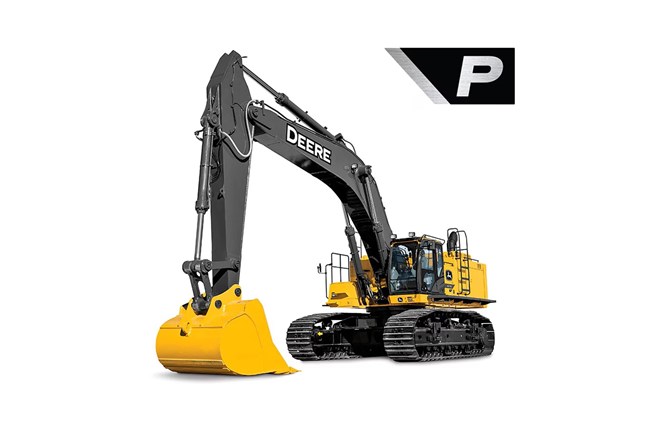

With up to 463 horsepower and a nearly 70‑metric‑ton platform, the 670 P‑Tier is built for large‑scale excavation, mass earthmoving, and quarry work where maximum productivity is critical.

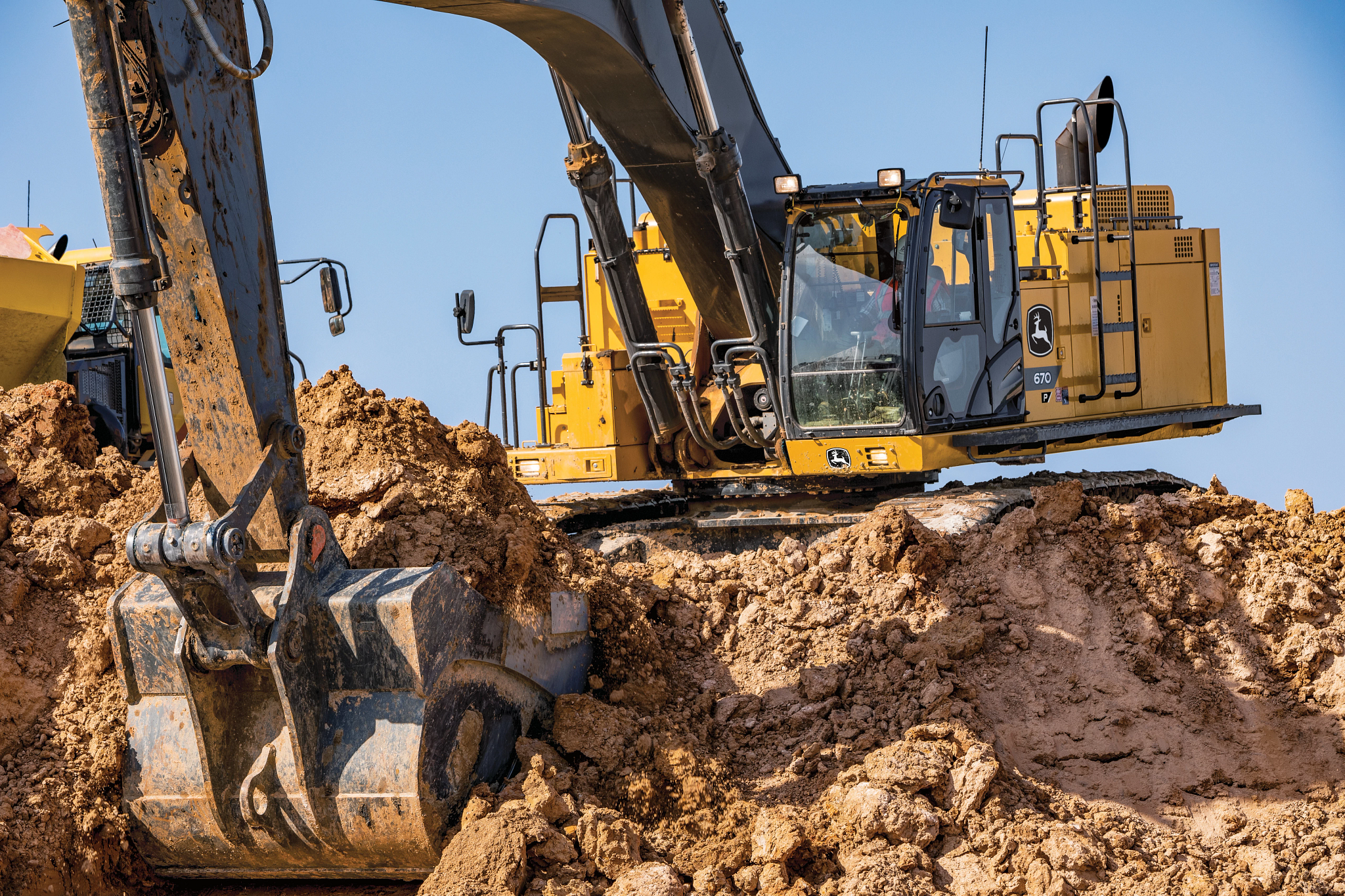

Dig Deeper and Reach Farther
Offering digging depths up to ~30 ft., this machine is designed to handle deep trenching, large cuts, and bulk material movement with confidence across demanding applications.

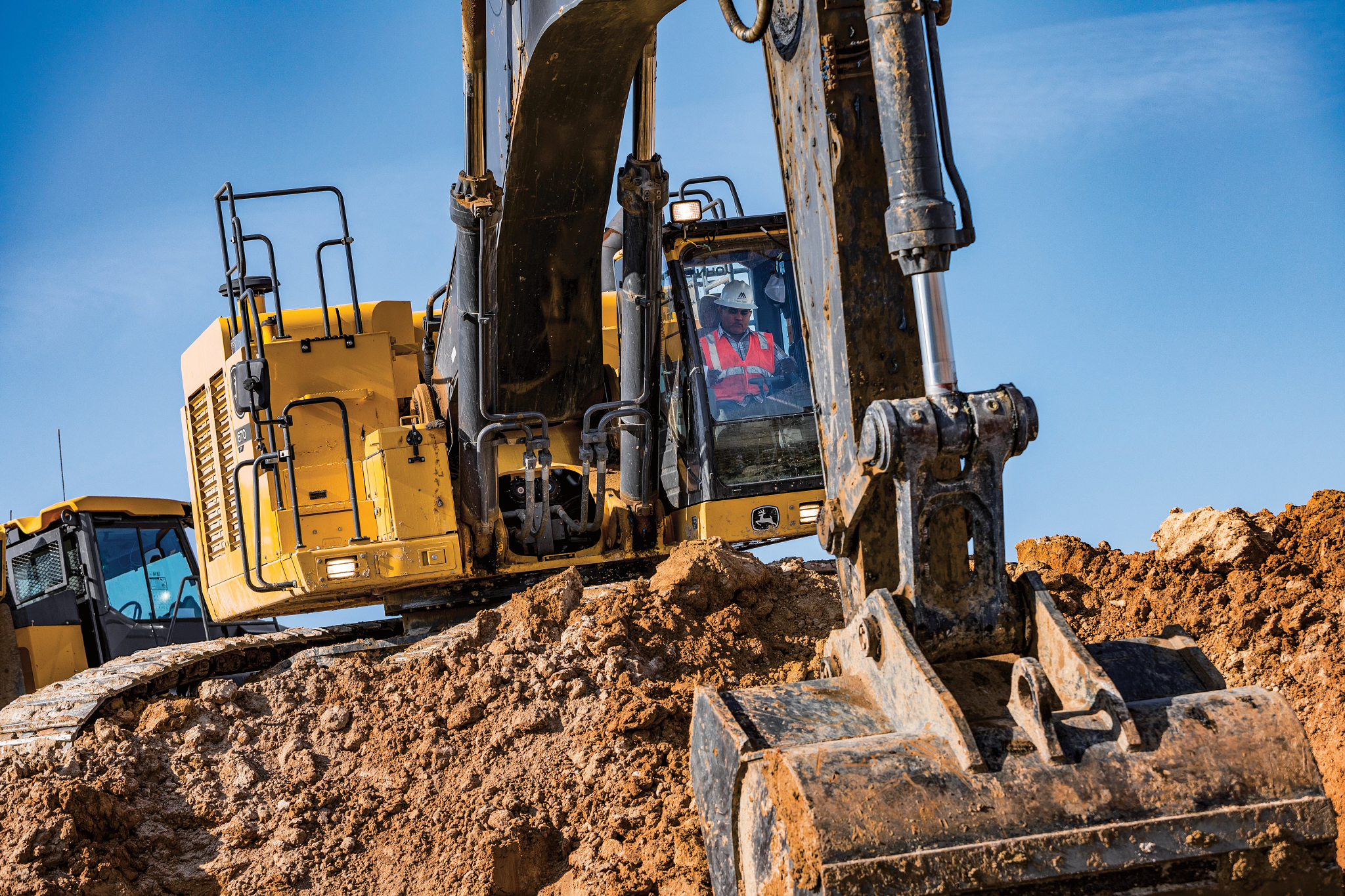

Improve Operator Confidence With Visibility & Comfort
Standard camera systems with LED surround lighting provide enhanced 270° visibility, while a spacious cab and intuitive controls help operators stay productive and comfortable through long shifts.
Specifications
Powertrain
| Powertrain type | 2-speed propel with AutoShift |
| Maximum travel speed low/slow (mph) | 2.2 mph |
| Maximum travel speed high/fast (mph) | 3.2 mph |
| Drawbar pull (kg) | 46115 kg |
| Drawbar pull (lb) | 101666 lb. |
Hydraulics
| Hydraulics type | Open center, load sensing; in-cab mode selectors, illuminated: power modes (3), travel modes (2), and work modes (2) |
| Main pump type | Two variable-displacement pumps |
| Number of pumps | 2 |
| Main pump maximum rated flow per pump (gpm) | 129 gpm |
| Pump 2 maximum rated flow per pump (gpm) | 129 gpm |
| Pilot pump number of gears | 1 |
| Pilot pump maximum rated flow (gpm) | 7.9 gpm |
| Pilot pump pressure setting (psi) | 566 psi |
| Implement circuits system operating pressure (psi) | 4627 psi |
| Travel circuits system operating pressure (psi) | 4975 psi |
| Swing circuits system operating pressure (psi) | 4264 psi |
| Power boost system operating pressure (psi) | 4975 psi |
| Controls type | Pilot levers, short stroke, low-effort hydraulic pilot controls with shutoff lever |
Undercarriage
| Number of carrier rollers per side | 3 |
| Number of track rollers per side | 8 |
| Number of shoes per side | 47 |
| Track adjustment type | Hydraulic |
| Track guides | Front and center |
| Track chain type | Sealed and lubricated |
Engine
| Manufacturer | Isuzu |
| Model | 6WG1-FT4 |
| Non-road emission standards | EPA Final Tier 4/EU Stage IV |
| Net power (rpm) | 1800 rpm |
| Net power at net power rpm (ISO 9249) (hp) | 463 hp |
| Cylinders | 6 |
| Displacement (cu in.) | 957 cu in. |
| Off-level capacity (%) | 70 % |
| Off-level capacity (degrees) | 35 degrees |
| Aspiration type | Turbocharged, air-to-air charge-air cooler |
Cylinders
| Cylinders type | Heat-treated, chrome-plated, polished cylinder rods; hardened steel (replaceable bushings) pivot pins |
| Number of boom cylinders | 2 |
| Boom cylinder bore (in.) | 7.5 in. |
| Boom cylinder rod diameter (in.) | 5.1 in. |
| Boom cylinder stroke (in.) | 71 in. |
| Number of arm cylinders | 1 |
| Arm cylinder bore (in.) | 7.9 in. |
| Arm cylinder rod diameter (in.) | 5.5 in. |
| Arm cylinder stroke (in.) | 85 in. |
| Number of bucket cylinders | 1 |
| Bucket cylinder bore (in.) | 7.1 in. |
| Bucket cylinder rod diameter (in.) | 5.1 in. |
| Bucket cylinder stroke (in.) | 61 in. |
Swing Mechanism
| Speed (rpm) | 9.1 rpm |
| Torque (lb-ft) | 151938 lb-ft |
Electrical
| Battery voltage (V) | 12 V |
| Number of batteries | 2 |
| Battery capacity (CCA) | 500 CCA |
| Alternator rating (amp) | 50 amp |
| Work lights | Five halogen (one mounted on frame, two mounted on boom, and two mounted on top of cab) |
Ground Pressure
| 36-in. double bar grouser shoes (psi) | 10.9 psi |
Refill Capacities
| Fuel tank (gal.) | 238 gal. |
| Cooling system (qt) | 80.4 qt |
| Engine oil with filter (qt) | 60.4 qt |
| Hydraulic tank (gal.) | 100.4 gal. |
| Hydraulic system (gal.) | 198.1 gal. |
| Swing gearbox (qt) | 11.1 qt |
| Pump drive gearbox (qt) | 6.6 qt |
| Travel gearbox (gal.) | 4.2 gal. |
| Diesel-exhaust fluid (DEF) (qt) | 100.4 qt |
Cooling
| Cooling system type | Two cool-on-demand hydraulic-driven, suction-type fans with remote-mounted drive |
Operating weights of optional components with standard counterweight and boom
| Undercarriage with 36-in. double-bar grouser shoes (lb) | 62508 lb. |
| 1-piece boom, with arm cylinder (lb) | 14462 lb. |
| 1-piece boom, with arm cylinder and mass-excavating arm (lb) | 13514 lb. |
| 11-ft, 10-in. arm with bucket and linkage (lb) | 8025 lb. |
| 13-ft, 9-in. arm with bucket and linkage (lb) | 8466 lb. |
| 9-ft, 6-in. arm with bucket and linkage and mass-excavating arm (lb) | 8190 lb. |
| Boom-lift cylinders (2), total weight (lb) | 2502 lb. |
Operating weights of excavator with standard counterweight and boom
| Conditions for measuring operating weights | With full fuel tank; 79-kg (175 lb) operator; 3.09-m3 (4.04 cu yd), 1370-mm (54 in.), 3126-kg (6,892 lb) bucket; 4.2-m (13 ft 9 in.) arm; 9800-kg (21,605 lb) counterweight; counterweight-removal device; and 900-mm (36 in.) double-bar grouser shoes |
| With 36-in. double-bar grouser shoes (lb) | 154103 lb. |
