John Deere 60 P-Tier
Double tap to zoom

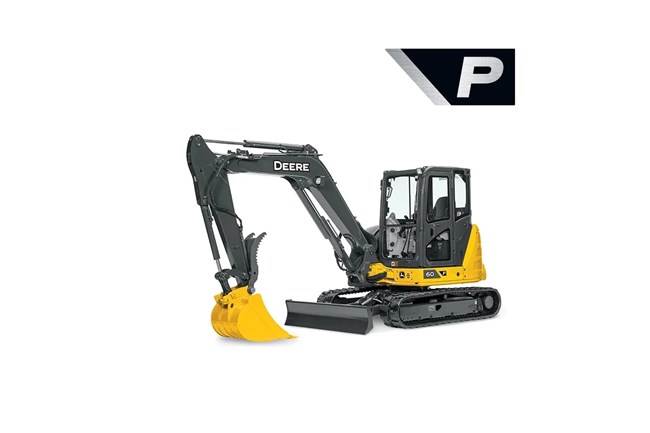

60 P-Tier
Excavators
Overview:
The John Deere 60 P‑Tier Compact Excavator delivers powerful digging performance, smooth hydraulic control, and jobsite versatility, giving crews the capability to handle bigger tasks while maintaining the flexibility of a compact machine
- Net Power: 39.6 kW (53 hp)
- Max Digging Depth: 3.77 m (12 ft. 4 in.)
- Operating Weight: 6,180 kg (13,620 lb.)
- Max Reach: 20 ft. 5 in. (6.23 m)
Get A Quote
Fields with asterisks* are required. Please email our helpful staff with any questions or comments using the contact form.
Loan Calculator
Use the Loan Calculator to help you determine the financing and payment options that are best for you.
**The accuracy of this calculator and its applicability to your circumstances is not guaranteed. You should obtain personal advice from qualified professionals. This information is provided for illustrative purposes only and does not constitute an application. This notice does not guarantee loan approval, nor is it an offer or commitment to make a loan to you on the above terms.
Send To A Friend
Fields with asterisks* are required. Your friend will receive an email that contains a reference to this page. Please send this email only to people you know who would be interested in this information.
Share This Product:
Features
Handle Bigger Jobs With Compact Power
With 53 horsepower and increased digging depth, the 60 P‑Tier provides the strength needed for more demanding trenching, loading, and utility work—bridging the gap between compact and mid‑size capability.
Maximize Productivity with Precision Hydraulics
A robust hydraulic system delivers smooth, responsive control for accurate digging and grading, helping operators work efficiently across a wide range of applications.

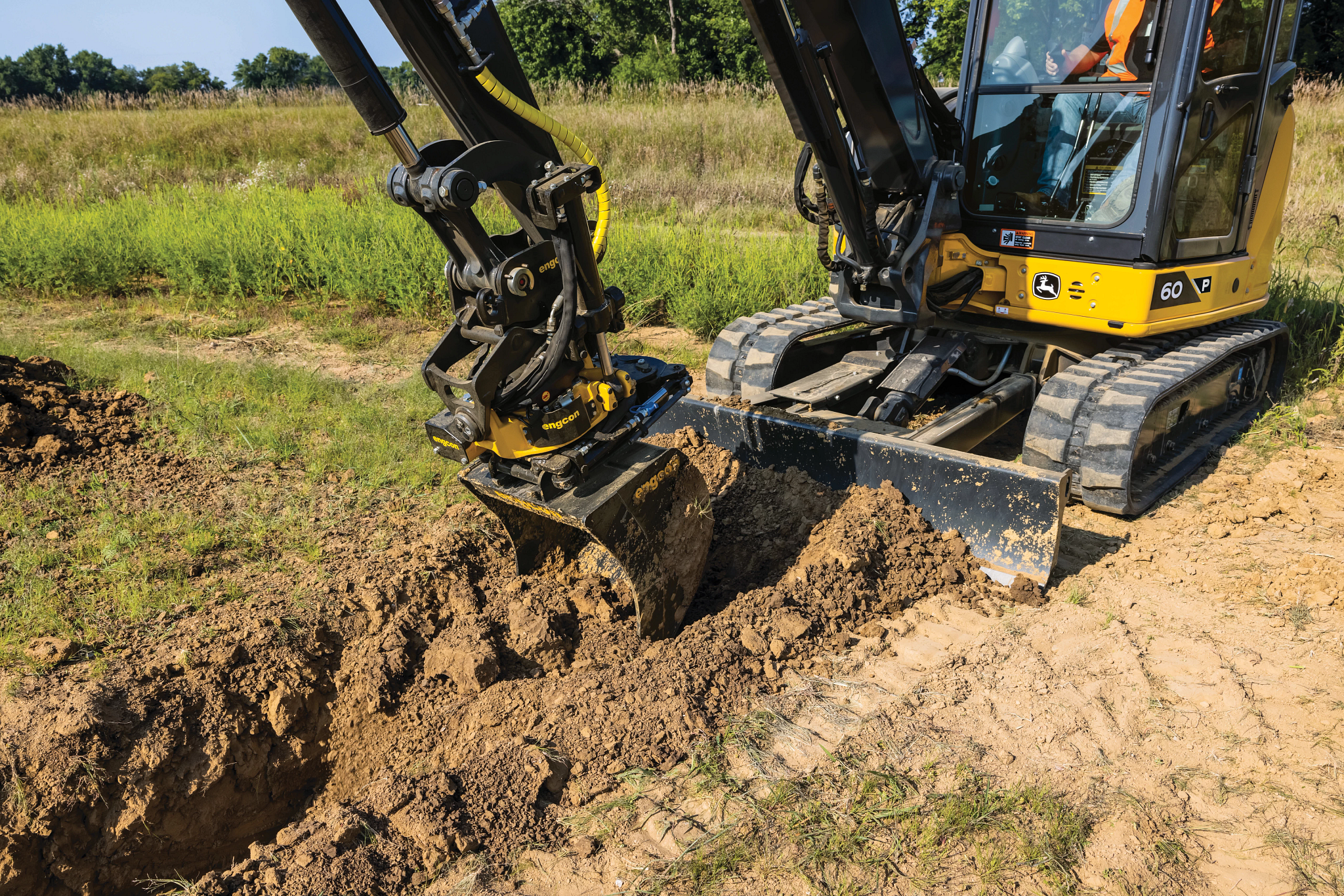

Stay Versatile With Jobsite‑Ready Attachments
Standard auxiliary hydraulics and quick‑coupler capability enable fast attachment changes, allowing crews to move seamlessly between tasks and get more done with one machine.
Specifications
Engine
| Manufacturer | Yanmar |
| Displacement (cu in.) | 203 cu in. |
| Displacement (L) | 3.32 L |
| Net power (rpm) | 2000 rpm |
| Net power at net power rpm (ISO 9249) (hp) | 53 hp |
| Net power at net power rpm (ISO 9249) (kW) | 39.6 kW |
Operating dimensions with standard arm
| Maximum digging reach (ft, in.) | 20, 5 ft, in. |
| Maximum digging reach (m) | 6.23 m |
| Maximum digging depth (ft, in.) | 12, 4 ft, in. |
| Maximum digging depth (m) | 3.77 m |
| Maximum dumping height (ft, in.) | 13, 8 ft, in. |
| Maximum dumping height (m) | 4.17 m |
| Transport height (ft, in.) | 8, 4 ft, in. |
| Transport height (m) | 2.54 m |
| Transport length (ft, in.) | 18, 11 ft, in. |
| Transport length (m) | 5.76 m |
Powertrain
| Maximum travel speed high/fast (mph) | 3 mph |
| Maximum travel speed high/fast (km/h) | 4.8 km/h |
| Swing speed (rpm) | 9.5 rpm |
Refill Capacities
| Fuel tank (gal.) | 31.7 gal. |
| Fuel tank (L) | 120 L |
| Hydraulic tank (gal.) | 21.1 gal. |
| Hydraulic tank (L) | 80 L |
Hydraulics
| Main pump maximum rated flow (gpm) | 38 gpm |
| Main pump maximum rated flow (L/min) | 144 L/min |
Undercarriage
| Standard track width (in.) | 16 in. |
| Standard track width (mm) | 400 mm |
Operating weight with standard arm
| Operating weight (lb) | 13620 lb. |
| Operating weight (kg) | 6180 kg |
