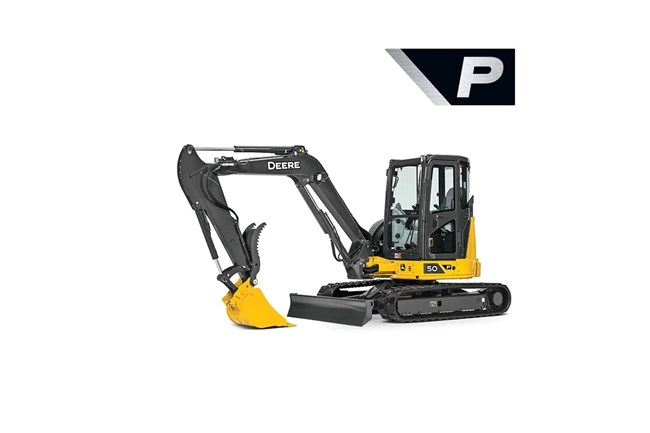

John Deere 50 P-Tier

New Products / John Deere / John Deere Products / Construction Equipment / Excavators / 50 P-Tier

Double tap to zoom



Features

Take on Bigger Compact Jobs with More Power

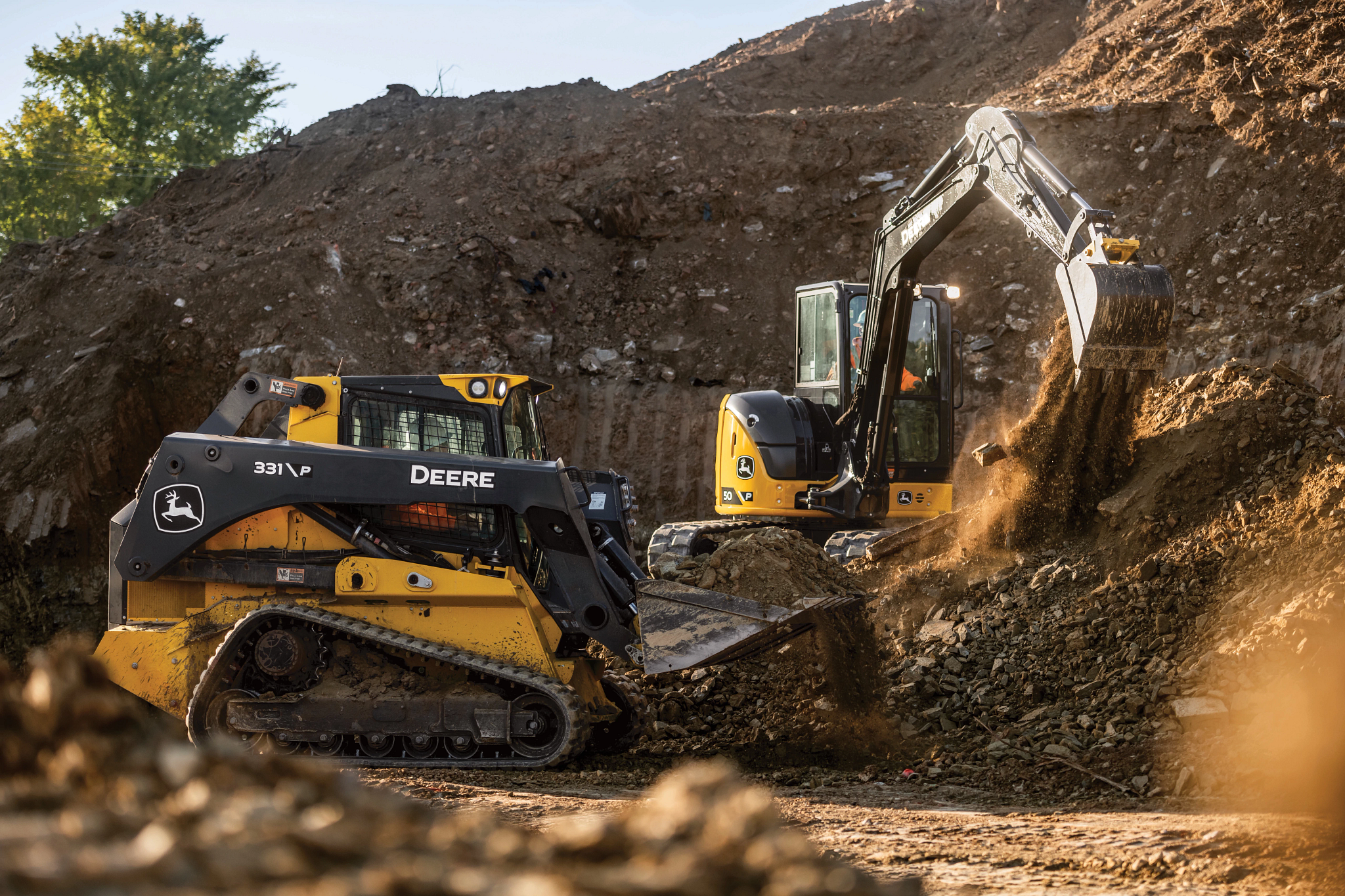

Tracked skid steer loader and compact excavator working together on a dirt hillside, with the excavator dumping soil and rocks into the loader’s bucket at a construction site

With 35.9 hp and increased digging capability, the 50 P‑Tier provides the extra strength needed for tougher trenching, material handling, and site prep while maintaining compact agility.

Work Efficiently in Tight and Urban Job Sites

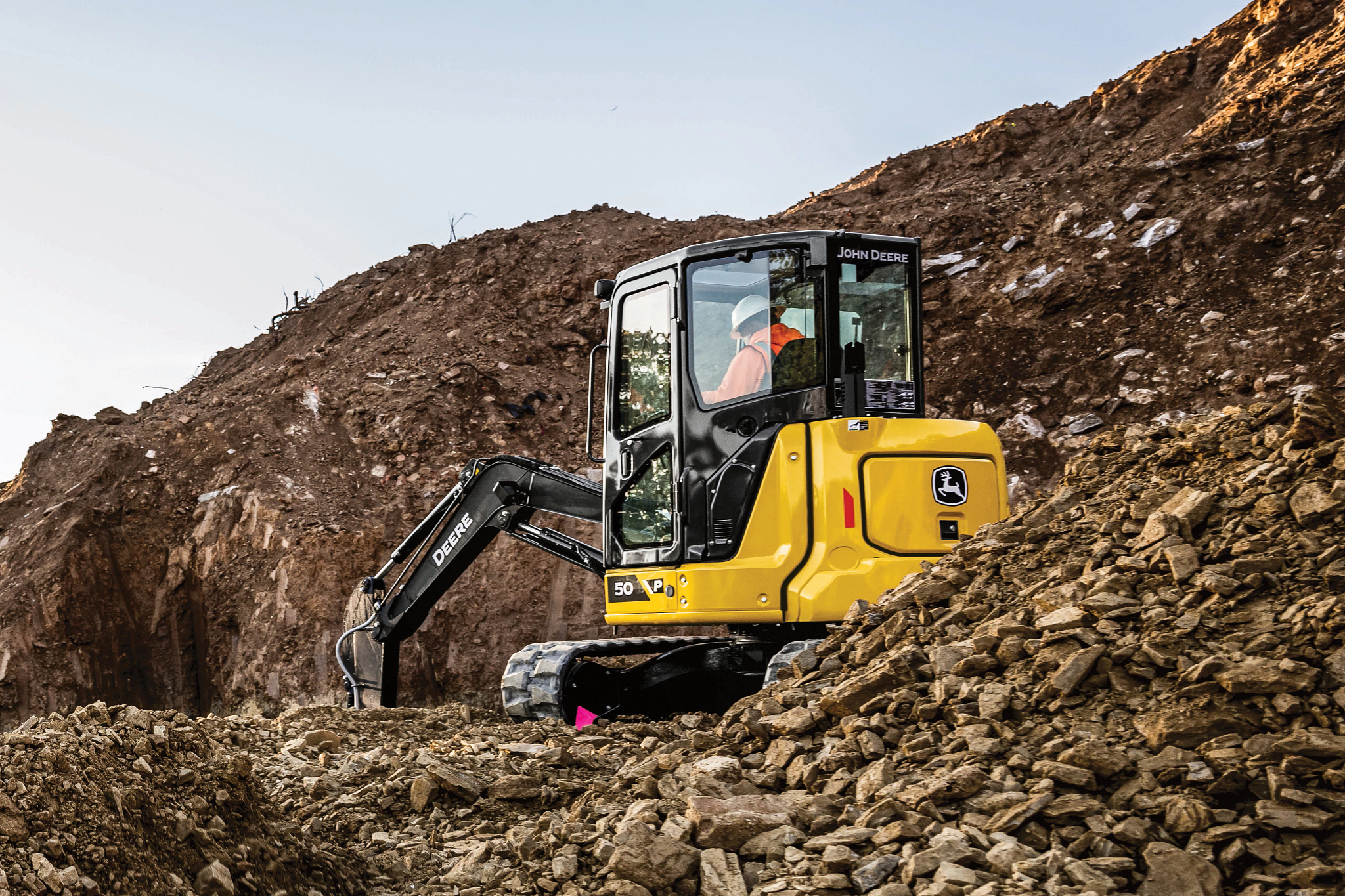

Compact excavator operating on a rocky slope at a construction site, with the machine’s arm digging into the dirt and a large mound of earth rising behind it

A zero‑tail‑swing design allows operators to work close to structures, traffic, and obstacles with confidence—making it ideal for residential, roadside, and confined utility applications.

Maximize Versatility with Quick Attachment Changes

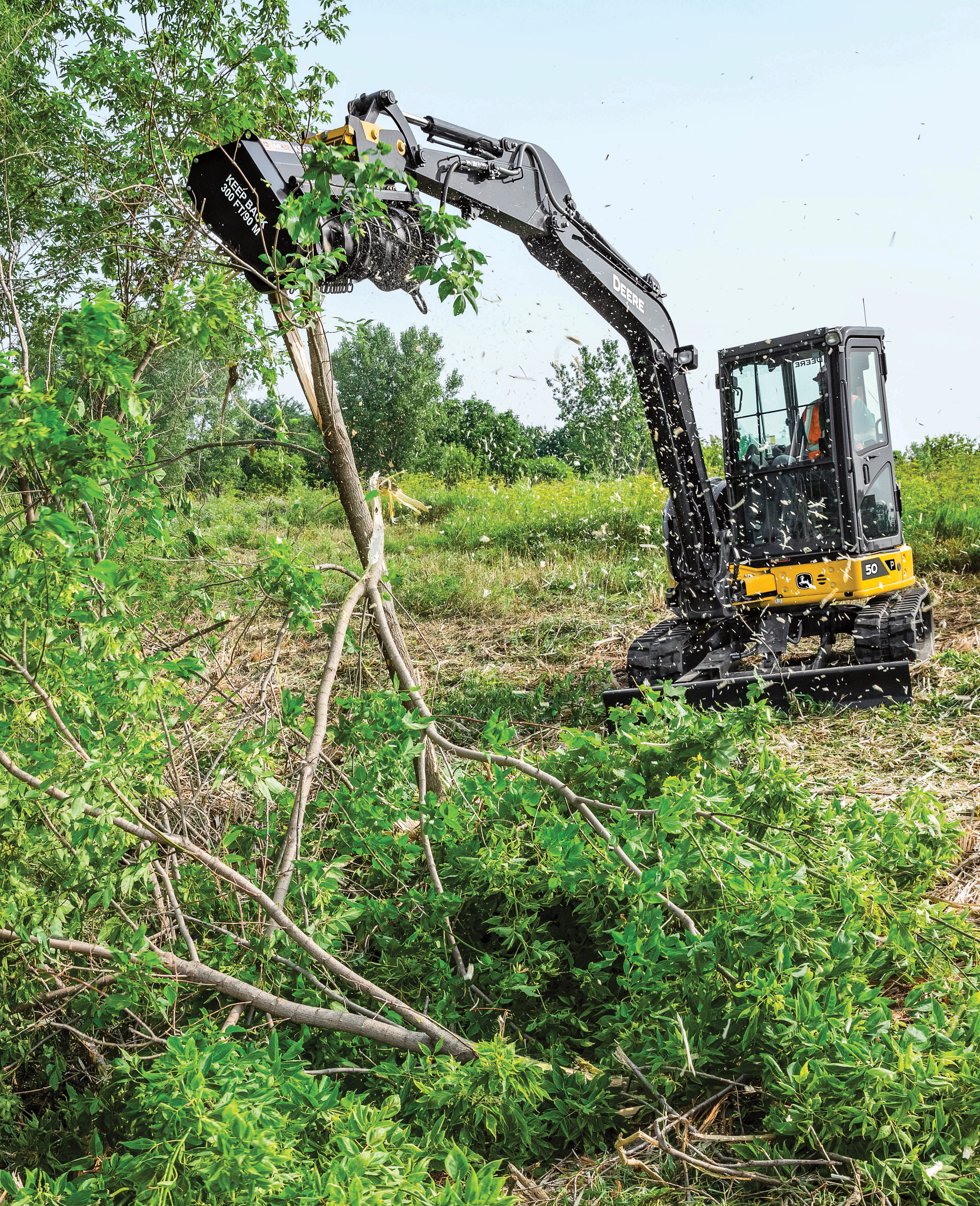

Compact excavator using a mulching head to cut down and clear small trees and brush in a grassy field, with debris falling and dense greenery in the foreground

Standard auxiliary hydraulics and quick‑coupler capability enable fast switching between buckets, augers, and hammers, helping crews stay productive and adapt quickly as jobsite needs change.

Specifications

Engine

ManufacturerYanmar
Displacement (cu in.)134 cu in.
Displacement (L)2.19 L
Net power (rpm)2400 rpm
Net power at net power rpm (ISO 9249) (hp)35.9 hp
Net power at net power rpm (ISO 9249) (kW)26.8 kW

Operating dimensions with standard arm

Maximum digging reach (ft, in.)19, 7 ft, in.
Maximum digging reach (m)5.96 m
Maximum digging depth (ft, in.)11, 7 ft, in.
Maximum digging depth (m)3.53 m
Maximum dumping height (ft, in.)13, 4 ft, in.
Maximum dumping height (m)4.07 m
Transport height (ft, in.)8, 4 ft, in.
Transport height (m)2.53 m
Transport length (ft, in.)17, 11 ft, in.
Transport length (m)5.47 m

Powertrain

Maximum travel speed high/fast (mph)2.6 mph
Maximum travel speed high/fast (km/h)4.2 km/h
Swing speed (rpm)9 rpm

Refill Capacities

Fuel tank (gal.)18.5 gal.
Fuel tank (L)70 L
Hydraulic tank (gal.)14.8 gal.
Hydraulic tank (L)56 L

Hydraulics

Main pump maximum rated flow (gpm)31.7 gpm
Main pump maximum rated flow (L/min)120 L/min

Undercarriage

Standard track width (in.)16 in.
Standard track width (mm)400 mm

Operating weight with standard arm

Operating weight (lb)10847 lb.
Operating weight (kg)4920 kg
