Features

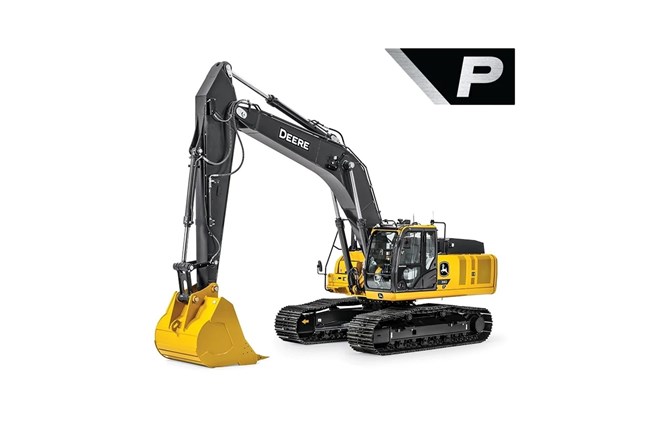

Move More Material with High‑Production Power

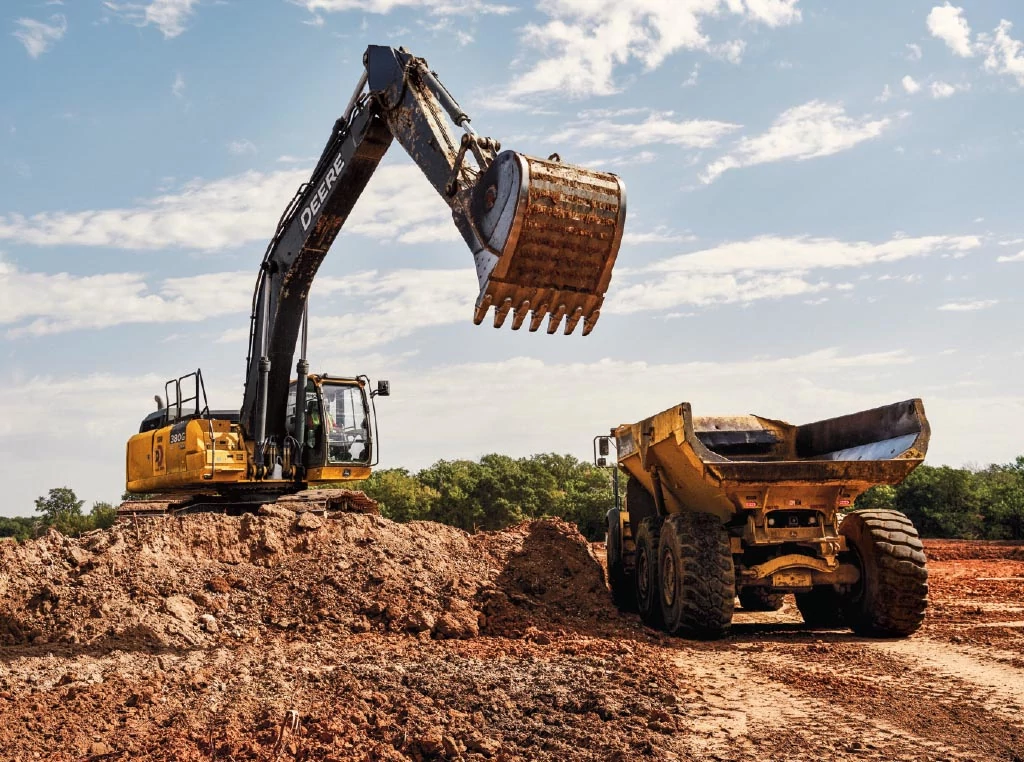

With 271 net horsepower and extended digging reach, the 380 P‑Tier is engineered for large‑scale excavation, truck loading, and site development—delivering the strength and cycle times needed to keep production moving.
Hit Grade Faster With SmartGrade™ Technology
Available SmartGrade™ technology helps operators achieve accurate results with fewer grade checks, reducing rework and improving efficiency. Built‑in grade guidance supports operators of all skill levels and helps speed up progression to final grade.
Work Smarter with Efficiency and Visibility Built In

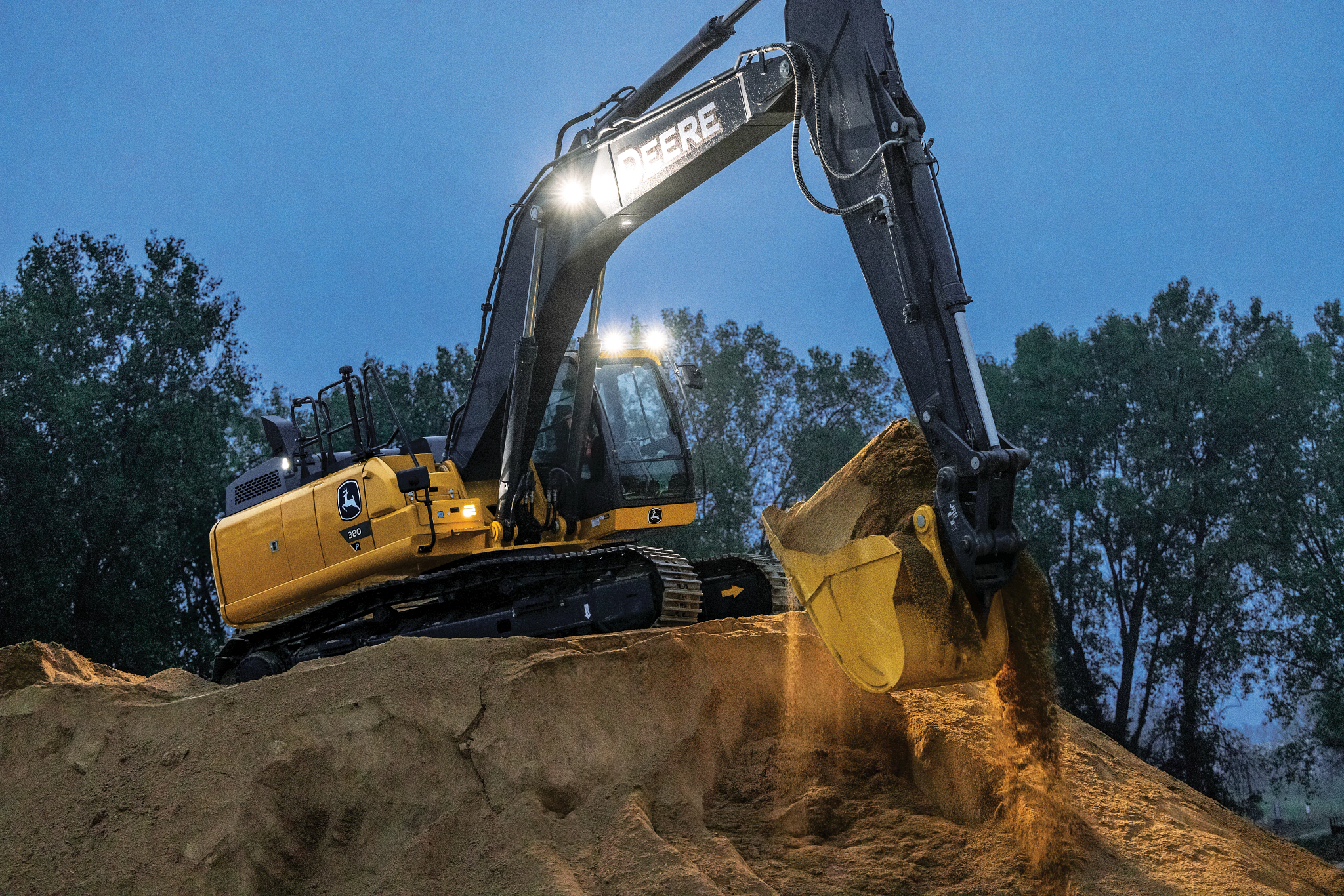

Optional camera systems with LED surround lighting enhance visibility around the machine, while fuel‑saving features like on‑demand cooling fans help reduce operating costs, keeping jobsites safer, more productive, and more efficient day after day.
Specifications
Powertrain
| Powertrain type | 2-speed propel with automatic shift |
| Maximum travel speed low/slow (mph) | 2 mph |
| Maximum travel speed low/slow (km/h) | 3.2 km/h |
| Maximum travel speed high/fast (mph) | 3.1 mph |
| Maximum travel speed high/fast (km/h) | 5 km/h |
| Drawbar pull (kg) | 30350 kg |
| Drawbar pull (lb) | 66900 lb. |
Refill Capacities
| Fuel tank (gal.) | 166 gal. |
| Fuel tank (L) | 628 L |
| Cooling system (qt) | 42 qt |
| Cooling system (L) | 39.7 L |
| Engine oil with filter (qt) | 28.8 qt |
| Engine oil with filter (L) | 27 L |
| Hydraulic tank (gal.) | 51 gal. |
| Hydraulic tank (L) | 193 L |
| Hydraulic system (gal.) | 77 gal. |
| Hydraulic system (L) | 290 L |
| Swing drive (qt) | 12.5 qt |
| Swing drive (L) | 11.8 L |
| Propel gearbox (qt) | 9 qt |
| Propel gearbox (L) | 8.5 L |
| Pump drive gearbox (qt) | 1.2 qt |
| Pump drive gearbox (L) | 1.1 L |
| Diesel-exhaust fluid (DEF) (qt) | 37.2 qt |
| Diesel-exhaust fluid (DEF) (L) | 35 L |
Undercarriage
| Number of carrier rollers per side | 2 |
| Number of track rollers per side | 8 |
| Number of shoes per side | 48 |
| Track adjustment type | Hydraulic |
| Track guides | 3 per side |
| Track chain type | Sealed and lubricated |
Engine
| Manufacturer | John Deere |
| Model | PowerTech™ PSS 9.0 L |
| Non-road emission standards | EPA Final Tier 4/EU Stage IV |
| Net power (rpm) | 1900 rpm |
| Net power at net power rpm (ISO 9249) (hp) | 271 hp |
| Net power at net power rpm (ISO 9249) (kW) | 202 kW |
| Cylinders | 6 |
| Displacement (cu in.) | 549 cu in. |
| Displacement (L) | 9 L |
| Off-level capacity (%) | 70 % |
| Off-level capacity (degrees) | 35 degrees |
| Aspiration type | Series turbocharged, air-to-air charge-air cooler |
Hydraulics
| Hydraulics type | Open center, pilot controlled |
| Main pump type | 2 variable-displacement pumps |
| Number of pumps | 2 |
| Main pump maximum rated flow per pump (gpm) | 76.1 gpm |
| Main pump maximum rated flow per pump (L/min) | 288 L/min |
| Pilot pump number of gears | 1 |
| Pilot pump maximum rated flow (gpm) | 8 gpm |
| Pilot pump maximum rated flow (L/min) | 30.2 L/min |
| Pilot pump pressure setting (psi) | 566 psi |
| Pilot pump pressure setting (kPa) | 3900 kPa |
| Implement circuits system operating pressure (psi) | 4975 psi |
| Implement circuits system operating pressure (kPa) | 34300 kPa |
| Travel circuits system operating pressure (psi) | 5149 psi |
| Travel circuits system operating pressure (kPa) | 35500 kPa |
| Swing circuits system operating pressure (psi) | 4830 psi |
| Swing circuits system operating pressure (kPa) | 33300 kPa |
| Power boost system operating pressure (psi) | 5511 psi |
| Power boost system operating pressure (kPa) | 38000 kPa |
| Controls type | Pilot levers, short stroke, low-effort hydraulic pilot controls with shutoff lever |
Cylinders
| Number of boom cylinders | 2 |
| Boom cylinder bore (in.) | 5.7 in. |
| Boom cylinder bore (mm) | 145 mm |
| Boom cylinder rod diameter (in.) | 3.9 in. |
| Boom cylinder rod diameter (mm) | 100 mm |
| Boom cylinder stroke (in.) | 59.8 in. |
| Boom cylinder stroke (mm) | 1520 mm |
| Number of arm cylinders | 1 |
| Arm cylinder bore (in.) | 6.7 in. |
| Arm cylinder bore (mm) | 170 mm |
| Arm cylinder rod diameter (in.) | 4.5 in. |
| Arm cylinder rod diameter (mm) | 115 mm |
| Arm cylinder stroke (in.) | 68.5 in. |
| Arm cylinder stroke (mm) | 1740 mm |
| Number of bucket cylinders | 1 |
| Bucket cylinder bore (in.) | 5.5 in. |
| Bucket cylinder bore (mm) | 140 mm |
| Bucket cylinder rod diameter (in.) | 3.7 in. |
| Bucket cylinder rod diameter (mm) | 95 mm |
| Bucket cylinder stroke (in.) | 49.2 in. |
| Bucket cylinder stroke (mm) | 1250 mm |
Swing Mechanism
| Speed (rpm) | 10.7 rpm |
| Torque (lb-ft) | 88500 lb-ft |
| Torque (Nm) | 120000 Nm |
Electrical
| Battery voltage (V) | 12 V |
| Number of batteries | 2 |
| Battery capacity (CCA) | 1400 CCA |
| Alternator rating (amp) | 300 amp |
| Work lights | 2 halogen (1 mounted on boom, 1 on frame) |
Cooling
| Cooling system type | Electric, on-demand cooling fans standard; reversing electric variable-speed fan drive with selectable intervals and manual override available as part of optional debris package |
