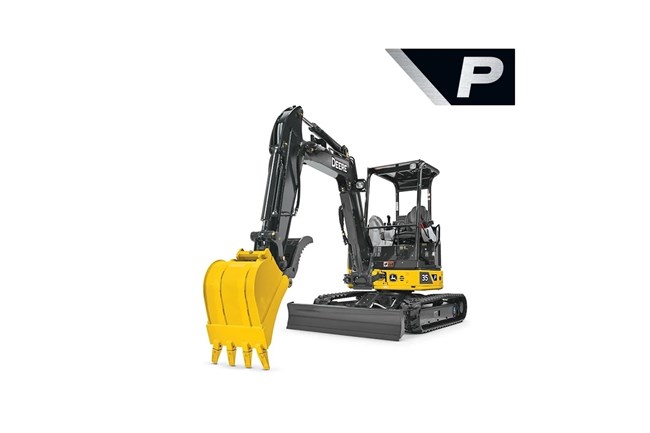

John Deere 35 P-Tier
Double tap to zoom
35 P-Tier
Excavators
Overview:
The John Deere 35 P‑Tier Compact Excavator delivers reliable digging power, smooth control, and zero‑tail‑swing maneuverability—making it the ideal solution for tight‑space work where precision and versatility are critical.
- Net Power: 17.4 kW (23.3 hp)
- Max. Digging Depth: 3.06 m (10 ft. 0 in.)
- Operating Weight: 3,690 kg (8,135 lb.)
- Max Reach: 5.21 m (17 ft. 1 in.)
Get A Quote
Fields with asterisks* are required. Please email our helpful staff with any questions or comments using the contact form.
Loan Calculator
Use the Loan Calculator to help you determine the financing and payment options that are best for you.
**The accuracy of this calculator and its applicability to your circumstances is not guaranteed. You should obtain personal advice from qualified professionals. This information is provided for illustrative purposes only and does not constitute an application. This notice does not guarantee loan approval, nor is it an offer or commitment to make a loan to you on the above terms.
Send To A Friend
Fields with asterisks* are required. Your friend will receive an email that contains a reference to this page. Please send this email only to people you know who would be interested in this information.
Share This Product:
Features
Work Confidently in Tight Spaces
A zero‑tail‑swing design allows operators to work close to structures, traffic, and obstacles with reduced risk of contact—perfect for urban jobsites, residential work, and confined utility projects.
Maximize Productivity with Versatile Attachments
Standard auxiliary hydraulics and quick‑coupler capability enable fast attachment changes, helping crews move seamlessly between digging, trenching, grading, and material handling without downtime.
Smooth, Efficient Performance for Everyday Jobs
Compact size paired with precise hydraulic control and fuel‑saving features like auto‑idle helps operators work efficiently while maintaining control and reducing operating costs across a wide range of applications.
Specifications
Engine
| Manufacturer | Yanmar |
| Displacement (cu in.) | 100.2 cu in. |
| Displacement (L) | 1.64 L |
| Net power (rpm) | 2400 rpm |
| Net power at net power rpm (ISO 9249) (hp) | 23.3 hp |
| Net power at net power rpm (ISO 9249) (kW) | 17.4 kW |
Operating dimensions with standard arm
| Maximum digging reach (ft, in.) | 17, 1 ft, in. |
| Maximum digging reach (m) | 5.21 m |
| Maximum digging depth (ft, in.) | 10 ft, in. |
| Maximum digging depth (m) | 3.06 m |
| Maximum dumping height (ft, in.) | 10, 10 ft, in. |
| Maximum dumping height (m) | 3.31 m |
| Transport height (ft, in.) | 8, 2 ft, in. |
| Transport height (m) | 2.48 m |
| Transport length (ft, in.) | 15, 3 ft, in. |
| Transport length (m) | 4.64 m |
Powertrain
| Maximum travel speed high/fast (mph) | 2.7 mph |
| Maximum travel speed high/fast (km/h) | 4.3 km/h |
| Swing speed (rpm) | 9 rpm |
Refill Capacities
| Fuel tank (gal.) | 11.1 gal. |
| Fuel tank (L) | 42 L |
| Hydraulic tank (gal.) | 8.5 gal. |
| Hydraulic tank (L) | 32 L |
Hydraulics
| Main pump maximum rated flow (gpm) | 20.2 gpm |
| Main pump maximum rated flow (L/min) | 76.8 L/min |
Undercarriage
| Standard track width (in.) | 12 in. |
| Standard track width (mm) | 300 mm |
Operating weight with standard arm
| Operating weight (lb) | 8135 lb. |
| Operating weight (kg) | 3690 kg |
