Features

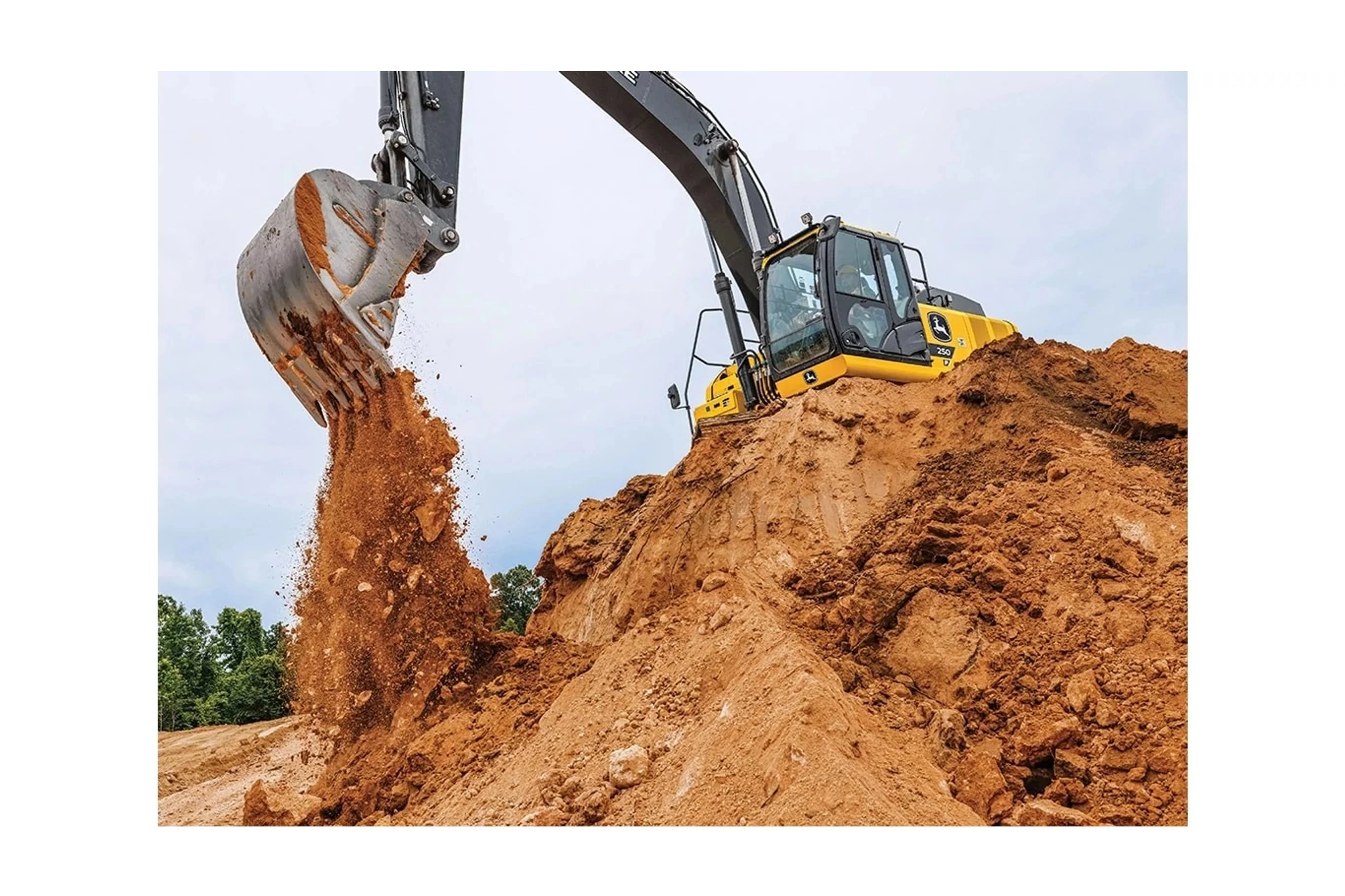

Enhanced Front‑End Durability for Longer Service Life
The 250 P‑Tier builds on proven G‑Series architecture with improved front joint durability, including upgraded bushings, hardened pins, and enhanced sealing. These updates help extend component life, reduce wear in abrasive conditions, and maximize uptime—while serviceable bushings simplify maintenance and lower long‑term ownership costs.
Faster Cycle Times With High‑Efficiency Hydraulics
Advanced hydraulics deliver strong digging force and smooth, responsive multifunctioning to support fast cycle times and consistent productivity. Power boost is available at the push of a button when extra breakout force is needed, helping operators work efficiently through tough material without sacrificing control.
Improved Fuel Efficiency and Jobsite Confidence
Design updates—including electric on‑demand cooling fans and optimized hydraulic routing—help improve fuel economy by up to 7%, reducing daily operating costs. Optional camera systems with LED surround lighting provide enhanced 270‑degree visibility, helping operators work confidently in confined spaces and low‑light conditions.
Specifications
Powertrain
| Powertrain type | 2-speed propel with automatic shift |
| Maximum travel speed low/slow (mph) | 2.1 mph |
| Maximum travel speed low/slow (km/h) | 3.38 km/h |
| Maximum travel speed high/fast (mph) | 3.4 mph |
| Maximum travel speed high/fast (km/h) | 5.5 km/h |
| Drawbar pull (kg) | 21900 kg |
| Drawbar pull (lb) | 48300 lb. |
Hydraulics
| Hydraulics type | Open center, load sensing |
| Main pump type | 2 variable-displacement pumps |
| Number of pumps | 2 |
| Main pump maximum rated flow per pump (gpm) | 59.2 gpm |
| Main pump maximum rated flow per pump (L/min) | 224 L/min |
| Pump 2 maximum rated flow per pump (gpm) | 59.2 gpm |
| Pump 2 maximum rated flow per pump (L/min) | 224 L/min |
| Pilot pump number of gears | 1 |
| Pilot pump maximum rated flow (gpm) | 9.3 gpm |
| Pilot pump maximum rated flow (L/min) | 35.2 L/min |
| Pilot pump pressure setting (psi) | 566 psi |
| Pilot pump pressure setting (kPa) | 3902.4 kPa |
| Implement circuits system operating pressure (psi) | 4975 psi |
| Implement circuits system operating pressure (kPa) | 34301.4 kPa |
| Travel circuits system operating pressure (psi) | 5076 psi |
| Travel circuits system operating pressure (kPa) | 34998 kPa |
| Swing circuits system operating pressure (psi) | 4830 psi |
| Swing circuits system operating pressure (kPa) | 33302 kPa |
| Power boost system operating pressure (psi) | 5511 psi |
| Power boost system operating pressure (kPa) | 37997 kPa |
| Controls type | Pilot levers, short stroke, low-effort hydraulic pilot controls with shutoff lever |
Undercarriage
| Number of carrier rollers per side | 2 |
| Number of track rollers per side | 9 |
| Number of shoes per side | 51 |
| Track adjustment type | Hydraulic |
| Track guides | 2 per side |
| Track chain type | Sealed and lubricated |
Electrical
| Battery voltage (V) | 12 V |
| Number of batteries | 2 |
| Battery capacity (CCA) | 950 CCA |
| Alternator rating (amp) | 300 amp |
| Work lights | 2 LED (1 on left side of boom, 1 on frame) |
Refill Capacities
| Fuel tank (gal.) | 132 gal. |
| Fuel tank (L) | 499.7 L |
| Cooling system (qt) | 24.3 qt |
| Cooling system (L) | 23 L |
| Engine oil with filter (qt) | 20.6 qt |
| Engine oil with filter (L) | 19.5 L |
| Hydraulic tank (gal.) | 39 gal. |
| Hydraulic tank (L) | 147.6 L |
| Hydraulic system (gal.) | 63 gal. |
| Hydraulic system (L) | 238.5 L |
| Swing drive (qt) | 7.5 qt |
| Swing drive (L) | 7.1 L |
| Propel gearbox (qt) | 6.5 qt |
| Propel gearbox (L) | 6.2 L |
| Pump drive gearbox (qt) | 1.2 qt |
| Pump drive gearbox (L) | 1.1 L |
| Diesel-exhaust fluid (DEF) (qt) | 37 qt |
| Diesel-exhaust fluid (DEF) (L) | 35 L |
Cylinders
| Number of boom cylinders | 2 |
| Boom cylinder bore (in.) | 4.9 in. |
| Boom cylinder bore (mm) | 124.5 mm |
| Boom cylinder rod diameter (in.) | 3.5 in. |
| Boom cylinder rod diameter (mm) | 88.9 mm |
| Boom cylinder stroke (in.) | 54.7 in. |
| Boom cylinder stroke (mm) | 1389.4 mm |
| Number of arm cylinders | 1 |
| Arm cylinder bore (in.) | 5.5 in. |
| Arm cylinder bore (mm) | 139.7 mm |
| Arm cylinder rod diameter (in.) | 3.9 in. |
| Arm cylinder rod diameter (mm) | 99.1 mm |
| Arm cylinder stroke (in.) | 63.4 in. |
| Arm cylinder stroke (mm) | 1610.36 mm |
| Number of bucket cylinders | 1 |
| Bucket cylinder bore (in.) | 5.1 in. |
| Bucket cylinder bore (mm) | 129.5 mm |
| Bucket cylinder rod diameter (in.) | 3.5 in. |
| Bucket cylinder rod diameter (mm) | 88.9 mm |
| Bucket cylinder stroke (in.) | 42.3 in. |
| Bucket cylinder stroke (mm) | 1074.4 mm |
Cooling
| Cooling system type | Reversing electric variable-speed fan drive |
Operating weights of optional components with standard counterweight and boom
| 28-in. triple semi-grouser shoes (lb) | 18667 lb. |
| 700-mm triple semi-grouser shoes (kg) | 8467.2 kg |
| 32-in. triple semi-grouser shoes (lb) | 19294 lb. |
| 800-mm triple semi-grouser shoes (kg) | 8751.6 kg |
| 1-piece boom, with arm cylinder (lb) | 4872 lb. |
| 1-piece boom, with arm cylinder (kg) | 2210 kg |
| 9-ft, 9-in. arm with bucket and linkage (lb) | 2858 lb. |
| 2.96-m arm with bucket and linkage (kg) | 1296.4 kg |
| 11-ft, 10-in. arm with bucket and linkage (lb) | 3078 lb. |
| 3.61-m arm with bucket and linkage (kg) | 1396.2 kg |
| Boom-lift cylinders (2), total weight (lb) | 958 lb. |
| Boom-lift cylinders (2), total weight (kg) | 434.5 kg |
| 42-in. heavy-duty plate-lip bucket with 1.38-cu yd. capacity (lb) | 2197 lb. |
| 1065-mm heavy-duty plate-lip bucket with 1.06-m³ capacity (kg) | 996.5 kg |
| Counterweight (lb) | 11270 lb. |
| Counterweight (kg) | 5112 kg |
Engine
| Manufacturer | John Deere |
| Model | PowerTech™ PVS 6.8 L |
| Non-road emission standards | EPA Final Tier 4/EU Stage IV |
| Net power (rpm) | 2100 rpm |
| Net power at net power rpm (ISO 9249) (hp) | 188 hp |
| Net power at net power rpm (ISO 9249) (kW) | 140.2 kW |
| Cylinders | 6 |
| Displacement (cu in.) | 415 cu in. |
| Displacement (L) | 6.8 L |
| Off-level capacity (%) | 70 % |
| Off-level capacity (degrees) | 35 degrees |
| Aspiration type | Turbocharged, air-to-air charge-air cooler |
Ground Pressure
| 28-in. triple semi-grouser shoes without blade (psi) | 6.78 psi |
| 700-mm triple semi-grouser shoes without blade (kPa) | 46.7 kPa |
| 32-in. triple semi-grouser shoes without blade (psi) | 5.93 psi |
| 800-mm triple semi-grouser shoes without blade (kPa) | 40.9 kPa |
| 24-in. rubber crawler pad without blade (psi) | 4.06 psi |
| 600-mm rubber crawler pad without blade (kPa) | 28 kPa |
| 24-in. rubber crawler pad with blade (psi) | 5.37 psi |
| 600-mm rubber crawler pad with blade (kPa) | 37 kPa |
Operating weights of excavator with standard counterweight and boom
| Conditions for measuring operating weights | With full fuel tank; 79-kg (175 lb.) operator; 1.06-m3 (1.38 cu. yd.), 1219-mm (48 in.), 1107-kg (2,440 lb.) bucket; 3.61-m (11 ft. 10 in.) arm; 5112-kg (11,270 lb.) counterweight; and 800-mm (32 in.) triple semi-grouser shoes |
| With 32-in. triple semi-grouser shoes (lb) | 60600 lb. |
| With 800-mm triple semi-grouser shoes (kg) | 27487.7 kg |
Swing Mechanism
| Speed (rpm) | 13.5 rpm |
| Torque (lb-ft) | 57140 lb-ft |
| Torque (Nm) | 77471.6 Nm |
