Features
Work Confidently via Standard Cameras and Lighting
The integrated right rear and left camera system, along with powerful LED surround lighting, enhances the operator's 270-degree visibility around the machine, even in low light conditions, all displayed on the main monitor. Additionally, LED front work lights and rear camera remain standard equipment.
High-Performance Hydraulic System
A three-pump hydraulic system ensures fast cycle times and improved fuel efficiency. This setup allows for simultaneous operation of boom, arm, and swing functions, significantly boosting productivity and performance.

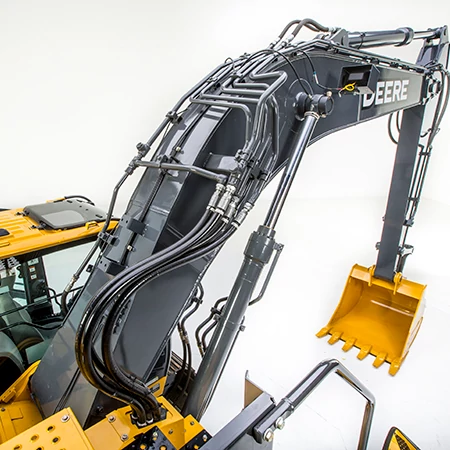

Standard Auxiliary Hydraulics
Factory-installed auxiliary hydraulic lines enhance your excavator's versatility by allowing it to run multiple attachments, while the standard auxiliary proportional control in the right pilot control lever lets you toggle between attachments and adjust flow and pressure directly from the monitor.
Specifications
Powertrain
| Powertrain type | 2-speed propel with automatic shift |
| Maximum travel speed low/slow (mph) | 2.2 mph |
| Maximum travel speed low/slow (km/h) | 3.5 km/h |
| Maximum travel speed high/fast (mph) | 3.4 mph |
| Maximum travel speed high/fast (km/h) | 5.5 km/h |
| Drawbar pull (kg) | 20702 kg |
| Drawbar pull (lb) | 45640 lb. |
Hydraulics
| Hydraulics type | Open center, pilot operated |
| Main pump type | 3 variable-displacement axial-piston pumps |
| Number of pumps | 3 |
| Main pump maximum rated flow per pump (gpm) | 56 gpm |
| Main pump maximum rated flow per pump (L/min) | 212 L/min |
| Pump 2 maximum rated flow per pump (gpm) | 56 gpm |
| Pump 2 maximum rated flow per pump (L/min) | 212 L/min |
| Pump 3 maximum rated flow per pump (gpm) | 50 gpm |
| Pump 3 maximum rated flow per pump (L/min) | 189.3 L/min |
| Pilot pump number of gears | 1 |
| Pilot pump maximum rated flow (gpm) | 7.9 gpm |
| Pilot pump maximum rated flow (L/min) | 29.9 L/min |
| Pilot pump pressure setting (psi) | 580 psi |
| Pilot pump pressure setting (kPa) | 3999 kPa |
| Implement circuits system operating pressure (psi) | 4970 psi |
| Implement circuits system operating pressure (kPa) | 34266.9 kPa |
| Travel circuits system operating pressure (psi) | 5150 psi |
| Travel circuits system operating pressure (kPa) | 35508 kPa |
| Swing circuits system operating pressure (psi) | 4680 psi |
| Swing circuits system operating pressure (kPa) | 32267.5 kPa |
| Power boost system operating pressure (psi) | 5510 psi |
| Power boost system operating pressure (kPa) | 37990 kPa |
| Controls type | Pilot levers, short stroke, low-effort hydraulic pilot controls with shutoff lever |
Undercarriage
| Number of carrier rollers per side | 2 |
| Number of track rollers per side | 8 |
| Number of shoes per side | 49 |
| Track adjustment type | Hydraulic |
| Track guides | Center |
| Track chain type | Sealed and lubricated |
Ground Pressure
| 28-in. triple semi-grouser shoes with standard counterweight and boom (psi) | 6.53 psi |
| 700-mm triple semi-grouser shoes with standard counterweight and boom (kPa) | 45.02 kPa |
| 32-in. triple semi-grouser shoes with standard counterweight and boom (psi) | 5.8 psi |
| 800-mm triple semi-grouser shoes with standard counterweight and boom (kPa) | 40 kPa |
Electrical
| Battery voltage (V) | 12 V |
| Number of batteries | 2 |
| Battery capacity (CCA) | 651 CCA |
| Alternator rating (amp) | 50 amp |
| Work lights | 2 LED (1 mounted on boom, 1 on frame) |
Cylinders
| Number of boom cylinders | 2 |
| Boom cylinder bore (in.) | 4.72 in. |
| Boom cylinder bore (mm) | 119.9 mm |
| Boom cylinder rod diameter (in.) | 3.35 in. |
| Boom cylinder rod diameter (mm) | 85.1 mm |
| Boom cylinder stroke (in.) | 52.36 in. |
| Boom cylinder stroke (mm) | 1329.9 mm |
| Boom cylinder fully retracted length (in.) | 72.83 in. |
| Number of arm cylinders | 1 |
| Arm cylinder bore (in.) | 5.31 in. |
| Arm cylinder bore (mm) | 134.87 mm |
| Arm cylinder rod diameter (in.) | 3.74 in. |
| Arm cylinder rod diameter (mm) | 95 mm |
| Arm cylinder stroke (in.) | 58.07 in. |
| Arm cylinder stroke (mm) | 1475 mm |
| Arm cylinder fully retracted length (in.) | 79.02 in. |
| Arm cylinder fully retracted length (mm) | 2007.11 mm |
| Number of bucket cylinders | 1 |
| Bucket cylinder bore (in.) | 4.53 in. |
| Bucket cylinder bore (mm) | 115.06 mm |
| Bucket cylinder rod diameter (in.) | 3.15 in. |
| Bucket cylinder rod diameter (mm) | 80 mm |
| Bucket cylinder stroke (in.) | 41.73 in. |
| Bucket cylinder stroke (mm) | 1060 mm |
| Bucket cylinder fully retracted length (in.) | 62.6 in. |
| Bucket cylinder fully retracted length (mm) | 1590 mm |
Refill Capacities
| Fuel tank (gal.) | 100 gal. |
| Fuel tank (L) | 378.5 L |
| Cooling system (qt) | 29.6 qt |
| Cooling system (L) | 28 L |
| Engine oil with filter (qt) | 24.3 qt |
| Engine oil with filter (L) | 23 L |
| Swing mechanism (qt) | 6.6 qt |
| Swing mechanism (L) | 6.2 L |
| Travel device (qt) | 7.2 qt |
| Travel device (L) | 6.8 L |
| Hydraulic tank (gal.) | 34.3 gal. |
| Hydraulic tank (L) | 129.8 L |
| Hydraulic system (gal.) | 63.4 gal. |
| Hydraulic system (L) | 240 L |
| Diesel-exhaust fluid (DEF) (qt) | 16.9 qt |
| Diesel-exhaust fluid (DEF) (L) | 16 L |
Cooling
| Cooling system type | Direct-drive suction-type fan |
Engine
| Manufacturer | Isuzu |
| Model | 4HK1 |
| Non-road emission standards | EPA Final Tier 4/EU Stage IV |
| Net power (rpm) | 2000 rpm |
| Net power at net power rpm (ISO 9249) (hp) | 159 hp |
| Net power at net power rpm (ISO 9249) (kW) | 118.6 kW |
| Cylinders | 4 |
| Displacement (cu in.) | 317 cu in. |
| Displacement (L) | 5.2 L |
| Off-level capacity (%) | 70 % |
| Off-level capacity (degrees) | 35 degrees |
| Aspiration type | Turbocharged and charge-air cooled |
Operating weights of excavator with standard counterweight and boom
| Conditions for measuring operating weights | With full fuel tank; 79-kg (175 lb.) operator; 1219-mm (48 in.), 1.09-m3 (1.43 cu. yd.), 871-kg (1,921 lb.) heavy-duty bucket; 2.91-m (9 ft. 7 in.) arm; and 7280-kg (16,050 lb.) counterweight |
| With 28-in. triple semi-grouser shoes (lb) | 56218 lb. |
| With 700-mm triple semi-grouser shoes (kg) | 25500 kg |
| With 32-in. triple semi-grouser shoes (lb) | 56879 lb. |
| With 800-mm triple semi-grouser shoes (kg) | 25800 kg |
Operating weights of optional components with standard counterweight and boom
| 28-in. triple semi-grouser shoes (lb) | 17641 lb. |
| 700-mm triple semi-grouser shoes (kg) | 8001.8 kg |
| 32-in. triple semi-grouser shoes (lb) | 18250 lb. |
| 800-mm triple semi-grouser shoes (kg) | 8278.1 kg |
| 1-piece boom, with arm cylinder (lb) | 3880 lb. |
| 1-piece boom, with arm cylinder (kg) | 1760 kg |
| 9-ft, 7-in. arm with bucket and linkage (lb) | 2024 lb. |
| 2.91-m arm with bucket and linkage (kg) | 918.1 kg |
| Boom-lift cylinders (2), total weight (lb) | 750 lb. |
| Boom-lift cylinders (2), total weight (kg) | 340.2 kg |
Swing Mechanism
| Speed (rpm) | 11.8 rpm |
| Torque (lb-ft) | 50000 lb-ft |
| Torque (Nm) | 67791 Nm |
