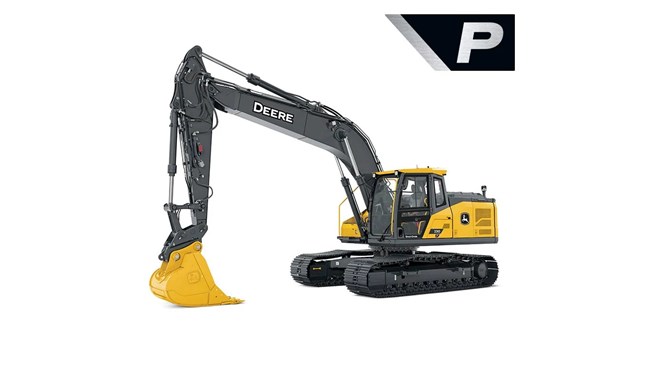

John Deere 230 P-Tier
Double tap to zoom
230 P-Tier
Excavators
Overview:
The John Deere 230 P‑Tier Excavator delivers balanced mid‑size power, precise control, and advanced jobsite technology, helping crews dig, lift, and load efficiently across a wide range of applications.
- Net Power: 127 kW (170 hp)
- Maximum Digging Depth: 6650 mm (21 ft, 10 in.)
- Operating Weight: 23 950–25 200 kg (52,800–55,560 lb.)
- Max Reach: 32 ft, 4 in. (9.86 m)
Get A Quote
Fields with asterisks* are required. Please email our helpful staff with any questions or comments using the contact form.
Loan Calculator
Use the Loan Calculator to help you determine the financing and payment options that are best for you.
**The accuracy of this calculator and its applicability to your circumstances is not guaranteed. You should obtain personal advice from qualified professionals. This information is provided for illustrative purposes only and does not constitute an application. This notice does not guarantee loan approval, nor is it an offer or commitment to make a loan to you on the above terms.
Send To A Friend
Fields with asterisks* are required. Your friend will receive an email that contains a reference to this page. Please send this email only to people you know who would be interested in this information.
Share This Product:
Features
Get the Job Done with Proven Mid‑Size Performance
With ~170 horsepower and a ~20‑metric‑ton platform, the 230 P‑Tier provides the power and capability needed for trenching, grading, truck loading, and lifting tasks.
Improve Accuracy and Efficiency with SmartGrade™
Available SmartGrade™ technology and 2D grade control help operators achieve precise results with fewer grade checks—reducing rework and improving productivity across digging and grading tasks.
Maximize Uptime with Durable, Efficient Design
Built with proven components and enhanced durability features, along with fuel‑saving innovations like electronic cooling systems, the 200 Series P‑Tier helps reduce downtime and lower daily operating costs.
Specifications
Swing Mechanism
| Speed (rpm) | 13.3 rpm |
| Torque (lb-ft) | 50662 lb-ft |
| Torque (Nm) | 68900 Nm |
Powertrain
| Maximum travel speed high/fast (mph) | 3.4 mph |
| Maximum travel speed high/fast (km/h) | 5.5 km/h |
Engine
| Manufacturer | John Deere Power Tech |
| Non-road emission standards | Tier 4 |
| Net power (rpm) | 2000 rpm |
| Net power at net power rpm (ISO 9249) (hp) | 159 hp |
| Net power at net power rpm (ISO 9249) (kW) | 119 kW |
| Cylinders | 6 |
| Displacement (cu in.) | 415 cu in. |
| Displacement (L) | 6.8 L |
Undercarriage
| Number of carrier rollers per side | 2 |
| Number of track rollers per side | 7 |
Refill Capacities
| Fuel tank (gal.) | 106.5 gal. |
| Fuel tank (L) | 403 L |
| Hydraulic tank (gal.) | 35.7 gal. |
| Hydraulic tank (L) | 135 L |
Electrical
| Battery voltage (V) | 24 V |
| Number of batteries | 2 |
