Features
Proven G‑Tier Durability and Attachment Flexibility
The 200 G‑Tier features reinforced front‑joint components and centralized greasing at the arm tip to help reduce wear and extend component life in abrasive conditions. A hydraulic coupler‑ready option with factory‑installed plumbing allows operators to switch attachments quickly, supporting productivity as crews move between digging, lifting, and cleanup tasks.

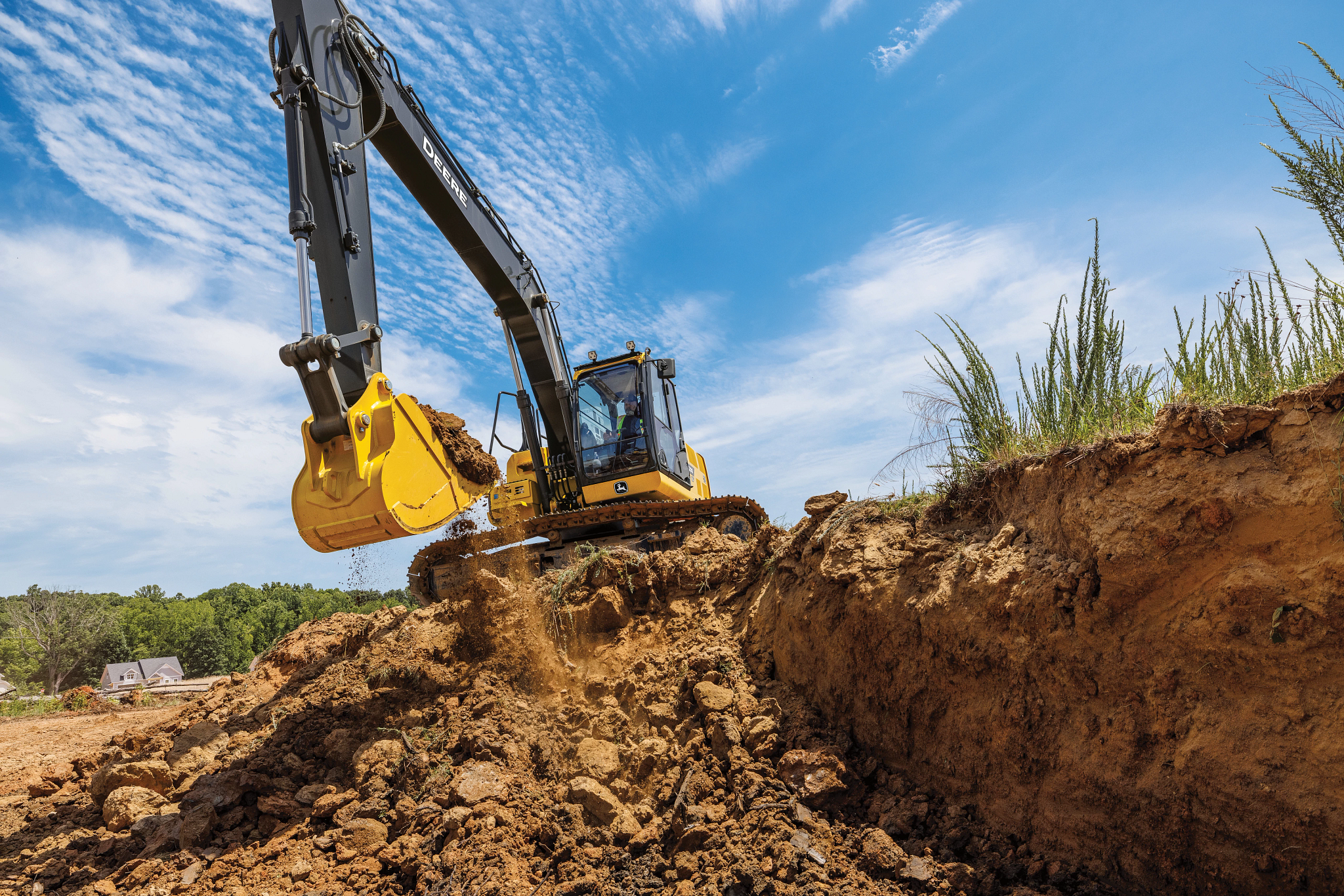

Strong Digging Power for Heavy‑Duty Applications
With 146 net horsepower and a deep digging reach, the 200 G‑Tier is built to handle demanding tasks such as trenching, mass excavation, and material handling. Its well‑balanced mid‑size platform provides the stability and breakout force needed for production work while maintaining the versatility required across varied jobsites.

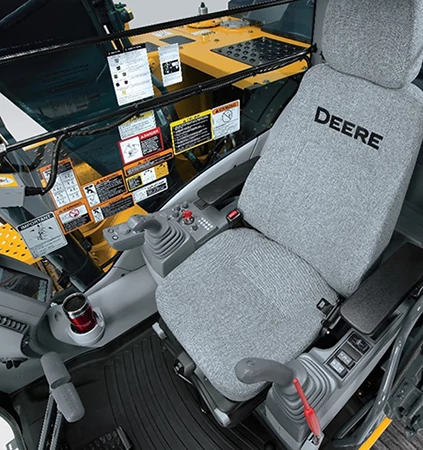

Operator‑Focused Design with Built‑In Connectivity
A spacious cab with ergonomic pilot controls helps reduce operator fatigue during long workdays. Integrated JDLink™ connectivity provides access to machine data such as utilization and location, supporting easier fleet management and proactive service.
Specifications
Powertrain
| Powertrain type | 2-speed propel with automatic shift |
| Maximum travel speed low/slow (mph) | 2.1 mph |
| Maximum travel speed low/slow (km/h) | 3.4 km/h |
| Maximum travel speed high/fast (mph) | 3.3 mph |
| Maximum travel speed high/fast (km/h) | 5.3 km/h |
| Drawbar pull (kg) | 17250 kg |
| Drawbar pull (lb) | 38030 lb. |
Hydraulics
| Hydraulics type | Open center, load sensing |
| Main pump type | 2 variable-displacement axial-piston pumps |
| Number of pumps | 2 |
| Main pump maximum rated flow per pump (gpm) | 50 gpm |
| Main pump maximum rated flow per pump (L/min) | 189.3 L/min |
| Pump 2 maximum rated flow per pump (gpm) | 50 gpm |
| Pump 2 maximum rated flow per pump (L/min) | 189.3 L/min |
| Pilot pump number of gears | 1 |
| Pilot pump maximum rated flow (gpm) | 8.9 gpm |
| Pilot pump maximum rated flow (L/min) | 33.7 L/min |
| Pilot pump pressure setting (psi) | 570 psi |
| Pilot pump pressure setting (kPa) | 3930 kPa |
| Implement circuits system operating pressure (psi) | 4980 psi |
| Implement circuits system operating pressure (kPa) | 34336 kPa |
| Travel circuits system operating pressure (psi) | 4980 psi |
| Travel circuits system operating pressure (kPa) | 34336 kPa |
| Swing circuits system operating pressure (psi) | 4980 psi |
| Swing circuits system operating pressure (kPa) | 34336 kPa |
| Power boost system operating pressure (psi) | 5511 psi |
| Power boost system operating pressure (kPa) | 37997 kPa |
| Controls type | Pilot levers, short stroke, low-effort hydraulic pilot controls with shutoff lever |
Undercarriage
| Number of carrier rollers per side | 2 |
| Number of track rollers per side | 7 |
| Number of shoes per side | 46 |
| Track adjustment type | Hydraulic |
| Track guides | Center |
| Track chain type | Sealed and lubricated |
Ground Pressure
| 24-in. triple semi-grouser shoes with standard counterweight and boom (psi) | 5.95 psi |
| 600-mm triple semi-grouser shoes with standard counterweight and boom (kPa) | 41 kPa |
| 28-in. triple semi-grouser shoes with standard counterweight and boom (psi) | 5.22 psi |
| 700-mm triple semi-grouser shoes with standard counterweight and boom (kPa) | 36 kPa |
| 32-in. triple semi-grouser shoes with standard counterweight and boom (psi) | 4.64 psi |
| 800-mm triple semi-grouser shoes with standard counterweight and boom (kPa) | 32 kPa |
Operating weights of optional components without blade
| 24-in. triple semi-grouser shoes (lb) | 14873 in. |
| 600-mm triple semi-grouser shoes (kg) | 6746.3 kg |
| 28-in. triple semi-grouser shoes (lb) | 15733 lb. |
| 700-mm triple semi-grouser shoes (kg) | 7136.4 kg |
| 32-in. triple semi-grouser shoes (lb) | 16381 lb. |
| 800-mm triple semi-grouser shoes (kg) | 7430.3 kg |
| 1-piece boom, with arm cylinder (lb) | 3449 lb. |
| 1-piece boom, with arm cylinder (kg) | 1564.4 kg |
| 2.71-m arm with bucket and linkage (kg) | 880.4 kg |
| 10-ft, 6-in. arm with bucket and linkage (lb) | 2084 lb. |
| 3.21-m arm with bucket and linkage (kg) | 945.3 kg |
| Boom-lift cylinders (2), total weight (lb) | 718 lb. |
| Boom-lift cylinders (2), total weight (kg) | 325.7 kg |
| 8-ft, 10-in. arm with bucket and linkage (lb) | 1941 lb. |
Electrical
| Battery voltage (V) | 12 V |
| Number of batteries | 2 |
| Battery capacity (CCA) | 950 CCA |
| Alternator rating (amp) | 100 amp |
| Work lights | 2 LED (1 mounted on boom, 1 on frame) |
Refill Capacities
| Fuel tank (gal.) | 75.3 gal. |
| Fuel tank (L) | 285 L |
| Cooling system (qt) | 24.8 qt |
| Cooling system (L) | 23.5 L |
| Engine oil with filter (qt) | 18 qt |
| Engine oil with filter (L) | 17 L |
| Hydraulic tank (gal.) | 33 gal. |
| Hydraulic tank (L) | 125 L |
| Hydraulic system (gal.) | 58.1 gal. |
| Hydraulic system (L) | 220 L |
| Swing gearbox (qt) | 7.9 qt |
| Swing gearbox (L) | 7.5 L |
| Propel gearbox (qt) | 7.2 qt |
| Propel gearbox (L) | 6.8 L |
| Pump drive gearbox (qt) | 1 qt |
| Pump drive gearbox (L) | 0.95 L |
| Diesel-exhaust fluid (DEF) (qt) | 28.2 qt |
| Diesel-exhaust fluid (DEF) (L) | 26.7 L |
Cylinders
| Number of boom cylinders | 2 |
| Boom cylinder bore (in.) | 4.72 in. |
| Boom cylinder bore (mm) | 120 mm |
| Boom cylinder rod diameter (in.) | 3.35 in. |
| Boom cylinder rod diameter (mm) | 85.1 mm |
| Boom cylinder stroke (in.) | 44.21 in. |
| Boom cylinder stroke (mm) | 1123 mm |
| Number of arm cylinders | 1 |
| Arm cylinder bore (in.) | 4.92 in. |
| Arm cylinder bore (mm) | 125 mm |
| Arm cylinder rod diameter (in.) | 3.54 in. |
| Arm cylinder rod diameter (mm) | 90 mm |
| Arm cylinder stroke (in.) | 53.98 in. |
| Arm cylinder stroke (mm) | 1371 mm |
| Number of bucket cylinders | 1 |
| Bucket cylinder bore (in.) | 4.13 in. |
| Bucket cylinder bore (mm) | 104.9 mm |
| Bucket cylinder rod diameter (in.) | 2.95 in. |
| Bucket cylinder rod diameter (mm) | 74.9 mm |
| Bucket cylinder stroke (in.) | 41.73 in. |
| Bucket cylinder stroke (mm) | 1060 mm |
Cooling
| Cooling system type | Electronically controlled, variable-speed, suction-type cooling fan |
Engine
| Manufacturer | John Deere |
| Model | PowerTech™ PWS 4.5L |
| Non-road emission standards | EPA Final Tier 4/EU Stage IV |
| Net power (rpm) | 2000 rpm |
| Net power at net power rpm (ISO 9249) (hp) | 146 hp |
| Net power at net power rpm (ISO 9249) (kW) | 108.9 kW |
| Cylinders | 4 |
| Displacement (cu in.) | 275 cu in. |
| Displacement (L) | 4.5 L |
| Off-level capacity (%) | 70 % |
| Off-level capacity (degrees) | 35 degrees |
| Aspiration type | Series turbocharged, air-to-air charge-air cooler |
Swing Mechanism
| Speed (rpm) | 12.8 rpm |
| Torque (lb-ft) | 36765 lb-ft |
| Torque (Nm) | 49846.7 Nm |
Operating weights of excavator without blade
| Conditions for measuring operating weights without blade | With full fuel tank; 79-kg (175 lb.) operator; 1067-mm (42 in.), 0.93-m3 (1.31 cu. yd.), 666-kg (1,468 lb.) general-purpose (GP) bucket; 3.21-m (10 ft. 6 in.) arm; 3900-kg (8,598 lb.) counterweight; and 800-mm (32 in.) triple semi-grouser shoes |
| With 32-in. triple semi-grouser shoes (lb) | 45170 lb. |
| With 800-mm triple semi-grouser shoes (kg) | 20488.8 kg |
