John Deere 17 P-Tier
Double tap to zoom

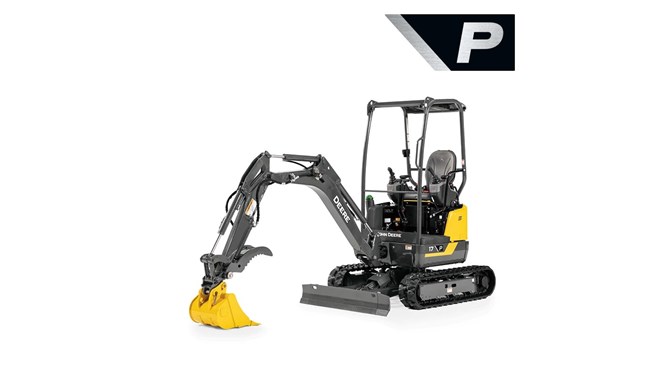

17 P-Tier
Excavators
Overview:
The John Deere 17 P‑Tier Compact Excavator delivers true compact agility, precise control, and easy transport—making it the ideal solution for working efficiently in the tightest spaces where larger machines can’t go.
- Net Power: 18.52 hp (13.81 kW)
- Max. Digging Depth: 7 ft. 10 in. (2.39 m)
- Operating Weight: 3,920 lb. (1,778 kg)
- Max Reach: 12 ft. 6 in. (3.81 m)
Get A Quote
Fields with asterisks* are required. Please email our helpful staff with any questions or comments using the contact form.
Loan Calculator
Use the Loan Calculator to help you determine the financing and payment options that are best for you.
**The accuracy of this calculator and its applicability to your circumstances is not guaranteed. You should obtain personal advice from qualified professionals. This information is provided for illustrative purposes only and does not constitute an application. This notice does not guarantee loan approval, nor is it an offer or commitment to make a loan to you on the above terms.
Send To A Friend
Fields with asterisks* are required. Your friend will receive an email that contains a reference to this page. Please send this email only to people you know who would be interested in this information.
Share This Product:
Features
Access the Tightest Jobsite Spaces
A variable‑width undercarriage and compact frame allow the 17 P‑Tier to squeeze through narrow pathways and confined job areas, then expand for stability when it’s time to dig.
Get Reliable Performance in a Small Package
With about 14.5 hp a balanced digging profile, this 1.7‑metric ton machine provides the capability needed for landscaping, trenching, and light utility work.
Stay Flexible with Attachment Capability
Factory‑installed auxiliary hydraulics and multiple coupler options make it easy to run a range of attachments and switch tools quickly to match the job.
Specifications
Operating weight with long arm
| Operating weight with canopy and rubber tracks (lb) | 4043 lb. |
| Operating weight with canopy and rubber tracks (kg) | 1834 kg |
| Additional counterweight (lb) | 111.8 lb. |
| Additional counterweight (kg) | 50.7 kg |
Engine
| Manufacturer | Yanmar |
| Displacement (cu in.) | 77.3 cu in. |
| Displacement (L) | 1.27 L |
| Net power (rpm) | 2200 rpm |
| Net power at net power rpm (ISO 9249) (hp) | 18.52 hp |
| Net power at net power rpm (ISO 9249) (kW) | 13.81 kW |
Operating dimensions with standard arm
| Maximum digging depth (ft, in.) | 7, 10 ft, in. |
| Maximum digging depth (m) | 2390 m |
| Maximum dumping height (ft, in.) | 7,9 ft, in. |
| Maximum dumping height (m) | 2370 m |
| Transport height (ft, in.) | 7, 9 ft, in. |
| Transport height (m) | 2370 m |
Powertrain
| Maximum travel speed high/fast (mph) | 2.8 mph |
| Maximum travel speed high/fast (km/h) | 4.5 km/h |
| Swing speed (rpm) | 9.5 rpm |
Refill Capacities
| Fuel tank (gal.) | 5.9 gal. |
| Fuel tank (L) | 22.3 L |
| Hydraulic tank (gal.) | 2.9 gal. |
| Hydraulic tank (L) | 11 L |
Hydraulics
| Main pump maximum rated flow (gpm) | 10.5 gpm |
| Main pump maximum rated flow (L/min) | 39.6 L/min |
Operating weight with standard arm
| Operating weight with canopy and rubber tracks (lb) | 3920 lb. |
| Operating weight with canopy and rubber tracks (kg) | 1778 kg |
