Features
Work Confidently via Standard Cameras and Lighting
The integrated right rear and left camera system, along with powerful LED surround lighting, enhances the operator's 270-degree visibility around the machine, even in low light conditions, all displayed on the main monitor. Additionally, LED front work lights and rear camera remain standard equipment.

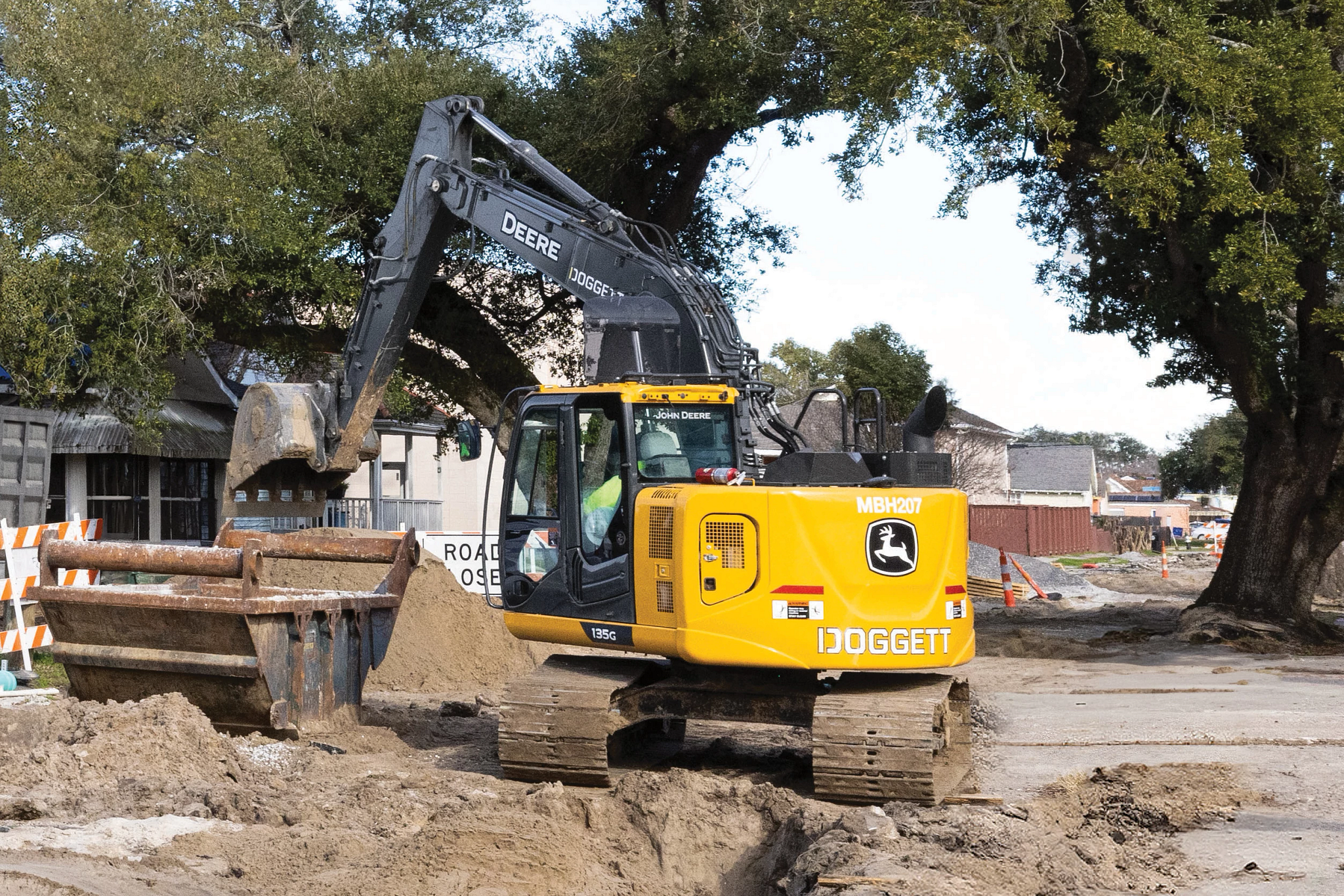

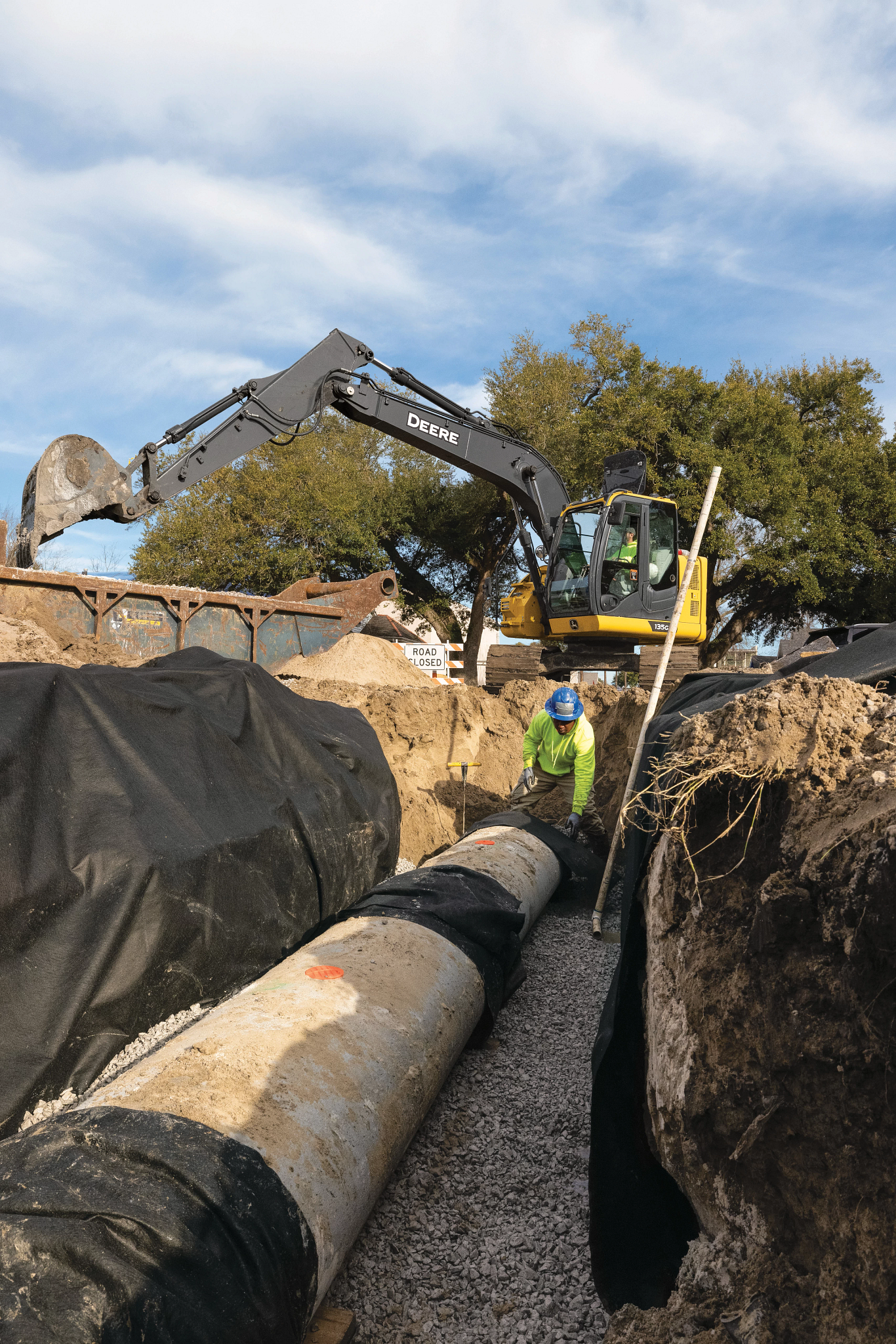

Exceptional Performance in Tight Spaces
The excavator excels with enhanced digging forces due to the optional power boost, allowing it to manage tough materials effectively. Its reduced tailswing configuration provides a smooth, well-balanced operation, minimizing the risk of damage in confined spaces.
Simple Emissions System and Built‑In Versatility

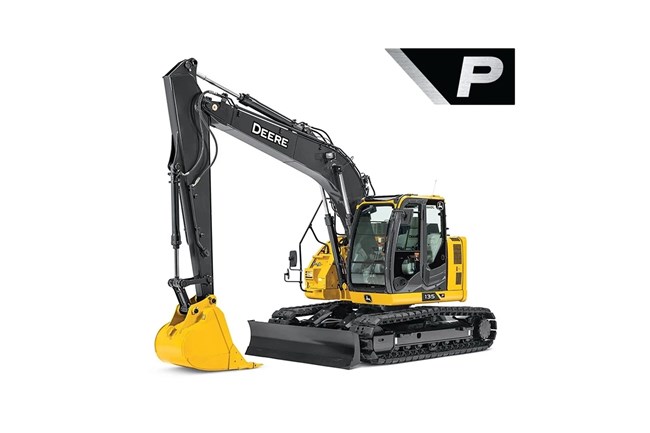

The 135 P‑Tier meets Final Tier 4 / Stage IV emissions standards without a diesel particulate filter (DPF), eliminating regenerations and ash‑service intervals to simplify ownership and reduce maintenance. Standard auxiliary hydraulics with proportional control enable the use of a wide range of attachments, increasing versatility and allowing crews to tackle multiple tasks with a single machine.
Specifications
Powertrain
| Powertrain type | 2-speed propel with automatic shift |
| Maximum travel speed low/slow (mph) | 2.1 mph |
| Maximum travel speed low/slow (km/h) | 3.4 km/h |
| Maximum travel speed high/fast (mph) | 3.4 mph |
| Maximum travel speed high/fast (km/h) | 5.5 km/h |
| Drawbar pull (kg) | 11217 kg |
| Drawbar pull (lb) | 24729 lb. |
Hydraulics
| Hydraulics type | Open center, pilot operated |
| Main pump type | 2 variable-displacement axial-piston pumps |
| Number of pumps | 2 |
| Main pump maximum rated flow per pump (gpm) | 28 gpm |
| Main pump maximum rated flow per pump (L/min) | 106 L/min |
| Pump 2 maximum rated flow per pump (gpm) | 28 gpm |
| Pump 2 maximum rated flow per pump (L/min) | 106 L/min |
| Pilot pump number of gears | 1 |
| Pilot pump maximum rated flow (gpm) | 8.7 gpm |
| Pilot pump maximum rated flow (L/min) | 32.9 L/min |
| Pilot pump pressure setting (psi) | 570 psi |
| Pilot pump pressure setting (kPa) | 3930 kPa |
| Implement circuits system operating pressure (psi) | 4975 psi |
| Implement circuits system operating pressure (kPa) | 34301.4 kPa |
| Travel circuits system operating pressure (psi) | 5047 psi |
| Travel circuits system operating pressure (kPa) | 34797.8 kPa |
| Swing circuits system operating pressure (psi) | 4685 psi |
| Swing circuits system operating pressure (kPa) | 32302 kPa |
| Power boost system operating pressure (psi) | 5265 psi |
| Power boost system operating pressure (kPa) | 36301 kPa |
| Controls type | Pilot levers, short stroke, low-effort hydraulic pilot controls with shutoff lever |
Undercarriage
| Number of carrier rollers per side | 1 |
| Number of track rollers per side | 7 |
| Number of shoes per side | 44 |
| Track adjustment type | Hydraulic |
| Track guides | Front idler |
| Track chain type | Sealed and lubricated |
Operating weights of excavator without blade
| Conditions for measuring operating weights without blade | With full fuel tank; 79-kg (175 lb.) operator; 914-mm (36 in.), 0.5-m³ (0.65 cu. yd.), 414-kg (913 lb.) general-purpose bucket; 3.01-m (9 ft. 11 in.) arm; and 3650-kg (8,047 lb.) counterweight |
| With 24-in. triple semi-grouser shoes (lb) | 31085 lb. |
| With 600-mm triple semi-grouser shoes (kg) | 14100 kg |
| With 28-in. triple semi-grouser shoes (lb) | 31526 lb. |
| With 700-mm triple semi-grouser shoes (kg) | 14300 kg |
| With 20-in. rubber crawler pad (lb) | 30644 lb. |
| With 500-mm rubber crawler pad (kg) | 13900 kg |
Operating weights of optional components without blade
| 24-in. triple semi-grouser shoes (lb) | 9780 in. |
| 600-mm triple semi-grouser shoes (kg) | 4436 kg |
| 28-in. triple semi-grouser shoes (lb) | 10203 lb. |
| 700-mm triple semi-grouser shoes (kg) | 4628 kg |
| 20-in. rubber crawler pad (lb) | 9281 lb. |
| 500-mm rubber crawler pad (kg) | 4210 kg |
| 1-piece boom, with arm cylinder (lb) | 2194 lb. |
| 1-piece boom, with arm cylinder (kg) | 995.2 kg |
| 9-ft, 11-in. arm with bucket and linkage (lb) | 1462 lb. |
| 3.01-m arm with bucket and linkage (kg) | 663.2 kg |
| Boom-lift cylinders (2), total weight (lb) | 511 lb. |
| Boom-lift cylinders (2), total weight (kg) | 231.8 kg |
Operating weights of optional components with blade
| 24-in. triple semi-grouser shoes (lb) | 12066 lb. |
| 600-mm triple semi-grouser shoes (kg) | 5473 kg |
| 28-in. triple semi-grouser shoes (lb) | 12569 lb. |
| 700-mm triple semi-grouser shoes (kg) | 5701.2 kg |
| 20-in. rubber crawler pad (lb) | 11568 lb. |
| 1-piece boom, with arm cylinder (lb) | 2194 lb. |
| 1-piece boom, with arm cylinder (kg) | 995.2 kg |
| 9-ft, 11-in. arm with bucket and linkage (lb) | 1462 lb. |
| 3.01-m arm with bucket and linkage (kg) | 663.2 kg |
| Boom-lift cylinders (2), total weight (lb) | 2511 lb. |
| Boom-lift cylinders (2), total weight (kg) | 1139 kg |
Electrical
| Battery voltage (V) | 12 V |
| Number of batteries | 2 |
| Battery capacity (CCA) | 300 CCA |
| Alternator rating (amp) | 50 amp |
| Work lights | 2 LED (1 mounted on boom, 1 on frame) |
Ground Pressure
| 24-in. triple semi-grouser shoes without blade (psi) | 5.37 psi |
| 600-mm triple semi-grouser shoes without blade (kPa) | 37 kPa |
| 24-in. triple semi-grouser shoes with blade (psi) | 5.66 psi |
| 600-mm triple semi-grouser shoes with blade (kPa) | 39 kPa |
| 28-in. triple semi-grouser shoes without blade (psi) | 4.64 psi |
| 700-mm triple semi-grouser shoes without blade (kPa) | 32 kPa |
| 28-in. triple semi-grouser shoes with blade (psi) | 4.93 psi |
| 700-mm triple semi-grouser shoes with blade (kPa) | 34 kPa |
| 20-in. rubber crawler pad without blade (psi) | 6.24 psi |
| 500-mm rubber crawler pad without blade (kPa) | 43 kPa |
| 20-in. rubber crawler pad with blade (psi) | 6.67 psi |
| 500-mm rubber crawler pad with blade (kPa) | 46 kPa |
Refill Capacities
| Fuel tank (gal.) | 58 gal. |
| Fuel tank (L) | 219.6 L |
| Cooling system (qt) | 22.2 qt |
| Cooling system (L) | 21 L |
| Engine oil with filter (qt) | 18 qt |
| Engine oil with filter (L) | 17 L |
| Hydraulic tank (gal.) | 15.9 gal. |
| Hydraulic tank (L) | 60.2 L |
| Hydraulic system (gal.) | 33 gal. |
| Hydraulic system (L) | 124.9 L |
| Swing gearbox (qt) | 3.2 qt |
| Swing gearbox (L) | 3.03 L |
| Propel gearbox (qt) | 4.2 qt |
| Propel gearbox (L) | 3.97 L |
| Diesel-exhaust fluid (DEF) (qt) | 12.7 qt |
| Diesel-exhaust fluid (DEF) (L) | 12.02 L |
Cylinders
| Number of boom cylinders | 2 |
| Boom cylinder bore (in.) | 4.13 in. |
| Boom cylinder bore (mm) | 105 mm |
| Boom cylinder rod diameter (in.) | 2.76 in. |
| Boom cylinder rod diameter (mm) | 70 mm |
| Boom cylinder stroke (in.) | 37.05 in. |
| Boom cylinder stroke (mm) | 941 mm |
| Number of arm cylinders | 1 |
| Arm cylinder bore (in.) | 4.53 in. |
| Arm cylinder bore (mm) | 115 mm |
| Arm cylinder rod diameter (in.) | 3.15 in. |
| Arm cylinder rod diameter (mm) | 80 mm |
| Arm cylinder stroke (in.) | 44.69 in. |
| Arm cylinder stroke (mm) | 1135 mm |
| Number of bucket cylinders | 1 |
| Bucket cylinder bore (in.) | 3.94 in. |
| Bucket cylinder bore (mm) | 100 mm |
| Bucket cylinder rod diameter (in.) | 2.76 in. |
| Bucket cylinder rod diameter (mm) | 70 mm |
| Bucket cylinder stroke (in.) | 34.45 in. |
| Bucket cylinder stroke (mm) | 875 mm |
Operating weights of excavator with blade
| Conditions for measuring operating weights with blade | With full fuel tank; 79-kg (175 lb.) operator; 914-mm (36 in.), 0.50-m³ (0.65 cu. yd.), 414-kg (913 lb.) general-purpose bucket; 3.01-m (9 ft. 11 in.) arm; and 2350-kg (5,181 lb.) counterweight |
| With 24-in. triple semi-grouser shoes (lb) | 33290 lb. |
| With 600-mm triple semi-grouser shoes (kg) | 15100.08 kg |
| With 28-in. triple semi-grouser shoes (lb) | 33951 lb. |
| With 700-mm triple semi-grouser shoes (kg) | 15399.9 kg |
| With 20-in. rubber crawler pad (lb) | 32849 lb. |
| With 500-mm rubber crawler pad (kg) | 14900.04 kg |
Cooling
| Cooling system type | Direct-drive suction-type fan |
Engine
| Manufacturer | Isuzu |
| Model | 4JJ1 |
| Non-road emission standards | EPA Final Tier 4/EU Stage IV |
| Net power (rpm) | 2000 rpm |
| Net power at net power rpm (ISO 9249) (hp) | 101 hp |
| Net power at net power rpm (ISO 9249) (kW) | 75.3 kW |
| Cylinders | 4 |
| Displacement (cu in.) | 182 cu in. |
| Displacement (L) | 3 L |
| Off-level capacity (%) | 70 % |
| Off-level capacity (degrees) | 35 degrees |
| Aspiration type | Turbocharged, air-to-air charge-air cooler |
Swing Mechanism
| Speed (rpm) | 13.3 rpm |
| Torque (lb-ft) | 25000 lb-ft |
| Torque (Nm) | 33900 Nm |
