Features

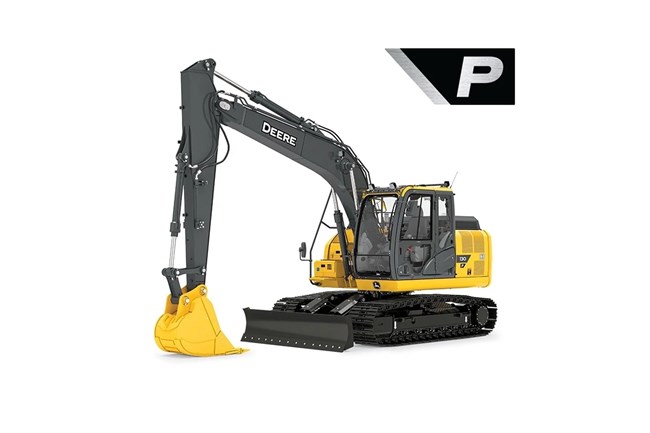

Compact Power With Proven P‑Tier Durability
The 130 P‑Tier builds on proven G‑Series architecture with improved front‑joint durability, including strengthened bushings, better sealing, and centralized greasing at the arm tip. These updates help extend component life, reduce wear in abrasive conditions, and maximize uptime for crews working in utilities and light‑to‑medium excavation.
Fast Attachment Changes and Versatile Jobsite Capability
A hydraulic coupler‑ready option with factory‑installed plumbing allows operators to switch attachments quickly from the cab, keeping work moving as jobsite demands change. This flexibility makes the excavators well suited for trenching, backfilling, material handling, and cleanup without adding extra machines to the fleet.
Work Confidently via Standard Cameras and Lighting
The integrated right rear and left camera system, along with powerful LED surround lighting, enhances the operator's 270-degree visibility around the machine, even in low light conditions, all displayed on the main monitor. Additionally, LED front work lights and rear camera remain standard equipment.
Specifications
Powertrain
| Powertrain type | 2-speed propel with automatic shift |
| Maximum travel speed low/slow (mph) | 2.1 mph |
| Maximum travel speed low/slow (km/h) | 3.4 km/h |
| Maximum travel speed high/fast (mph) | 3.4 mph |
| Maximum travel speed high/fast (km/h) | 5.5 km/h |
| Drawbar pull (kg) | 11217 kg |
| Drawbar pull (lb) | 24729 lb. |
Hydraulics
| Hydraulics type | Open center, load sensing |
| Main pump type | 2 variable-displacement axial-piston pumps |
| Number of pumps | 2 |
| Main pump maximum rated flow per pump (gpm) | 28 gpm |
| Main pump maximum rated flow per pump (L/min) | 106 L/min |
| Pump 2 maximum rated flow per pump (gpm) | 28 gpm |
| Pump 2 maximum rated flow per pump (L/min) | 106 L/min |
| Pilot pump number of gears | 1 |
| Pilot pump maximum rated flow (gpm) | 8.7 gpm |
| Pilot pump maximum rated flow (L/min) | 33 L/min |
| Pilot pump pressure setting (psi) | 570 psi |
| Pilot pump pressure setting (kPa) | 3930 kPa |
| Implement circuits system operating pressure (psi) | 4980 psi |
| Implement circuits system operating pressure (kPa) | 34336 kPa |
| Travel circuits system operating pressure (psi) | 4980 psi |
| Travel circuits system operating pressure (kPa) | 34336 kPa |
| Swing circuits system operating pressure (psi) | 4685 psi |
| Swing circuits system operating pressure (kPa) | 32302 kPa |
| Power boost system operating pressure (psi) | 5265 psi |
| Power boost system operating pressure (kPa) | 36301 kPa |
| Controls type | Pilot levers, short stroke, low-effort hydraulic pilot controls with shutoff lever |
Undercarriage
| Number of carrier rollers per side | 1 |
| Number of track rollers per side | 7 |
| Number of shoes per side | 44 |
| Track adjustment type | Hydraulic |
| Track guides | None |
| Track chain type | Sealed and lubricated |
Operating weights of excavator with blade
| Conditions for measuring operating weights with blade | With full fuel tank; 79-kg (175 lb.) operator; 914-mm (36 in.), 0.50-m³ (0.65 cu. yd.), 414-kg (913 lb.) general-purpose bucket; 3.01-m (9 ft. 11 in.) arm; and 2350-kg (5,181 lb.) counterweight |
| With 24-in. triple semi-grouser shoes (lb) | 30009 lb. |
| With 600-mm triple semi-grouser shoes (kg) | 13612 kg |
| With 28-in. triple semi-grouser shoes (lb) | 30573 lb. |
| With 700-mm triple semi-grouser shoes (kg) | 13867.7 kg |
| With 24-in. rubber crawler pad (lb) | 31502 lb. |
| With 600-mm rubber crawler pad (kg) | 14289 kg |
Operating weights of excavator without blade
| Conditions for measuring operating weights without blade | With full fuel tank; 79-kg (175 lb.) operator; 914-mm (36 in.), 0.50-m³ (0.65 cu. yd.), 414-kg (913 lb.) general-purpose bucket; 3.01-m (9 ft. 11 in.) arm; and 2350-kg (5,181 lb.) counterweight |
| With 24-in. triple semi-grouser shoes (lb) | 29007 lb. |
| With 600-mm triple semi-grouser shoes (kg) | 13157.4 kg |
| With 28-in. triple semi-grouser shoes (lb) | 29531 lb. |
| With 700-mm triple semi-grouser shoes (kg) | 13395 kg |
| With 24-in. rubber crawler pad (lb) | 30500 lb. |
| With 600-mm rubber crawler pad (kg) | 13834.6 kg |
Operating weights of optional components with blade
| 24-in. triple semi-grouser shoes (lb) | 10961 lb. |
| 600-mm triple semi-grouser shoes (kg) | 4971.8 kg |
| 28-in. triple semi-grouser shoes (lb) | 11525 lb. |
| 700-mm triple semi-grouser shoes (kg) | 5227.65 kg |
| 24-in. rubber crawler pad (lb) | 12456 lb. |
| 600-mm rubber crawler pad (kg) | 5650 kg |
| 1-piece boom, with arm cylinder (lb) | 2176 lb. |
| 1-piece boom, with arm cylinder (kg) | 987 kg |
| 8-ft, 3-in. arm with bucket and linkage (lb) | 949 lb. |
| 2.52-m arm with bucket and linkage (kg) | 430.5 kg |
| 9-ft, 11-in. arm with bucket and linkage (lb) | 1104 lb. |
| 3.01-m arm with bucket and linkage (kg) | 500.77 kg |
| Boom-lift cylinders (2), total weight (lb) | 960 lb. |
| Boom-lift cylinders (2), total weight (kg) | 435.5 kg |
Operating weights of optional components without blade
| 24-in. triple semi-grouser shoes (lb) | 9958 in. |
| 600-mm triple semi-grouser shoes (kg) | 4516.87 kg |
| 28-in. triple semi-grouser shoes (lb) | 10482 lb. |
| 700-mm triple semi-grouser shoes (kg) | 4754.56 kg |
| 24-in. rubber crawler pad (lb) | 11453 lb. |
| 600-mm rubber crawler pad (kg) | 5495 kg |
| 1-piece boom, with arm cylinder (lb) | 2176 lb. |
| 1-piece boom, with arm cylinder (kg) | 987 kg |
| 8-ft, 3-in. arm with bucket and linkage (lb) | 949 lb. |
| 2.52-m arm with bucket and linkage (kg) | 430.46 kg |
| 9-ft, 11-in. arm with bucket and linkage (lb) | 1104 lb. |
| 3.01-m arm with bucket and linkage (kg) | 500.77 kg |
| Boom-lift cylinders (2), total weight (lb) | 960 lb. |
| Boom-lift cylinders (2), total weight (kg) | 435.5 kg |
Electrical
| Battery voltage (V) | 12 V |
| Number of batteries | 2 |
| Battery capacity (CCA) | 950 CCA |
| Alternator rating (amp) | 100 amp |
| Work lights | 2 LED (1 on left side of boom, 1 on frame) |
Ground Pressure
| 24-in. triple semi-grouser shoes without blade (psi) | 5.51 psi |
| 600-mm triple semi-grouser shoes without blade (kPa) | 37.99 kPa |
| 24-in. triple semi-grouser shoes with blade (psi) | 5.11 psi |
| 600-mm triple semi-grouser shoes with blade (kPa) | 35.24 kPa |
| 28-in. triple semi-grouser shoes without blade (psi) | 4.64 psi |
| 700-mm triple semi-grouser shoes without blade (kPa) | 32.02 kPa |
| 28-in. triple semi-grouser shoes with blade (psi) | 5.21 psi |
| 700-mm triple semi-grouser shoes with blade (kPa) | 35.93 kPa |
| 24-in. rubber crawler pad without blade (psi) | 4.06 psi |
| 600-mm rubber crawler pad without blade (kPa) | 28 kPa |
| 24-in. rubber crawler pad with blade (psi) | 5.37 psi |
| 600-mm rubber crawler pad with blade (kPa) | 37 kPa |
Refill Capacities
| Fuel tank (gal.) | 75.3 gal. |
| Fuel tank (L) | 285.01 L |
| Cooling system (qt) | 24.8 qt |
| Cooling system (L) | 23.46 L |
| Engine oil with filter (qt) | 18 qt |
| Engine oil with filter (L) | 17.03 L |
| Hydraulic tank (gal.) | 18.2 gal. |
| Hydraulic tank (L) | 68.89 L |
| Hydraulic system (gal.) | 48.9 gal. |
| Hydraulic system (L) | 185.07 L |
| Swing gearbox (qt) | 3.4 qt |
| Swing gearbox (L) | 3.22 L |
| Propel gearbox (qt) | 4.2 qt |
| Propel gearbox (L) | 3.97 L |
| Diesel-exhaust fluid (DEF) (qt) | 28.2 qt |
| Diesel-exhaust fluid (DEF) (L) | 26.68 L |
Cylinders
| Number of boom cylinders | 2 |
| Boom cylinder bore (in.) | 4.13 in. |
| Boom cylinder bore (mm) | 105 mm |
| Boom cylinder rod diameter (in.) | 2.76 in. |
| Boom cylinder rod diameter (mm) | 70 mm |
| Boom cylinder stroke (in.) | 37.05 in. |
| Boom cylinder stroke (mm) | 941 mm |
| Number of arm cylinders | 1 |
| Arm cylinder bore (in.) | 4.53 in. |
| Arm cylinder bore (mm) | 115 mm |
| Arm cylinder rod diameter (in.) | 3.15 in. |
| Arm cylinder rod diameter (mm) | 80 mm |
| Arm cylinder stroke (in.) | 44.7 in. |
| Arm cylinder stroke (mm) | 1135 mm |
| Number of bucket cylinders | 1 |
| Bucket cylinder bore (in.) | 3.94 in. |
| Bucket cylinder bore (mm) | 100 mm |
| Bucket cylinder rod diameter (in.) | 2.76 in. |
| Bucket cylinder rod diameter (mm) | 70 mm |
| Bucket cylinder stroke (in.) | 34.45 in. |
| Bucket cylinder stroke (mm) | 875 mm |
Cooling
| Cooling system type | Electronically controlled, variable-rate, suction-type cooling fan |
Engine
| Manufacturer | John Deere |
| Model | PowerTech™ PWS 4.5L |
| Non-road emission standards | EPA Final Tier 4/EU Stage IV |
| Net power (rpm) | 2000 rpm |
| Net power at net power rpm (ISO 9249) (hp) | 98 hp |
| Net power at net power rpm (ISO 9249) (kW) | 73 kW |
| Cylinders | 4 |
| Displacement (cu in.) | 275 cu in. |
| Displacement (L) | 4.5 L |
| Off-level capacity (%) | 70 % |
| Off-level capacity (degrees) | 35 degrees |
| Aspiration type | Turbocharged, air-to-air charge-air cooler |
Swing Mechanism
| Speed (rpm) | 13.3 rpm |
| Torque (lb-ft) | 25000 lb-ft |
| Torque (Nm) | 33895.5 Nm |
