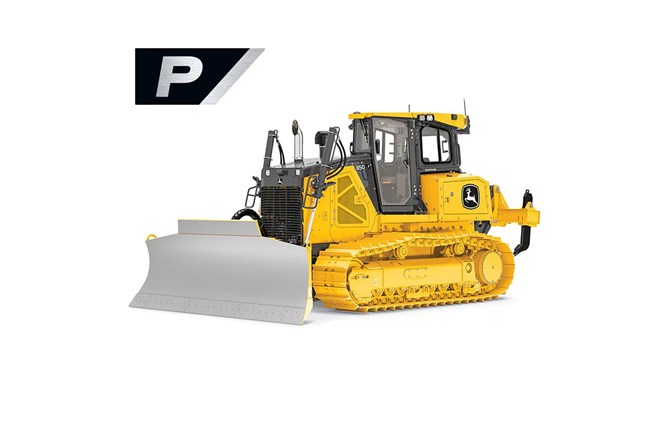

John Deere 850 P-Tier
Double tap to zoom
850 P-Tier
Dozers
Overview:
The 850 P-Tier Construction Dozer offers unparalleled performance and precision with its state-of-the-art technology and robust design, maximizing productivity and efficiency on demanding construction sites.
- Net Power: 225 hp (168 kW) at 1,700 rpm
- Operating Weight: 47,578–51,365 lb. (21,581–23,299 kg)
- Track on Ground: 130 in. (3300 mm)
- Hydraulic Efficiency and Control
Get A Quote
Fields with asterisks* are required. Please email our helpful staff with any questions or comments using the contact form.
Loan Calculator
Use the Loan Calculator to help you determine the financing and payment options that are best for you.
**The accuracy of this calculator and its applicability to your circumstances is not guaranteed. You should obtain personal advice from qualified professionals. This information is provided for illustrative purposes only and does not constitute an application. This notice does not guarantee loan approval, nor is it an offer or commitment to make a loan to you on the above terms.
Send To A Friend
Fields with asterisks* are required. Your friend will receive an email that contains a reference to this page. Please send this email only to people you know who would be interested in this information.
Share This Product:
Features
Vision Systems
To enhance awareness for confident navigation of busy work areas, optional rearview (backup) camera helps the operator see what’s behind the dozer on the in-cab monitor. Optional Advanced Vision System (AVS) includes two digital cameras mounted on the exterior left and right cab-light brackets plus an additional camera mounted to the front grille that integrate with the rearview (backup) camera for a single display on a dedicated in-cab monitor.
Grade Control Solutions
John Deere precision construction technology enables operators to make accurate grading passes while significantly reducing re-work. The best part, our machine technology can be upgraded at any time, from entry level to advanced, now you have the flexibility to upgrade when the time is right.
Make Long Days Feel Shorter
P-Tier dozers provide a quiet, comfortable ride with precise control, and convenience that is even better than previous John Deere cabs. Operators will appreciate improved visibility with clear sight lines to the blade corners, and all new touch screen displays
Specifications
Machine Dimensions
| Overall Height to Roof | 135 in. |
| Overall Height to Roof | 3438 mm |
| Ground Clearance in Dirt | 15.5 in. |
| Ground Clearance in Dirt | 394 mm |
| Overall Length with Blade | 225 in. |
| Overall Length with Blade | 5727 mm |
| Blade Digging Depth | 28 in. |
| Blade Digging Depth | 704 mm |
| Blade Width (Straight) | 168 in. |
| Blade Width (Straight) | 4267 mm |
| Blade Tilt (Straight) | 21 in. / 541 mm |
| SAE Capacity (Mechanical Angle Blade) | 7.1 cu yd |
| SAE Capacity (Mechanical Angle Blade) | 5.4 m³ |
Serviceability
| Fuel Tank Capacity with Lockable Cap | 116 gal. |
| Fuel Tank Capacity with Lockable Cap | 439 L |
| Hydraulic Reservoir and Filter Capacity | 30.9 qt |
| Hydraulic Reservoir and Filter Capacity | 117 L |
Powertrain
| Transmission Type | Hydrostatic |
| Forward Travel Speed | 6 mph |
| Forward Travel Speed | 9.7 km/h |
| Reverse Travel Speed | 6 mph |
| Reverse Travel Speed | 9.7 km/h |
| Final Drives Type | Double Reduction - Planetary |
Hydraulics
| Type | Variable Displacement Piston |
| Pump Capacity (High Flow) | 41 gpm |
| Pump Capacity (High Flow) | 155 L/min |
Primary Undercarriage
| Track Gauge | 96 in. |
| Track Gauge | 2438 mm |
| Shoes, Each Side | 45 |
| Track Rollers, Each Side | 8 |
| Track Length on Ground | 130 in. |
| Track Length on Ground | 3300 mm |
| Ground Contact Area | 10200 sq in. |
| Ground Contact Area | 65811 cm² |
| Ground Pressure | 5 psi |
| Ground Pressure | 34.4 kPa |
| Oscillation at Front Roller | Yes |
Operating Weights
| Base Weight | 51313 lb. |
| Base Weight | 23275 kg |
Primary Engine Option
| Manufacturer | John Deere |
| Model | JD9 |
| Displacement | 549 cu in. |
| Displacement | 9 L |
