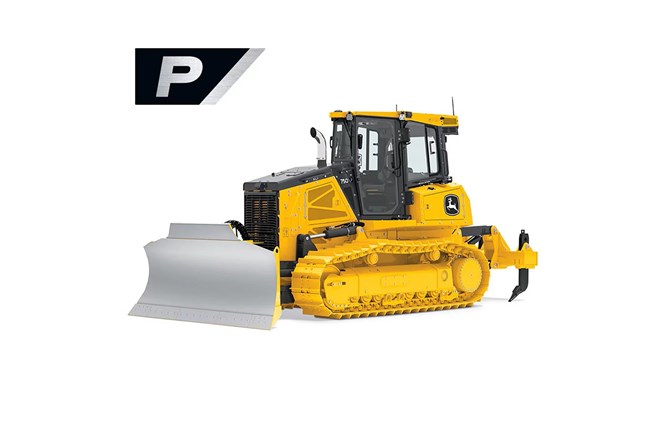

John Deere 750 P-Tier
Double tap to zoom
750 P-Tier
Dozers
Overview:
The John Deere 750 P-Tier Construction Dozer enhances jobsite efficiency with its advanced SmartGrade™ Precision Technology, providing operators with superior grading performance and flexibility through fully integrated 3D control systems, while offering exceptional comfort and visibility in its state-of-the-art cab.
- Net Power: 175 hp (131 kW) at 1,700 rpm
- Operating Weight: 37,569–40,040 lb. (17,041–18,162 kg)
- Track on Ground: 103-122 in. (2604-3093 mm)
- Machine Monitoring and Diagnostics
Get A Quote
Fields with asterisks* are required. Please email our helpful staff with any questions or comments using the contact form.
Loan Calculator
Use the Loan Calculator to help you determine the financing and payment options that are best for you.
**The accuracy of this calculator and its applicability to your circumstances is not guaranteed. You should obtain personal advice from qualified professionals. This information is provided for illustrative purposes only and does not constitute an application. This notice does not guarantee loan approval, nor is it an offer or commitment to make a loan to you on the above terms.
Send To A Friend
Fields with asterisks* are required. Your friend will receive an email that contains a reference to this page. Please send this email only to people you know who would be interested in this information.
Share This Product:
Features
Vision Systems
To enhance awareness for confident navigation of busy work areas, optional rearview (backup) camera helps the operator see what’s behind the dozer on the in-cab monitor. Optional Advanced Vision System (AVS) includes two digital cameras mounted on the exterior left and right cab-light brackets plus an additional camera mounted to the front grille that integrate with the rearview (backup) camera for a single display on a dedicated in-cab monitor.
Grade Control Solutions
John Deere precision construction technology enables operators to make accurate grading passes while significantly reducing re-work. The best part, our machine technology can be upgraded at any time, from entry level to advanced, now you have the flexibility to upgrade when the time is right.
Make Long Days Feel Shorter
P-Tier dozers provide a quiet, comfortable ride with precise control, and convenience that is even better than previous John Deere cabs. Operators will appreciate improved visibility with clear sight lines to the blade corners, and all new touch screen displays
Specifications
Machine Dimensions
| Overall Height to Roof | 138 in. |
| Overall Height to Roof | 3505 mm |
| Ground Clearance in Dirt | 14 in. |
| Ground Clearance in Dirt | 358 mm |
| Overall Length with Blade | 211 in. |
| Overall Length with Blade | 5359 mm |
| Blade Digging Depth | 25.5 in. |
| Blade Digging Depth | 648 mm |
| Blade Width (Straight) | 156 in. |
| Blade Width (Straight) | 3962 mm |
| Blade Tilt (Straight) | 20 in. / 502 mm |
| SAE Capacity (Mechanical Angle Blade) | 5.9 cu yd |
| SAE Capacity (Mechanical Angle Blade) | 4.5 m³ |
Serviceability
| Fuel Tank Capacity with Lockable Cap | 95.5 gal. |
| Fuel Tank Capacity with Lockable Cap | 362 L |
| Hydraulic Reservoir and Filter Capacity | 25.9 qt |
| Hydraulic Reservoir and Filter Capacity | 98 L |
Powertrain
| Transmission Type | Hydrostatic |
| Forward Travel Speed | 6 mph |
| Forward Travel Speed | 9.7 km/h |
| Reverse Travel Speed | 6 mph |
| Reverse Travel Speed | 9.7 km/h |
| Final Drives Type | Double Reduction - Planetary |
Hydraulics
| Type | Variable Displacement Piston |
| Pump Capacity (High Flow) | 34 gpm |
| Pump Capacity (High Flow) | 130 L/min |
Primary Undercarriage
| Track Gauge | 84 in. |
| Track Gauge | 2134 mm |
| Shoes, Each Side | 45 |
| Track Rollers, Each Side | 8 |
| Track Length on Ground | 122 in. |
| Track Length on Ground | 3099 mm |
| Ground Contact Area | 9048 sq in. |
| Ground Contact Area | 58373 cm² |
| Ground Pressure | 4.42 psi |
| Ground Pressure | 30.5 kPa |
| Oscillation at Front Roller | Yes |
Operating Weights
| Base Weight | 39976 lb. |
| Base Weight | 18133 kg |
Primary Engine Option
| Manufacturer | John Deere |
| Model | PowerTech PVS 6068 |
| Displacement | 414 cu in. |
| Displacement | 6.8 L |
