Features
Grade Control Solutions
John Deere precision construction technology enables operators to make accurate grading passes while significantly reducing re-work. The best part, our machine technology can be upgraded at any time, from entry level to advanced, now you have the flexibility to upgrade when the time is right.
Easy to Maintain, Straightforward to Service
John Deere’s small dozers feature simplified maintenance and improved uptime, compared to previous models, thanks to optimized hose and harness routing that reduces leak points and ground-level access to vertical spin-on filters. The hydraulic oil change interval has doubled to 4,000 hours, significantly lowering maintenance costs.

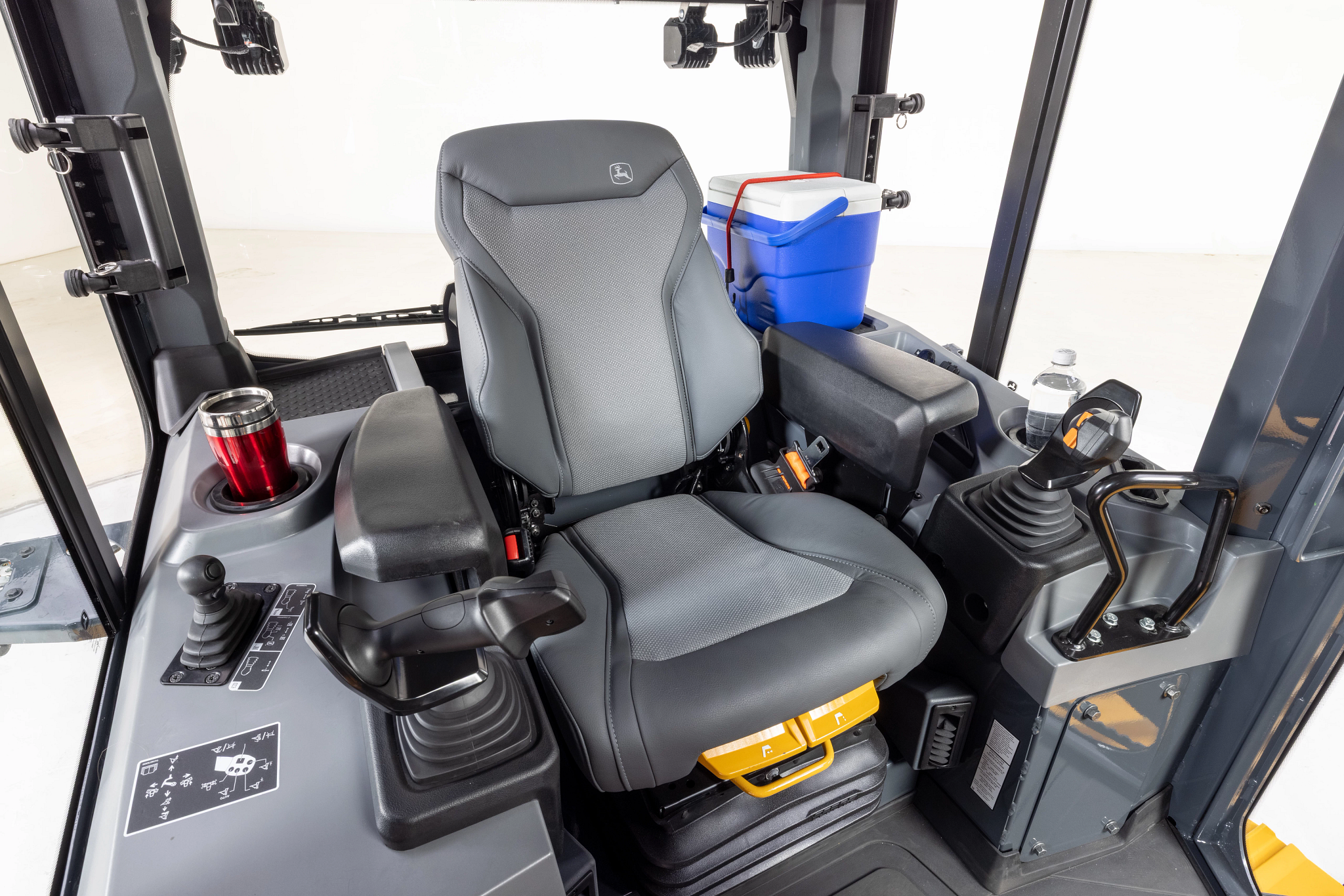

Improved Visibility, Space, and Comfort
John Deere small dozers feature a 14% larger cab compared to previous models, with a heated, ventilated leather seat and improved visibility through a lowered hood and LED lighting. An 8-in. (20.3-cm) touchscreen, centralized controls, and customizable settings enhance operator comfort and performance.
Specifications
Powertrain
| Transmission Type | Automatic, dual-path, hydrostatic drive |
| System Relief Pressure | 6192 psi |
| System Relief Pressure | 42692.3 kPa |
| Forward Travel Speed | 5 mph |
| Forward Travel Speed | 8 km/h |
| Reverse Travel Speed | 5 mph |
| Reverse Travel Speed | 8 km/h |
| Maximum (Optional) Travel Speed | 6 mph |
| Maximum (Optional) Travel Speed | 9.7 km/h |
| Filter, Charge Oil | 10 micron |
| Cooling | Oil-to-air |
| Steering Type | Single-lever steering, direction control, and counterrotation |
| Final Drives Type | Triple-reduction final drives mounted independently of track frames and dozer push frames for isolation from shock loads |
| Total Ratio | 52.13 : 1 |
| Maximum Drawbar Pull | 34250 lb. |
| Maximum Drawbar Pull | 152.4 kN |
| Drawbar Pull at 1.2 mph | 23330 lb. |
| Drawbar Pull at 1.9 km/h | 103.8 kN |
| Drawbar Pull at 2.0 mph | 14658 lb. |
| Drawbar Pull at 3.2 km/h | 65.2 kN |
| Brakes | Hydrostatic (dynamic) |
| Service Brakes Type | Hydraulic |
| Parking Brakes Type | Exclusive spring-applied, hydraulically released |
Cylinders
| Cylinders Type | Heat treated, chrome-plated, polished cylinder rods, hardened steel (replaceable bushings) pivot pins |
| Lift Cylinders Bore | 3.1 in. |
| Lift Cylinders Bore | 78.7 mm |
| Lift Cylinders Rod Diameter | 1.6 in. |
| Lift Cylinders Rod Diameter | 40.6 mm |
| Lift Cylinders Stroke | 16.5 in. |
| Lift Cylinders Stroke | 419 mm |
| Lift Cylinders Closed Length | 29.4 in. |
| Lift Cylinders Closed Length | 746.8 mm |
| Angle Cylinders Bore | 2.8 in. |
| Angle Cylinders Bore | 71 mm |
| Angle Cylinders Rod Diameter | 1.8 in. |
| Angle Cylinders Rod Diameter | 45.7 mm |
| Angle Cylinders Stroke | 16.2 in. |
| Angle Cylinders Stroke | 411.5 mm |
| Angle Cylinders Closed Length | 30.6 in. |
| Angle Cylinders Closed Length | 777.2 mm |
| Pitch Cylinder Stroke | 2 in. |
| Pitch Cylinder Stroke | 50.8 mm |
| Pitch Cylinder Rod Diameter | 3.9 in. |
| Pitch Cylinder Rod Diameter | 99 mm |
| Pitch Cylinder Closed Length | 3.7 in. |
| Pitch Cylinder Closed Length | 94 mm |
| Tilt Cylinder Bore | 17.7 in. |
| Tilt Cylinder Bore | 450 mm |
Primary Undercarriage
| Tracks | Large deep-heat-treated components; pins and bushings are sealed for life; rollers and idlers are permanently sealed and lubricated. |
| Track Gauge | 61 in. |
| Track Gauge | 1447.8 mm |
| Grouser Width (Shoe Width) | 18 in. |
| Grouser Width (Shoe Width) | 457.2 mm |
| Chain | Sealed and lubricated |
| Shoes, Each Side | 40 |
| Track Rollers, Each Side | 7 |
| Track Length on Ground | 103 in. |
| Track Length on Ground | 2616.2 mm |
| Ground Contact Area | 3720 sq in. |
| Ground Contact Area | 24000 cm² |
| Ground Pressure | 6.4 psi |
| Ground Pressure | 44.1 kPa |
| Track Pitch Standard | 6.7 in. |
| Track Pitch Standard | 170.2 mm |
Operating Weights
| Operating Weights Type | With standard equipment, rollover protective structures, full fuel tanks, 175-lb (79 kg) operators |
| Base Weight | 21165 lb. |
| Base Weight | 9600 kg |
Serviceability
| Fuel Tank Capacity with Lockable Cap | 53.45 gal. |
| Fuel Tank Capacity with Lockable Cap | 202.3 L |
| Diesel-Exhaust Fluid (DEF) Tank Capacity | 3.3 gal. |
| Diesel-Exhaust Fluid (DEF) Tank Capacity | 12.5 L |
| Cooling System Capacity with Recovery Tank | 4.5 gal. |
| Cooling System Capacity with Recovery Tank | 17 L |
| Engine Oil Capacity with Filter | 15.5 qt |
| Engine Oil Capacity with Filter | 14.7 L |
| Hydraulic / Hydrostatic Oil (Common Reservoir) Capacity with Filters | 74.4 qt |
| Hydraulic / Hydrostatic Oil (Common Reservoir) Capacity with Filters | 70.4 L |
| Final Drive Capacity (Each) | 9.2 qt |
| Final Drive Capacity (Each) | 8.7 L |
| Engine Oil Change Interval | 500 hours |
| Final Drive Oil Change Interval | 1000 hours |
| Hydraulic Oil Change Interval | 4000 hours |
| Hydrostatic Oil Change Interval | 4000 hours |
| Engine Coolant Change Interval | 6000 hours |
| Cab Fresh Air and Recirculation Filters Service Hours | As required |
| Primary Engine Air Filter Service Hours | As required |
| Secondary Engine Air Filter Service Hours | As required |
| Engine Oil Filter Service Hours | 500 |
| Primary Fuel Filter Service Hours | 500 |
| Final Fuel Filter Service Hours | 500 |
| Auxiliary Fuel Filter (If Equipped) Service Hours | 500 |
| Fuel Tank Breather Service Hours | 2000 |
| Hydrostatic Transmission Filter Service Hours | 2000 |
| Hydraulic System Filter Service Hours | 2000 |
| Diesel-Exhaust Fluid (DEF) Dosing Unit Filter Service Hours | 4000 hours or 3 years |
| Diesel-Exhaust Fluid (DEF) Tank Breather Service Hours | As required |
| Diesel-Exhaust Fluid (DEF) Inline Filter Service Hours | 6000 hours or 3 years |
| OCV Filter Service Hours | 2000 hours |
| Sight Gauges Type | Hydraulic/hydrostatic reservoir |
Monitoring and Alerts
| Alternator, Low Voltage | Indicator |
| Battery Voltage | Display |
| Engine Air Filter Restriction | Indicator |
| Engine Coolant Temperature | Gauge, Indicator, and Audible Alarm |
| Engine Oil Pressure | Gauge, Indicator, and Audible Alarm |
| Fan Reversal | Sealed Switch Module (SSM) |
| FNR / Park Indication | Display |
| Fuel Level | Gauge and Indicator |
| Diesel-Exhaust Fluid (DEF) Level | Gauge, Indicator, and Audible Alarm |
| Hourmeter | Display |
| Hydraulic Oil Filter Restriction | Indicator |
| Hydraulic Oil Temperature | Indicator and Audible Alarm |
| No Engine Decel Indicator | Sealed Switch Module (SSM) |
| Park Brake Engaged | Indicator |
| Return to Neutral | Indicator |
| Seatbelt | Indicator |
| Caution Light (Service Code Check) | Indicator |
| Stop Indicator | Indicator and Audible Alarm |
| Tachometer | Display |
| Transmission Oil Charge Pressure | Display, Indicator, and Audible Alarm |
| Transmission Oil Charge Filter Restriction | Indicator |
| Transmission Oil Temperature | Indicator and Audible Alarm |
| Transmission Speed | Display |
| Water in Fuel | Indicator |
Hydraulics
| Type | Open center hydraulic system with fixed-displacement gear pump |
| Type (Electro-Hydraulic Option) | Open center hydraulic system with fixed-displacement gear pump |
| Pump Displacement | 2.16 cu in. |
| Pump Displacement | 35.4 cc |
| System Relief Pressure | 3000 psi |
| System Relief Pressure | 20684.3 kPa |
| Filter, Return Oil | 8 micron |
| Maximum Flow at Unloaded High Idle | 19 gpm |
| Maximum Flow at Unloaded High Idle | 71.9 L/min |
| Control | Three-function direct-acting T-bar grip |
| Control (Electro-Hydraulic Option) | Three-function electro-hydraulic joystick with proportional roller angle function |
| Cooling | oil-to-air |

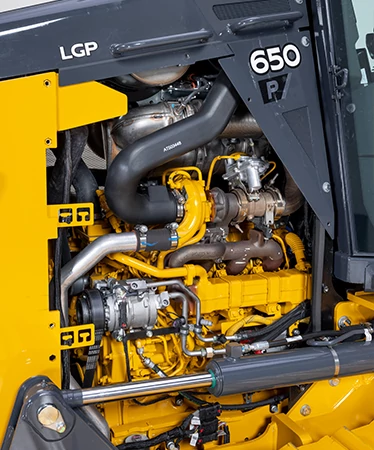

Primary Engine Option
| Manufacturer | John Deere |
| Model | PowerTech PWS 4045 |
| Non-Road Emission Standards | EPA Final Tier 4/EU Stage IV |
| Cylinders | 4 |
| Valves per Cylinder | 4 |
| Displacement | 276 cu in. |
| Displacement | 4.5 L |
| SAE Net Rated Power at 2000 rpm | 104 hp |
| SAE Net Rated Power at 2000 rpm | 77.6 kW |
| Net Peak Torque at 1400 rpm | 363 lb-ft |
| Net Peak Torque at 1400 rpm | 492.2 Nm |
| Net Torque Rise | 103 lb-ft |
| Net Torque Rise | 139.6 Nm |
| Engine Bore and Stroke | 4.19 x 5 in. |
| Engine Bore and Stroke | 10.6 x 12.7 mm |
| Aspiration | Turbocharged with charge air cooler |
| Air Cleaner | Dual-stage dry tube with tangential unloader |
| Lubrication | Pressure system with full-flow spin-on filter and oil-to-water cooler |
| Fuel System | High pressure common rail |
| Slope Operation, Maximum Angle | 45 degree (angle) |
Cooling
| Fan Type | Variable-speed suction fan with optional reversing feature |
| Engine Coolant Rating | -34 °F |
| Engine Coolant Rating | -36.7 ℃ |
| Engine Radiator Fins per Inch | 8 |
| Hydrostatic Cooler (Oil/Air) | 9.5 |
| Hydraulic Cooler (Oil/Air) | 9.5 |
| Charge Air Cooler (Air/Air) | 6.35 |
Electrical And Lighting
| Voltage | 24 V |
| Number of 12-V Batteries | 2 |
| Battery Capacity | 950 CCA |
| Reserve Capacity Time | 190 minutes |
| Cab Alternator Rating | 100 amp |
| Canopy Alternator Rating | 100 amp |
| Lights Standard | (4) cab mounted |
| Lights Optional | (8) cab mounted LED |
Operator Station and Controls
| Type | ROPS (ISO 3471 - 2008) and FOPS (ISO 3449 - 2005) |
