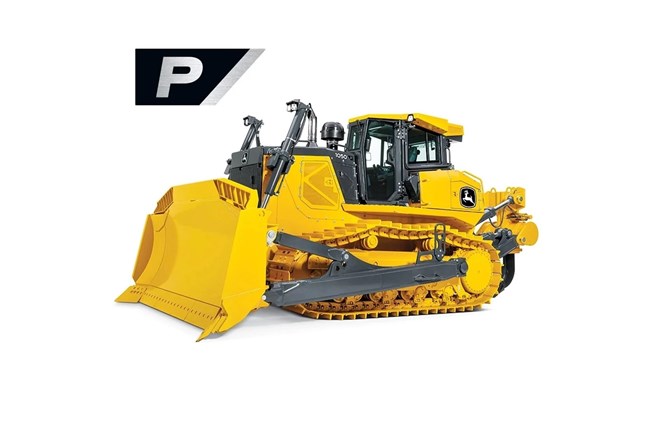

John Deere 1050 P-Tier

Double tap to zoom



Features

Productivity Enhancements

John Deere skid steer loader with a wide front grading attachment leveling soil at a construction site, with a commercial building, dirt piles, and clear blue sky in the background.

The updated John Deere 1050 P-Tier Dozer features a wider 168-in. (1727-mm) semi-u blade and a redesigned linkage that shortens the machine by 17 in. (432 mm), enhancing balance and grading. With a 356-hp (265.5-kW) JD14 engine, 95,400 lb. (43,273 kg) operating weight, and 103 in. (2616 mm) of track on ground, it delivers top-tier power and visibility, while requiring less fuel and maintenance.

Purpose-Built Package for the Waste Industry

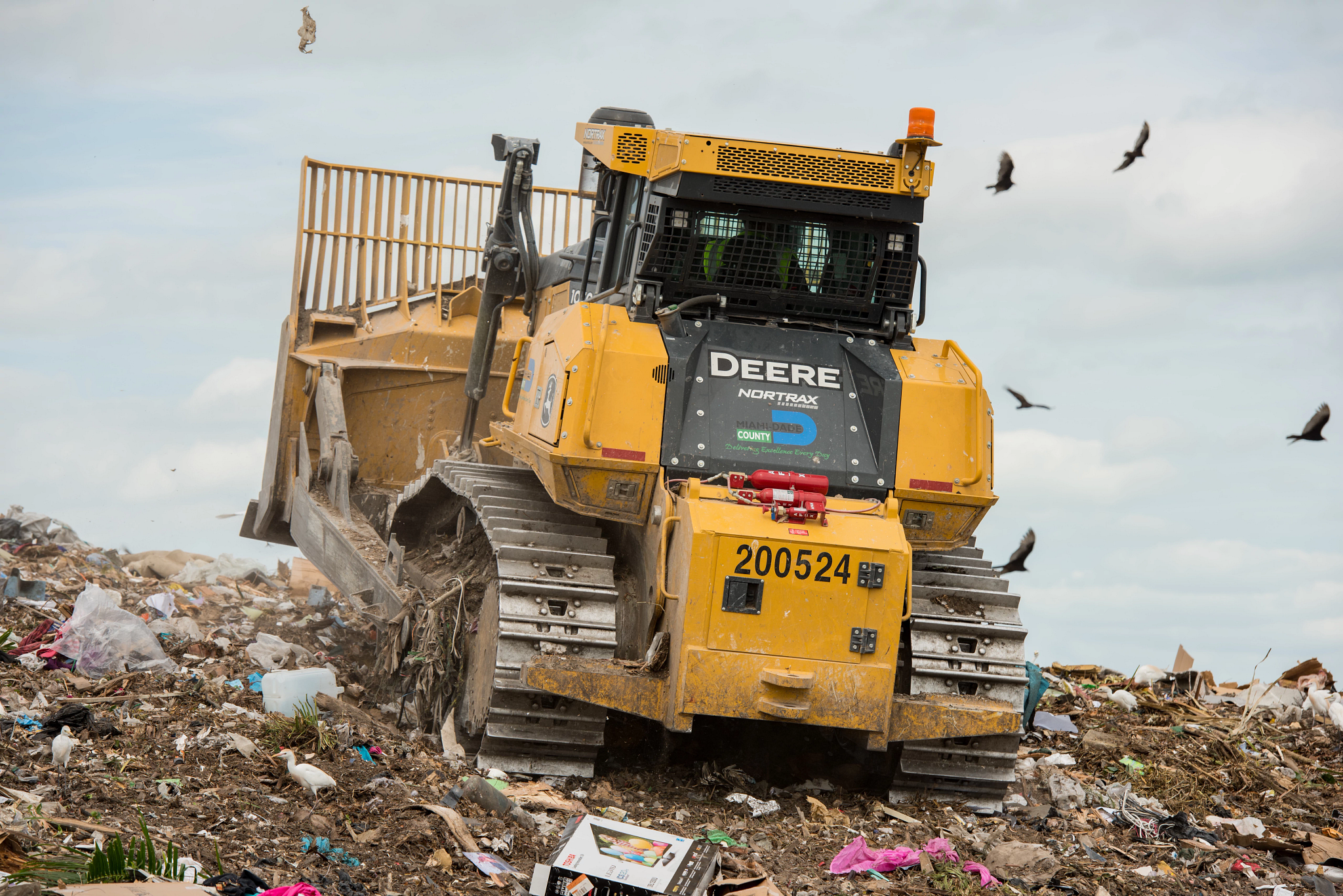

Tracked dozer operating at a landfill, pushing debris and waste uphill with a front blade.

John Deere waste handler dozers are purpose-built for landfill operations, featuring specialized guarding, debris management sealing, and a semi-U blade with an integrated trash rack to enhance durability and reduce downtime. Key components like a high debris engine air precleaner, heat-wrapped exhaust, and guarded final drives help maintain performance and safety in harsh environments.

Lessen Operating Costs With Increased Durability

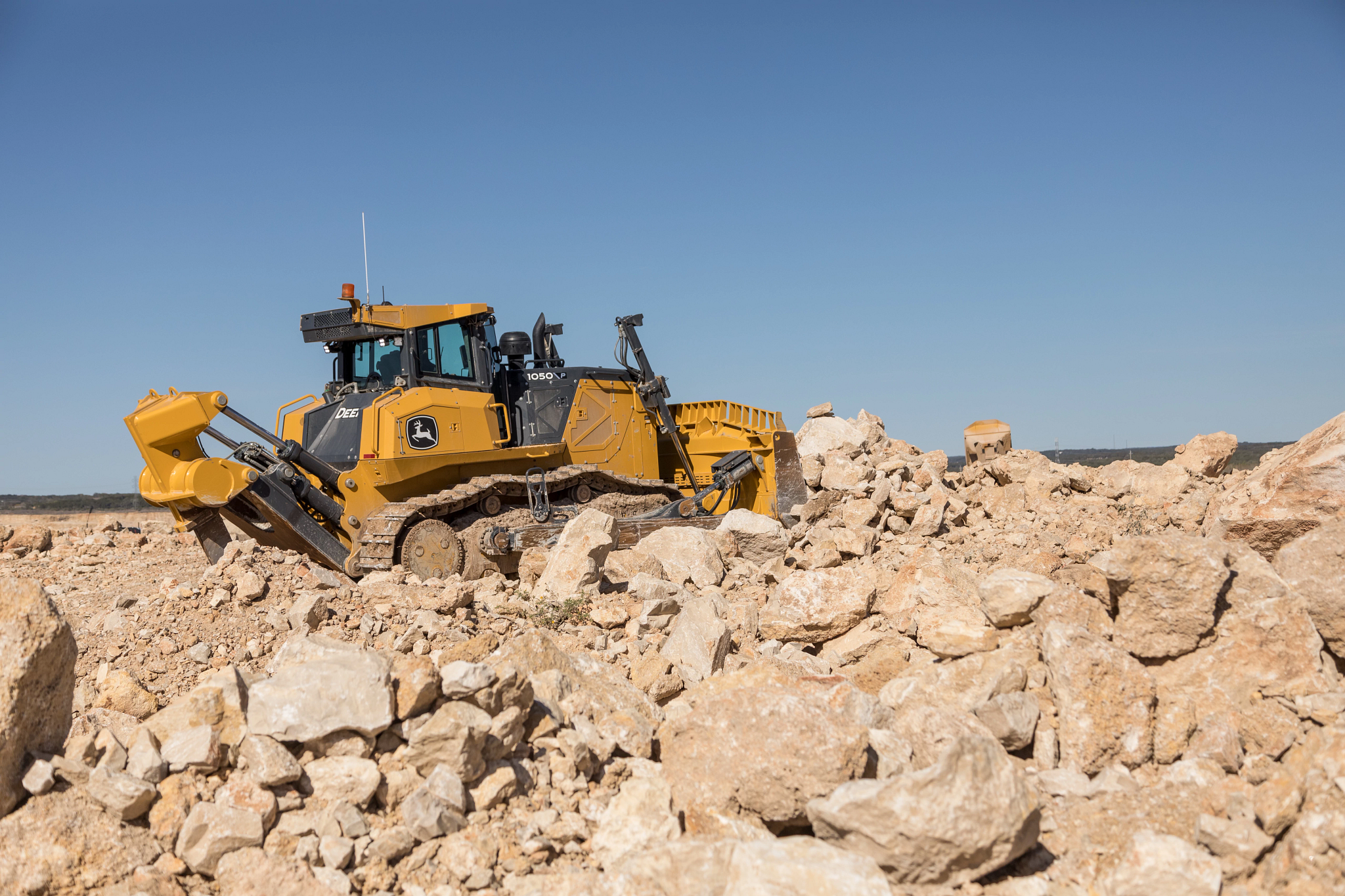

Rear right view of an orange construction 1050 P-Tier dozer pushing boulders around a rock field

The 1050 P-Tier Dozer features a redesigned suspended double-bogie undercarriage that cuts cab vibrations by up to 75% in rocky terrain, enhancing ride comfort and durability. It also includes a new JD14 engine that boosts fuel efficiency and meets emissions standards without a DPF, while a 70-degree tilting cab and grouped service points streamline maintenance.

Specifications

Machine Dimensions

Overall Height to Roof137 in.
Overall Height to Roof3480 mm
Ground Clearance in Dirt21 in.
Ground Clearance in Dirt537 mm
Blade Digging Depth20 in.
Blade Digging Depth516 mm
Blade Width (Straight)167 in.
Blade Width (Straight)4242 mm
Blade Tilt (Straight)35 in. / 832 mm
SAE Capacity (Mechanical Angle Blade)14.6 cu yd
SAE Capacity (Mechanical Angle Blade)11.2 m³

Serviceability

Fuel Tank Capacity with Lockable Cap180 gal.
Fuel Tank Capacity with Lockable Cap681 L
Hydraulic Reservoir and Filter Capacity23 qt
Hydraulic Reservoir and Filter Capacity87 L

Powertrain

Transmission TypeHydrostatic
Forward Travel Speed6.8 mph
Forward Travel Speed11 km/h
Reverse Travel Speed6.8 mph
Reverse Travel Speed11 km/h
Final Drives TypePlanetary

Hydraulics

TypePiston
Pump Capacity (High Flow)80 gpm
Pump Capacity (High Flow)303 L/min

Primary Undercarriage

Track Gauge86 in.
Track Gauge2184 mm
Shoes, Each Side46
Track Rollers, Each Side8
Track Length on Ground134 in.
Track Length on Ground3404 mm
Ground Contact Area7207 sq in.
Ground Contact Area46498 cm²
Ground Pressure13 psi
Ground Pressure90 kPa
Oscillation at Front RollerYes

Operating Weights

Base Weight94000 lb.
Base Weight42640 kg

Primary Engine Option

ManufacturerJohn Deere
ModelJD14
Displacement827 cu in.
Displacement13.6 L
